Description

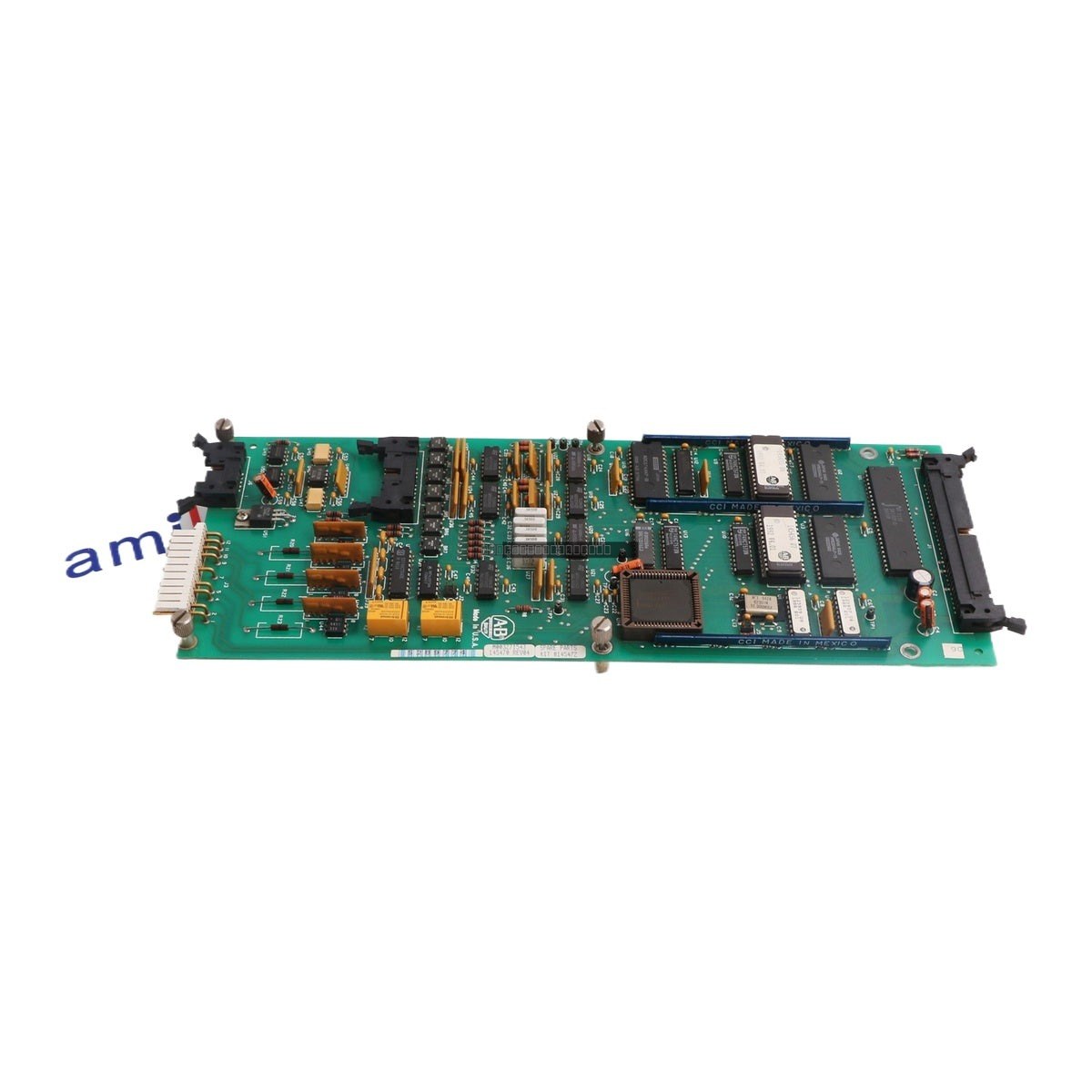

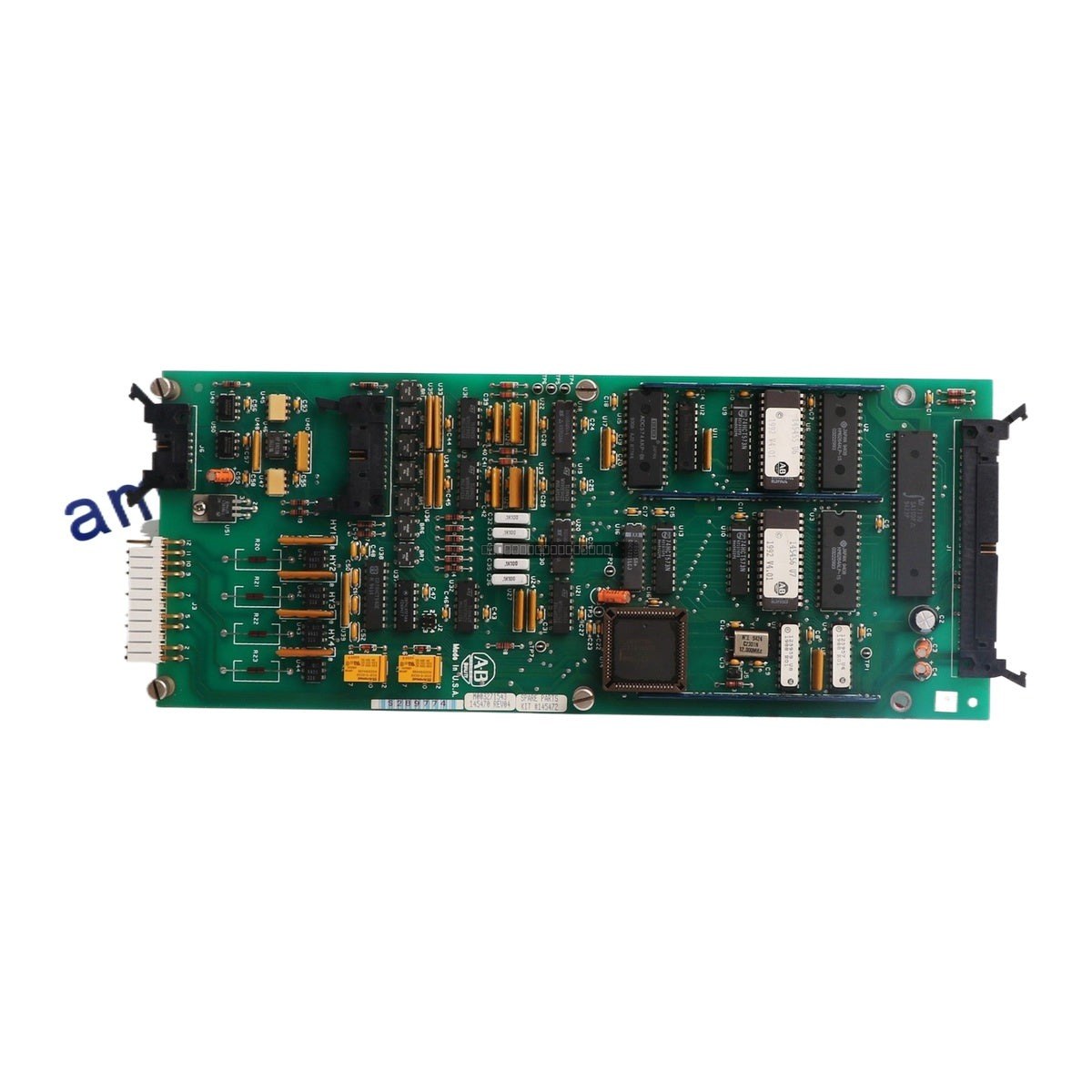

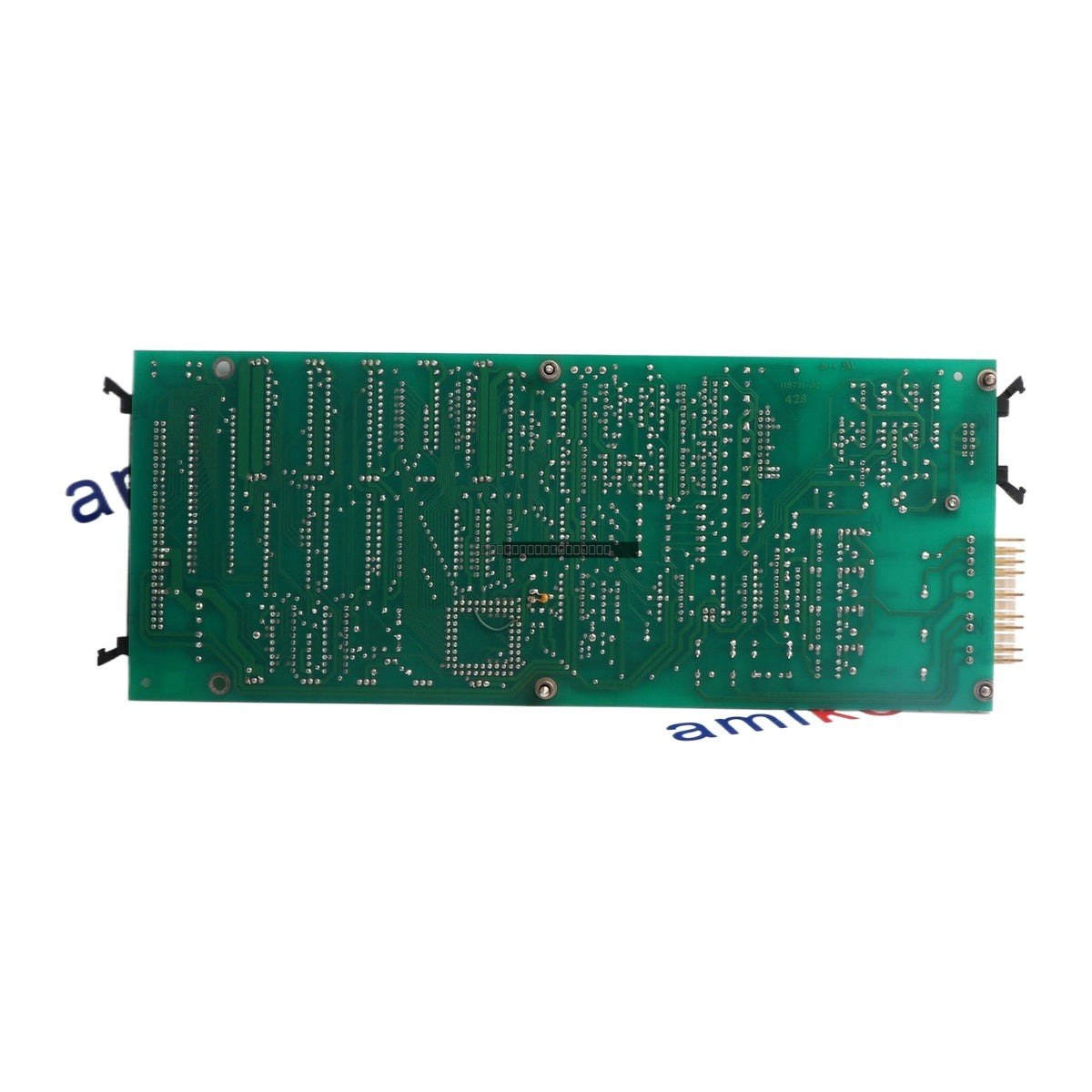

The Allen-Bradley SP-145472/145470 is a specialized discrete adapter card designed for integration within industrial control systems. This printed circuit board (PCB) serves as a critical interface component, facilitating reliable signal communication and discrete I/O management within the host architecture. It is engineered to meet the rigorous demands of industrial environments, ensuring consistent performance for automation and control applications.

Features

• Discrete adapter card configuration for streamlined signal processing.
• Robust PCB construction designed for long-term reliability in industrial settings.
• Compatible as a direct replacement or spare for specified Allen-Bradley control systems.
• Compact form factor for efficient installation within standard control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the adapter card to prevent electrical damage.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the card is fully seated in the designated slot or backplane connector to ensure proper electrical contact.
• Maintain a clean, dry, and vibration-free environment within the cabinet to optimize the lifespan of the board.
• Ensure proper grounding of the control chassis to minimize electromagnetic interference (EMI) during operation.

FAQ

What is the primary function of the SP-145472/145470?
This module functions as a discrete adapter card, providing the necessary interface for discrete signal handling within an Allen-Bradley automation system.

Is this board compatible with the 119711-02 spare model?
Yes, the SP-145472/145470 is listed as compatible with the 119711-02 spare model reference.

What precautions should be taken during installation?
Always power off the system, use appropriate ESD protection, and ensure the card is correctly aligned and seated in its slot before restoring power.
