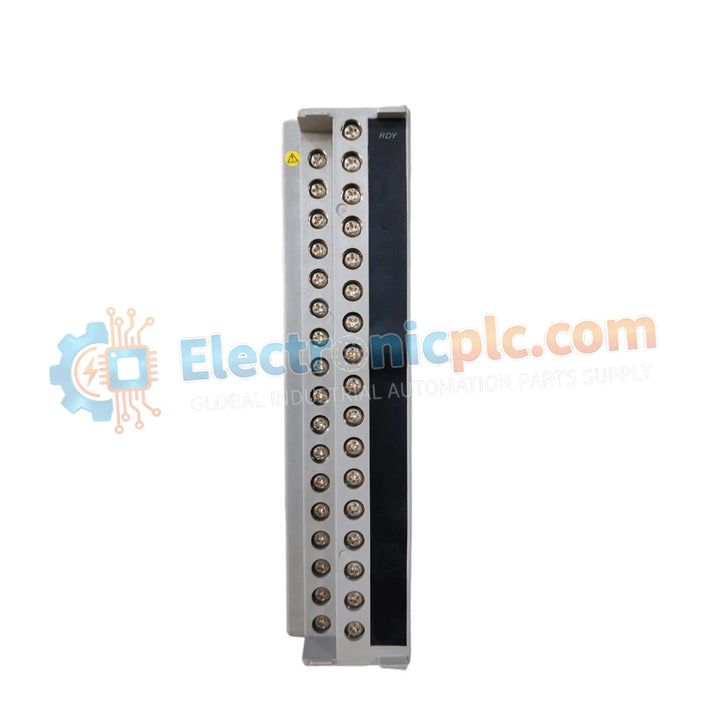

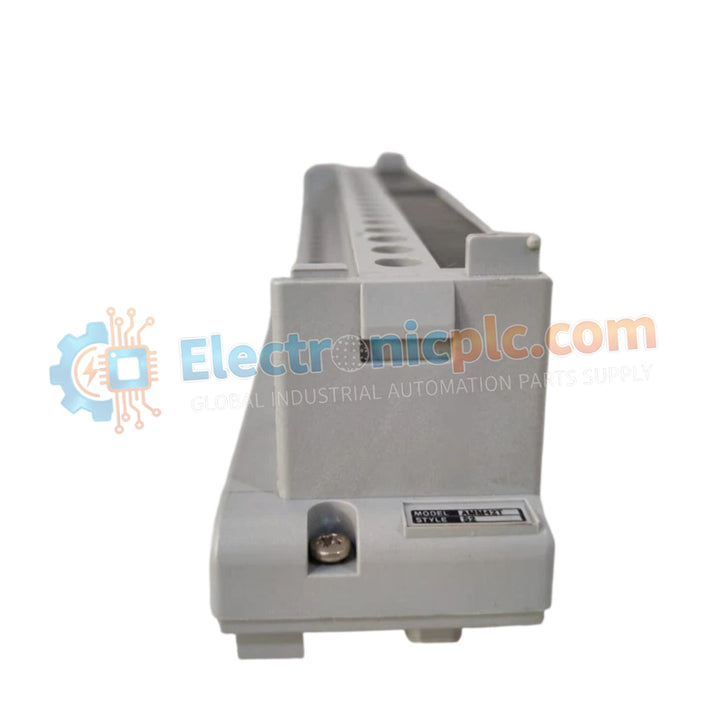

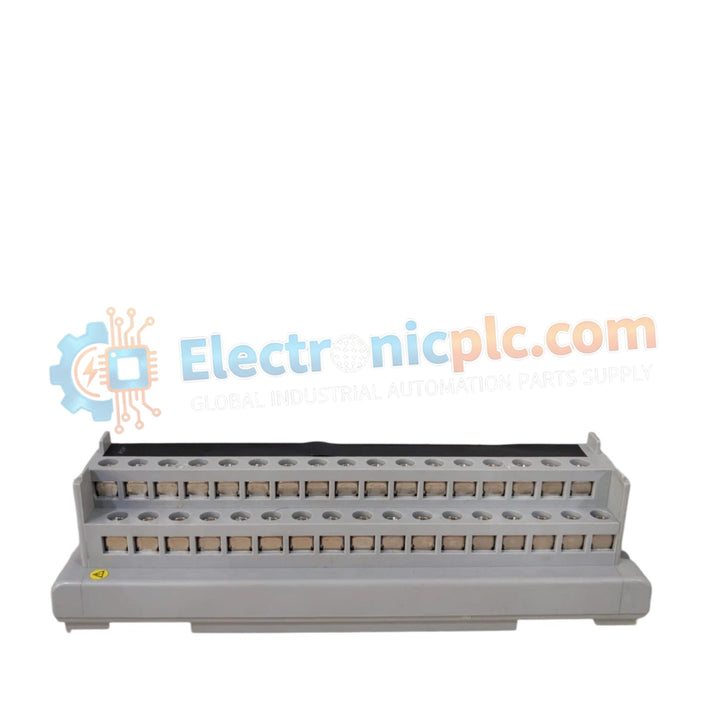

The Yokogawa AMM22T, also cataloged as the AMM22T Thermocouple Input Multiplexer Module, operates as a high-density hardware component for multi-channel thermal data acquisition and signal conditioning within Yokogawa industrial control platforms.

Hardware Specifications

Industrial Control and Signal Processing

The AMM22T module architecture facilitates efficient thermal data ingestion by multiplexing multiple thermocouple inputs into a single high-speed processing stream. By utilizing advanced cold junction compensation (CJC) circuitry integrated directly onto the board, the module ensures accurate temperature measurement by accounting for local terminal block thermal variances. High-speed backplane bus communication velocity enables the module to deliver deterministic thermal data to the host CPU, allowing for precise control and monitoring in high-density process automation applications.

Frequently Asked Questions

Q: Does the AMM22T module support all standard thermocouple types (e.g., K, J, T)?

A: Yes. The module is engineered to support universal thermocouple types, which can be configured through the host control system software to match the specific field sensor requirements.

Q: Are the input channels galvanically isolated to prevent measurement noise?

A: Yes. The module utilizes channel-to-channel isolation barriers to minimize the risk of ground loops and electromagnetic interference, ensuring the integrity of low-millivolt thermal signals in noisy industrial environments.

Field Installation Guidelines

• Mechanical Installation: Seat the AMM22T module securely into the base unit slot. Ensure the backplane connector is fully engaged and lock the module in place to prevent vibration-induced signal disruption.
• Grounding Protocols: Connect the module's frame ground to the cabinet's protective earth (PE) bus. A stable reference ground is essential for minimizing noise floor elevation in thermocouple measurement loops.
• Wiring Practices: Use appropriate thermocouple extension wire and maintain consistent polarity across all connections. Keep sensor leads away from AC power cabling and high-current inductive loads to prevent inductive interference.
• Environmental Considerations: Maintain the ambient operating temperature between 0 and 55 deg C. Ensure the module is housed in an enclosure with adequate airflow to prevent heat accumulation that could affect the accuracy of the internal CJC sensors.
