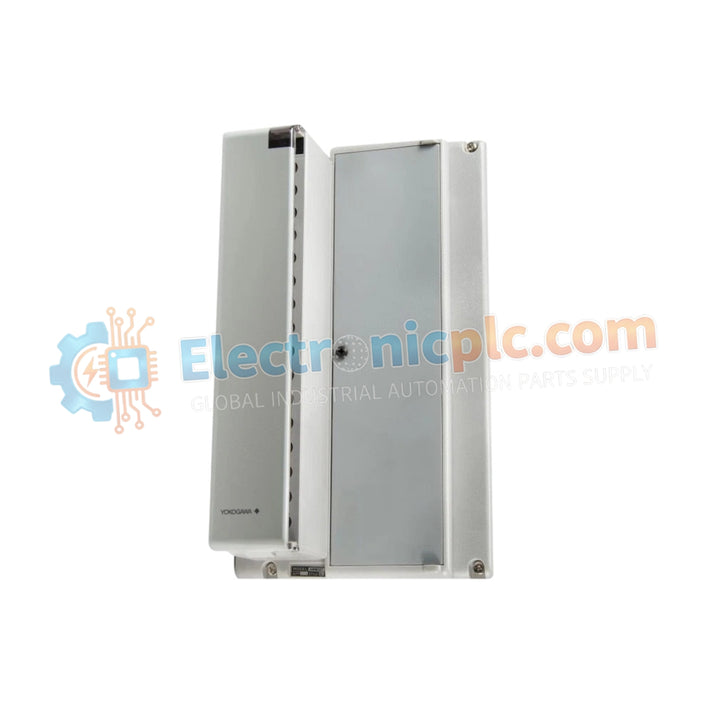

Configured for high-resolution process monitoring in Centum CS and Centum VP distributed control systems, the YOKOGAWA AMM31 (AMM31 Analog Input Module) provides a versatile, 16-bit interface for diverse field-level measurements. This module facilitates the accurate conversion of standardized electrical signals into deterministic digital data for real-time supervisory control.

Hardware Specifications

Process Control & Signal Integration

The AMM31 is engineered for robust data acquisition through its high-resolution 16-bit analog-to-digital converter (ADC), which allows for fine-grained process sensing. The module's flexibility in configuration—specifically its adjustable channel types and customizable input ranges—enables it to adapt to varying instrumentation requirements without the need for extensive hardware changes. Furthermore, configurable filtering settings allow the module to suppress process noise, ensuring stable signal delivery even in electrically noisy industrial environments.

Frequently Asked Questions

Q: Can the AMM31 be configured to accept different signal types per channel?

A: Yes. The module features adjustable channel types and customizable input ranges, allowing for a mix of signal formats (such as 4-20 mA and 0-10 V) across the card’s inputs depending on the specific system configuration.

Q: How does the 16-bit resolution benefit industrial monitoring?

A: A 16-bit ADC provides $2^{16}$ (65,536) discrete steps across the full-scale range. This high resolution significantly improves the sensitivity and accuracy of measurements, which is critical for precise control loops in petrochemical and power generation processes.

Field Installation Guidelines

• Mounting: Install the AMM31 module into the designated slot in the Centum CS/VP rack. Ensure the module is firmly seated to prevent poor electrical contact with the system bus backplane.
• Wiring: Utilize shielded twisted-pair cables for analog signal runs. Terminate cable shields at the cabinet ground bar to mitigate the effects of electromagnetic interference (EMI) on the 16-bit resolution signal integrity.
• Grounding: Bond the module chassis to the cabinet system ground bus. This provides a necessary return path for surge protection and maintains a stable reference potential for the analog inputs.
• Commissioning: Use the Centum engineering station to confirm channel configuration and range settings. Perform a loop check by applying a known signal to the field terminals to verify the module's accuracy versus the displayed process value.
