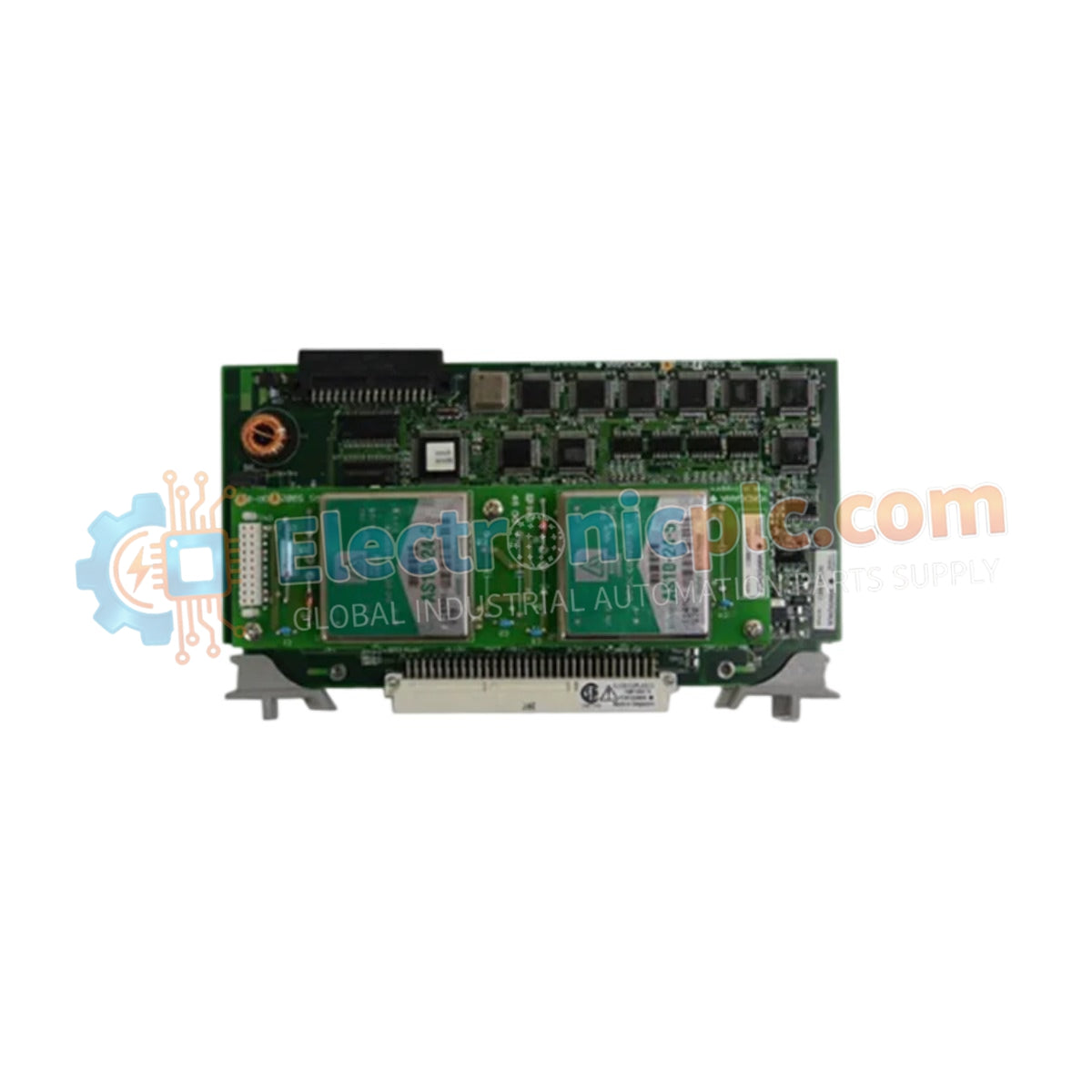

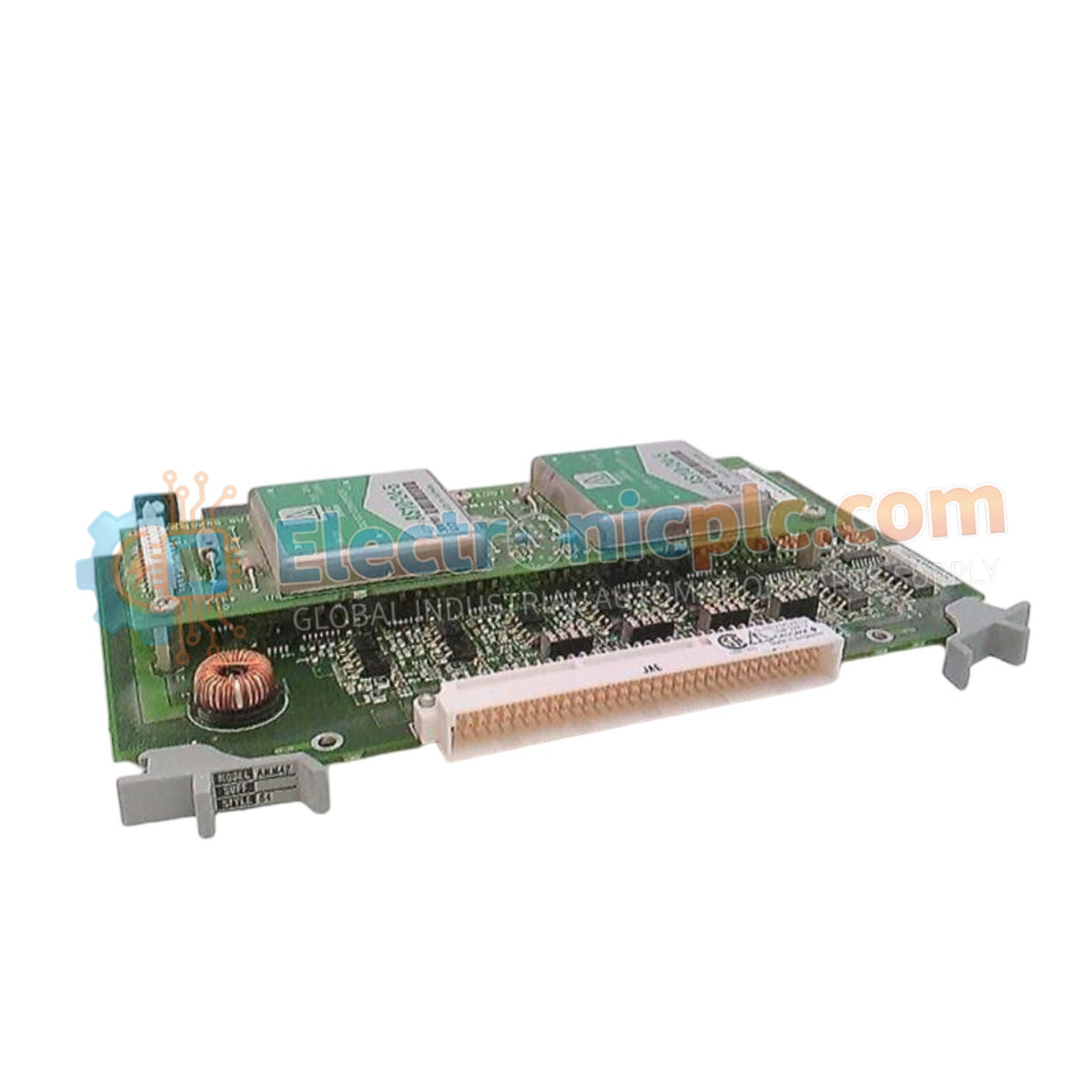

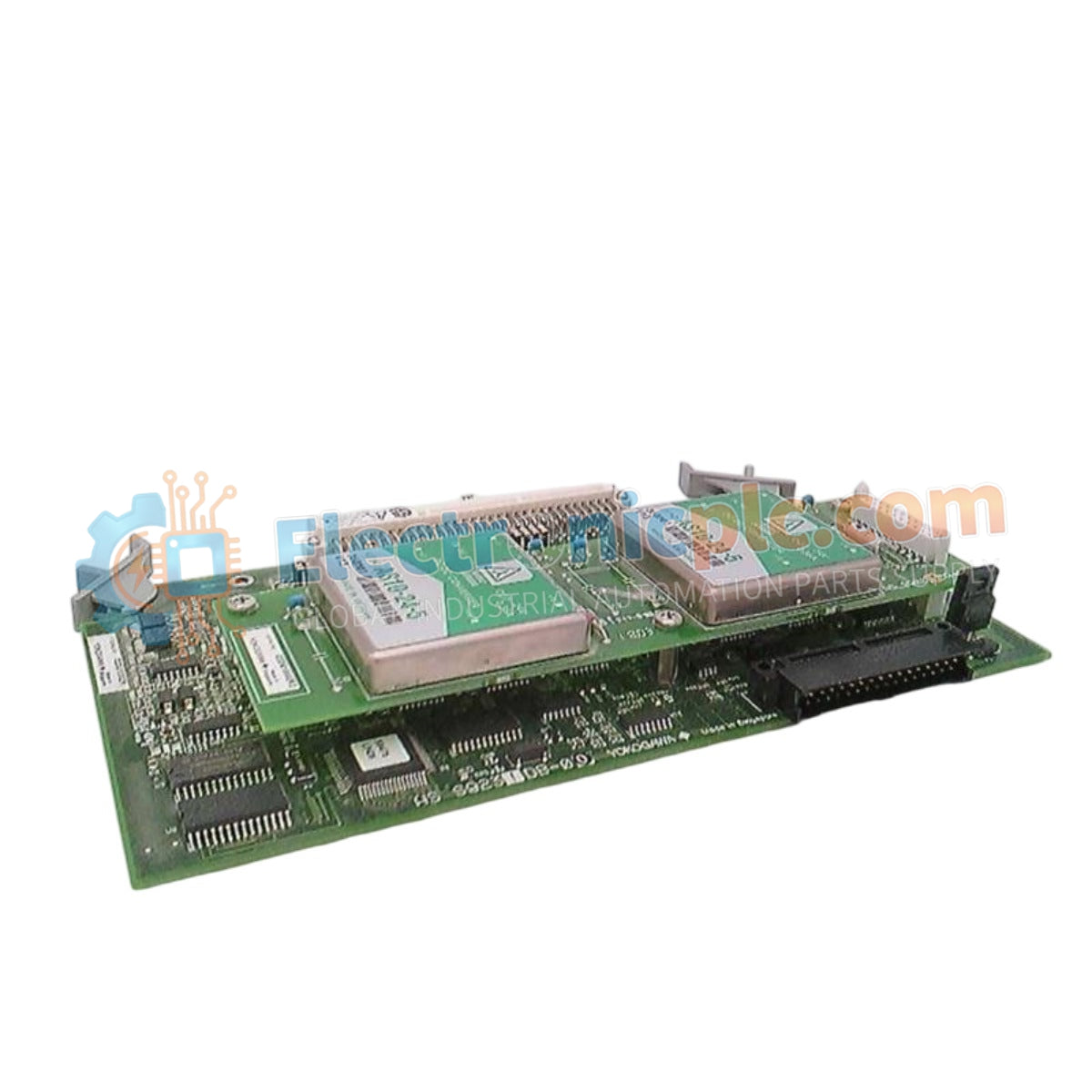

Configured for stable power distribution in control system racks, the YOKOGAWA AMM42-S4 (AMM42-S4 Power Supply) provides direct physical electrical regulation for 2-wire transmitter loops within DCS platforms.

Hardware Specifications

DCS Process Loop Connectivity and Isolation

The module architecture ensures dedicated channel-to-channel isolation for 2-wire transmitter loops, preventing electrical noise propagation between individual field devices. It supports standard 4-20 mA HART loop protocol connectivity, maintaining signal integrity for remote monitoring. Thermal dissipation is managed through a passive heat sink profile integrated into the chassis, allowing for continuous operation without forced convection under standard ambient conditions.

Frequently Asked Questions

Q: Is this module compatible with existing 24 VDC common bus structures?

A: Yes, the output is designed to interface with standard backplane power rails, provided the total current draw does not exceed the rated capacity of the bus segments.

Q: Does the module provide protection against short-circuit conditions on the field loop?

A: The circuitry includes current-limiting logic to protect against field-side short circuits, though proper external fusing is required to meet specific site safety standards.

Field Installation Guidelines

• Verify that the primary AC supply voltage matches the input rating of the power rack before seating the module.
• Ensure the module is fully latched into the backplane to establish a low-impedance ground connection for EMI shielding.
• Use shielded twisted-pair cabling for all field loops, ensuring the shield is terminated to the cabinet ground at one end only to prevent ground loop currents.
• Maintain a minimum clearance of 5 cm above and below the module to allow for natural convection cooling and temperature stabilization.
