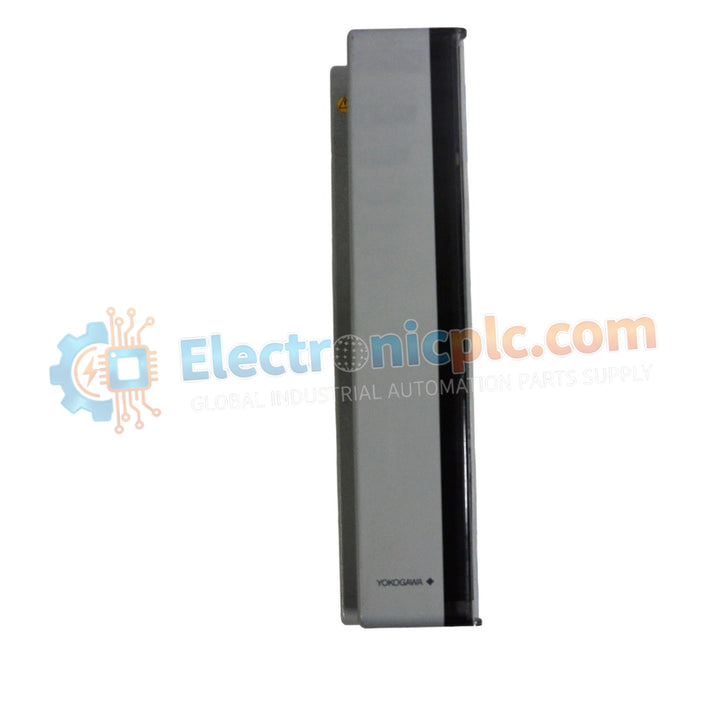

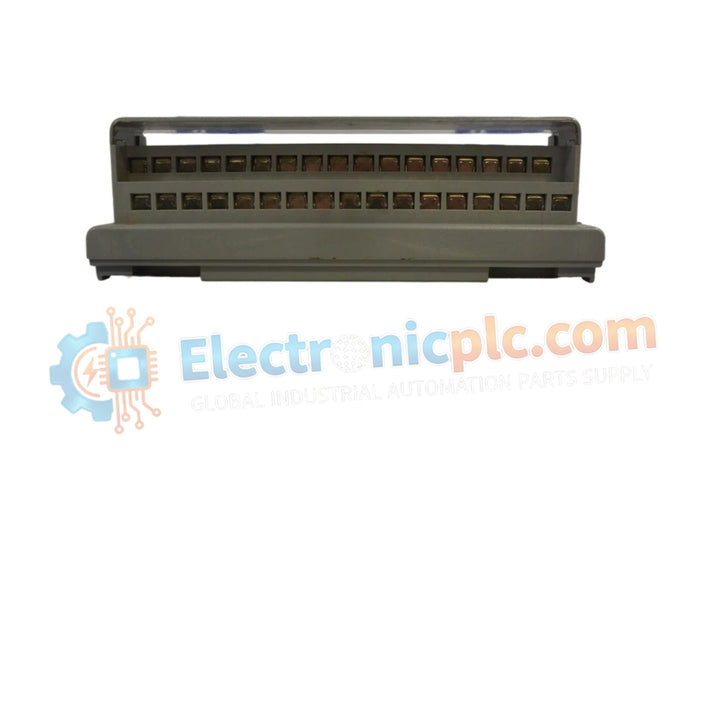

The YOKOGAWA AMM52T, also cataloged as the AMM52T Wiring Terminal Module, operates as a dedicated hardware component for signal termination and interface management within industrial PLC and DCS control platforms.

Hardware Specifications

Control Integration and Signal Distribution

The module serves as the physical bridge between field-side field instrumentation and the system-side I/O card backplane. It facilitates high-speed signal distribution while maintaining galvanic separation to protect sensitive PLC internal circuitry from field-side electrical transients. The design includes integrated cable management features to ensure high-density signal paths remain organized and shielded, effectively reducing crosstalk in complex cabinet wiring architectures.

Frequently Asked Questions

Q: Does the AMM52T terminal module include built-in surge protection?

A: The module provides standard mechanical termination; primary surge protection must be handled by external DIN-rail mounted surge arrestors installed between the field entry point and the terminal block.

Q: Can this terminal module be used for both current (4-20 mA) and digital signals?

A: Yes, the module supports mixed-signal termination; ensure that cable shielding is implemented correctly for analog loops to prevent interference from high-speed digital switching circuits.

Field Installation Guidelines

• Verify that the terminal module is securely mounted on the DIN rail, ensuring the locking clips are fully engaged to prevent mechanical vibration during cabinet operation.
• Strip field wires to the specified length to prevent exposed copper while ensuring sufficient contact area within the screw-clamp terminals.
• Route analog and digital signals in separate cable ducts where possible to prevent inductive coupling and signal noise.
• Confirm that all wire labels match the system wiring schematic and that the terminal torque meets the recommended specification to prevent intermittent signal loss.
