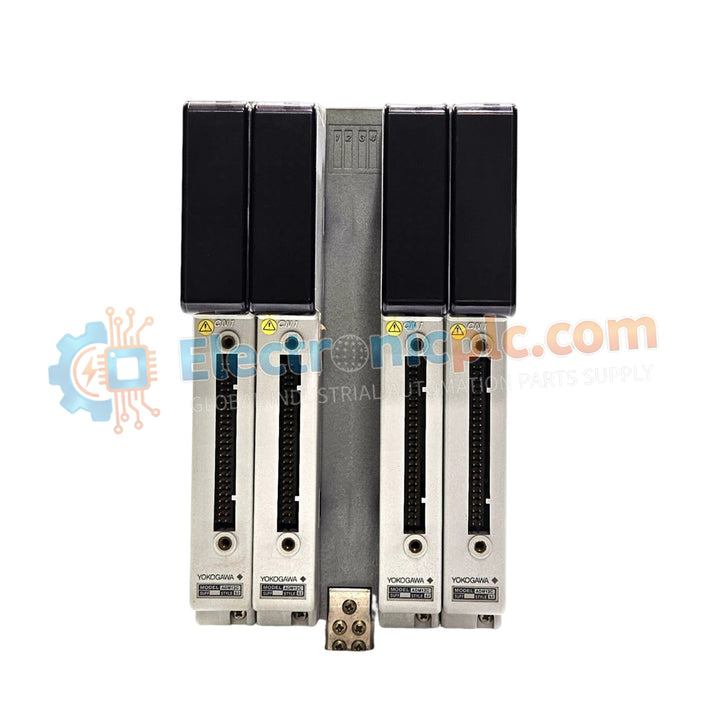

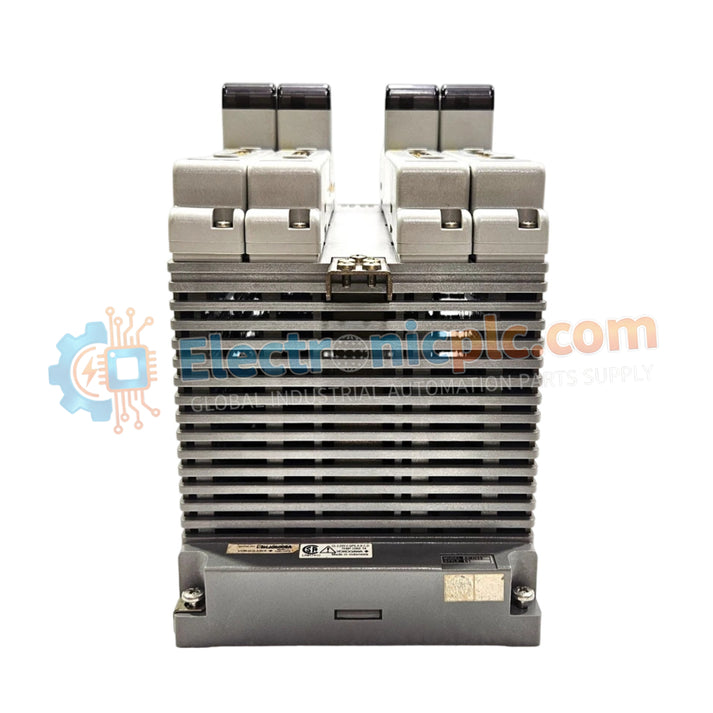

Configured for high-speed signal processing within process control systems, the Yokogawa AMN12 (AMN12 High-Speed Nest) provides direct physical and electrical execution of data exchange between analog I/O modules and the system backplane.

Hardware Specifications

High-Speed Data Exchange and Backplane Integration

The AMN12 high-speed nest acts as the structural and communication backbone for analog I/O modules, facilitating deterministic data transfer required for precise process control. Its design focuses on minimizing signal propagation delay between the I/O modules and the primary control unit, ensuring that analog data remains synchronized across the system bus. By providing a low-impedance electrical path, the nest effectively manages high-speed communication traffic while maintaining signal integrity in demanding industrial environments.

Frequently Asked Questions

Q: Is the AMN12 nest compatible with all Yokogawa I/O modules? A: The AMN12 is specifically designed to support a broad range of Yokogawa analog I/O modules. However, ensure that the module family and firmware iteration are compatible with the AMN12's high-speed communication bus to prevent data collisions or communication timeout errors.

Q: Can the AMN12 be used in high-vibration applications? A: Yes, the unit is constructed for robust industrial performance. However, ensure that the cabinet mounting utilizes appropriate vibration dampening or isolation if the nest is located near high-output machinery to protect the integrity of the electrical backplane connections.

Field Installation Guidelines

• Mounting: The AMN12 supports both 19-inch rack-mount and cabinet-mount configurations. Ensure all mounting screws are tightened to the specified torque to prevent chassis-induced signal noise caused by poor earthing contact.
• Power Distribution: The nest receives power from the system control unit. Verify that the power supply wiring to the nest is properly rated to handle the aggregate current consumption of all installed analog I/O modules.
• Wiring Segregation: Maintain physical separation between analog signal cabling and high-voltage power lines within the cabinet. This is necessary to prevent EMI from inducing noise into the high-speed communication bus.
• Thermal Management: While the nest is designed for industrial use, ensure that the surrounding cabinet environment allows for adequate airflow. Obstructions near the nest can lead to thermal buildup, potentially affecting the performance of the high-speed data exchange components.
