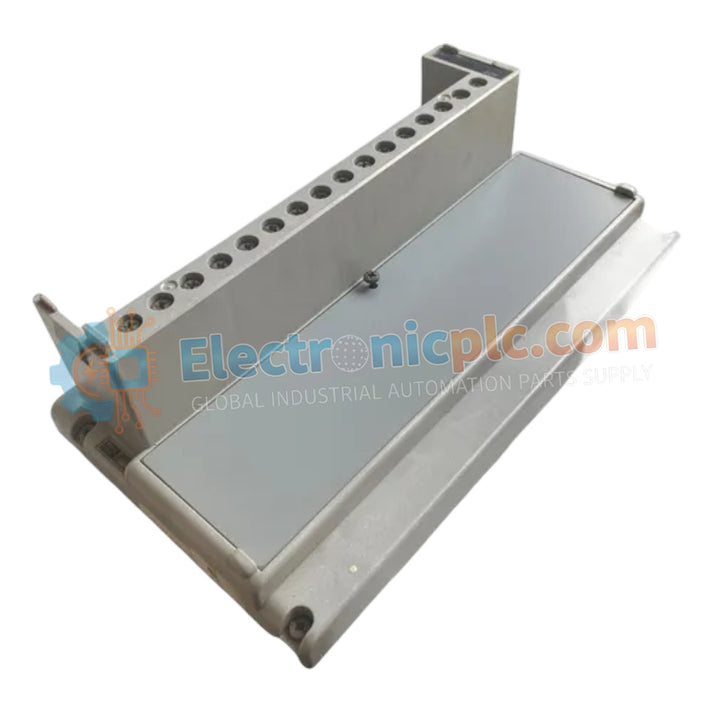

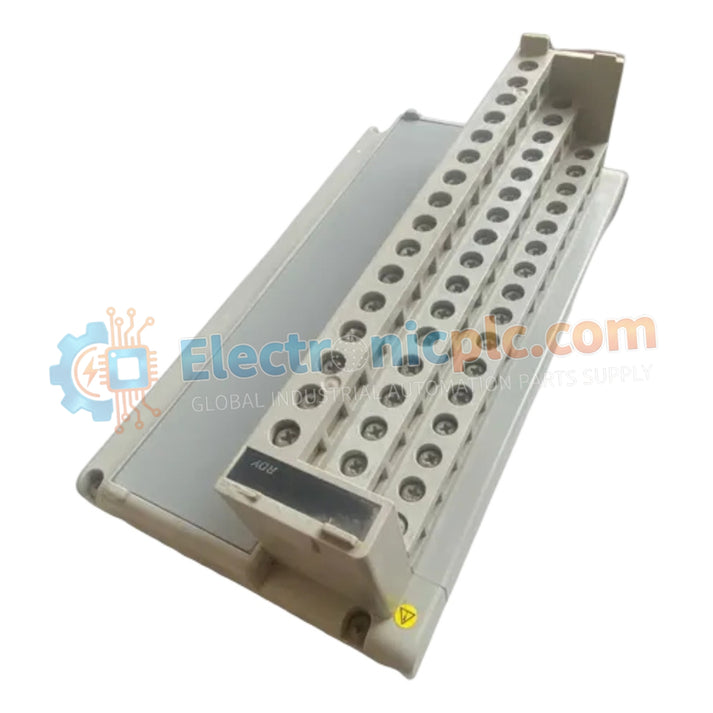

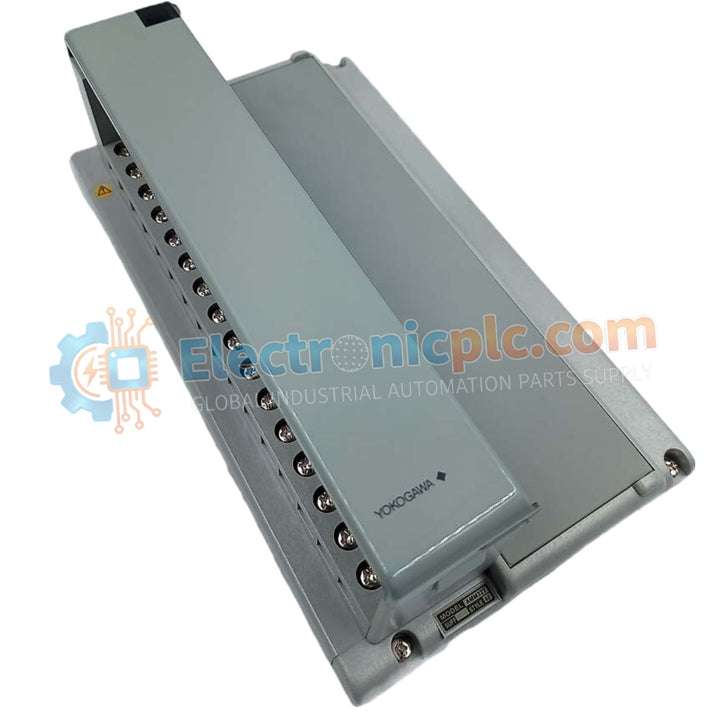

Configured for relay signal switching in control networks, the Yokogawa AMN21 (AMN21 Relay Nest) provides direct physical/electrical execution of modular backplane routing for relay I/O modules across CENTUM CS 1000, CS 3000, and CENTUM VP platforms.

Hardware Specifications

Process Instrumentation and Relay Logic

The AMN21 relay nest architecture provides a robust interface for high-voltage and high-current discrete signal switching. By integrating individual relay slots within a common backplane, the nest facilitates the galvanic isolation of field-side circuits from the low-voltage logic control bus. This design minimizes the risk of back-feed interference and ensures that inductive switching transients are suppressed, preserving the operational longevity of both the field instrumentation and the controller interface modules.

Frequently Asked Questions

Q: Does the AMN21 relay nest support mixed-voltage load configurations?

A: The nest allows for multiple relay modules to be installed; however, each channel must be wired in accordance with the specific voltage rating of the module and the local safety insulation standards for the cabinet.

Q: Is the AMN21 nest suitable for high-frequency switching operations?

A: While designed for industrial process control, the mechanical lifespan of the relays is limited by their duty cycle. For high-frequency switching, ensure that the application does not exceed the mechanical cycle limits specified for the installed relay modules.

Field Installation Guidelines

1. Install the AMN21 nest in a properly ventilated cabinet to maintain the specified operating temperature range.
2. Ensure that high-voltage AC and low-voltage DC wiring paths are strictly segregated within the cabinet to prevent noise coupling.
3. Verify the tightness of terminal connections to prevent contact resistance heating, especially when switching near the 2 A limit.
4. Confirm that all relays are firmly seated in their respective sockets to prevent intermittent signal chatter.
5. Perform a load test on each relay contact to ensure proper continuity and insulation resistance after initial commissioning.
