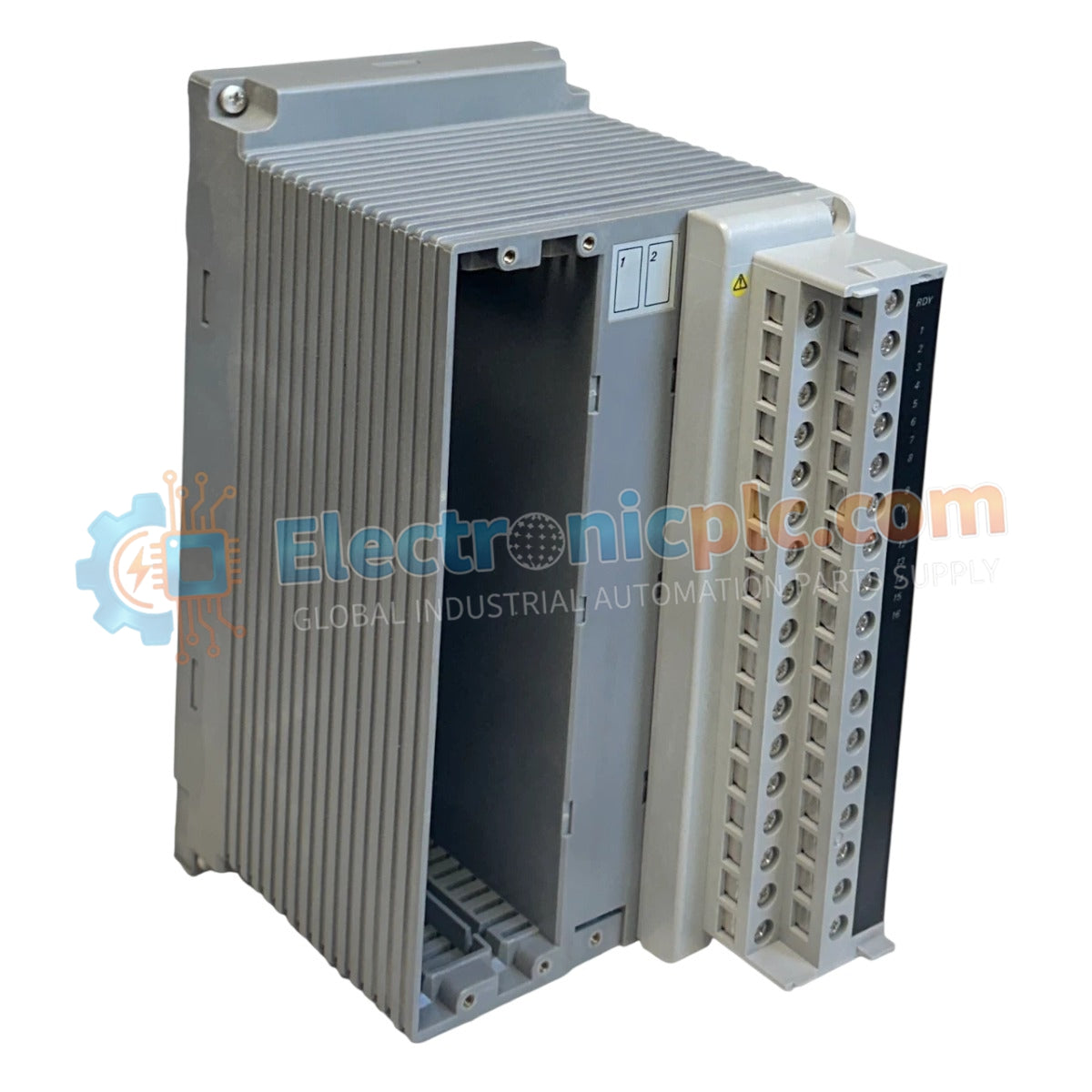

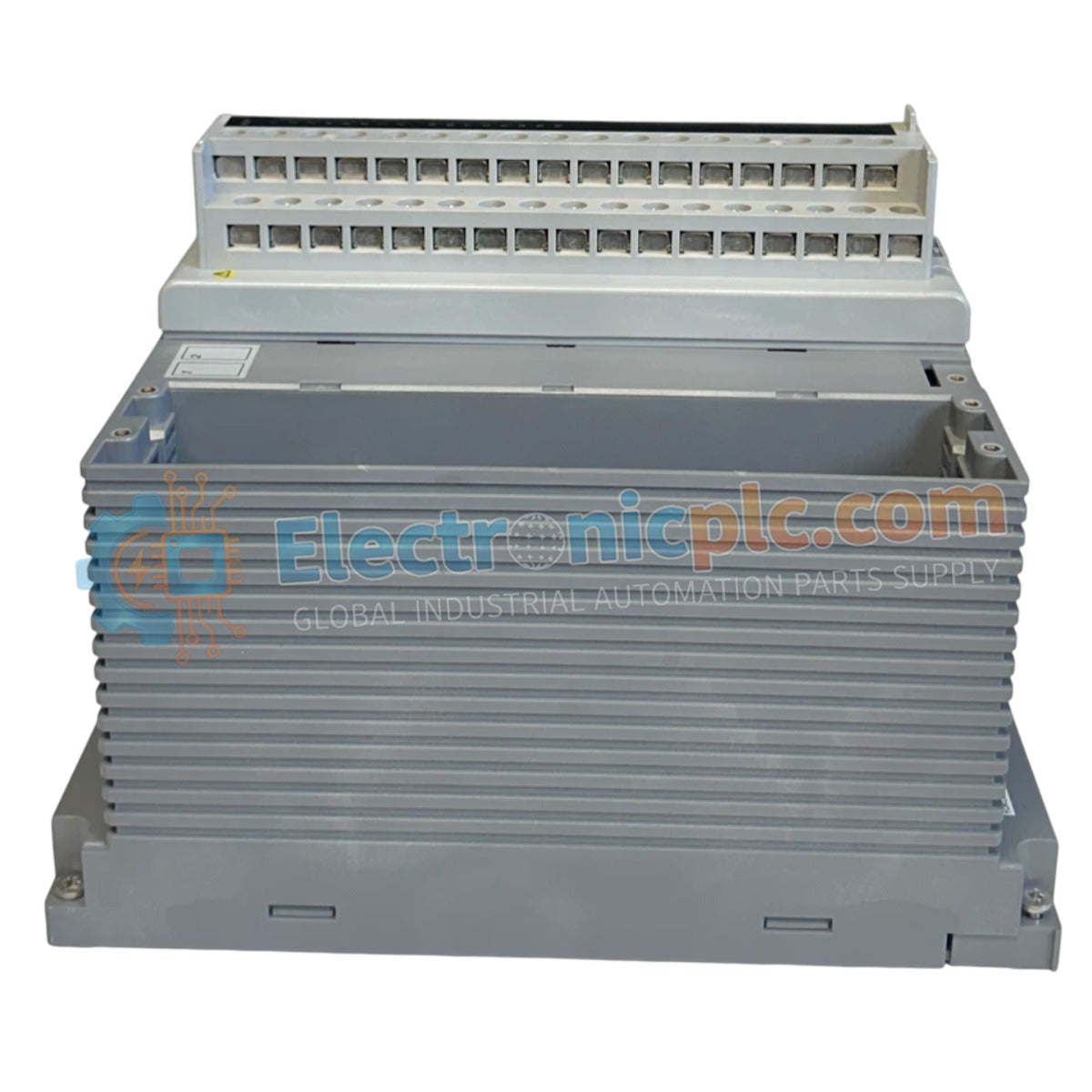

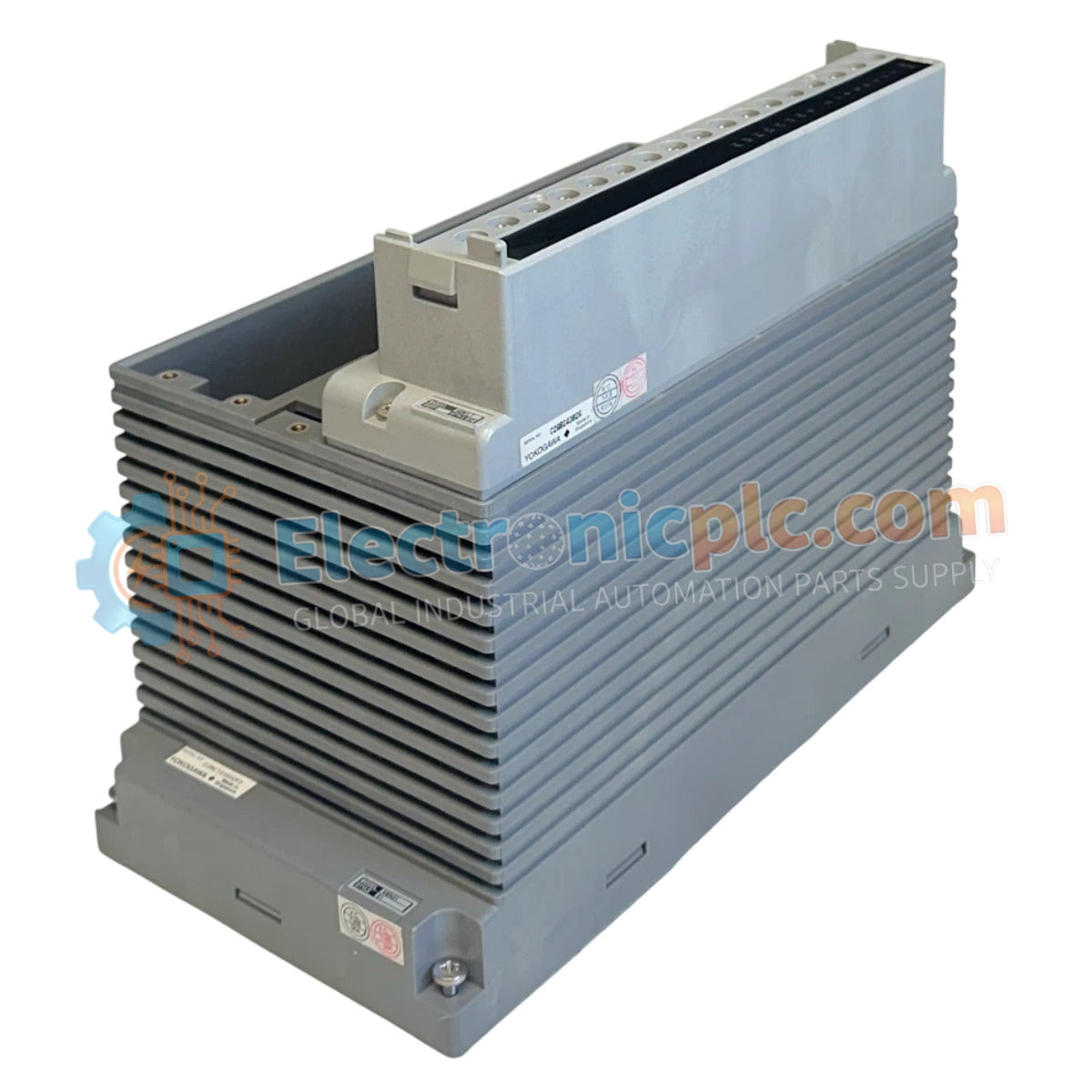

Configured for high-density signal integration in control networks, the Yokogawa AMN31 (AMN31 Nest for Terminal I/O Modules) provides direct physical/electrical execution of modular backplane routing for terminal-based I/O components within distributed control systems.

Hardware Specifications

Process Control Instrumentation

The AMN31 backplane nest serves as the primary interconnect structure for terminal-based I/O configurations, including digital I/O and multiplexer modules. The design incorporates standardized channel-to-channel isolation architecture to prevent common-mode noise propagation between field instrumentation and the controller bus. By maintaining structural rigidity and precise slot indexing, the assembly ensures low-impedance signal paths, protecting the integrity of sensitive process data in industrial environments.

Frequently Asked Questions

Q: Does the AMN31 support hot-swapping of terminal I/O modules?

A: Yes, the nest backplane is designed to support the hot-swap functionality of compatible I/O modules, provided the control system logic is updated to manage the dynamic status change.

Q: Is external grounding required for the AMN31 nest assembly?

A: Yes, a dedicated chassis ground connection must be established to the main cabinet bus bar to ensure effective electromagnetic interference (EMI) shielding and safety compliance.

Field Installation Guidelines

1. Mount the nest onto a clean, grounded enclosure backplane to ensure EMI shielding effectiveness and structural stability.
2. Verify that the 24 VDC power source is filtered and within specified voltage tolerances before final connection to the terminal blocks.
3. Seat each terminal I/O module into the backplane guide rails, ensuring that connector pins are aligned vertically before applying pressure.
4. Route all field wiring according to site-specific loop drawings, keeping signal cables shielded and segregated from high-voltage AC paths.
5. Perform a ground continuity test between the nest chassis and the cabinet earth point to confirm the integrity of the shielding ground path.
