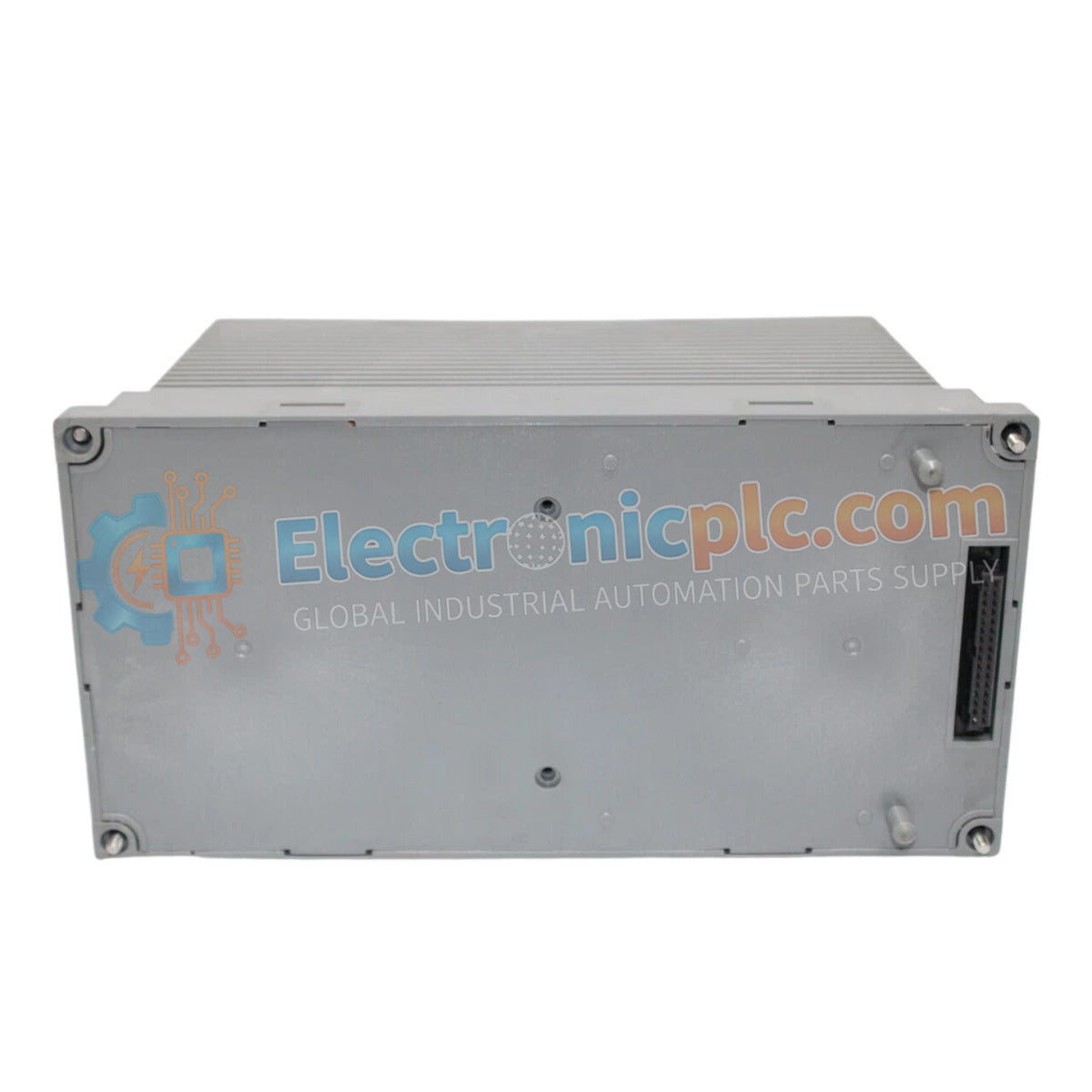

Configured for specialized signal integration in control networks, the Yokogawa AMN32 S1 (AMN32 Nest for Connector I/O Modules) provides direct physical/electrical execution of modular backplane routing for connector-based I/O components.

Hardware Specifications

Process Control Instrumentation

The AMN32 S1 serves as a high-density backplane for connector-based I/O modules, enabling rapid signal acquisition and processing within the Centum series architecture. The backplane design ensures robust channel-to-channel isolation by maintaining standardized trace geometry and minimizing impedance variations. Through integration with the 4-20 mA HART loop protocol framework, the nest facilitates seamless data transmission between field sensors and the central control station, maintaining measurement precision under varying process conditions.

Frequently Asked Questions

Q: Does the AMN32 S1 support redundant power input configurations?

A: The nest utilizes a single-entry 24 VDC power interface; for redundant applications, external diode-ORing or parallel supply monitoring must be implemented in the cabinet power distribution scheme.

Q: Is the AMN32 S1 compatible with non-connector type I/O modules?

A: No, this model is engineered exclusively for connector-based I/O modules; attempting to interface alternative module types will result in mechanical misalignment and electrical contact failure.

Field Installation Guidelines

1. Mount the nest on a grounded industrial enclosure backplane to ensure EMI shielding effectiveness.
2. Verify that the 24 VDC input voltage is stable and filtered to prevent ripple interference on the analog signal bus.
3. Ensure all connector cables are fully seated and locked into the module ports to prevent intermittent signal loss or contact degradation.
4. Keep signal cabling pathways separate from high-current switching circuits to minimize induced noise.
5. Perform a resistance check on the chassis ground connection to verify compliance with industrial grounding standards.
