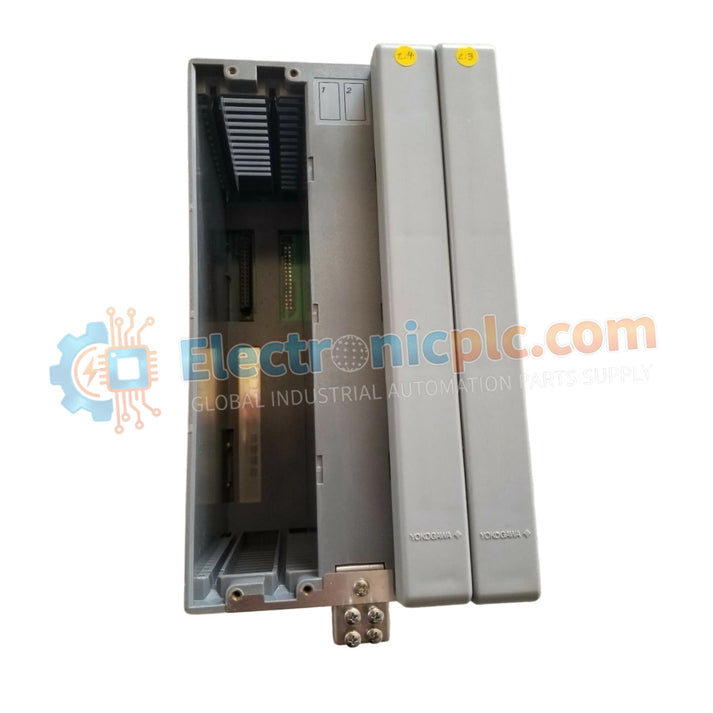

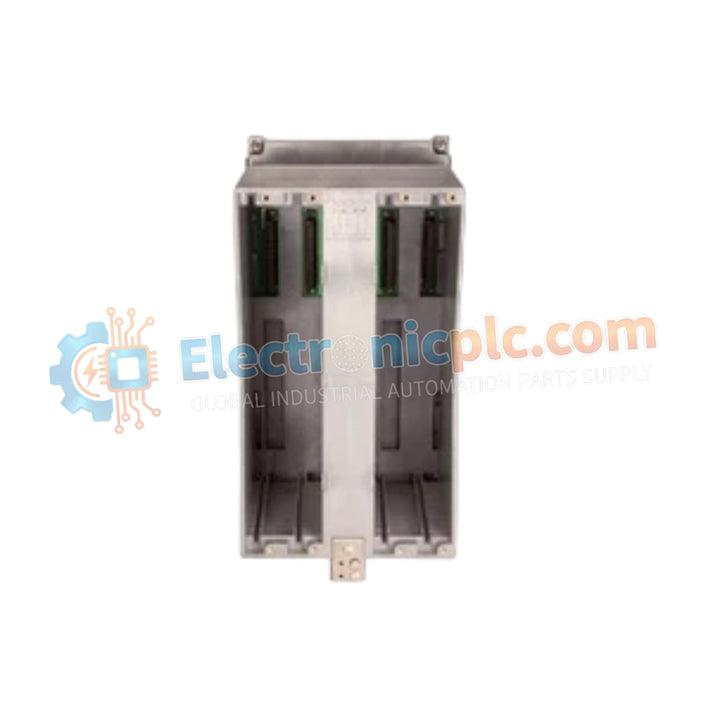

The Yokogawa AMN32T S2 is a high-density, 32-slot nest (or I/O base) designed to facilitate the mounting and interconnectivity of connector-type I/O modules within Yokogawa industrial automation platforms. It acts as the backbone for the I/O subsystem, providing the necessary mechanical support, electrical bus distribution, and signal routing required to manage 32 discrete or analog modules in a single, compact chassis.

Hardware Specifications

Functionality & System Integration

The AMN32T S2 serves as the primary infrastructure for modular I/O management. By providing 32 dedicated slots, it allows for high-density configurations, which are essential in space-constrained control cabinets. The nest includes an integrated power distribution bus that supplies 24 VDC to the housed modules, ensuring consistent electrical operation across all channels. Its robust mechanical design ensures that once modules are inserted and connected, they remain secure even in high-vibration industrial environments.

Frequently Asked Questions

Q: Does the AMN32T S2 provide signal processing or conversion?

A: No, the nest is a passive-to-semi-active interconnect device. It provides the physical slots, power delivery, and communication bus pathways; the actual signal processing is performed by the specific I/O modules inserted into the nest slots.

Q: Is this nest compatible with all types of Yokogawa I/O modules?

A: The AMN32T S2 is specifically designed for "Connector I/O Modules." Always consult the system hardware manual to ensure the specific part numbers of your I/O cards are compatible with the backplane connectors of the S2 series nest.

Field Installation Guidelines

• Mounting: Secure the nest to the cabinet backplate using standard mounting holes. Ensure that the mounting surface is flat to prevent warping of the nest frame, which could cause connector misalignment.
• Power Wiring: Connect the 24 VDC power supply to the dedicated terminals on the nest. Verify that the power supply capacity is sufficient for the total current draw of all 32 modules when fully populated.
• Module Insertion: When inserting I/O modules, ensure they are properly aligned with the card guides. Press firmly until the module is fully seated and the retention mechanism (if present) is engaged.
• Environment: The operating range of -20°C to +55°C requires adequate cabinet ventilation. In high-density setups, ensure that the ambient air temperature does not exceed the upper limit to prevent premature component failure.
