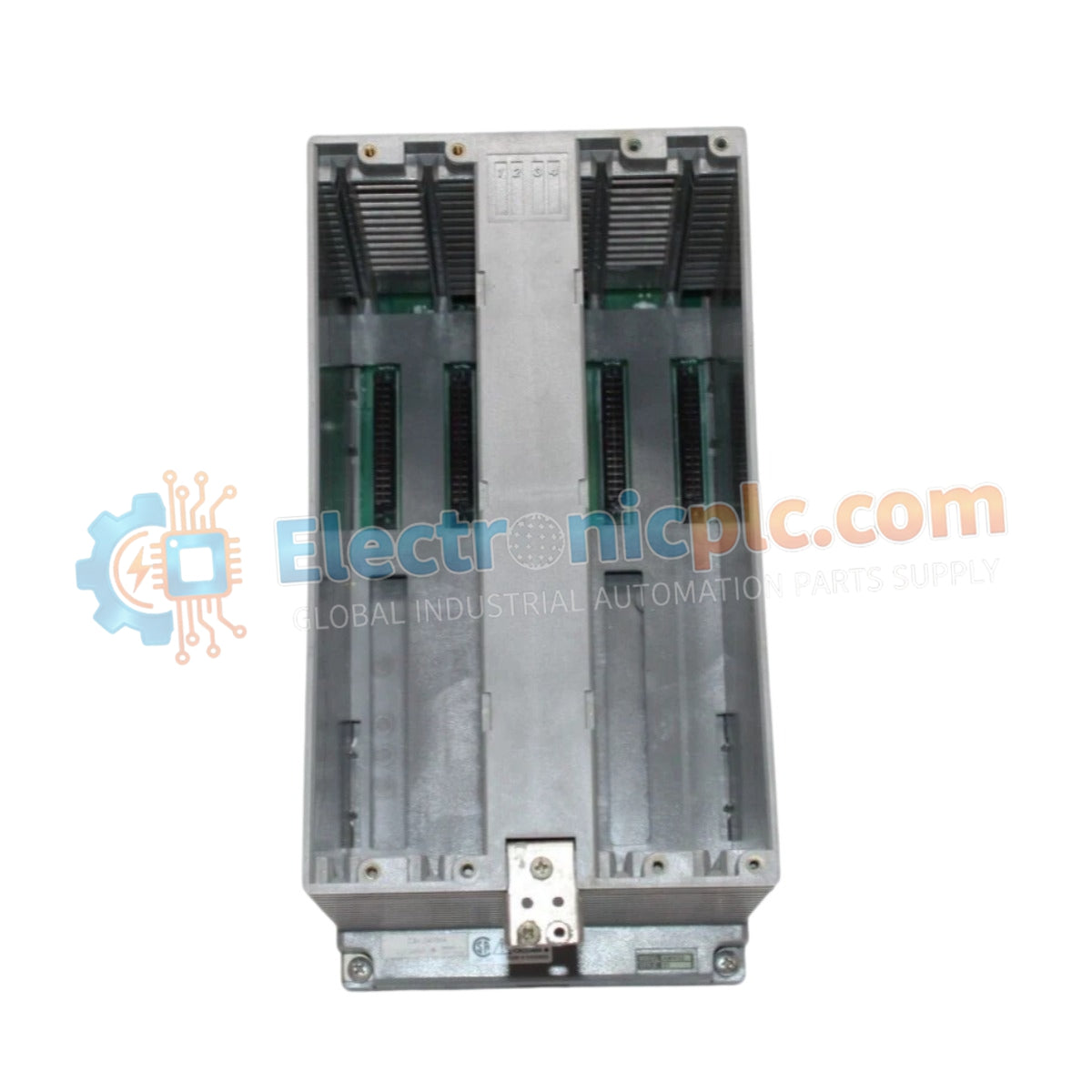

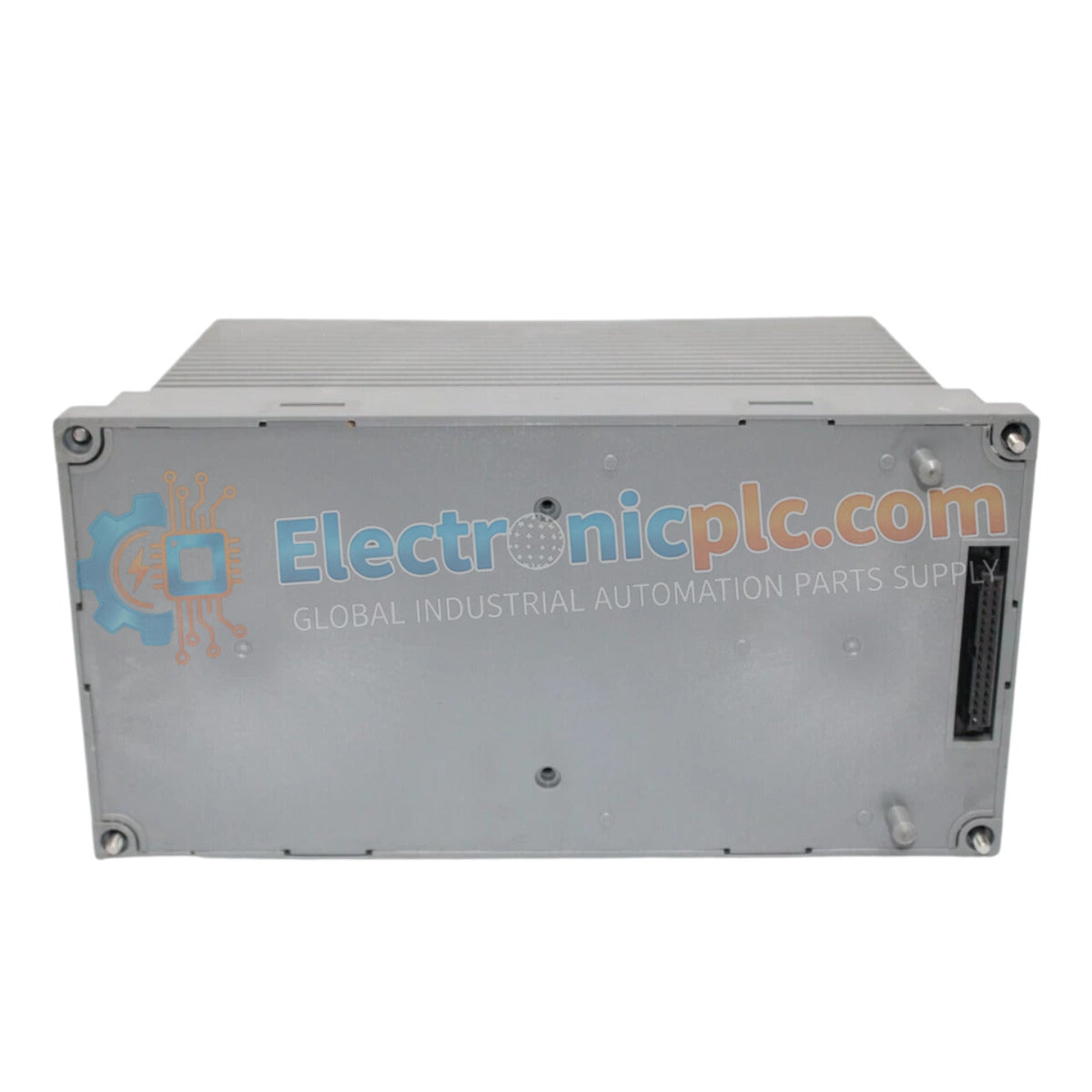

Configured for high-density signal distribution in control networks, the Yokogawa AMN32T S2 (AMN32T Nest for Connector I/O Modules) provides direct physical/electrical execution of modular backplane routing for up to 32 connector-based I/O components.

Hardware Specifications

Process Control Instrumentation

The AMN32T S2 backplane nest serves as the central interconnect for high-density I/O configurations, ensuring low-latency communication between field instrumentation and the controller bus. By utilizing localized power distribution for each of the 32 slots, the assembly ensures stable 24 VDC delivery, maintaining signal integrity and facilitating 4-20 mA HART loop protocol connectivity. The design incorporates standardized channel-to-channel isolation to prevent ground loop interference, ensuring that analog and digital signals remain accurate during continuous process operation.

Frequently Asked Questions

Q: Can the AMN32T S2 accommodate redundant power supply inputs?

A: The nest is designed with a standard 24 VDC input architecture; redundant power distribution must be managed at the cabinet level using external diode-ORing or parallel supply monitoring modules.

Q: Are the 32 slots on the AMN32T S2 hot-swappable?

A: Yes, the backplane is engineered for hot-swappable I/O module insertion and removal, provided the system configuration supports dynamic I/O addressing and the specific module type permits live extraction.

Field Installation Guidelines

1. Mount the nest onto a clean, grounded DIN rail or enclosure backplane to minimize the risk of electromagnetic noise coupling.
2. Verify that the 24 VDC power source is filtered and within the specified voltage tolerances before final connection to the terminal blocks.
3. Align each I/O module with the 32-slot backplane connectors, ensuring the mechanical guide pins are fully seated before engaging the fastening hardware.
4. Route all field wiring according to site-specific loop drawings, keeping analog signal cables shielded and segregated from high-voltage AC paths.
5. Perform a ground continuity test between the chassis of the nest and the main cabinet earth bus to confirm the integrity of the shielding ground path.
