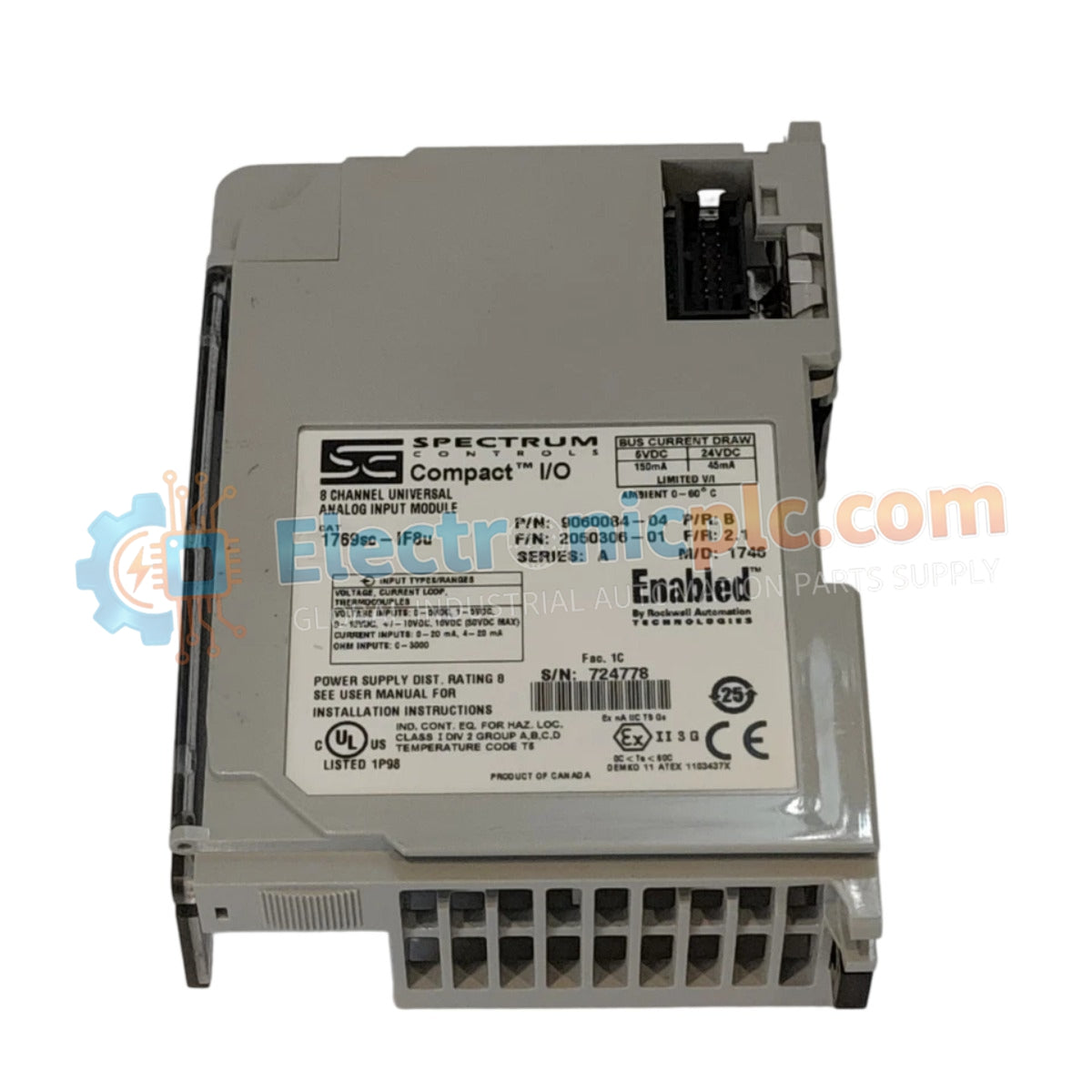

The 1769sc-IF8u is a universal analog input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports voltage, current, thermocouple, and RTD signals in a single module, providing...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The 1769sc-IF8u is a universal analog input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports voltage, current, thermocouple, and RTD signals in a single module, providing flexible and high-density analog monitoring. We supply this module as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Spectrum Controls |
| Part Number | 1769sc-IF8u |
| Input Channels | 8 Analog / TC Inputs or 4 RTD Inputs |
| Supported Signals | Voltage, Current, Thermocouple, RTD |
| Voltage Ranges | ±50mV, ±100mV, 0–5V, 1–5V, 0–10V, ±10V |
| Current Ranges | 0–20mA, 4–20mA |
| RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10 |
| Resolution | 16-bit |
| Backplane Current | 120 mA @ 5.1V DC; 170 mA @ 24V DC |
| Isolation | 500V AC / 710V DC |
| CJC | Integrated Cold Junction Compensation |
Handles multiple analog and temperature input types in one module.
Each channel can be independently configured for different sensor types.
Reduces the need for separate analog, RTD, and thermocouple modules.
Yes. It supports multiple RTD sensor types with up to 4 RTD channels.
Yes. External 24V DC power is needed for module operation.
The IF8UK version includes conformal coating for harsh environments.
