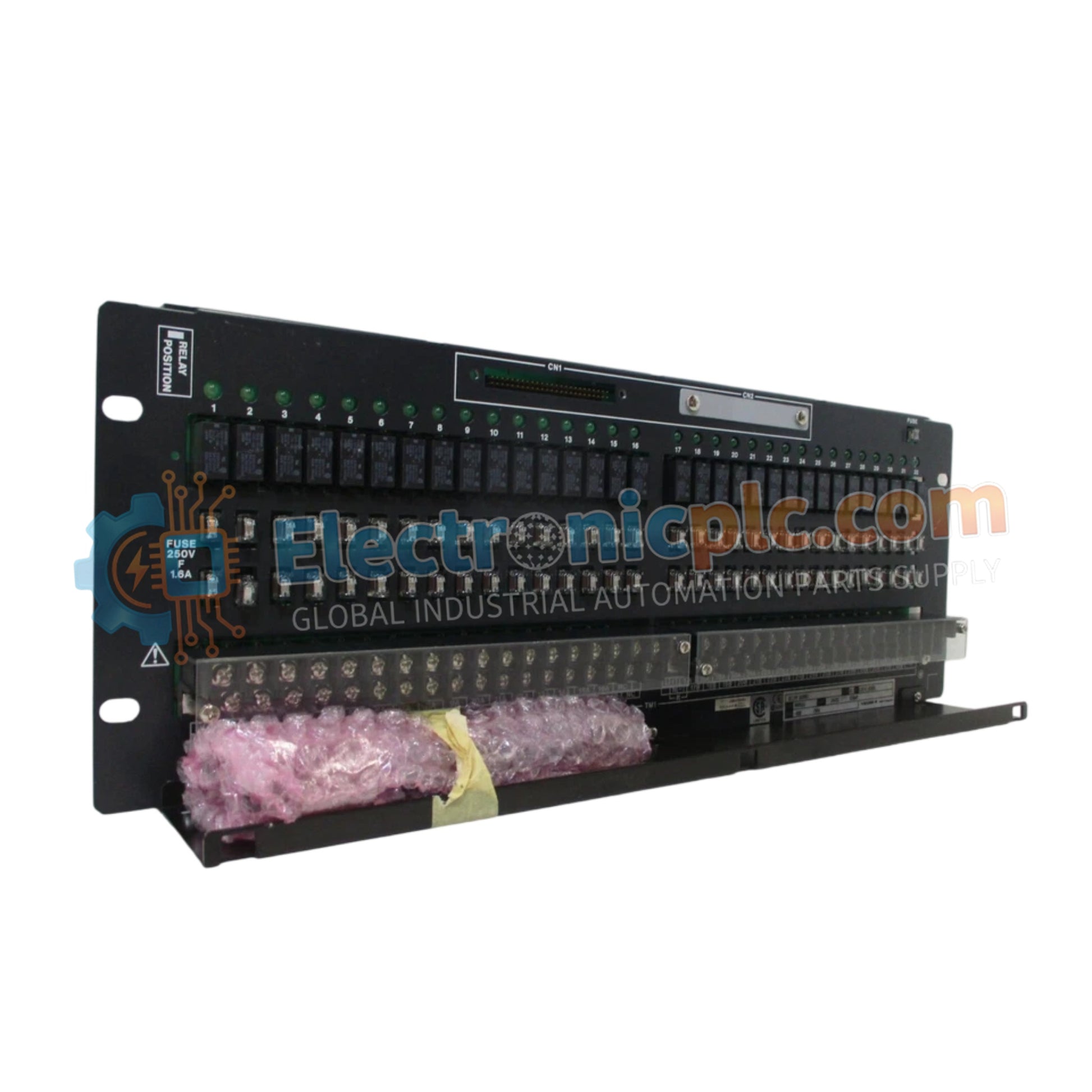

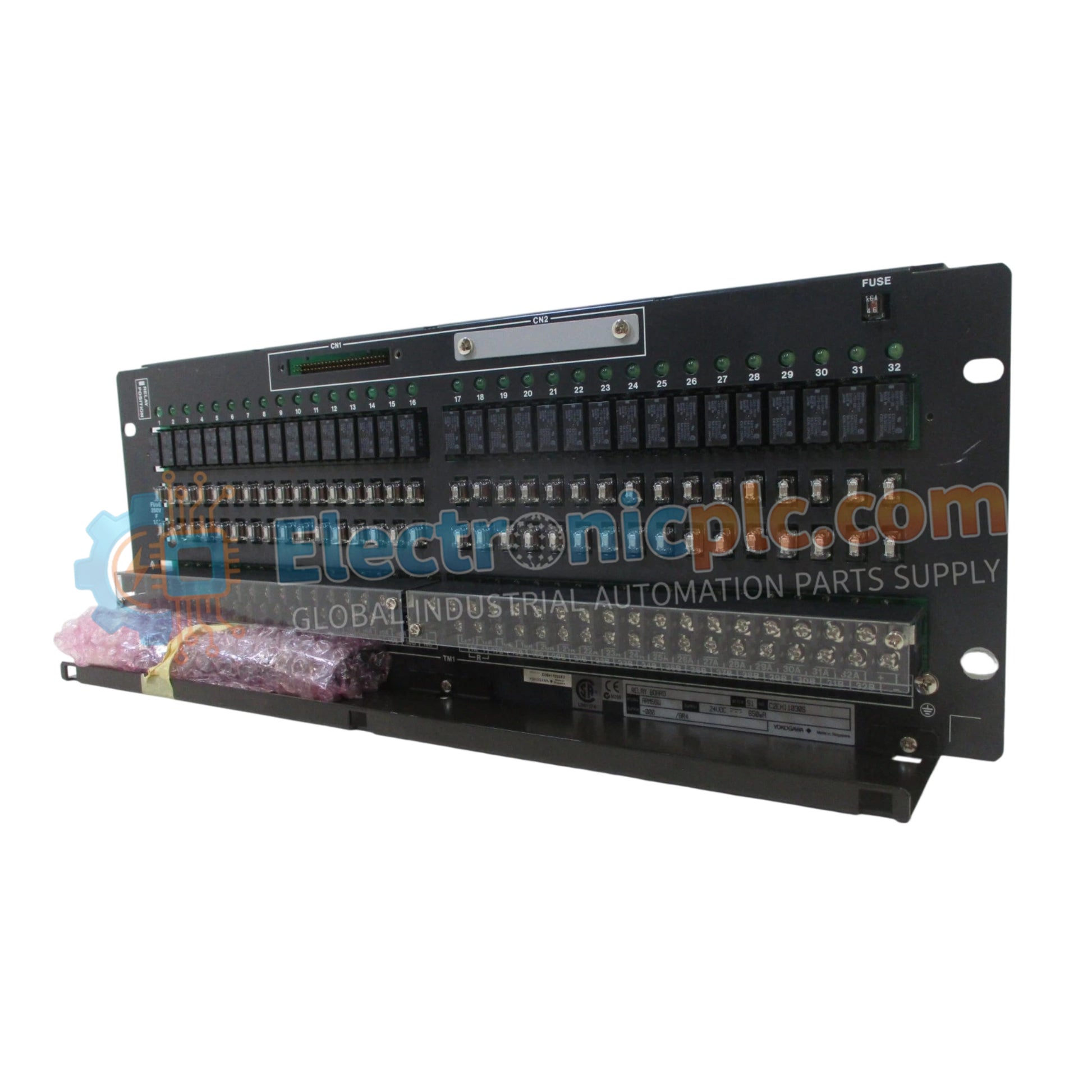

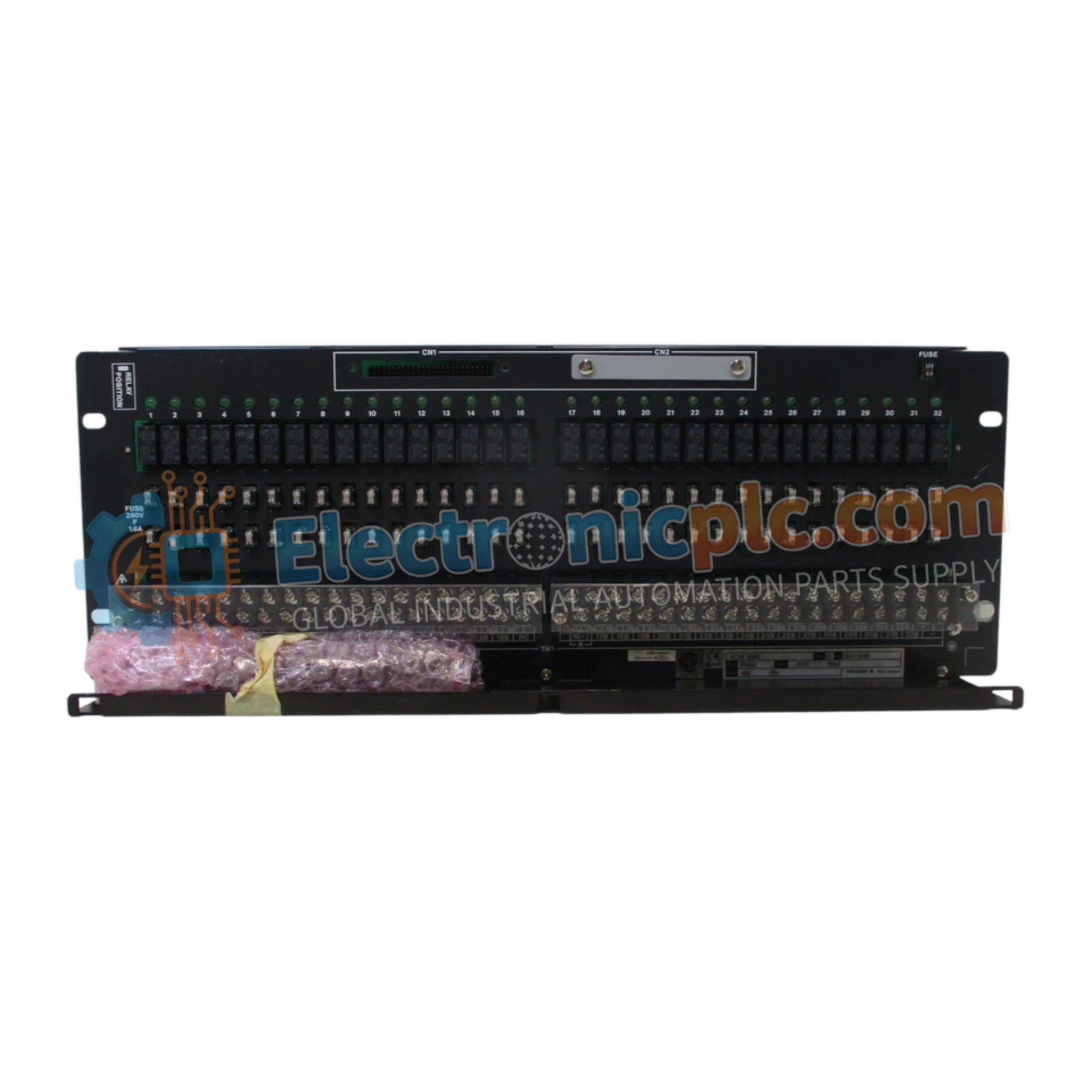

Configured for high-density field control within CENTUM VP architectures, the Yokogawa ARM55W-000 (ARM55W-000 Relay Output Board) provides direct physical signal execution for 32-channel wet contact outputs.

Hardware Specifications

Field I/O Integration and Signal Integrity

The ARM55W-000 is engineered to interface directly with Yokogawa Field I/O (FIO) modules such as the ADV551 and ADV561. This board provides the necessary electrical isolation between the control system and field-side devices, supporting high-reliability applications including solenoid control, alarm initiation, and process interlocks. The dual-line power supply configuration per 16 points allows for flexible redundancy strategies, ensuring that a fault in one power segment does not compromise the entire output board. The assembly features an insulation resistance of 10 MΩ and a 2 kV withstand voltage, protecting the DCS processor from electrical transients originating in the field environment.

Frequently Asked Questions

Q: Can the ARM55W-000 be used for safety-critical interlock applications?

A: The board is designed for industrial process control with standard certifications. For safety-critical functions requiring specific SIL ratings, ensure the application design aligns with the ProSafe-RS platform or equivalent safety-instrumented system requirements.

Q: What is the benefit of the dual-line power configuration?

A: The dual-line power architecture allows for redundant power supply input. If one power source fails, the remaining line ensures continued operation of the designated output points, enhancing system availability in mission-critical applications.

Field Installation Guidelines

1. Mount the board in a standard 19-inch cabinet space, ensuring the 4U clearance is maintained to allow for proper airflow and thermal management.
2. Utilize compatible AKB331 or AKB337 signal cables to connect the board to the respective FIO modules; ensure all connectors are fully seated and locked.
3. Terminate field devices to the M4 screw terminals using appropriate lugs; ensure torque is applied according to industrial standards to prevent connection loosening under vibration.
4. Verify the power supply voltage at the input terminals matches the rated supply; ensure the ground terminal is connected to the cabinet's protective earth.
5. Perform a functional output test during commissioning by forcing individual channels through the DCS software to confirm correct relay operation and field device activation.
