The Bachmann BS202 is a backplane module for the M1 automation system, providing power distribution and high-speed communication between the CPU and I/O modules. It forms the structural...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

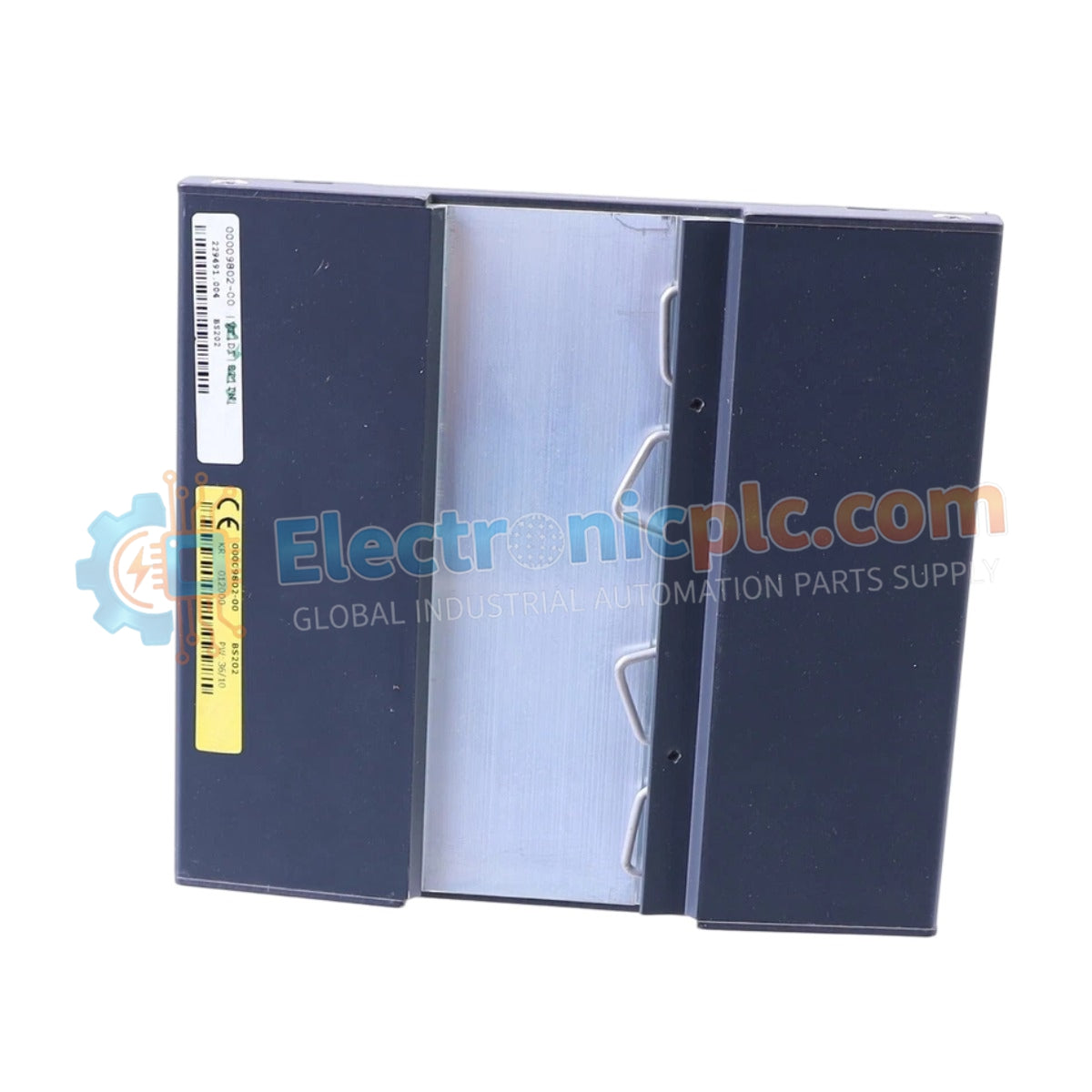

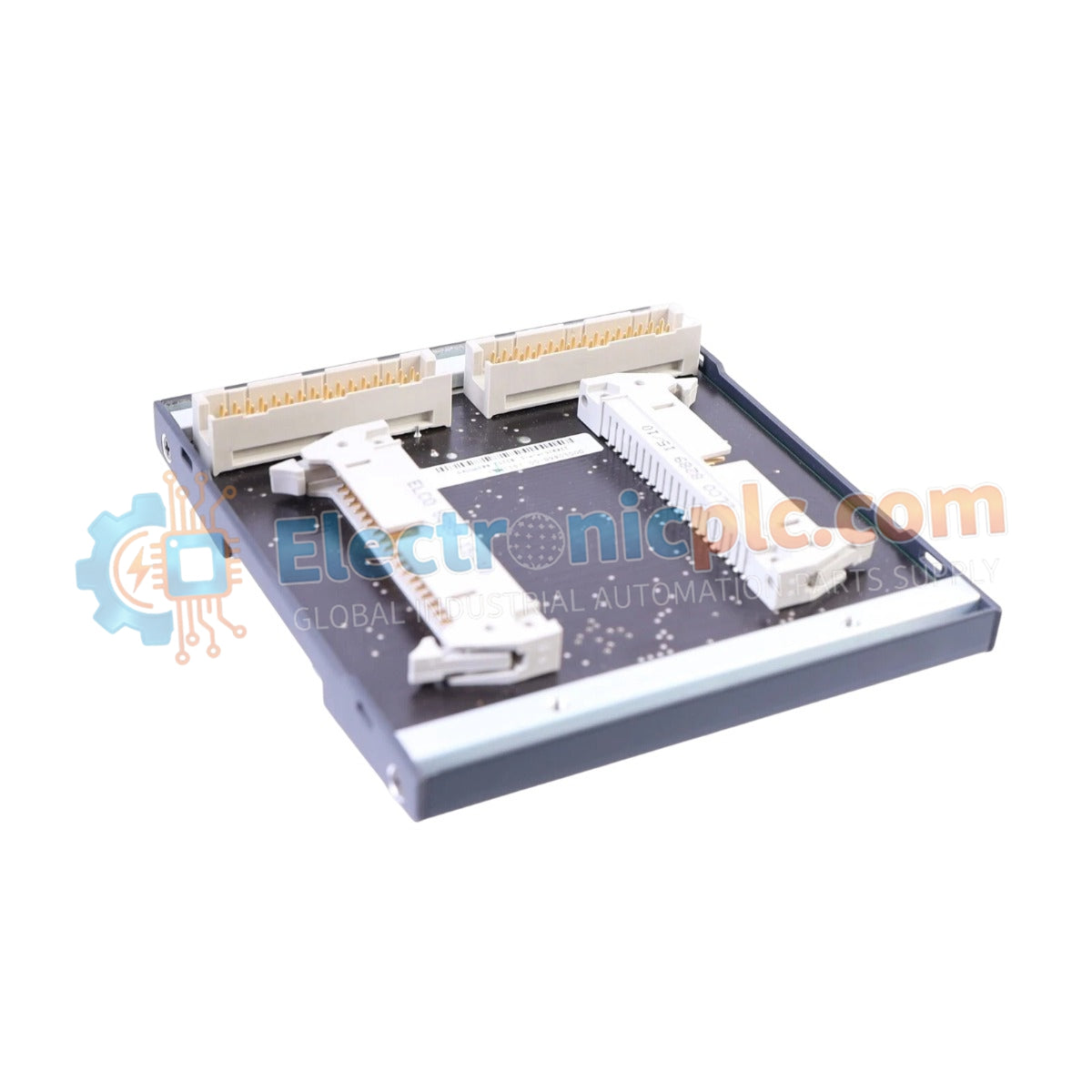

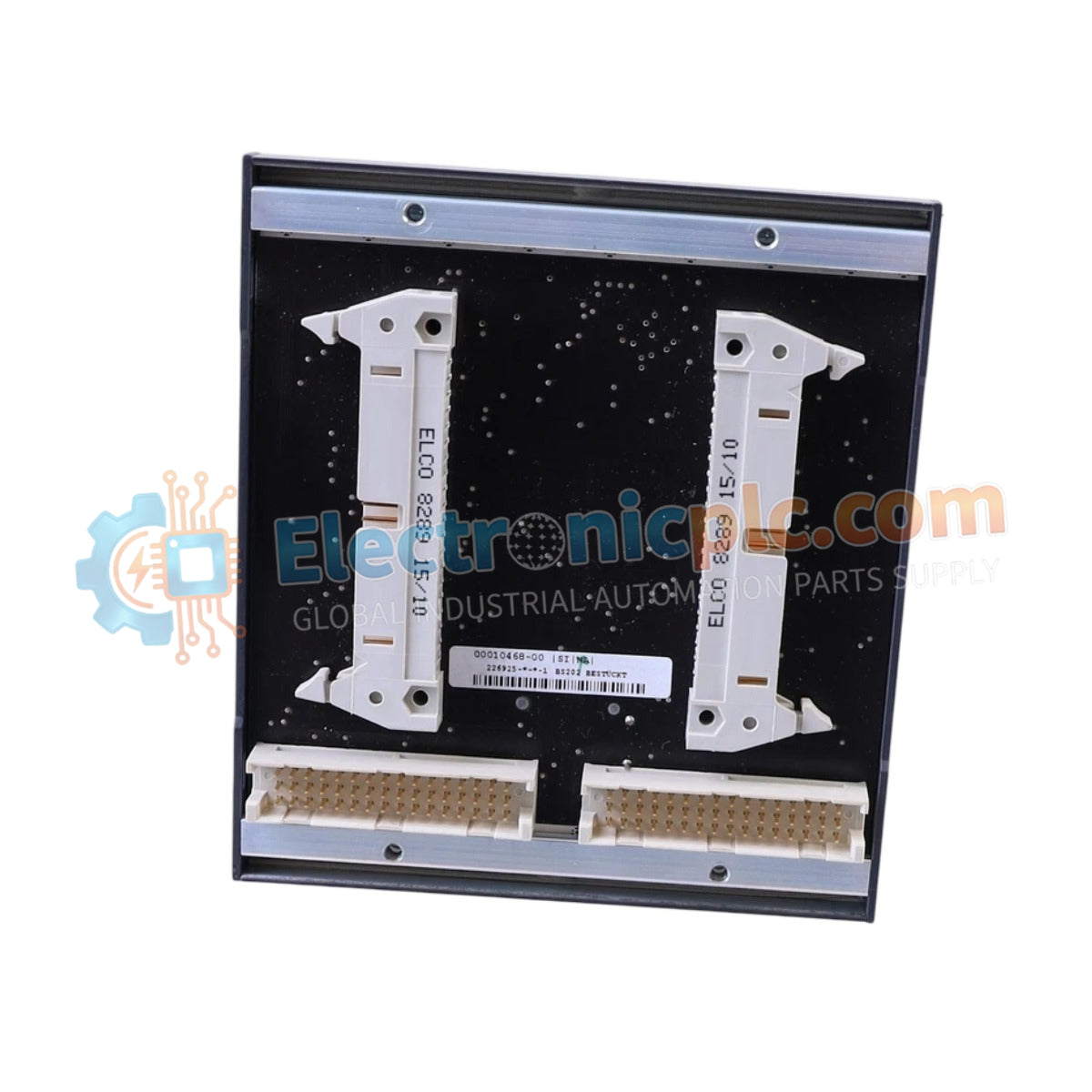

The Bachmann BS202 is a backplane module for the M1 automation system, providing power distribution and high-speed communication between the CPU and I/O modules. It forms the structural base of the controller rack and enables flexible system expansion through modular design.
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | Bachmann |
| Part Number | BS202 |
| Product Type | Backplane / Interconnect Platform |
| Width | 55 mm |
| Height | 119 mm |
| Depth | 23 mm (including connector) |
| Operating Temperature | -30°C to +60°C |
| Mounting Type | DIN Rail (35 mm) |
Modular and scalable rack expansion
Reliable high-speed backplane communication
Stable power distribution across modules
Durable design for harsh environments
Secure vibration-resistant module mounting
How many modules does one BS202 support?
Typically two slots; multiple backplanes can be connected for larger systems.
Can it be mounted vertically?
Yes, but with a reduced temperature rating of +55°C.
Is it compatible with other BS200 series backplanes?
Yes. It can be combined with other BS200-series units.
Is this product 100% Brand New?
Yes. The Bachmann BS202 is supplied in 100% Brand New condition with a 2-year warranty.
