Description

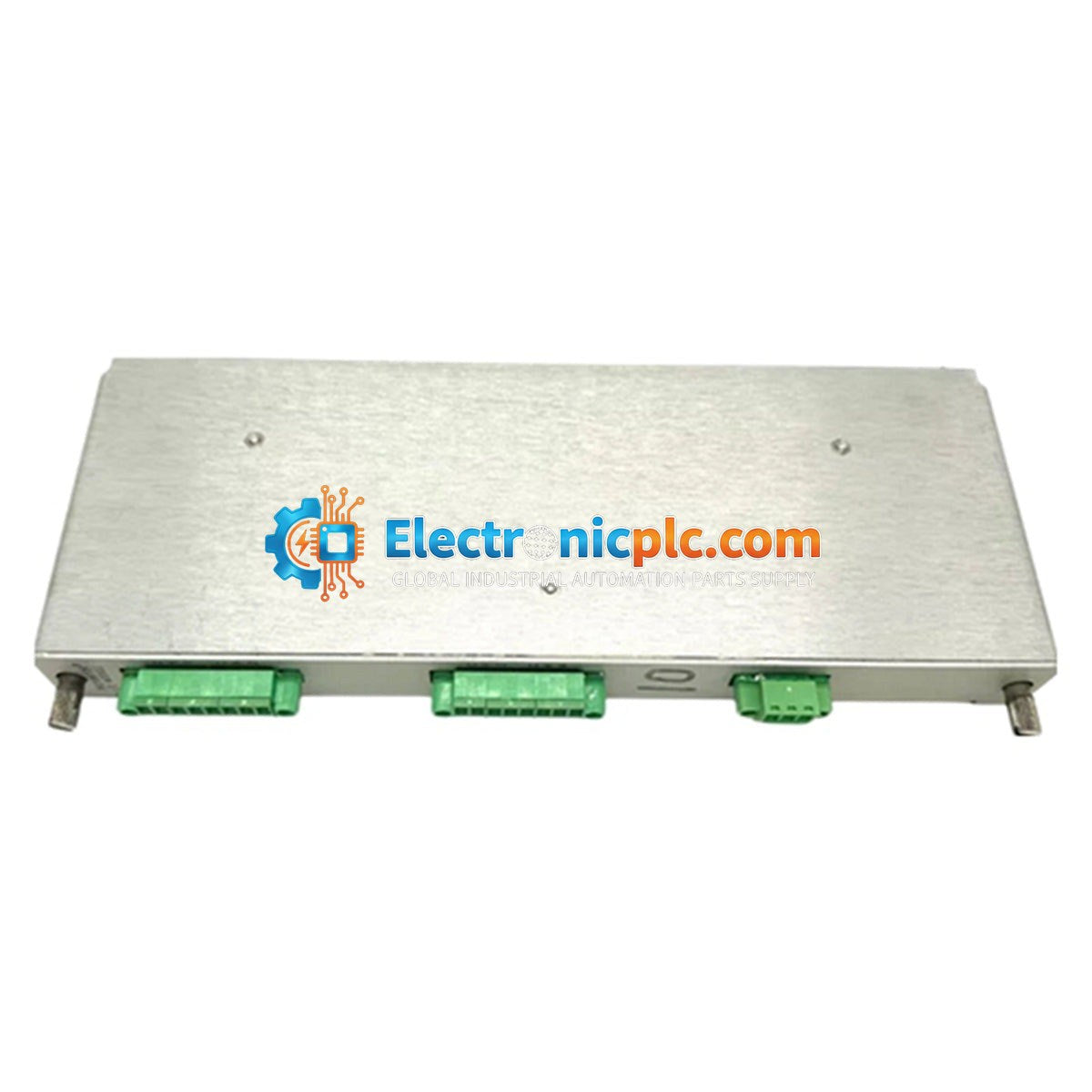

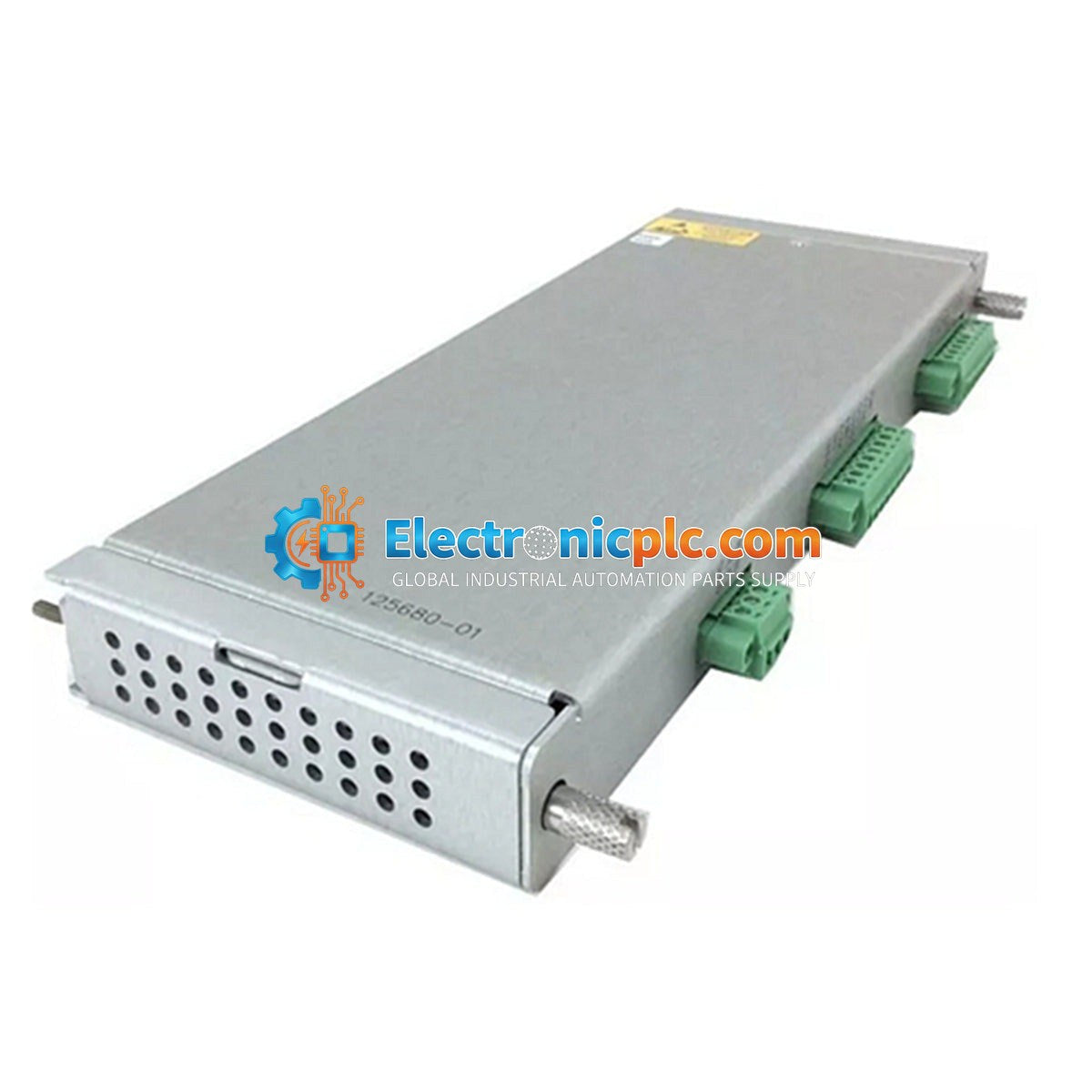

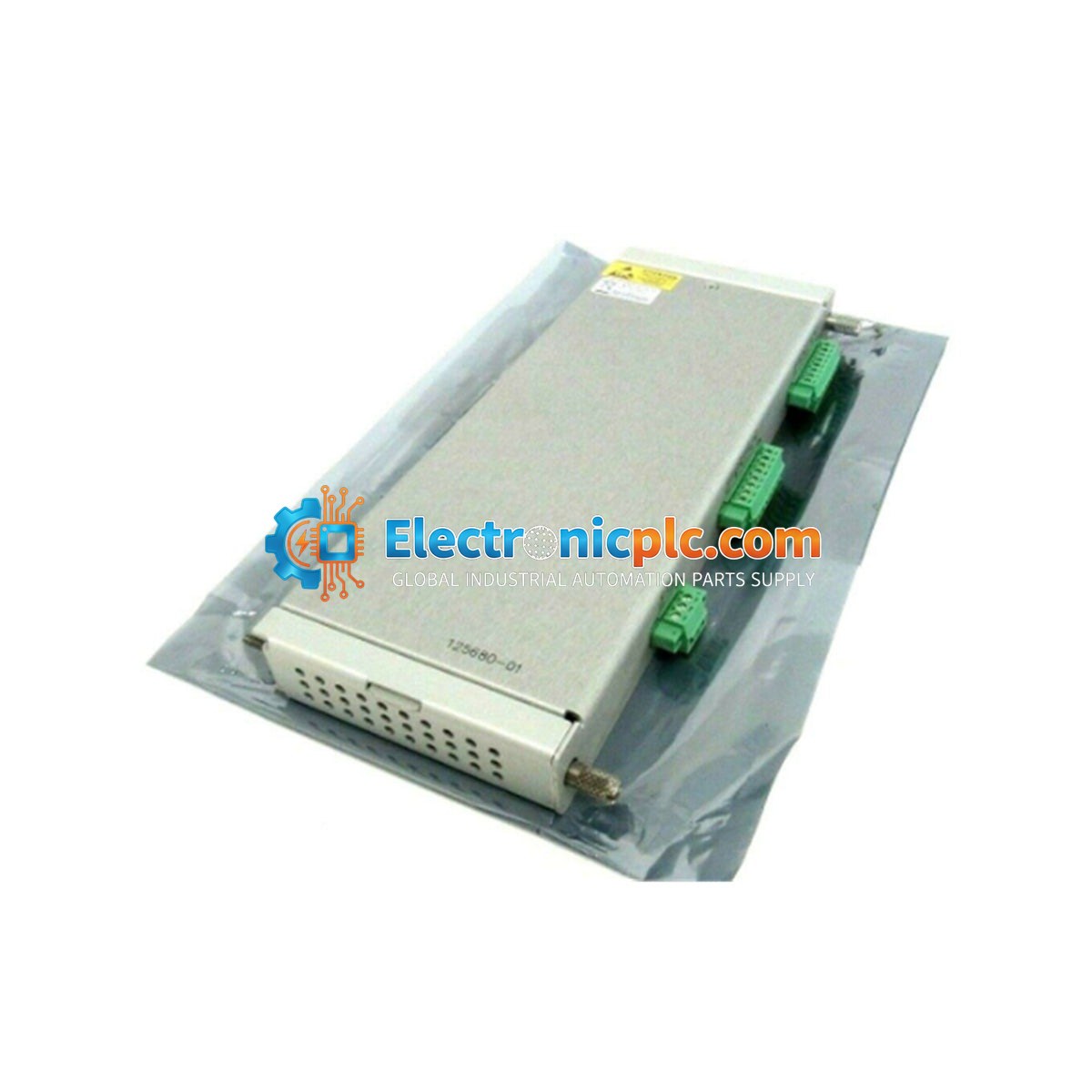

The Bently Nevada 125800-02 is an Isolated Keyphasor I/O Module designed for the 3500 Series machinery protection system. This module facilitates the distribution of Keyphasor signals to multiple monitoring channels, providing essential phase reference data for vibration and speed monitoring in critical rotating machinery. By incorporating electrical isolation, the 125800-02 protects sensitive monitoring equipment from ground loops and electrical interference, ensuring high signal integrity in demanding industrial environments.

Features

• Provides isolated Keyphasor signal distribution for vibration and phase reference monitoring.
• Supports dual Keyphasor inputs, enabling fault-tolerant configurations such as Triple Modular Redundancy (TMR).
• Designed for seamless integration with 3500 Series rack-mounted monitoring systems.
• Enhances system reliability by preventing electrical noise propagation between monitoring channels and external systems.

Applications

This module is typically utilized in high-speed rotating equipment monitoring, including:

• Steam and gas turbines
• Centrifugal and reciprocating compressors
• Large industrial fans and blowers
• Power generation and refinery monitoring systems

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• The module is designed for rear-slot installation in a standard 3500 rack; ensure the module is fully seated and the retention screws are tightened.
• Use shielded cabling for all Keyphasor signal inputs to minimize EMI/RFI interference.
• Maintain proper grounding practices as specified in the 3500 System Installation and Maintenance Manual to ensure effective isolation.
• Handle with care using ESD-safe procedures to prevent damage to internal electronic components.

FAQ

What is the primary function of the 125800-02?

The 125800-02 acts as an isolated interface for Keyphasor signals within a 3500 rack, allowing a single Keyphasor input to be distributed to multiple monitors while maintaining electrical isolation between them.

Is this module compatible with all 3500 racks?

Yes, it is designed for standard 3500 Series rack rear I/O slots. It is intended to be paired with the corresponding front-end Keyphasor monitor module.
