Description

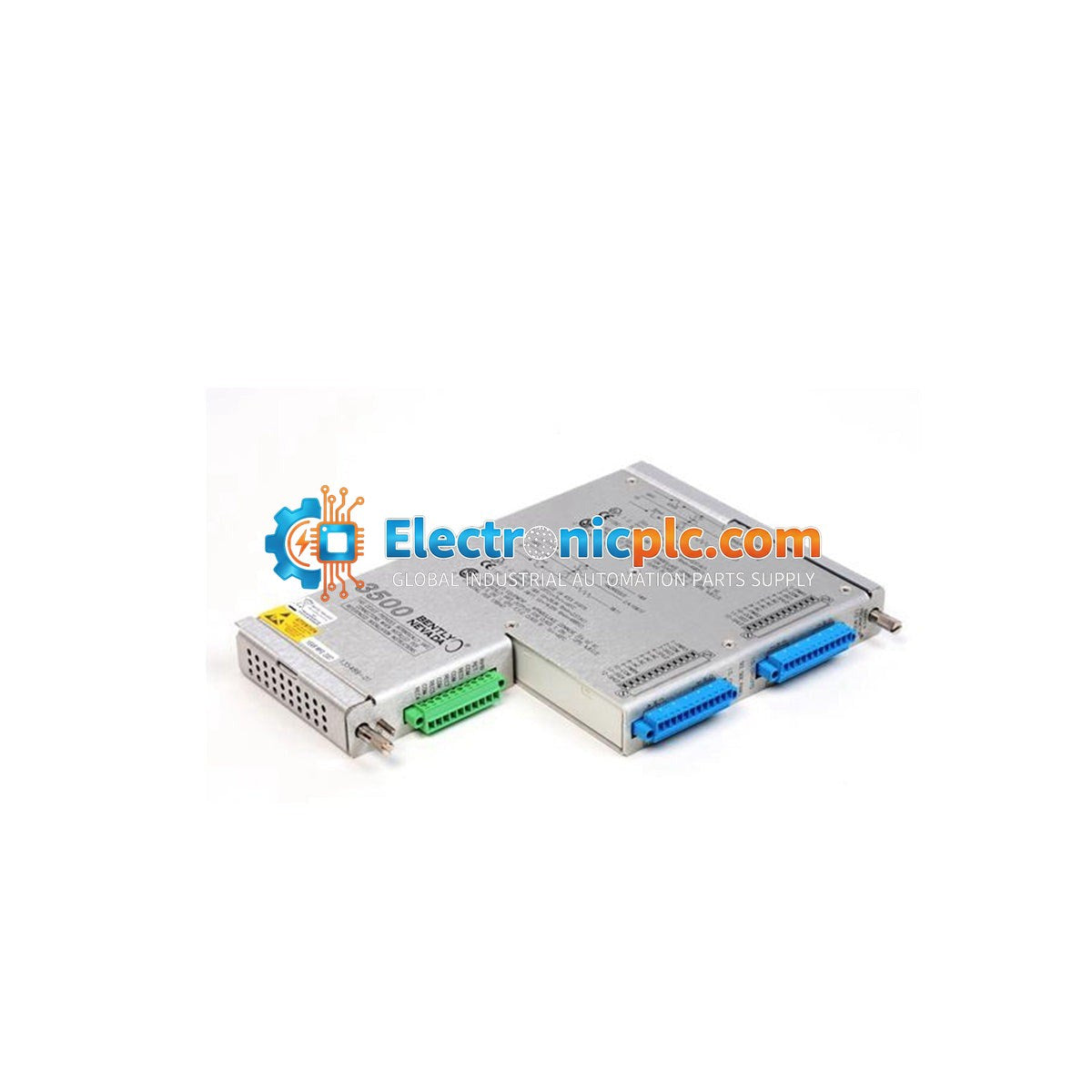

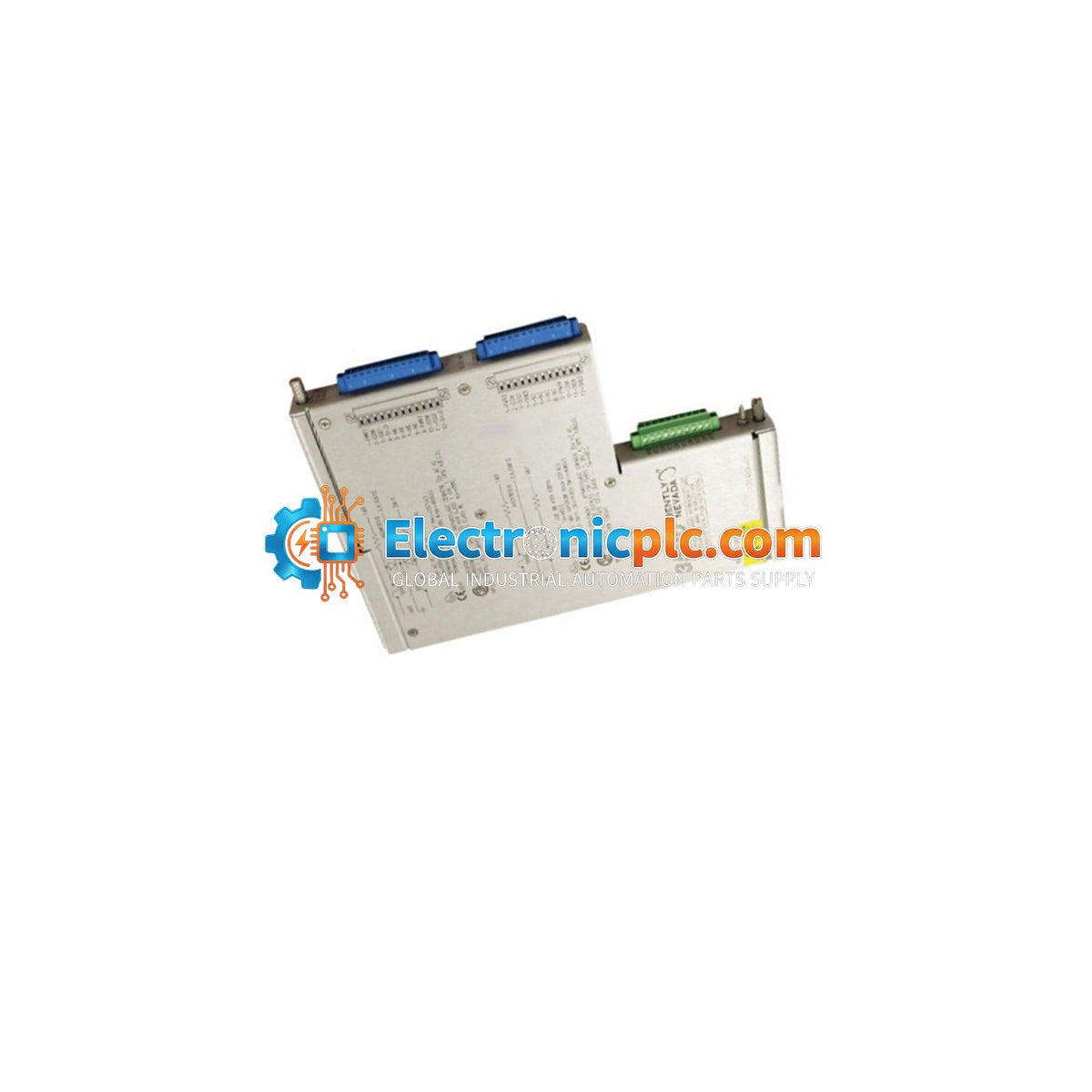

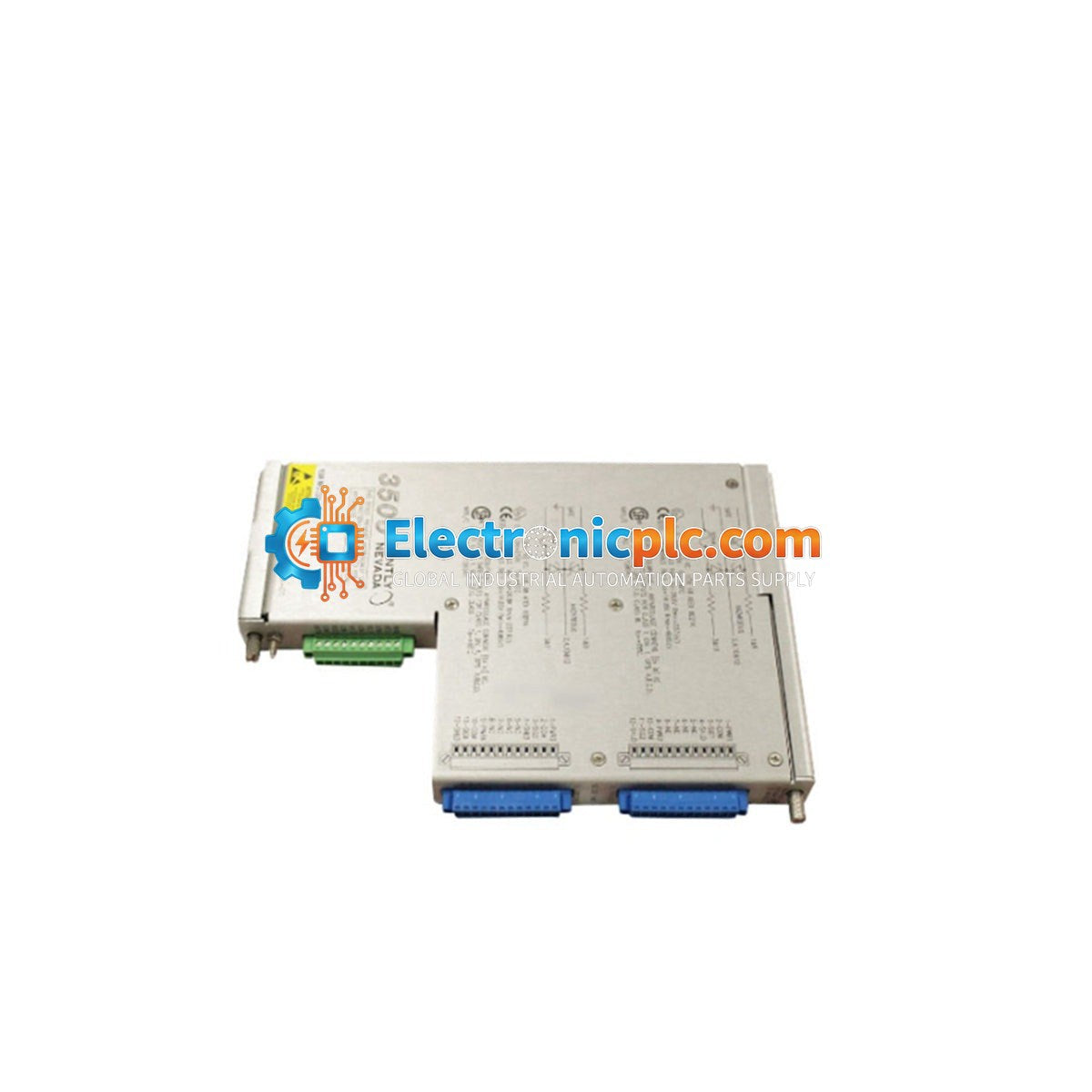

The Bently Nevada 135489-04 is a 4-channel Barrier Proximitor/Seismic I/O module designed for use within the Bently Nevada 3500 series machinery protection system. This module provides the necessary interface for proximity and seismic sensor signals, ensuring reliable data acquisition for vibration monitoring and machine protection applications. It is engineered to maintain signal integrity while providing essential isolation between the field sensors and the monitoring system.

Features

• 4-channel configuration for multi-sensor input support.
• Designed for integration with Proximitor and seismic monitoring systems.
• Robust over-voltage protection up to +/- 30 V.
• High input impedance (> 100 kOhm) to minimize signal loading.
• 1500 V dc channel-to-ground isolation for enhanced noise immunity.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• Use appropriate ESD protection when handling the module to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the designated rack slot and that the retaining screws are tightened to ensure proper grounding and mechanical stability.
• Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain measurement accuracy.
• Ensure that all field wiring is properly terminated according to the specific sensor configuration requirements.

FAQ

What is the primary function of the 135489-04 module?

The 135489-04 is an I/O module used in the Bently Nevada 3500 system to interface with and process signals from proximity and seismic sensors, facilitating continuous machine vibration monitoring.

Is this module compatible with other 3500 series components?

Yes, this module is designed specifically for the Bently Nevada 3500 series rack-based monitoring system. Please consult your system configuration documentation to ensure compatibility with your specific monitor module.
