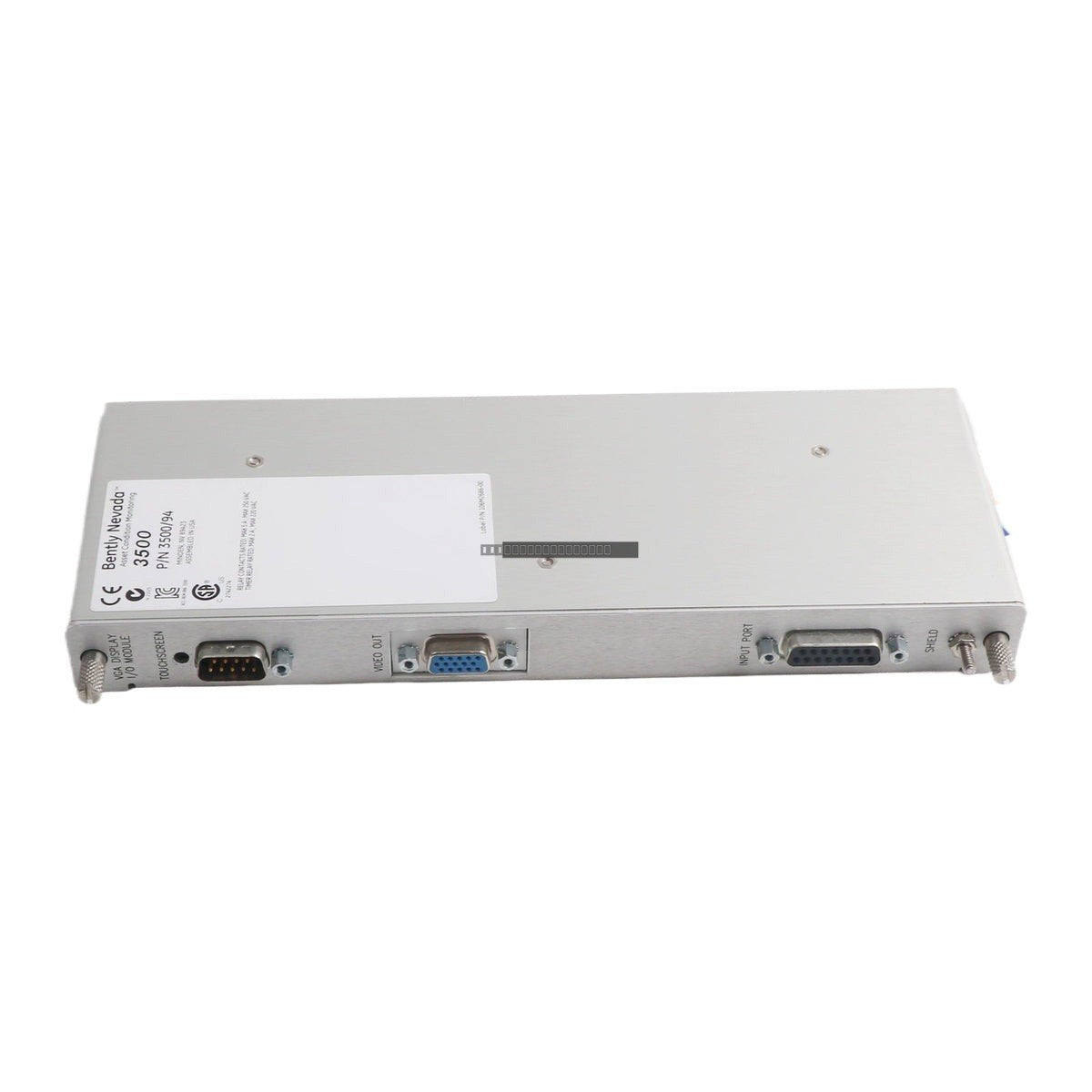

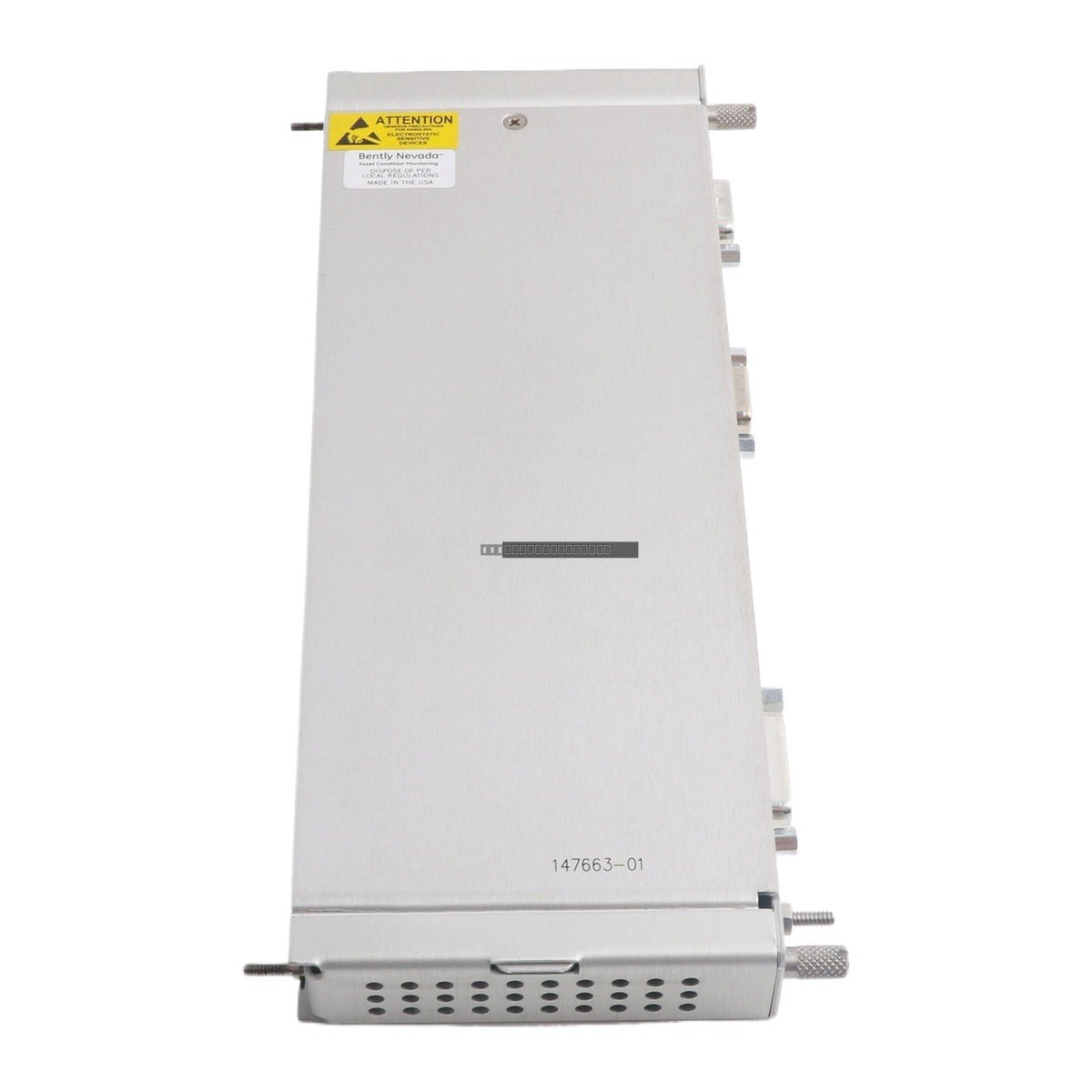

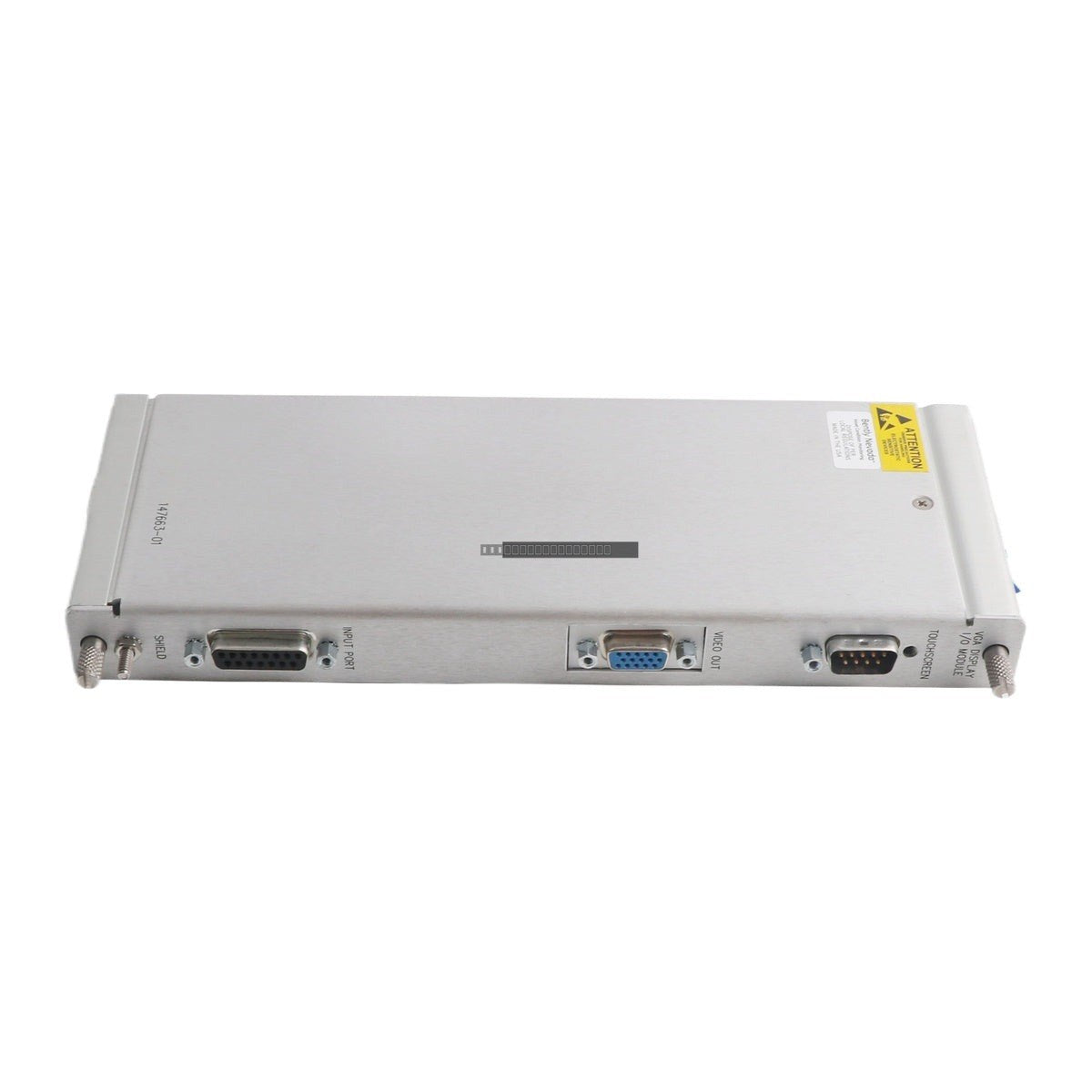

The Bently Nevada 147663-01 is a specialized I/O module designed for integration within industrial monitoring systems. This module provides VGA display output capabilities, facilitating the visualization of critical system data and diagnostic information in real-time.

Features

• Dedicated VGA display output interface for visual monitoring.
• Robust design suitable for demanding industrial environments.
• Optimized for low power consumption during standard operation.
• High isolation rating to ensure signal integrity and protection against electrical interference.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the designated slot to ensure reliable backplane communication.
• Maintain adequate airflow around the module to prevent overheating, adhering to the specified operating temperature range.
• Route signal cables away from high-voltage lines or high-EMI sources to minimize potential signal interference.

FAQ

What is the primary function of the 147663-01?
This module serves as an I/O interface specifically configured to provide VGA display output for Bently Nevada monitoring systems.

What is the power requirement for this module?
The module operates on a +24 Vdc supply and consumes a maximum of 4.7 W.

Is this module suitable for high-humidity environments?
The module is rated for up to 95% relative humidity, provided it remains non-condensing.
