Description

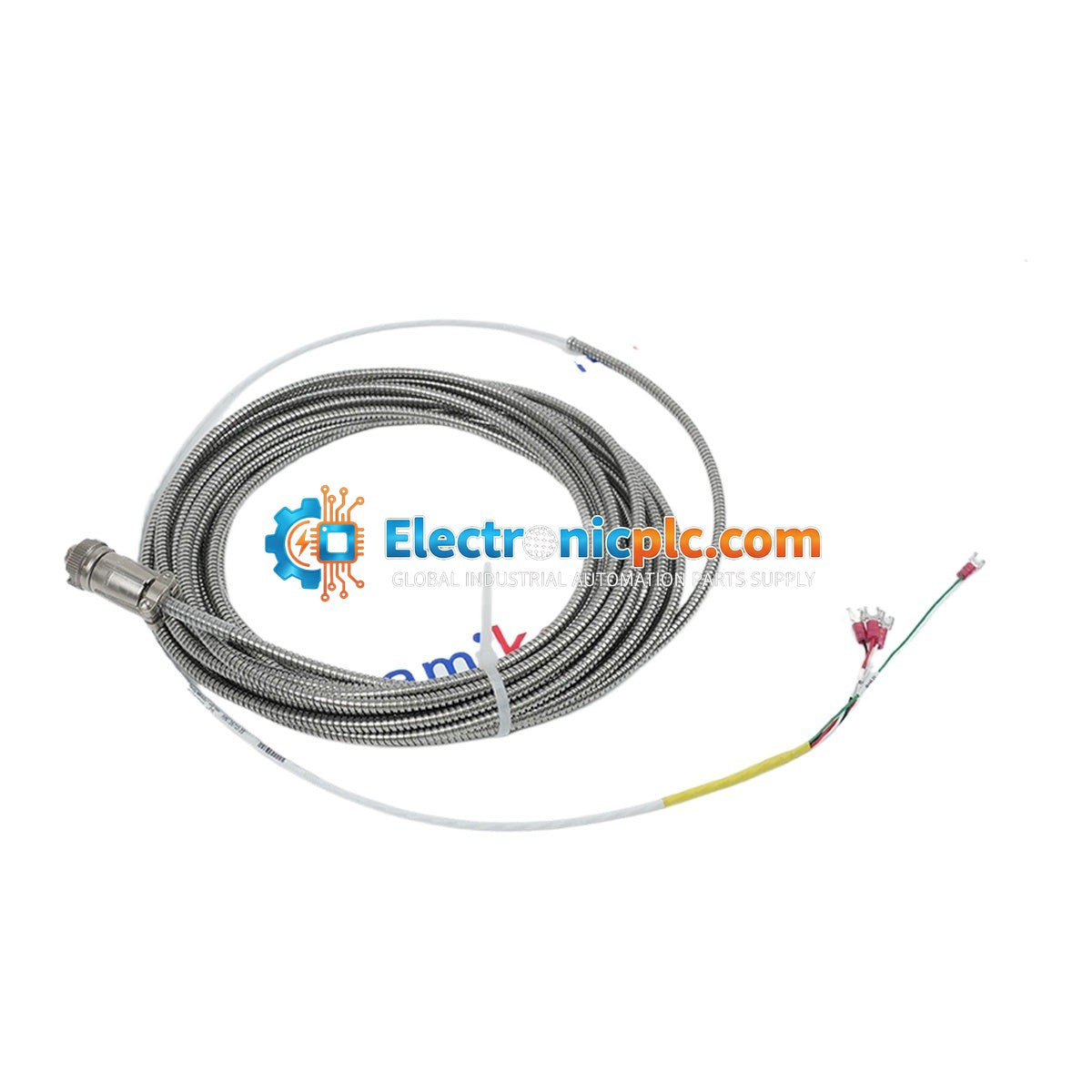

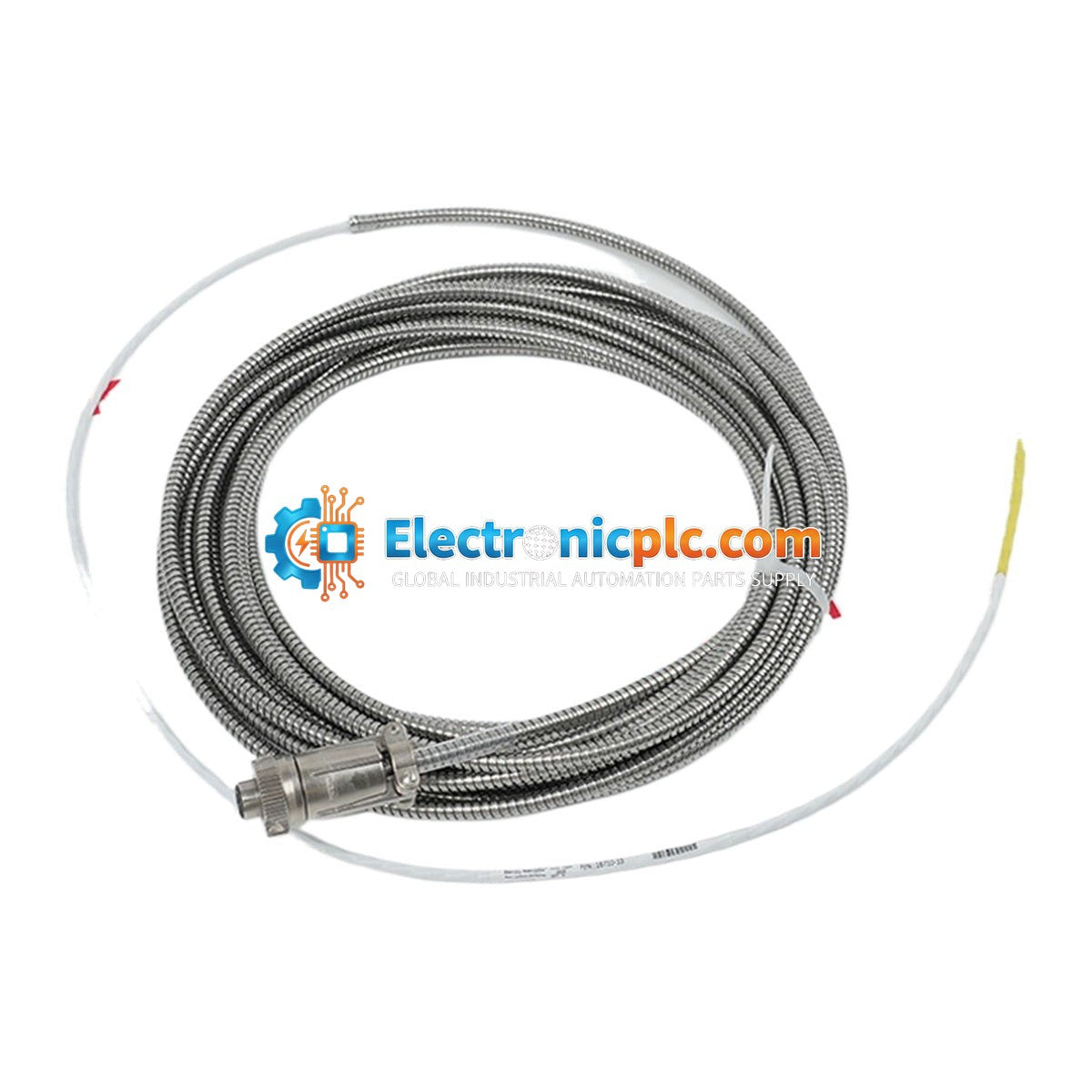

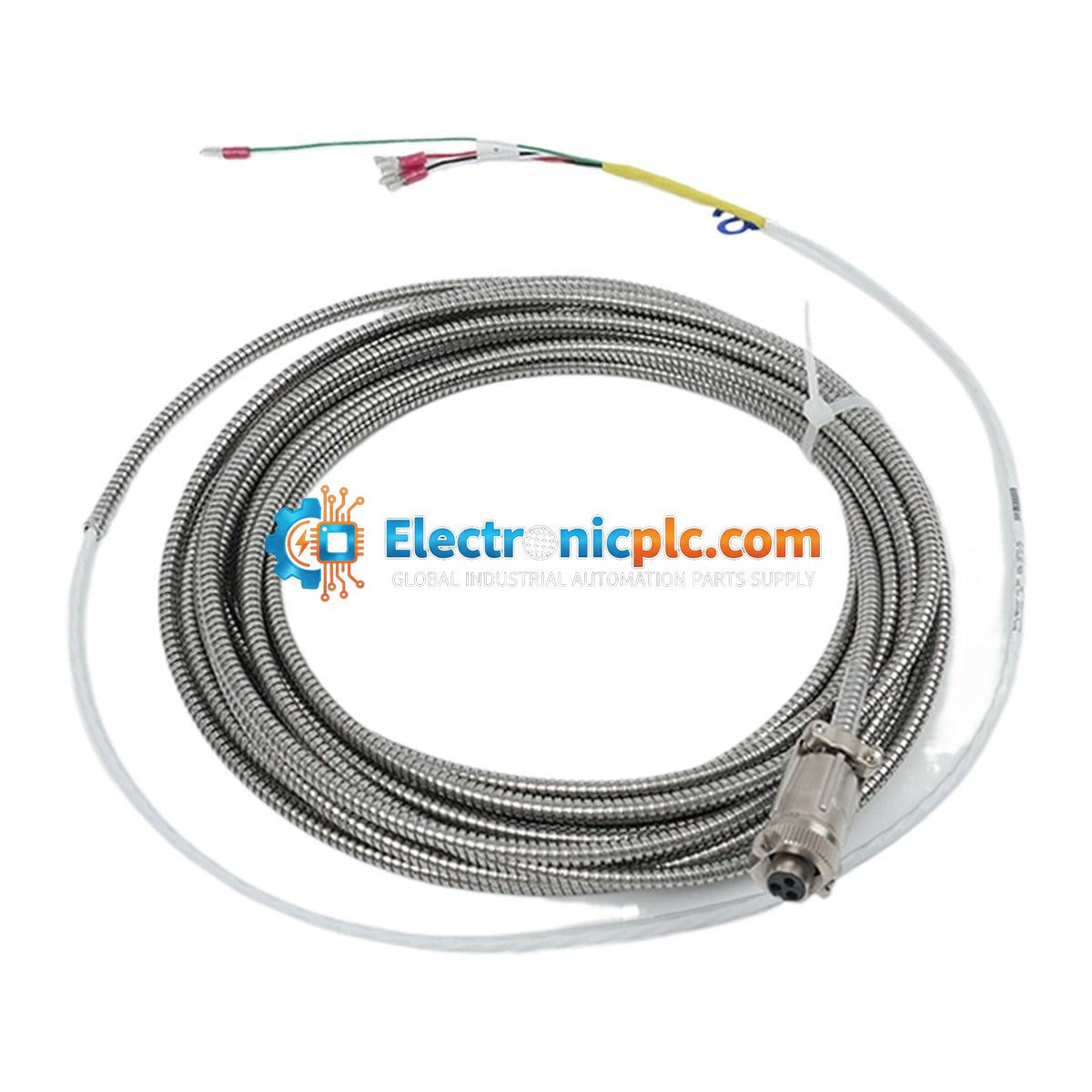

The Bently Nevada 16710-33 is a 33-foot (10.06-meter) armored, 3-conductor shielded interconnect cable designed for industrial machinery condition monitoring systems. This cable provides a secure, low-noise signal path between Bently Nevada accelerometers and monitoring instrumentation. It is engineered to withstand harsh industrial environments, ensuring signal integrity for critical vibration analysis.

Features

• 3-conductor shielded construction for noise immunity.
• 22 AWG (0.5 mm2) armored cable for mechanical protection.
• Equipped with a 3-socket plug at the sensor end and terminal lugs at the monitoring system end.
• Designed for compatibility with 330400 and 330425 series accelerometers.
• Rugged, flexible armor suitable for high-stress industrial applications.

Applications

• Oil & Gas: Monitoring of compressors, pumps, and turbines in refineries and petrochemical plants.
• Power Generation: Vibration monitoring for steam, gas, and wind turbines.
• Industrial Manufacturing: Signal transmission for equipment in steel, metal, and mining facilities.
• Municipal Engineering: Monitoring of large-scale pumps and motors.

Technical Specifications

Installation Guidelines

• Bend Radius: Maintain a minimum bend radius of at least 15 cm (approx. 6 in) to prevent damage to the internal conductors and armor.
• EMI/RFI Mitigation: Route sensor cables at least 12 inches away from AC power cables or motor leads. Do not run signal cables in the same conduit as high-voltage wiring.
• Mechanical Support: Utilize strain relief at connection points and secure the cable with appropriate clamps to prevent vibration-induced fatigue on the connectors.
• Handling: Ensure the system is powered down before connecting or disconnecting the cable from the sensor or monitoring module.

FAQs

What is the length of the 16710-33 cable?

The 16710-33 model is 33 feet (10.06 meters) in length.

What is the purpose of the 16710-33 cable?

It is used to connect Bently Nevada accelerometers to monitoring systems to ensure stable, shielded signal transmission in critical machine monitoring applications.

Which sensors is it compatible with?

This cable is specifically designed for use with the 330400 and 330425 series accelerometer models.

What are the connector types?

The cable features a 3-socket plug at the sensor end and terminal lugs at the monitoring system end for secure termination.
