Description

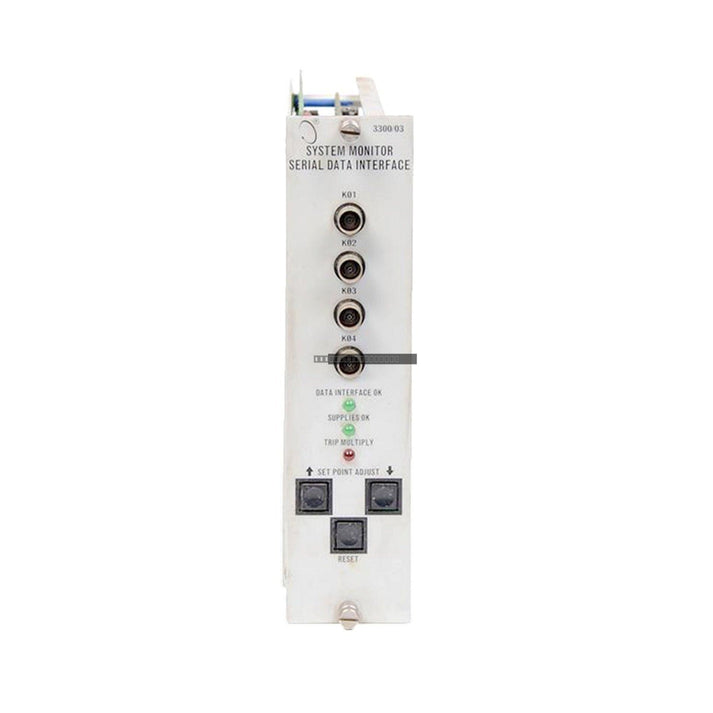

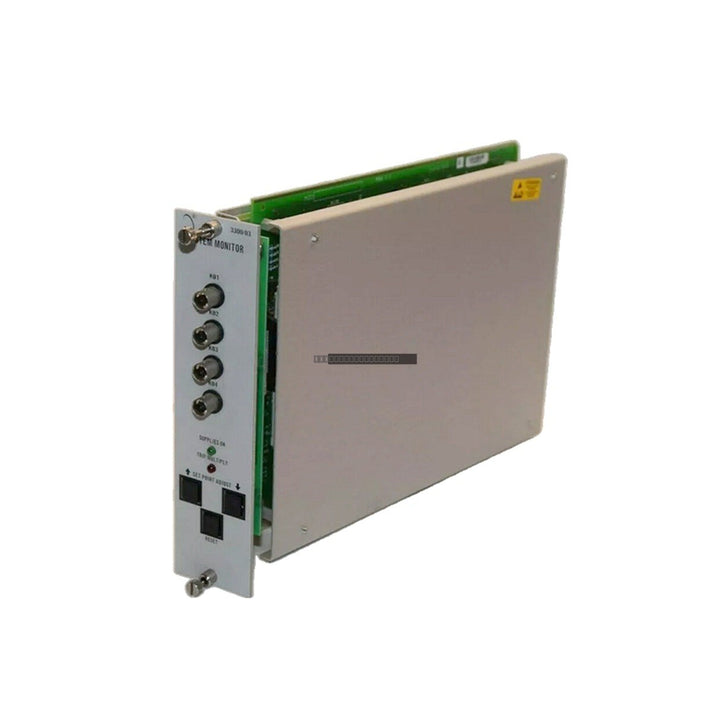

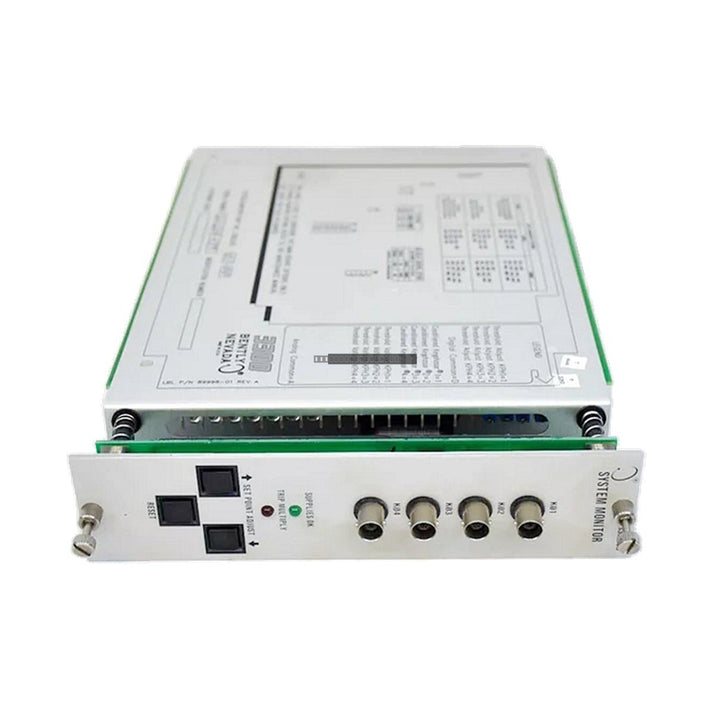

The Bently Nevada 3300/03-02-00 System Monitor serves as the primary supervisory unit for the 3300 Series rack-based monitoring system. This module is engineered to provide centralized oversight of rack health, including power supply monitoring, communication bus integrity, and the operational status of individual monitoring modules. By coordinating alarm relay logic and providing a unified diagnostic interface, it ensures reliable protection for critical rotating machinery such as turbines and compressors.

Features

• Centralized supervision of all modules installed within the 3300 rack.
• Integrated coordination for OK, Bypass, Alert, and Danger relay states.
• Continuous monitoring of rack-level power supply and internal communication bus health.
• Front-panel LED indicators for immediate visual status of rack and module health.
• Facilitates alarm signaling and diagnostic data exchange with external control and automation systems.

Applications

This module is essential for critical infrastructure protection in industrial environments, specifically designed for use in Bently Nevada 3300 rack systems monitoring rotating equipment including steam and gas turbines, centrifugal compressors, pumps, and large motors.

Technical Specifications

Installation Guidelines

• Ensure the 3300 rack is powered down before inserting or removing the System Monitor module to prevent electrical damage or unintended relay activation.
• Slide the module into the designated slot in the 3300 rack, ensuring proper alignment with the backplane connectors.
• Secure the module using the provided front-panel locking mechanisms to ensure a reliable connection and proper grounding.
• Maintain adequate ventilation around the rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.
• Handle with standard ESD precautions to protect sensitive internal electronic components.

FAQ

What is the primary function of the 3300/03-02-00?

The module acts as the supervisory controller for the 3300 rack, managing alarm relay coordination and monitoring the health of the rack's power and communication infrastructure.

Can this module be used in any Bently Nevada rack?

This module is specifically designed for the 3300 Series rack system. It is not compatible with other series such as the 3500 or 7200 systems.

What do the LED indicators on the front panel signify?

The LEDs provide real-time status updates regarding the health of the rack power, the integrity of the communication bus, and the operational status of the monitoring modules installed in the rack.
