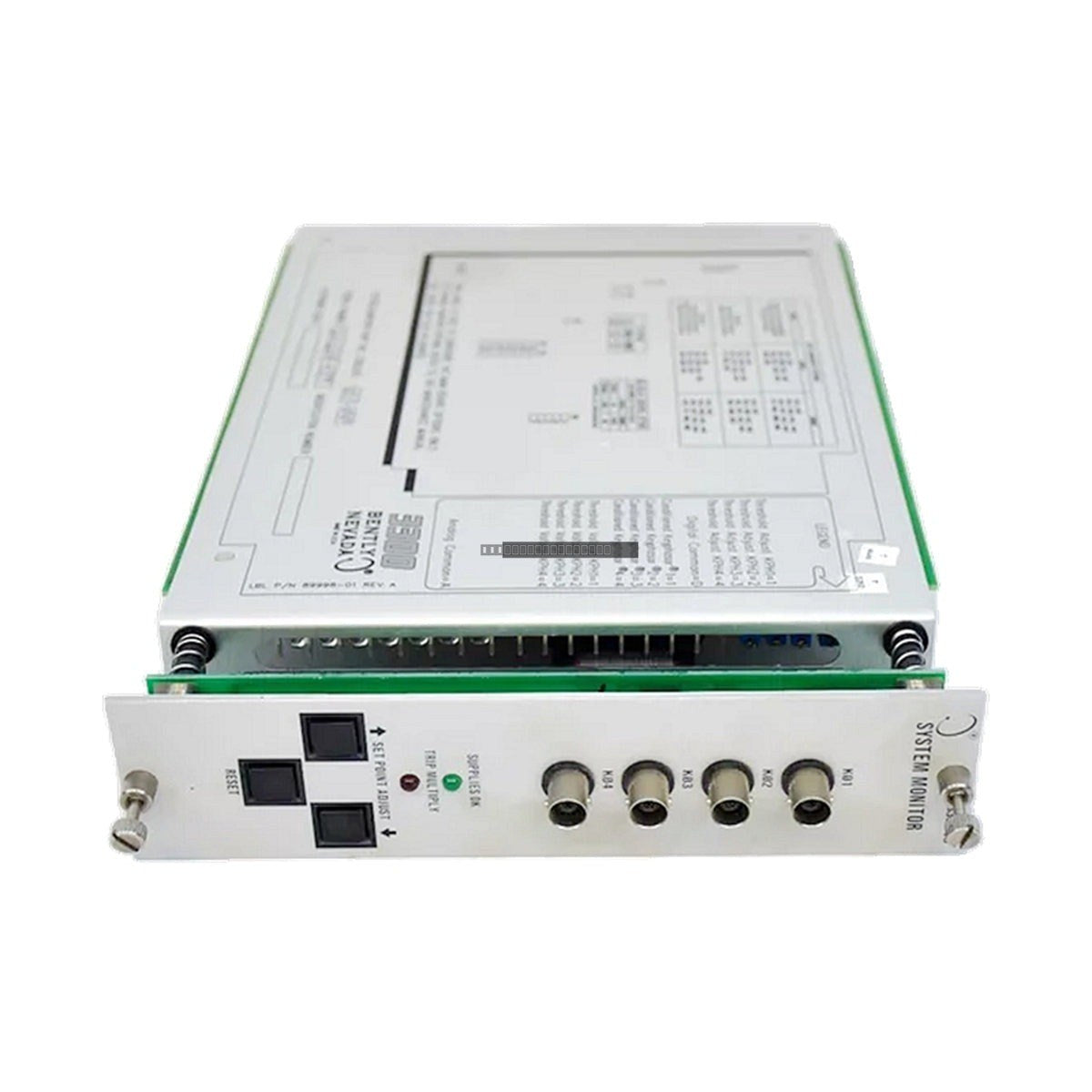

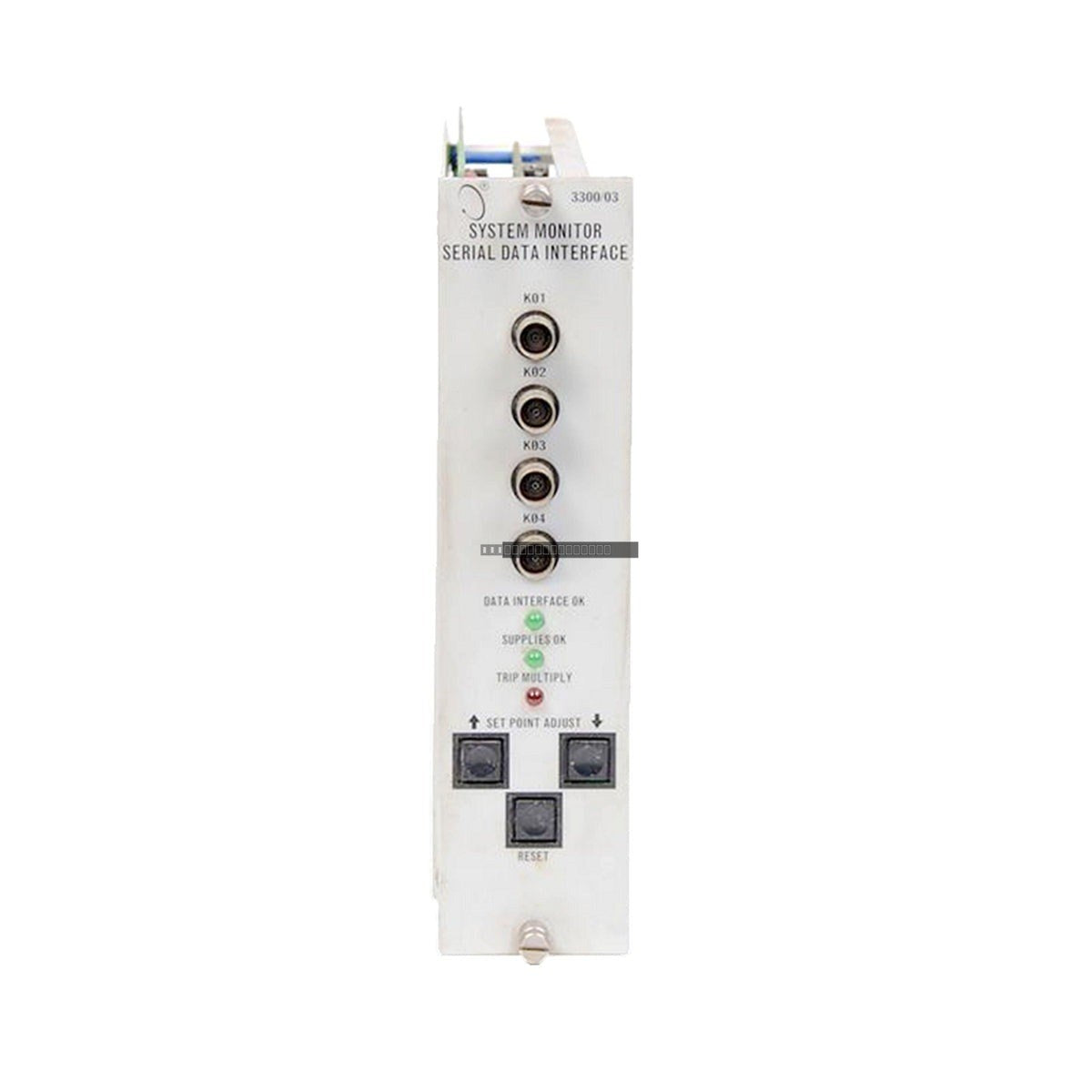

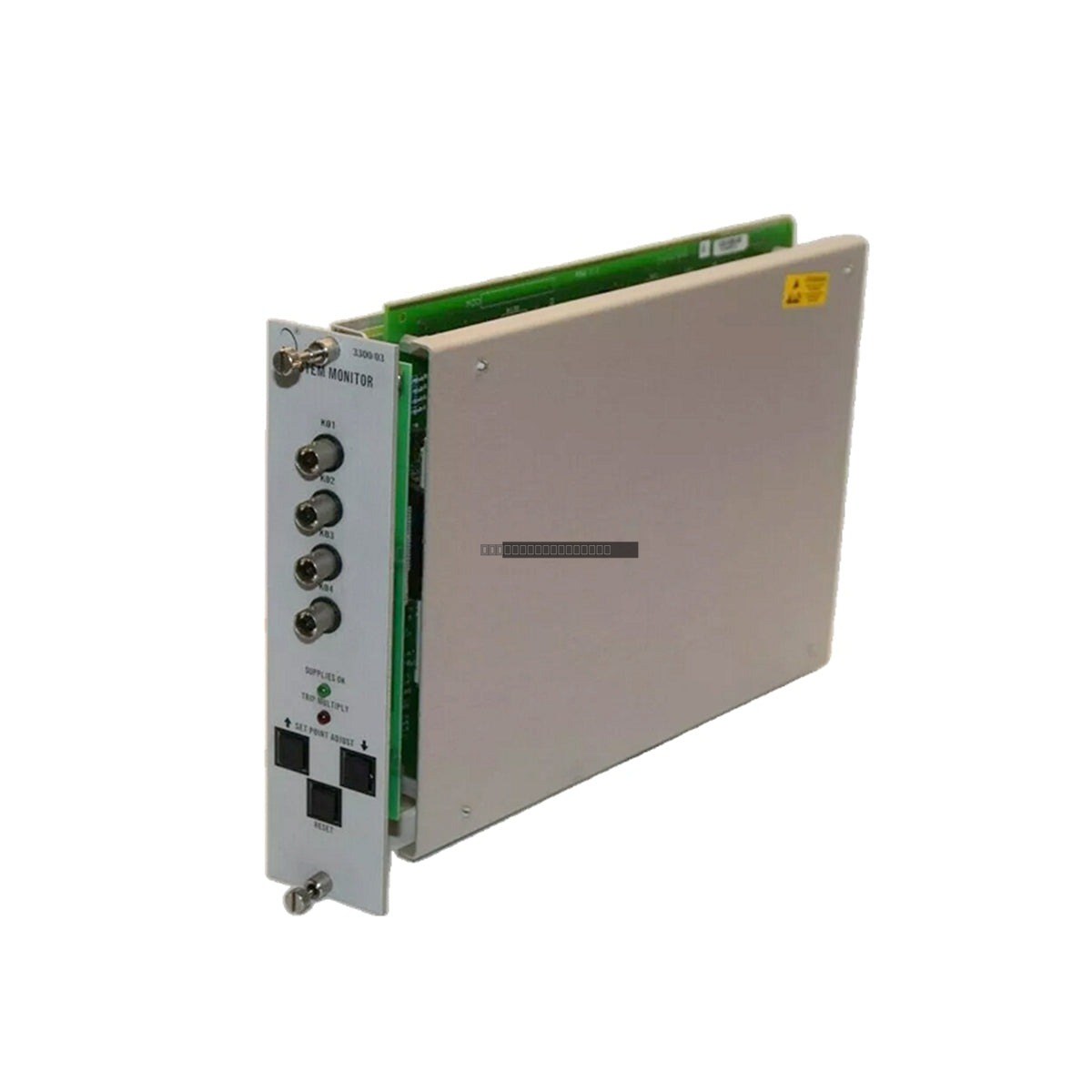

The Bently Nevada 3300/03-01-00 is a System Monitor Module designed for the 3300 series machinery protection system. This unit provides critical status monitoring and interface capabilities for industrial rotating machinery protection applications. Although this specific model is now discontinued by the manufacturer, it remains a vital component for maintaining legacy 3300 systems.

Features

• Integrated RS232 communication port for system interfacing.
• Dedicated Keyphasor power supply support.
• Alarm setpoint adjustment functionality for precise monitoring control.
• Designed for operation within an 18-24 VDC power range.
• Low power consumption profile of 2 W.

Technical Specifications

Installation Guidelines

• Ensure the system is fully powered down before inserting or removing the module from the rack to prevent electrical damage.
• Verify that the slot configuration matches the system requirements for the 3300 series backplane.
• Use appropriate ESD precautions when handling the module to protect internal circuitry.
• Ensure that the module is firmly seated in the rack and that all retaining mechanisms are secured.
• Route communication cables away from high-voltage lines or significant EMI sources to maintain signal integrity on the RS232 interface.

FAQ

Is the 3300/03-01-00 still available from the manufacturer? No, this module has been discontinued by Bently Nevada. We provide tested, reliable units for maintenance and system support.

What is the primary function of this module? The 3300/03 System Monitor acts as a central interface for the 3300 series monitoring system, providing alarm control and Keyphasor power management.
