Description

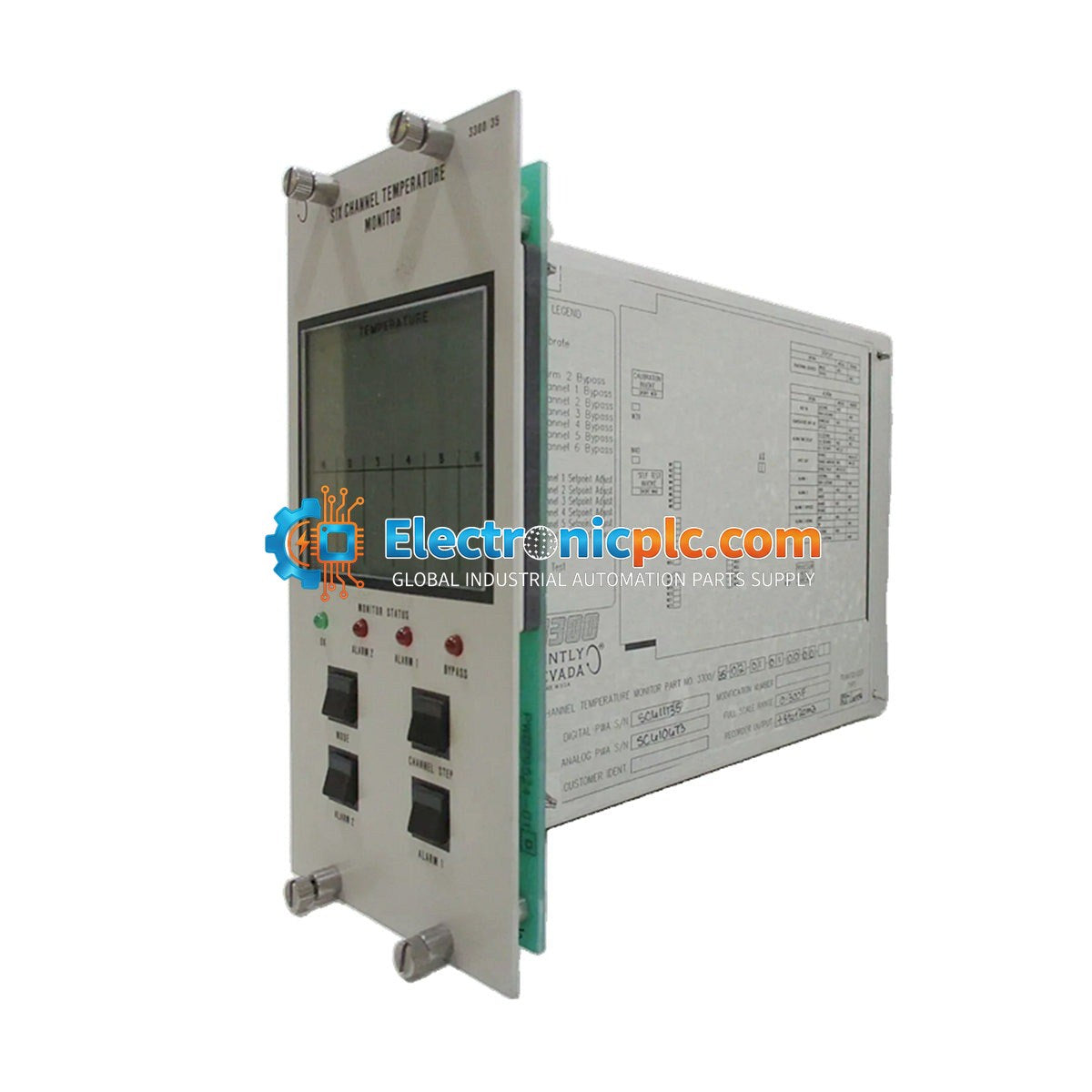

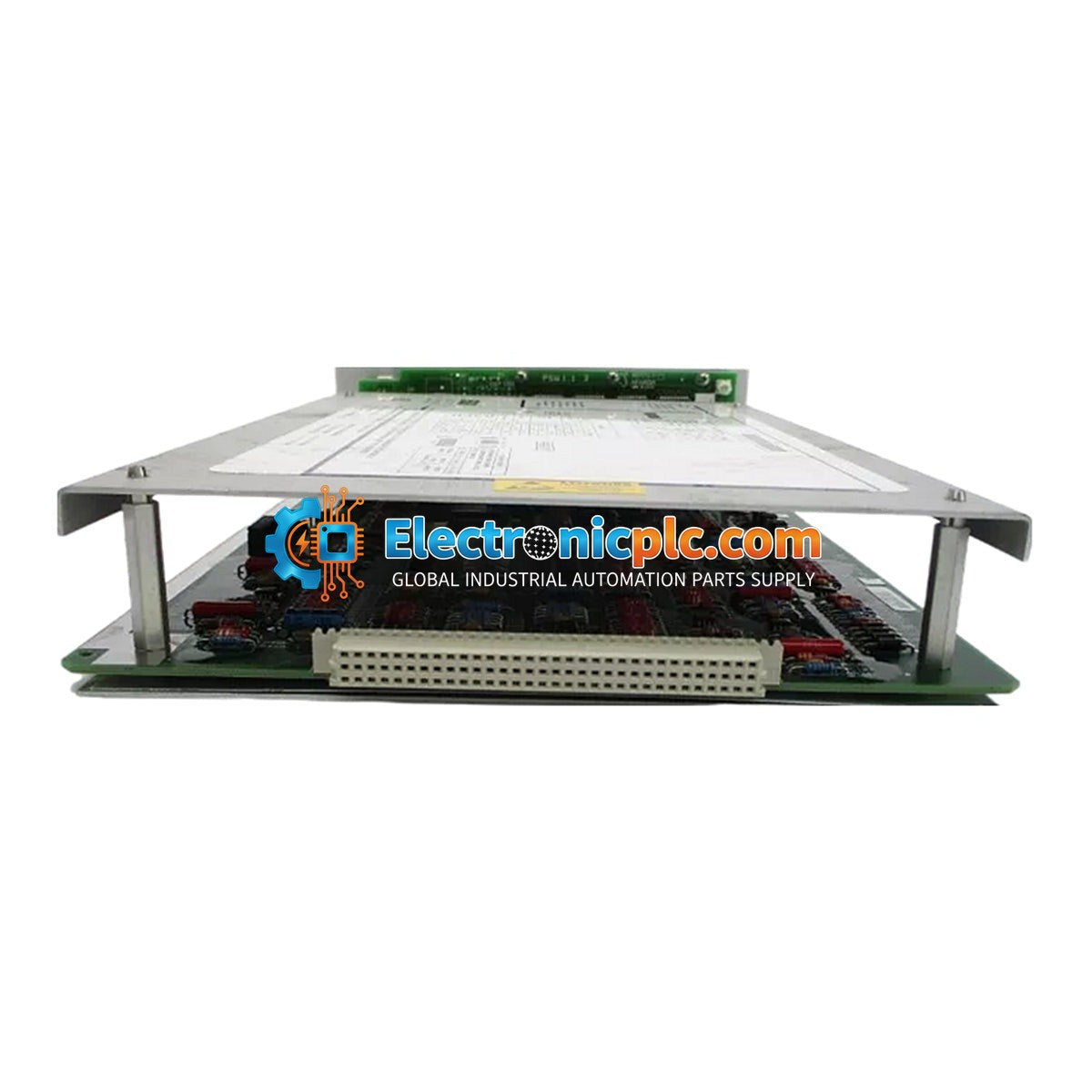

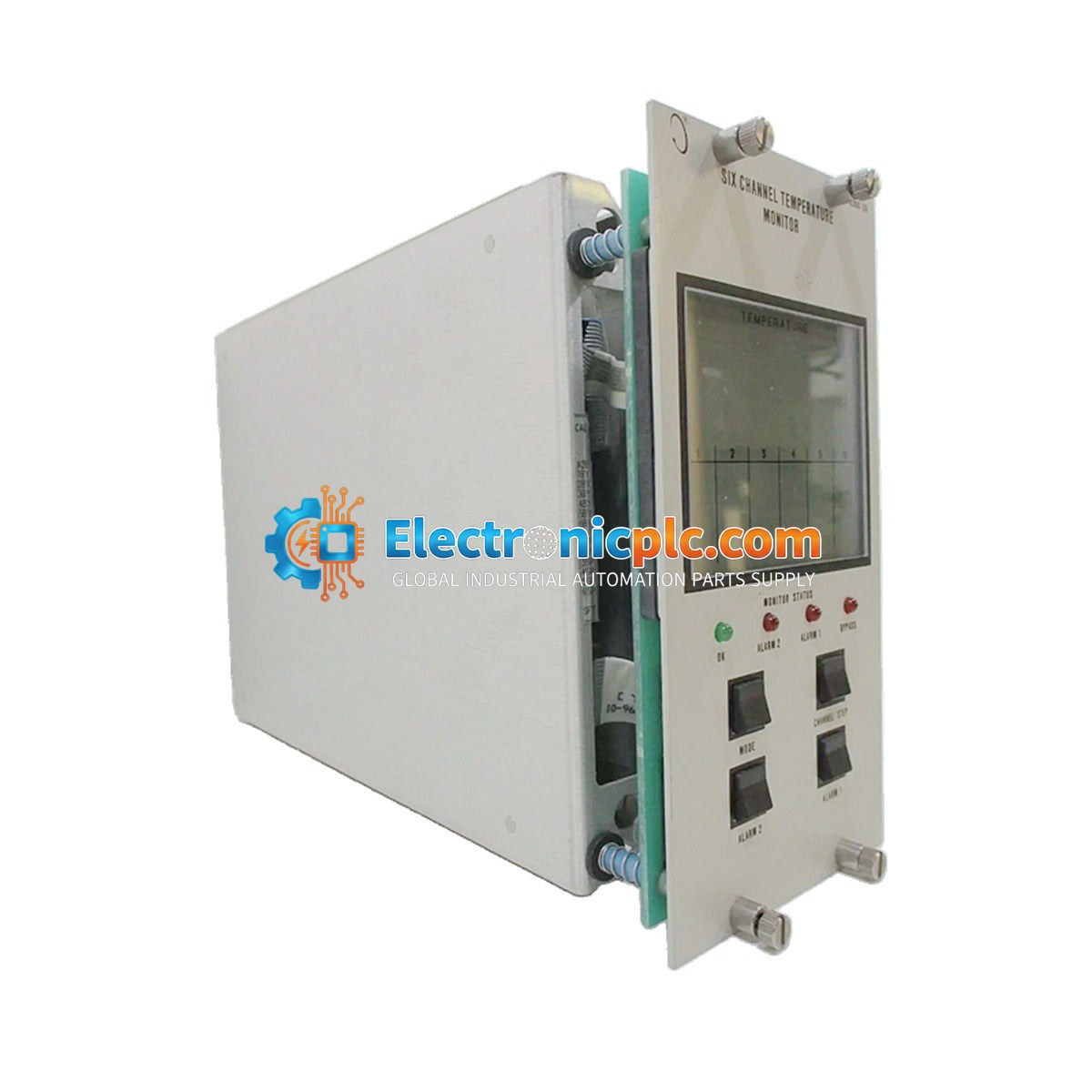

The Bently Nevada 3300/35-03-02-02-01-00 is a 6-channel Temperature Monitor designed for the 3300 Series rack system. This module provides continuous, high-reliability monitoring of multiple temperature points in critical rotating machinery, such as turbines, compressors, and large motors. By comparing sensor inputs against user-defined alarm setpoints, the module facilitates predictive maintenance and provides essential machinery protection by triggering relay outputs during abnormal temperature conditions.

Features

• Six independent monitoring channels for high-density temperature data acquisition.
• Compatible with standard industrial RTDs (Pt100, Pt1000) and thermocouples (J, K, T types).
• Provides proportional 4 to 20 mA and 1 to 5 VDC outputs for integration with external control systems.
• Integrated relay outputs for Alert and Danger alarm conditions.
• Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger states.

Applications

• Bearing temperature monitoring in rotating equipment.
• Stator winding temperature sensing for large motors and generators.
• Casing temperature monitoring for industrial compressors and turbines.
• General-purpose multi-point temperature data acquisition in process plants.

Technical Specifications

Installation Guidelines

• Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
• The module must be seated firmly in the rack slot to ensure proper backplane communication and power distribution.
• Use shielded cabling for all sensor inputs to minimize EMI/RFI interference in industrial environments.
• Ensure proper grounding of the 3300 rack chassis to a common plant ground.
• Handle with standard ESD precautions; avoid touching the module's backplane connector pins.

FAQ

What types of sensors are compatible with this module?

The 3300/35-03-02-02-01-00 supports RTDs including Pt100 and Pt1000, as well as J, K, and T type thermocouples.

Does this module provide alarm outputs?

Yes, the module includes integrated relay outputs configured for Alert and Danger alarm conditions, allowing for direct interface with shutdown or alarm systems.
