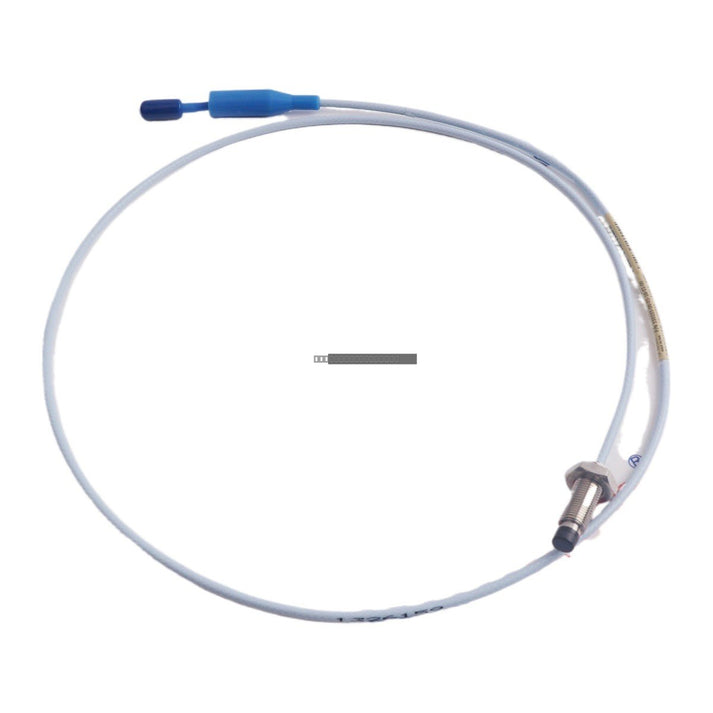

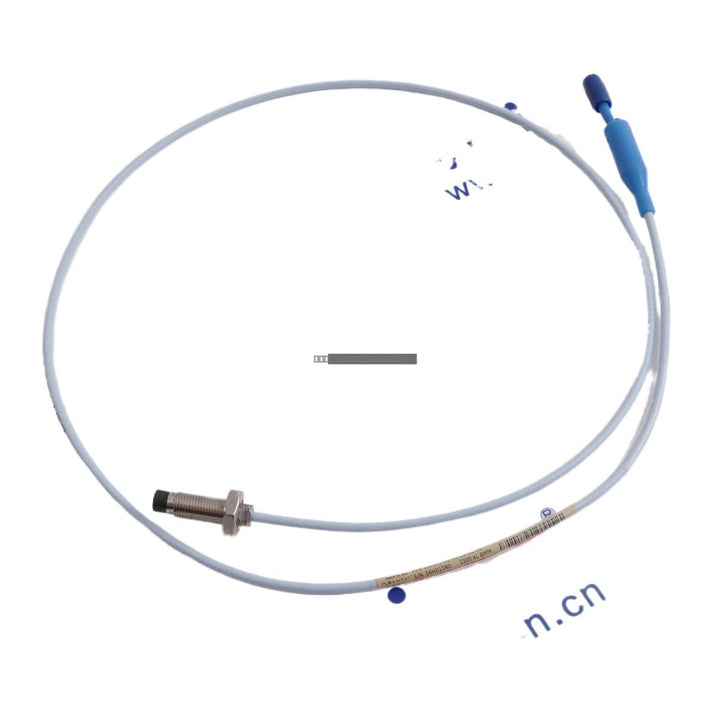

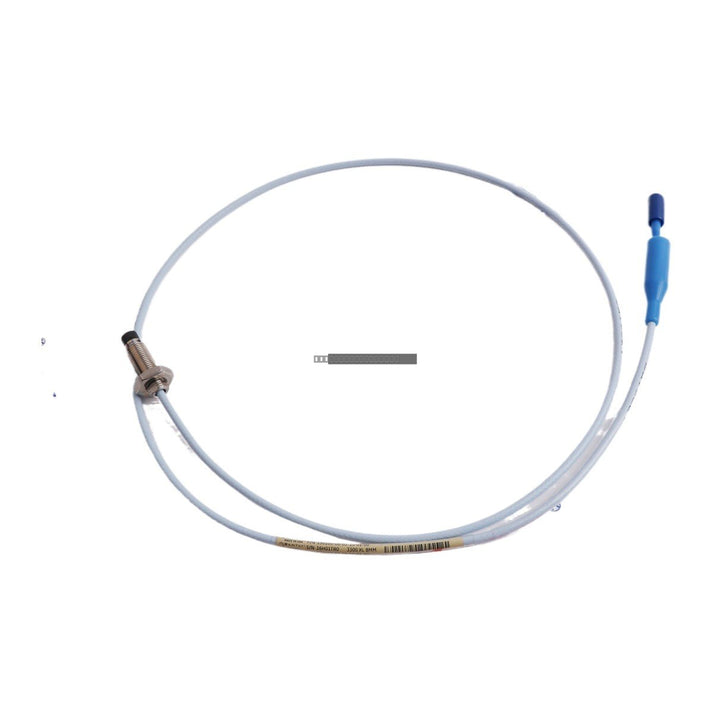

The Bently Nevada 330103-00-03-10-01-00 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position measurement in industrial rotating machinery. This probe is engineered to provide reliable gap measurement between the probe tip and the observed target, ensuring consistent performance in demanding environments.

Features

• Standard 8 mm probe diameter for compatibility with 3300 XL monitoring systems.
• M10 x 1 mounting thread for secure installation.
• Equipped with a miniature coaxial ClickLoc connector and connector protector.
• Standard cable construction for robust signal transmission.
• Designed for applications requiring a 0 mm minimum unthreaded length and 30 mm case length.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance.
• Handle the probe tip with care; avoid contact with hard surfaces to prevent damage to the sensing element.
• Route the coaxial cable away from high-voltage lines or sources of significant electromagnetic interference (EMI).
• Verify that the probe gap is set according to the specific machine monitoring requirements and the 3300 XL system calibration.
• Ensure all connectors are clean and fully seated before system startup.

FAQ

What is the primary function of the 330103 probe? The 330103 is a proximity probe used to measure the radial vibration or axial position of rotating shafts in industrial machinery.

Does this probe include armor? No, this specific model (330103-00-03-10-01-00) is configured without cable armor.

What is the cable length for this unit? This model features a 1.0-meter (3.3-foot) cable length.
