Description

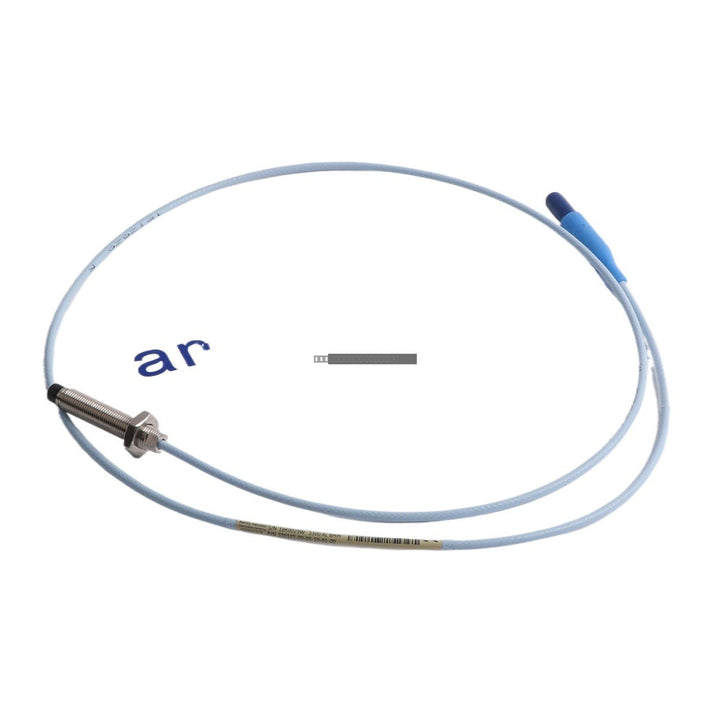

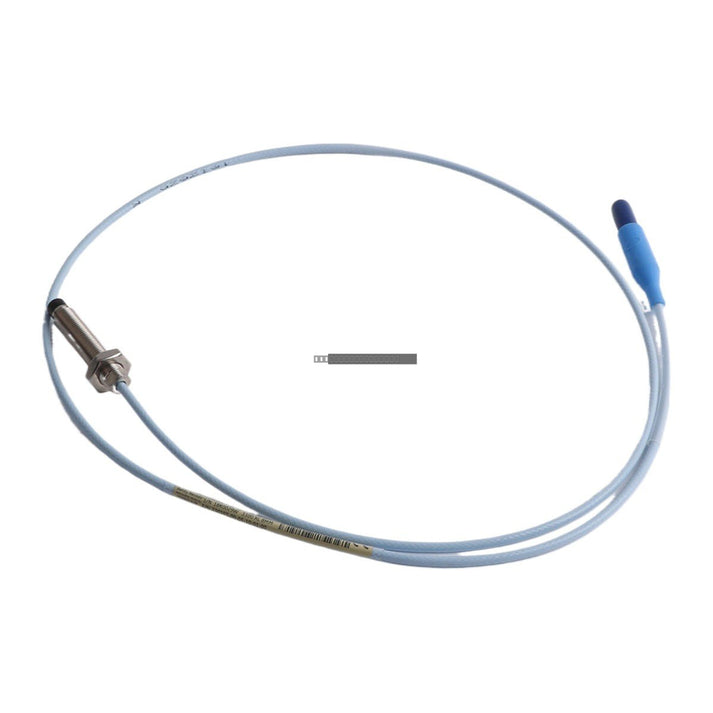

The Bently Nevada 330103-00-05-10-01-00 is a high-performance 3300 XL 8 mm proximity probe designed for accurate vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide reliable non-contact measurement of shaft displacement and position, serving as a critical component in condition monitoring systems.

Features

• Standard 8 mm probe tip diameter for consistent signal output.
• M10 x 1 thread configuration for secure mounting.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
• Includes a connector protector for enhanced durability in harsh environments.
• Designed for integration with 3300 XL series proximity transducer systems.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance.
• Handle the probe tip with care; avoid physical impact or scratching of the sensing surface.
• When routing the coaxial cable, maintain a minimum bend radius to prevent signal degradation or cable damage.
• Ensure the ClickLoc connector is fully seated and the connector protector is properly installed to prevent moisture or contaminant ingress.
• Verify that the probe is clear of surrounding metallic objects to avoid interference with the electromagnetic field.

FAQ

What is the primary function of this probe? The 330103 proximity probe is used to measure the static and dynamic distance between the probe tip and a conductive target, typically a rotating shaft, to monitor vibration and position.

Is this probe compatible with older 3300 series systems? The 3300 XL series is designed to be backwards compatible with many 3300 series installations, provided the appropriate extension cable and proximity transducer housing are used.
