Description

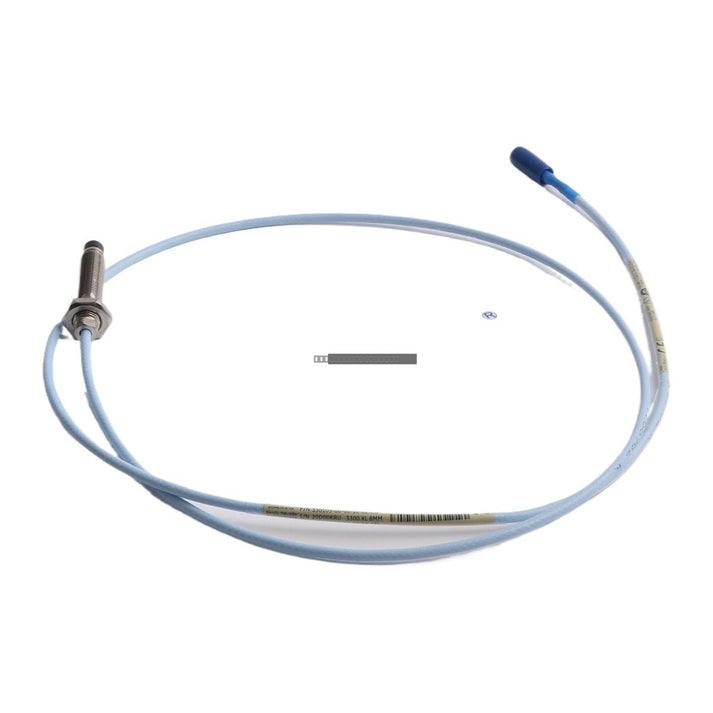

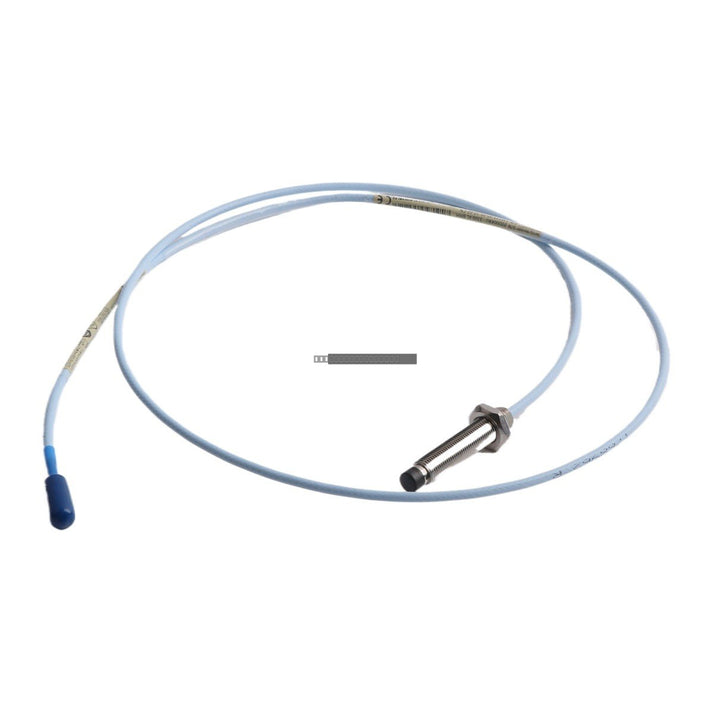

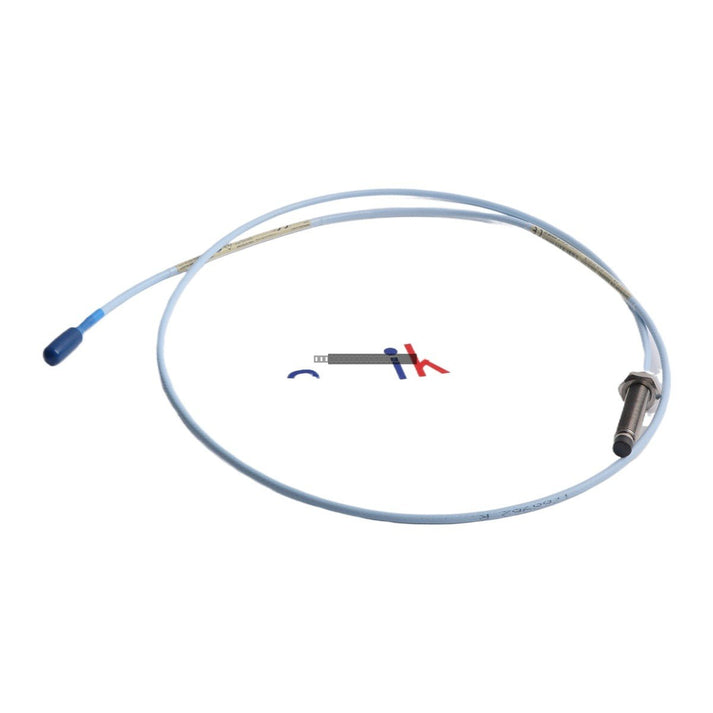

The Bently Nevada 330103-00-05-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide reliable gap measurement in demanding environments, ensuring compatibility with Bently Nevada 3300 XL monitoring systems.

Features

• 8 mm probe diameter for standard proximity sensing applications.
• M10 x 1 mounting thread configuration.
• Standard cable design with a length of 1.0 meter.
• Equipped with a miniature coaxial ClickLoc connector for secure signal transmission.
• Designed without armor for flexible routing in controlled environments.
• Includes comprehensive agency approvals including CSA, ATEX, and IECEx for hazardous area compliance.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted securely using the M10 x 1 thread to prevent mechanical vibration interference.
• Handle the probe tip with care; damage to the tip surface can affect the accuracy of the eddy current measurement.
• Maintain proper clearance from other metallic objects to avoid signal distortion.
• Route the coaxial cable away from high-voltage power lines or sources of electromagnetic interference (EMI).
• Verify that the system is powered down before connecting or disconnecting the ClickLoc connector to prevent electrical arcing.
• Ensure the installation environment meets the requirements specified by the CSA, ATEX, and IECEx certifications for hazardous locations.

FAQ

What is the primary function of the 330103 probe?
This probe is used as part of an eddy current proximity system to measure static and dynamic gaps between the probe tip and a conductive target, typically for monitoring shaft vibration, position, or speed.

Does this model include armor?
No, this specific order code (330103-00-05-10-02-CN) is configured without armor.

What does the CN suffix indicate?
The CN suffix denotes that the unit is manufactured to meet specific agency approval standards, including CSA, ATEX, and IECEx, making it suitable for use in hazardous environments.
