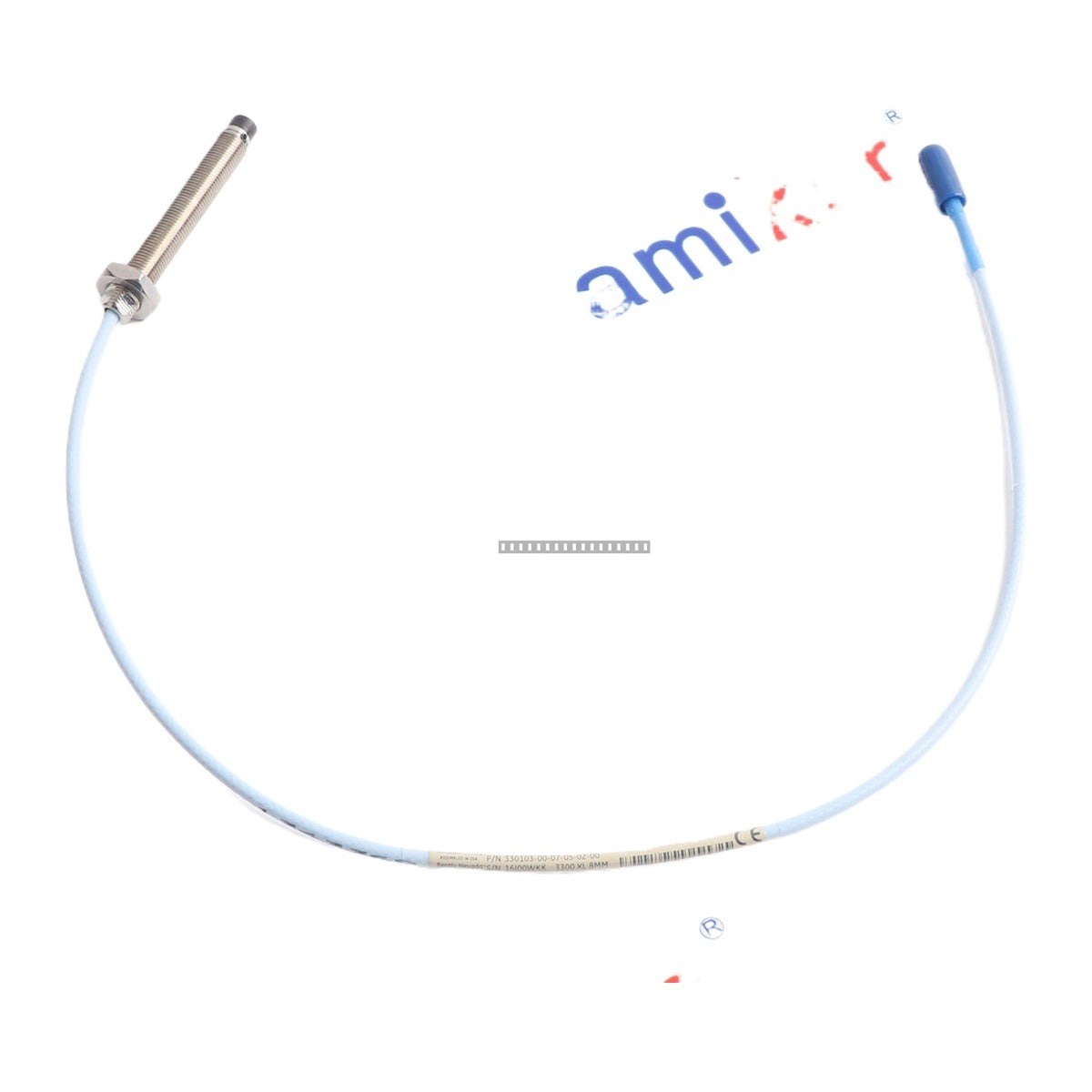

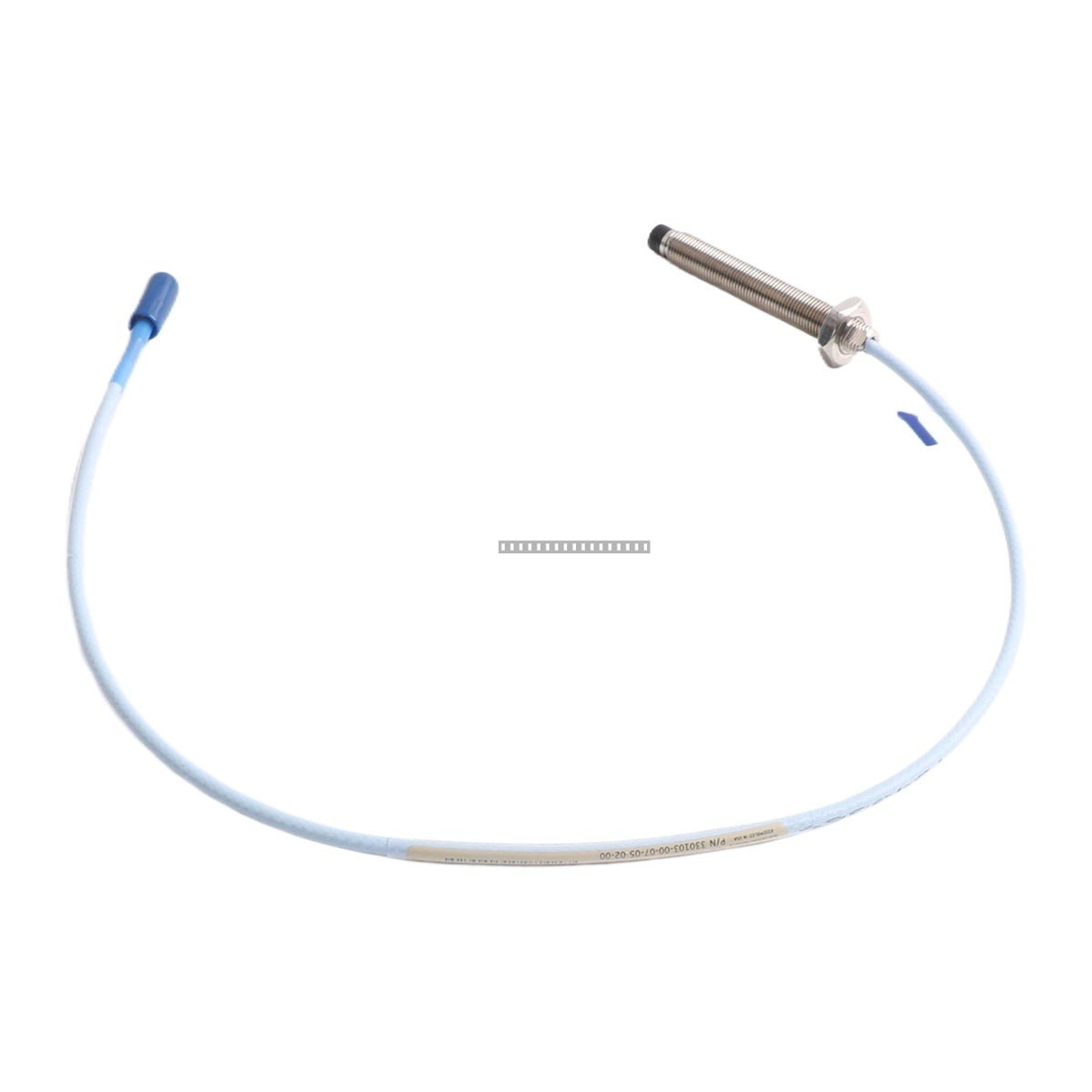

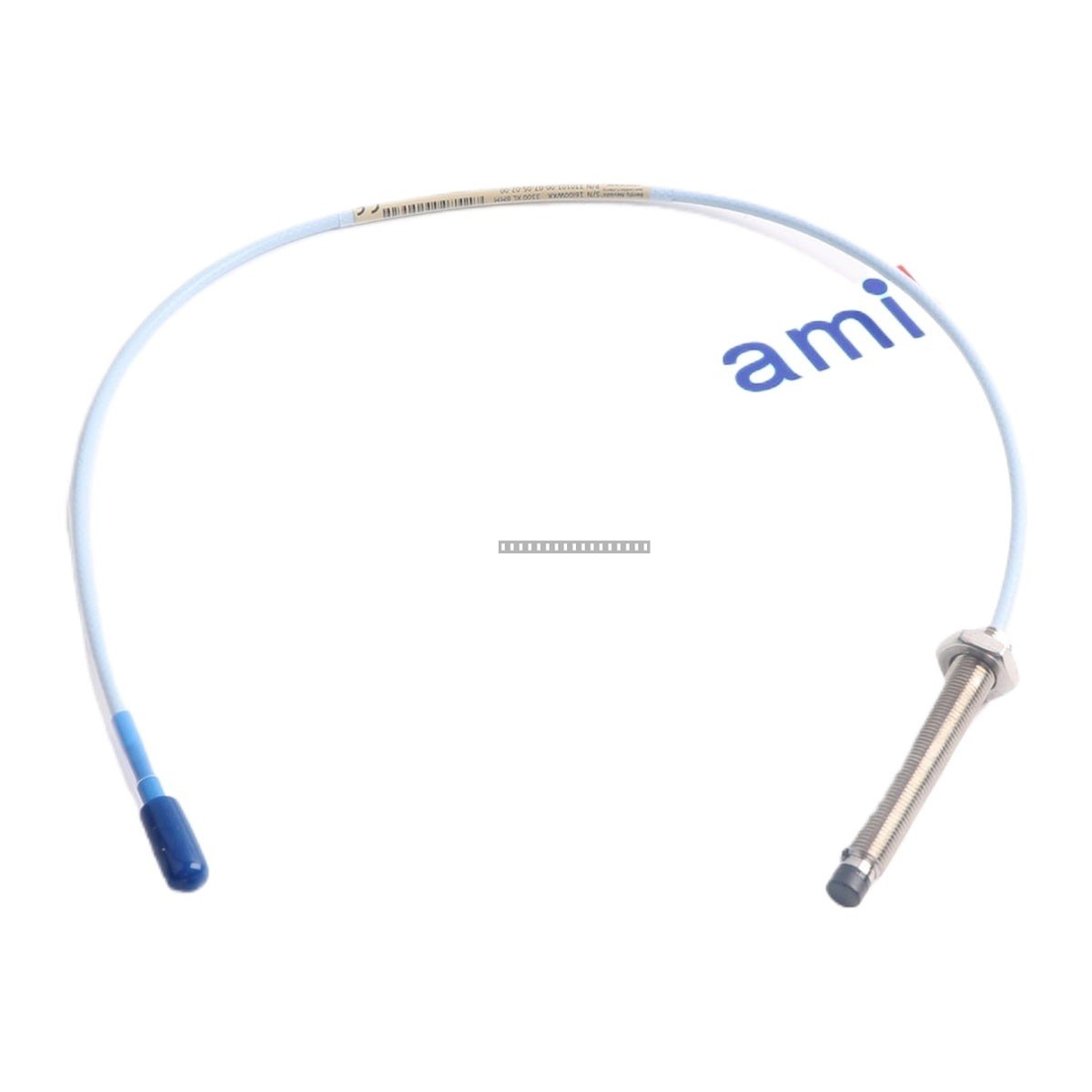

The Bently Nevada 330103-00-07-05-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide accurate gap measurements in demanding environments, ensuring reliable data for condition monitoring systems.

Features

• Standard 8 mm probe tip for consistent performance in radial vibration and axial position applications.
• M10 x 1 thread configuration for secure mounting.
• Equipped with a 0.5-meter (1.6 feet) cable length.
• Features a miniature coaxial ClickLoc connector for reliable signal transmission.
• Designed for compatibility with the Bently Nevada 3300 XL series monitoring systems.
• Rugged construction suitable for continuous industrial operation.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a location free from excessive mechanical stress or vibration that exceeds the sensor's rating.
• Use appropriate mounting brackets and ensure the probe tip is correctly gapped from the target surface according to the specific machine requirements.
• Handle the probe tip with care to avoid scratches or damage, as this can affect measurement accuracy.
• Route the coaxial cable away from high-voltage power lines or sources of electromagnetic interference (EMI) to prevent signal noise.
• Ensure the ClickLoc connector is fully seated and locked to maintain signal integrity.
• Verify that the probe is properly grounded through the mounting system to minimize electrical noise.

FAQ

What is the primary application for the 330103 probe? The 3300 XL 8 mm proximity probe is primarily used for measuring radial vibration and axial position on rotating shafts in turbines, compressors, and pumps.

Does this probe include armor? No, this specific model (330103-00-07-05-02-00) is configured without armor.

What is the purpose of the ClickLoc connector? The ClickLoc connector is designed to provide a secure, reliable connection that prevents accidental disconnection due to vibration while maintaining the integrity of the coaxial signal path.
