Description

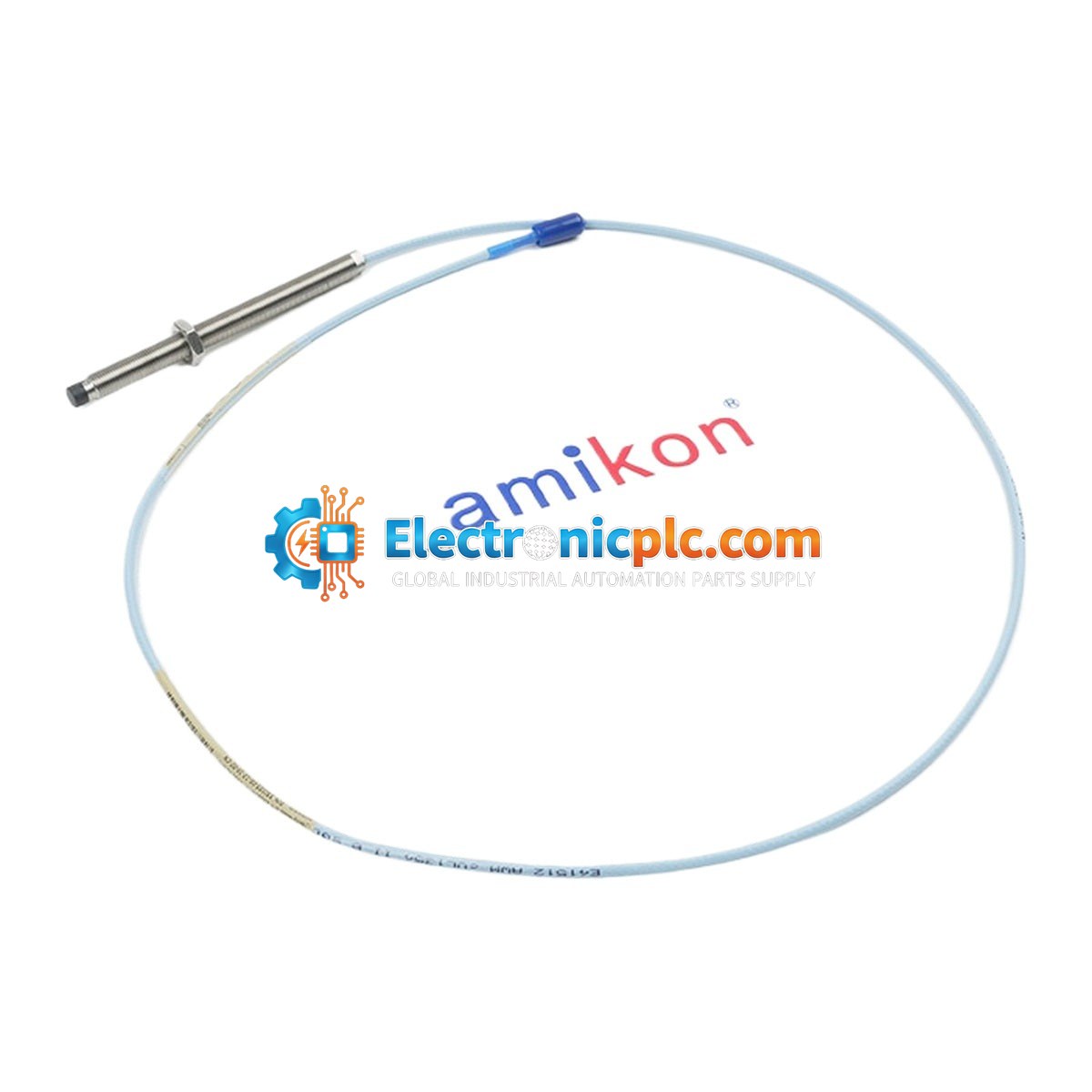

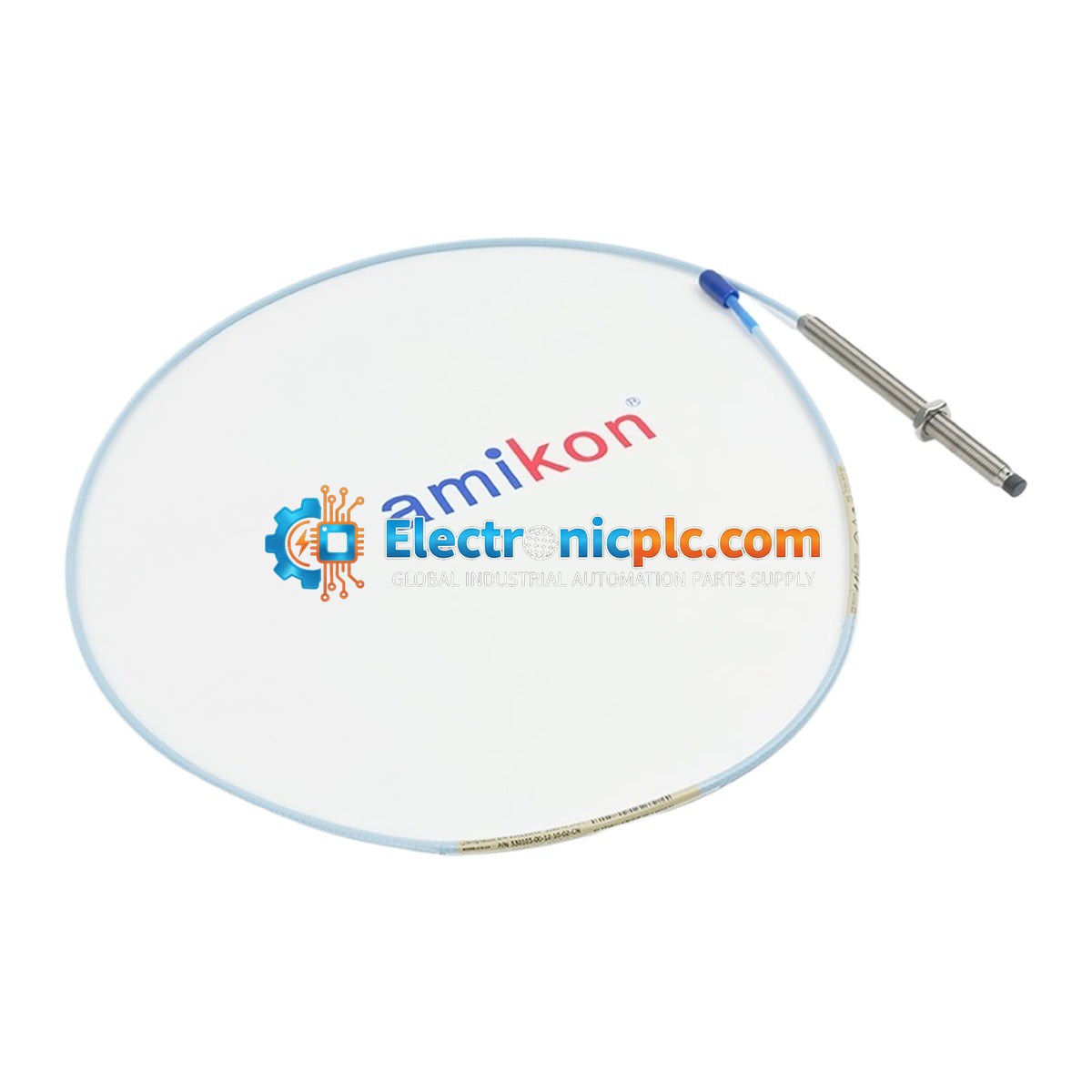

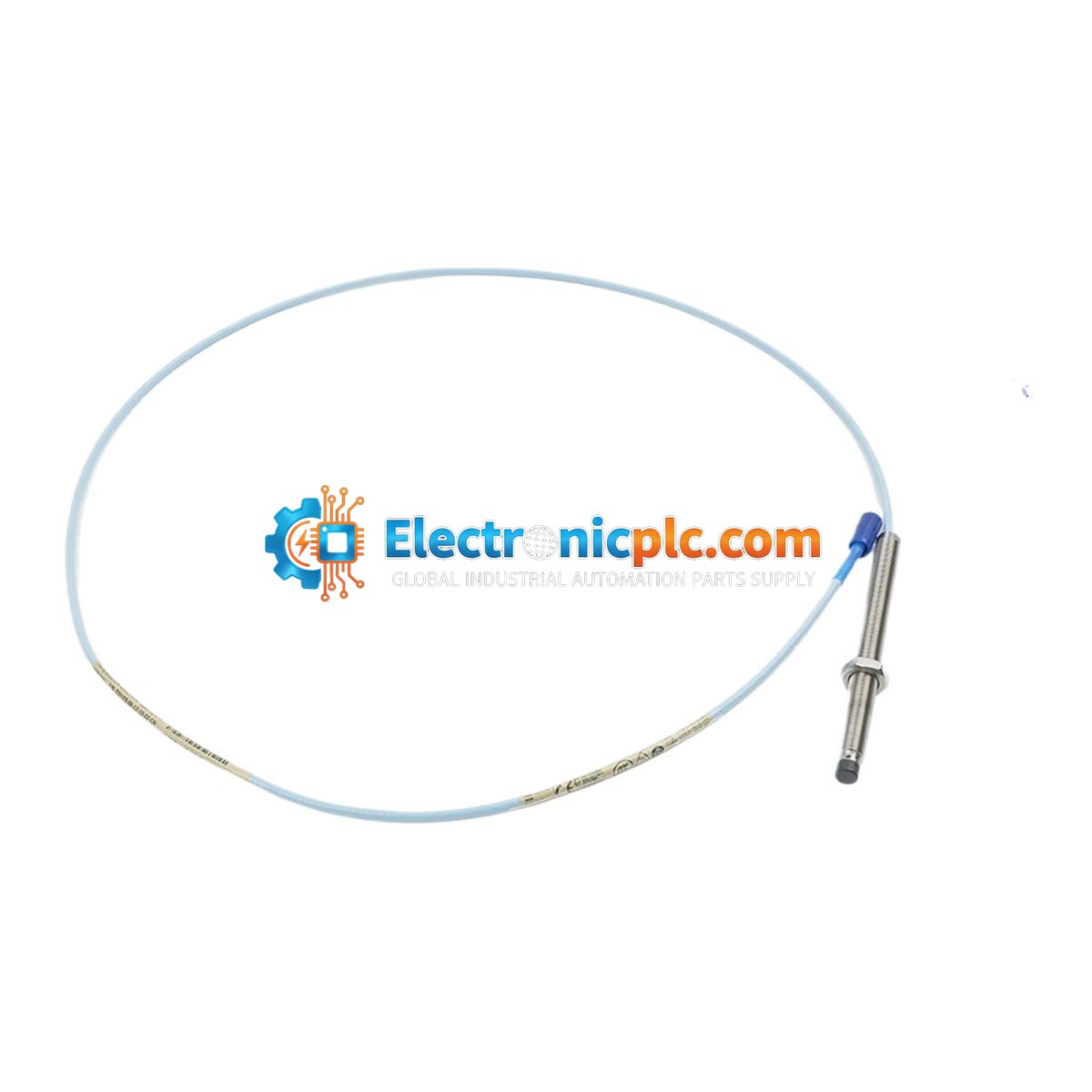

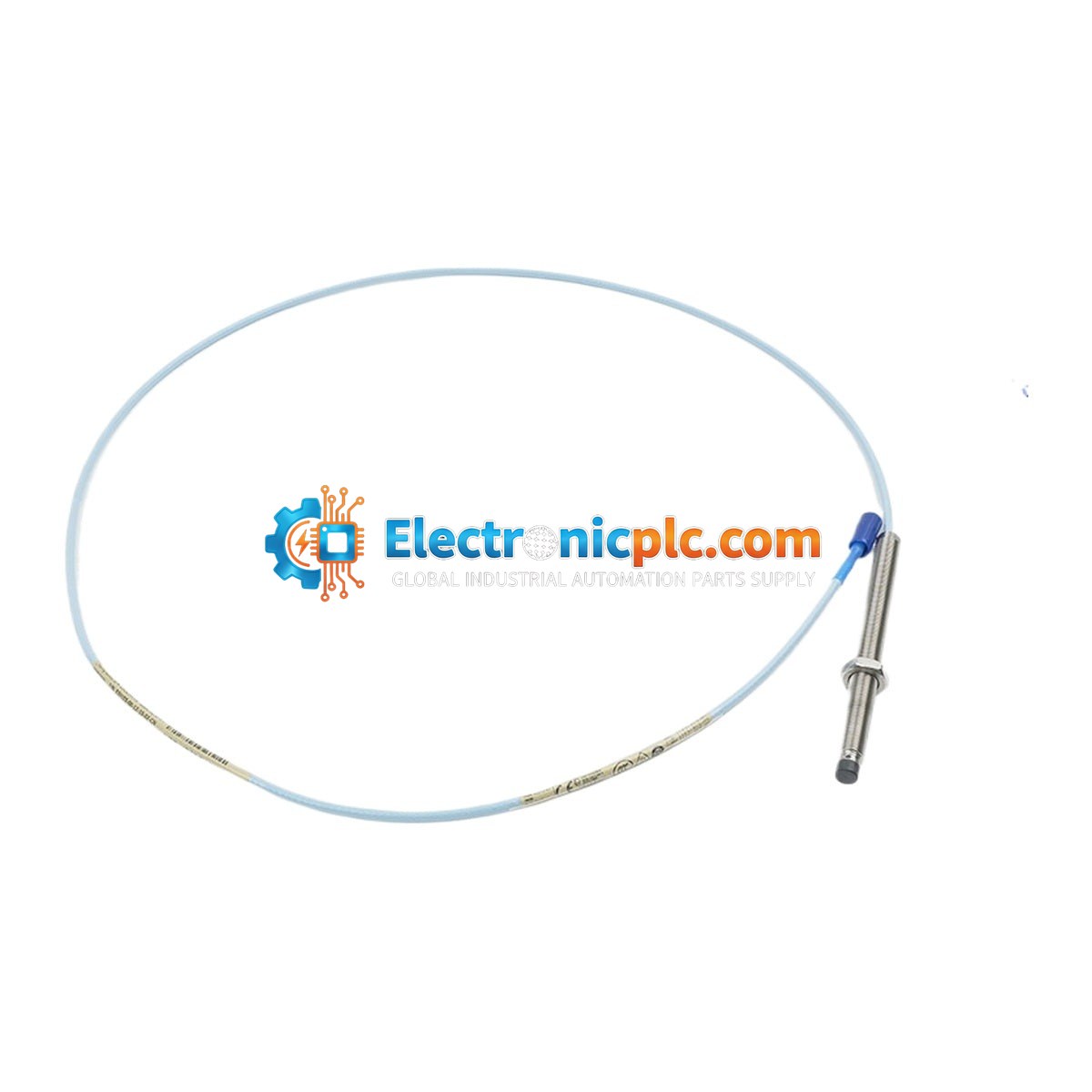

The Bently Nevada 330103-00-12-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery protection. As part of the industry-standard 3300 XL transducer system, this probe provides precise, non-contact measurement of shaft displacement, vibration, and position. The 330103 model is engineered for reliability in demanding industrial environments, ensuring compatibility with the 3300 XL Proximitor sensor series without the need for individual bench calibration.

Features

• Eddy Current Technology: Provides accurate, non-contact measurement of radial vibration, axial thrust, and speed.
• System Interchangeability: Fully compatible with 3300 XL series components, allowing for seamless replacement of probes, extension cables, and sensors.
• Robust Construction: Features an M10 x 1 thread configuration with a 120 mm case length, designed for durable mounting in industrial housings.
• ClickLoc Connector: Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
• Regional Compliance: This specific -CN model includes NEPSI certification for use in China.

Applications

• Steam and Gas Turbines: Monitoring radial vibration and axial thrust to ensure safe operation.
• Centrifugal and Axial Compressors: Preventing shaft-to-bearing contact through precise gap measurement.
• Industrial Pumps and Fans: Tracking equipment health and detecting early signs of mechanical wear.
• Generators and Motors: Providing stable, continuous monitoring for large rotating electrical assets.
• Gearboxes: Detecting misalignment and bearing degradation via shaft vibration analysis.

Technical Specifications

Installation Guidelines

• Handling: Proximity probes are precision instruments. Handle with care to avoid damaging the probe tip or the coaxial cable.
• Mounting: Ensure the probe is installed in a rigid, vibration-free bracket to prevent false readings. Use the provided lock nuts to secure the probe at the required gap distance.
• Wiring: Route coaxial cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• System Integration: This probe must be paired with a compatible 3300 XL Proximitor sensor. Ensure all connections are clean and tightened to the manufacturer's specified torque.
• Power Down: Always disconnect power to the monitoring system before installing or removing probe components to prevent electrical damage.

FAQ

What is the difference between the -CN and -05 models?

The 330103-00-12-10-02-CN and 330103-00-12-10-02-05 are physically and electrically identical. The primary difference is the regional safety certification: the -CN model is NEPSI-certified for use in China, while the -05 model carries global approvals such as CSA, ATEX, and IECEx.

Does this probe include the Proximitor sensor?

No, the 330103 part number refers to the probe and integrated cable only. A compatible 3300 XL Proximitor sensor is required to complete the transducer system.

What is the measurement range of this probe?

The 3300 XL 8 mm system typically provides a linear measurement range of 0 to 80 mils (0 to 2.0 mm), suitable for most standard vibration and position monitoring applications.
