Description

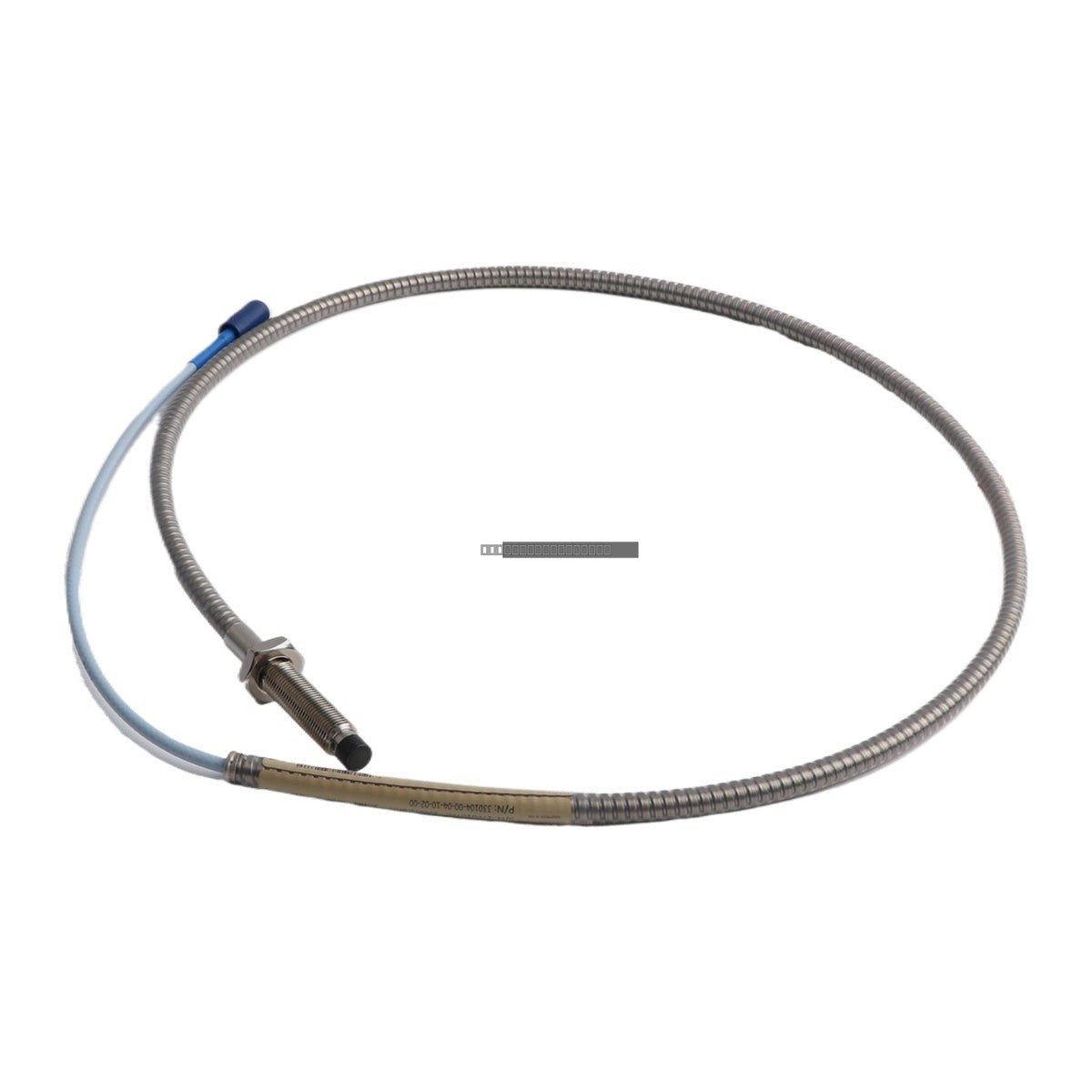

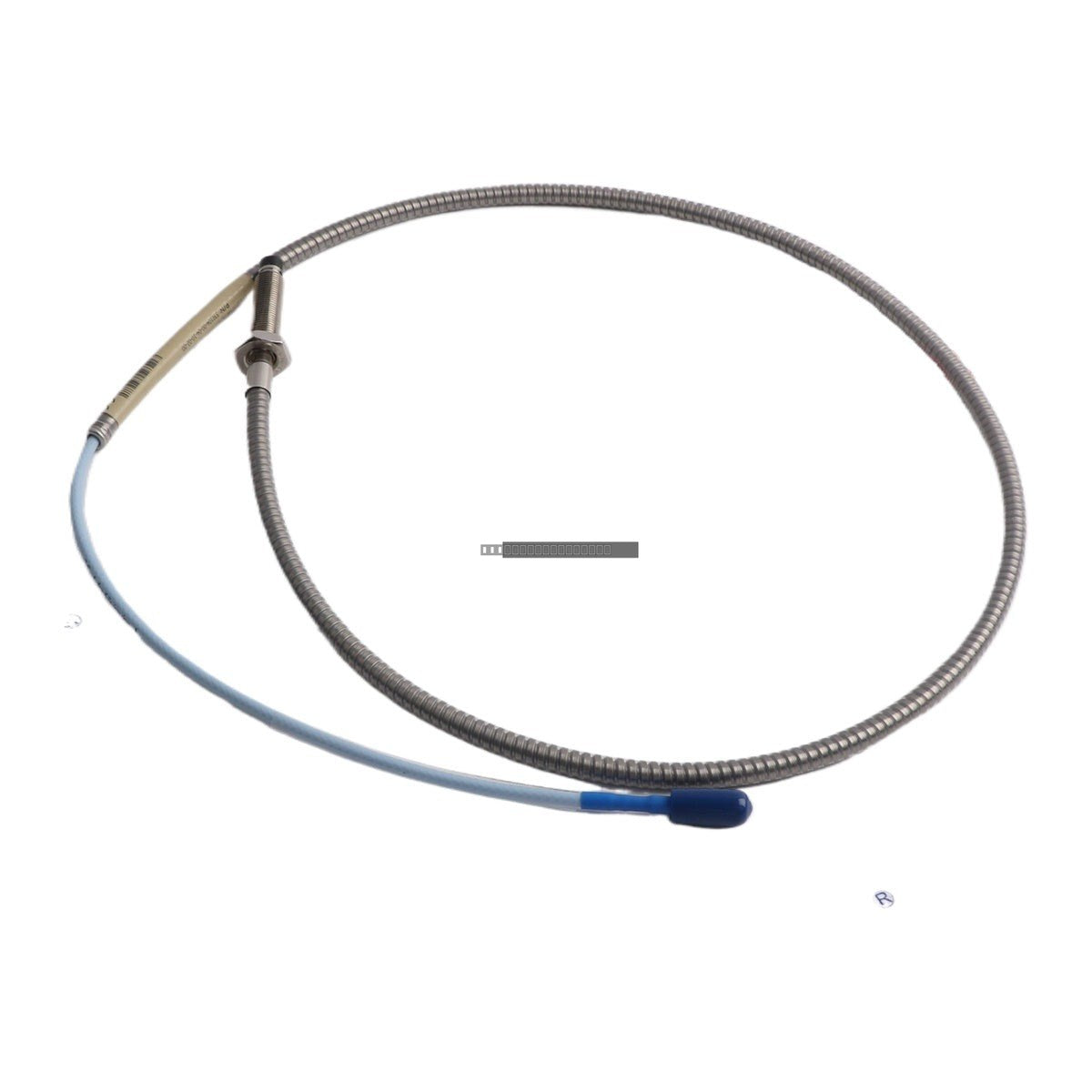

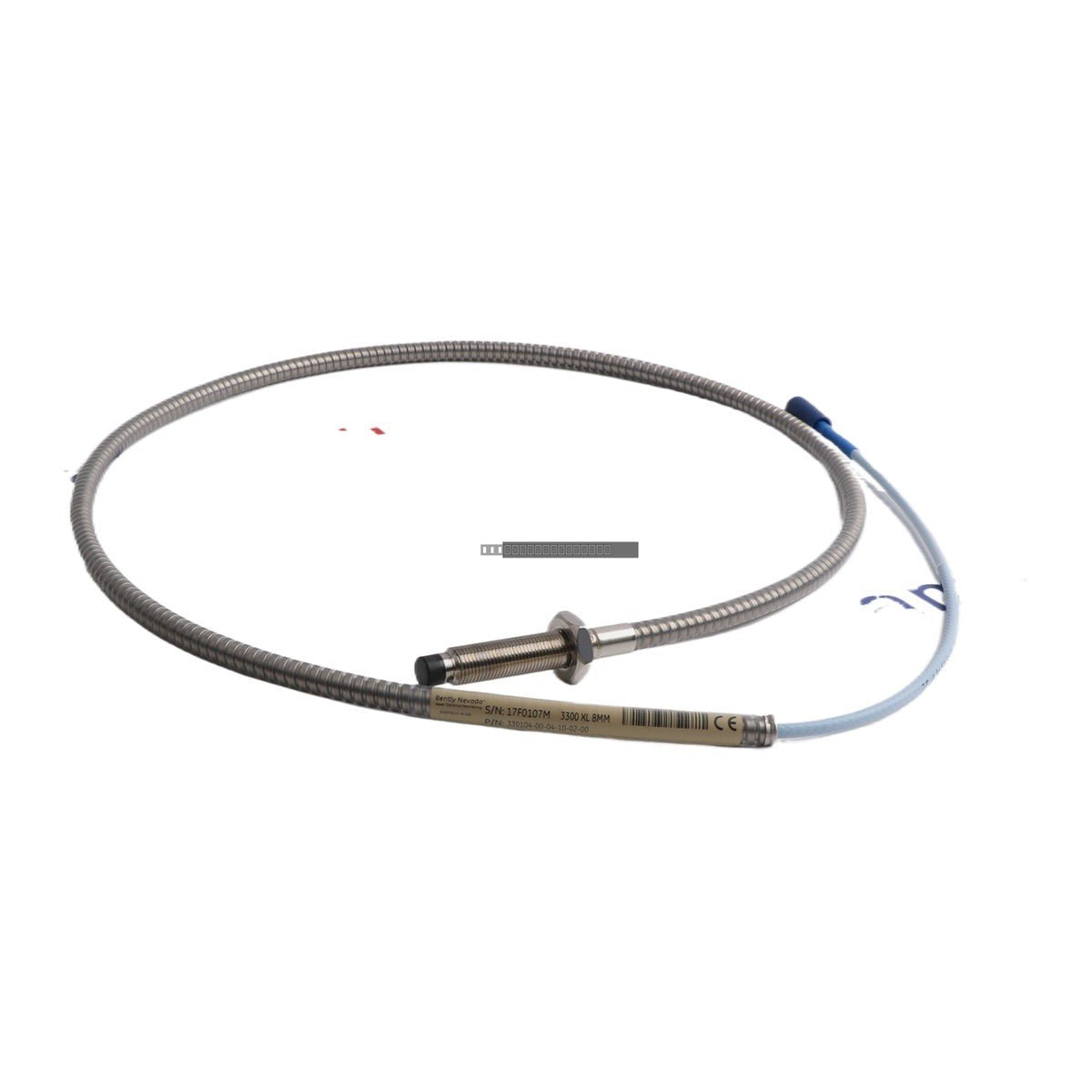

The Bently Nevada 330104-00-04-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for accurate vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide reliable non-contact displacement measurements, essential for monitoring shaft radial vibration, axial position, and speed in critical turbomachinery.

Features

• 8 mm probe tip diameter for standard industrial sensing applications.
• M10 x 1 thread configuration for secure mounting in probe holders.
• Equipped with protective armor for enhanced durability in harsh industrial environments.
• Integrated miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable length of 1.0 meter (3.3 feet).
• Designed for seamless integration with Bently Nevada 3300 XL monitoring systems.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a rigid, vibration-free holder to prevent false readings.
• Handle the probe tip with care; avoid physical impact or scratches to the sensing surface.
• Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI).
• Verify that the probe gap is set according to the specific machine monitoring requirements and the 3300 XL system calibration.
• Ensure all cable connections are clean and tightened to the specified torque to maintain signal integrity.
• Always power down the monitoring system before disconnecting or replacing the probe to prevent electrical damage.

FAQ

What is the primary function of this probe? The 330104 8 mm proximity probe is used for non-contact measurement of shaft displacement, vibration, and position in rotating equipment.

Is this probe compatible with standard 3300 XL extension cables? Yes, this model features a standard ClickLoc connector designed to interface with compatible Bently Nevada 3300 XL extension cables.

Does this unit require special agency approvals? This specific order code (00) indicates that no additional agency approvals are required for this configuration.
