Description

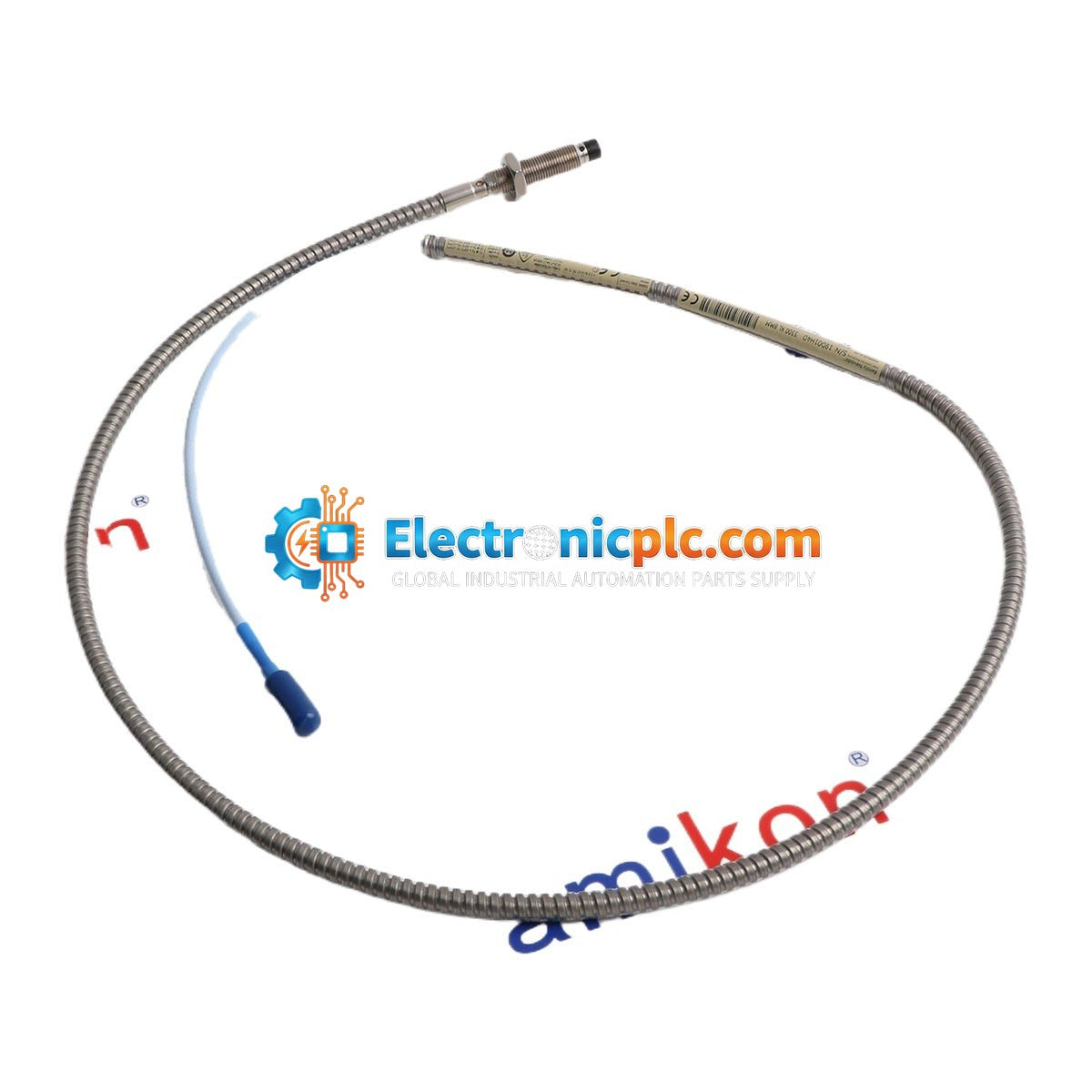

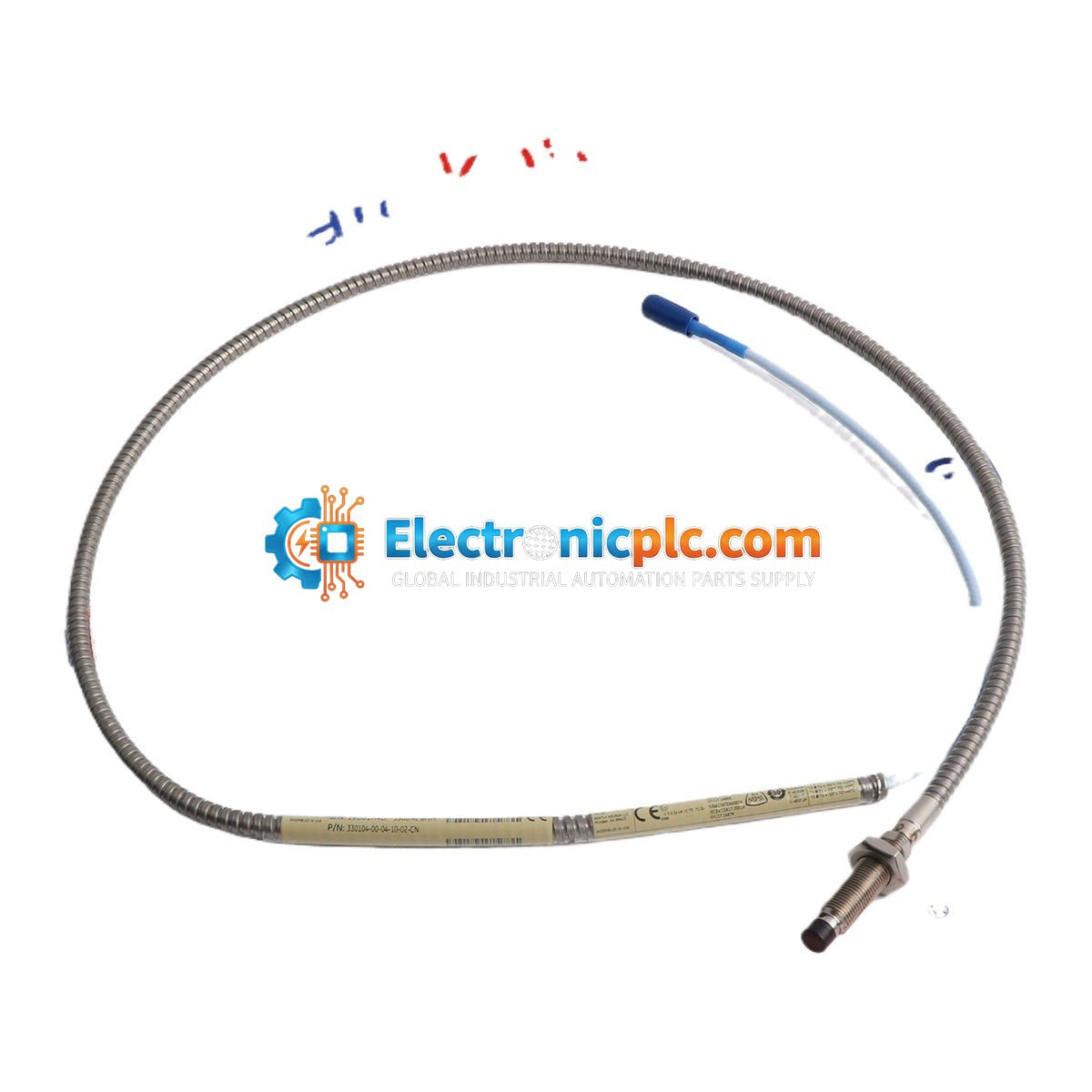

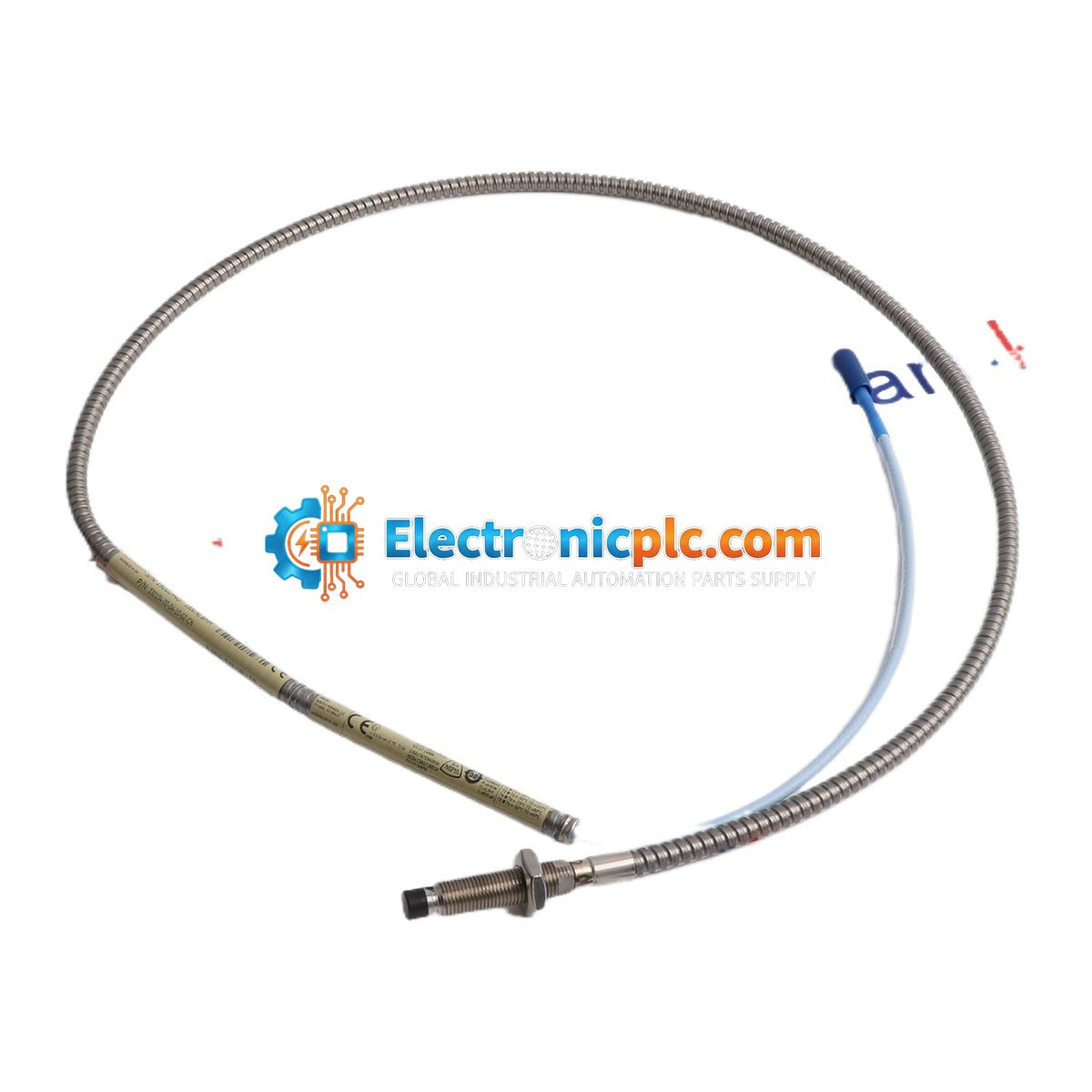

The Bently Nevada 330104-00-04-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for accurate vibration and position measurement in industrial rotating machinery. As part of the Bently Nevada 3300 XL transducer system, this probe provides reliable, non-contact measurement of shaft displacement, position, and speed. The 3300 XL series is engineered to meet the rigorous demands of critical asset monitoring, offering excellent linearity and stability across a wide temperature range.

Features

• 8 mm probe tip diameter for standard proximity sensing applications.
• M10 x 1 thread configuration for secure mounting in probe holders.
• Equipped with protective armor for enhanced durability in harsh industrial environments.
• Features a miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable construction with a total length of 1.0 meter.
• Certified for hazardous locations including CSA, ATEX, and IECEx approvals.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid, vibration-free holder to prevent measurement errors.
• Use caution when tightening the M10 x 1 threads to avoid damaging the probe housing or internal components.
• Route the coaxial cable away from high-voltage power lines or sources of electromagnetic interference (EMI) to maintain signal integrity.
• Verify that the probe tip has sufficient clearance from the target surface as specified in the system documentation to avoid physical contact during operation.
• Always perform a system calibration check after installation to ensure the transducer output matches the monitoring system requirements.

FAQ

What is the primary function of the 330104-00-04-10-02-CN probe?

This probe is used in conjunction with a 3300 XL Proximitor sensor to measure the static and dynamic distance between the probe tip and a conductive target, typically a rotating machine shaft, for vibration analysis and position monitoring.

Is this probe suitable for hazardous environments?

Yes, the -CN suffix indicates that this specific model carries CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous areas when installed according to local and international safety standards.
