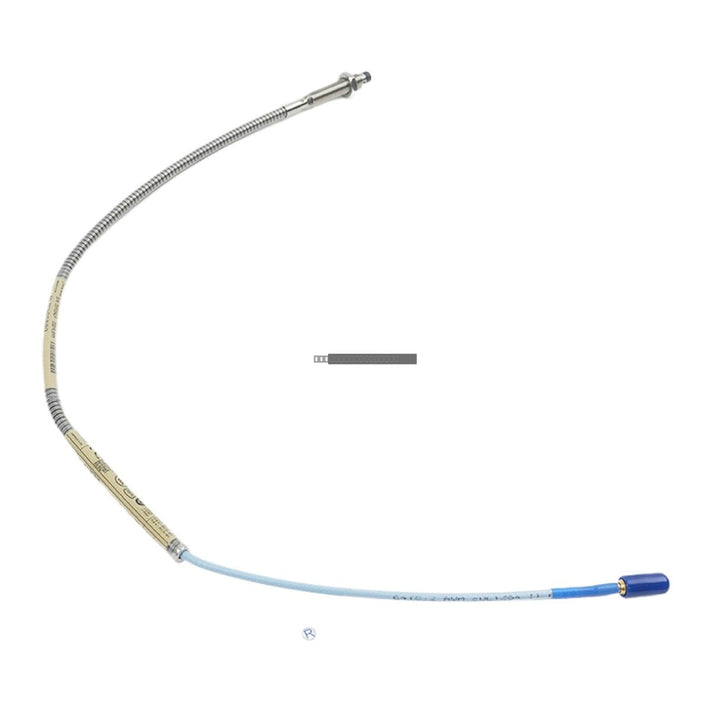

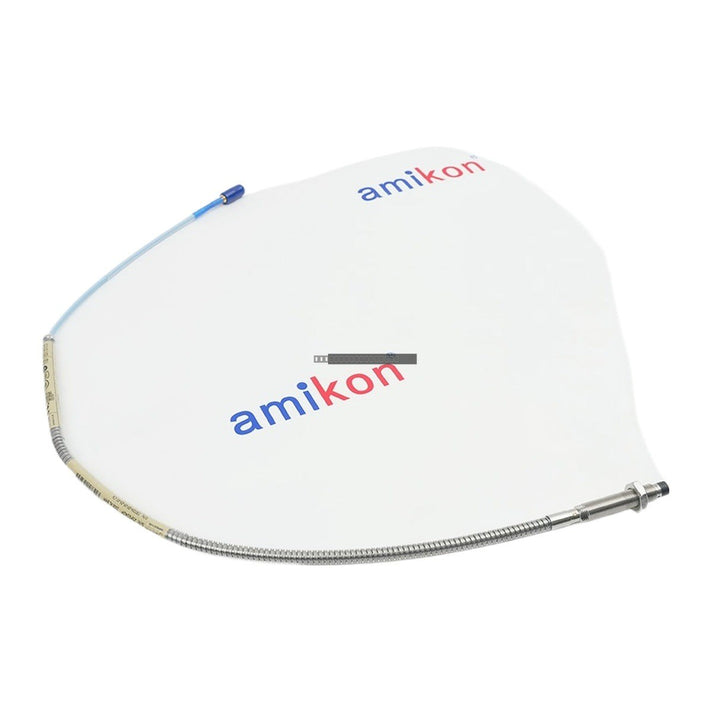

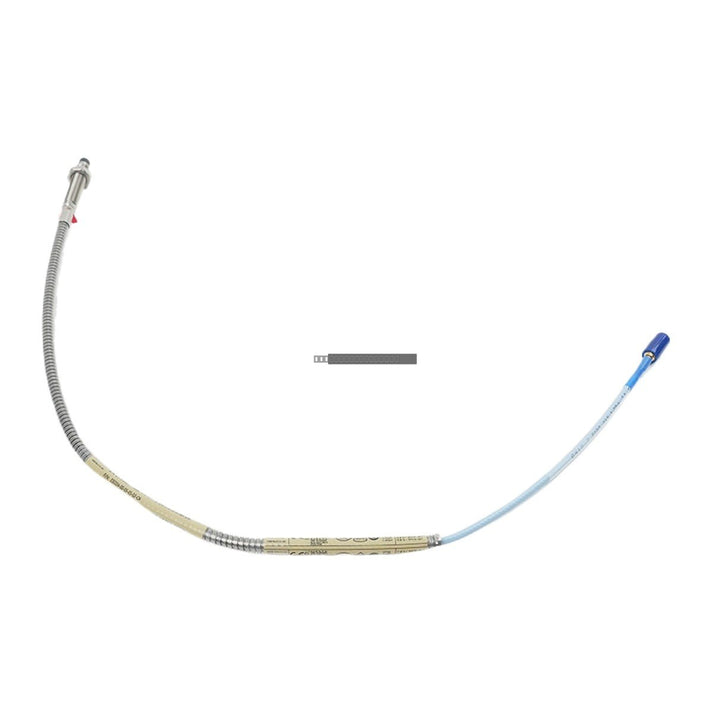

The Bently Nevada 330104-00-05-05-02-CN is a high-precision 3300 XL 8 mm proximity probe designed for critical machinery protection and condition monitoring. This probe is engineered to provide accurate, non-contact measurements of shaft vibration and position in rotating equipment, ensuring reliable data for predictive maintenance and operational safety.

Features

• System Compatibility: Fully compatible with the Bently Nevada 3300 XL Proximitor Sensor system.
• Interchangeability: Electrically and physically interchangeable with legacy 3300 5 mm and 8 mm components.
• Robust Construction: Features an M10 x 1 thread with integrated armor for enhanced durability in harsh industrial environments.
• ClickLoc Connector: Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
• Global Compliance: Includes CSA, ATEX, and IECEx agency approvals for hazardous area operations.

Applications

• Turbines: Monitoring radial vibration and axial thrust in steam and gas turbines.
• Compressors: Preventing shaft-to-bearing contact in centrifugal and axial compressors.
• Pumps and Fans: Tracking the health of large industrial pumps and cooling fans.
• Generators and Motors: Ensuring stable operation for large rotating electric machinery.
• Gearboxes: Detecting misalignment and bearing wear through shaft vibration analysis.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the probe is mounted in a stable, vibration-resistant bracket. The 3300 XL design fits standard 4-hole mounting patterns.
• Gap Voltage: For optimal performance, calibrate the system to a gap voltage between -9 V and -11 V DC.
• Cable Routing: Use shielded coaxial cabling and maintain a minimum permissible bend radius to prevent signal degradation or cable damage.
• Environmental Protection: The probe tip utilizes a Viton O-ring to maintain a pressure seal; ensure the mounting surface is clean and free of debris during installation.
• Handling: As a precision sensor, handle the probe tip with care to avoid mechanical impact or surface scratches that could affect linearity.

FAQ

What is the primary function of this probe?

The 330104-00-05-05-02-CN is used to monitor shaft position and vibration on critical rotating machinery, providing essential data for vibration analysis and machine protection systems.

What are the power requirements for the system?

The associated Proximitor sensor typically requires a supply voltage between -17.5 Vdc and -26 Vdc.

Is this probe compatible with older 3300 systems?

Yes, 3300 XL 8 mm components are designed to be both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.

What is the operating temperature range?

The probe tip is rated for operation between -52 degC and +218 degC, while the cable and connector assembly are rated for -51 degC to +260 degC.
