Description

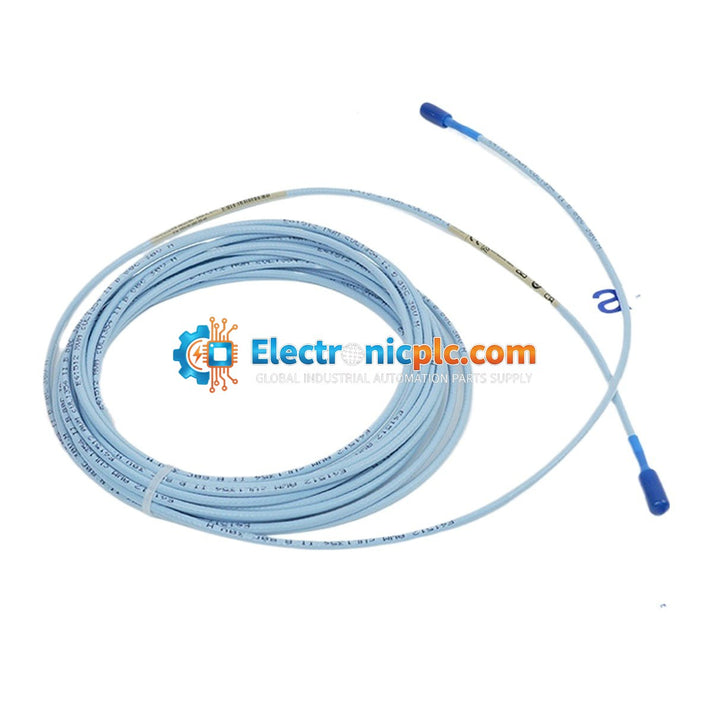

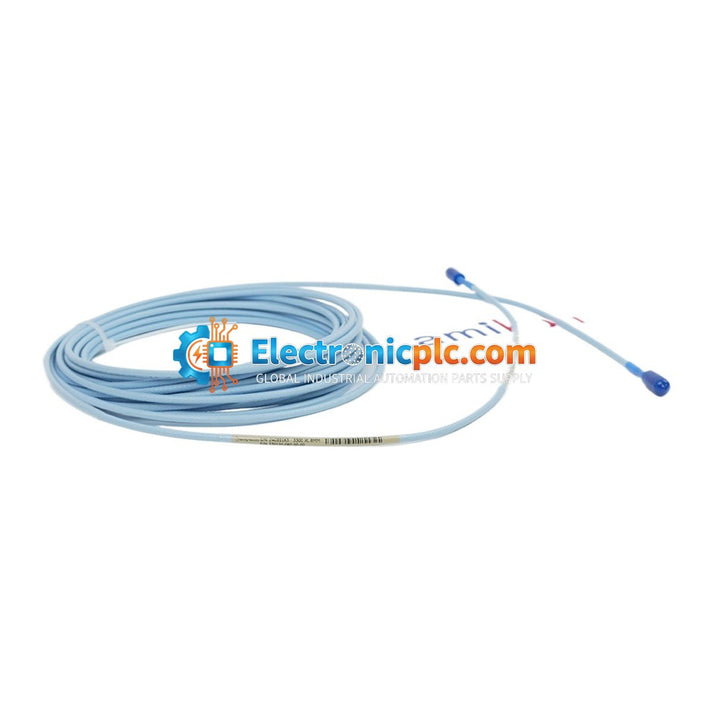

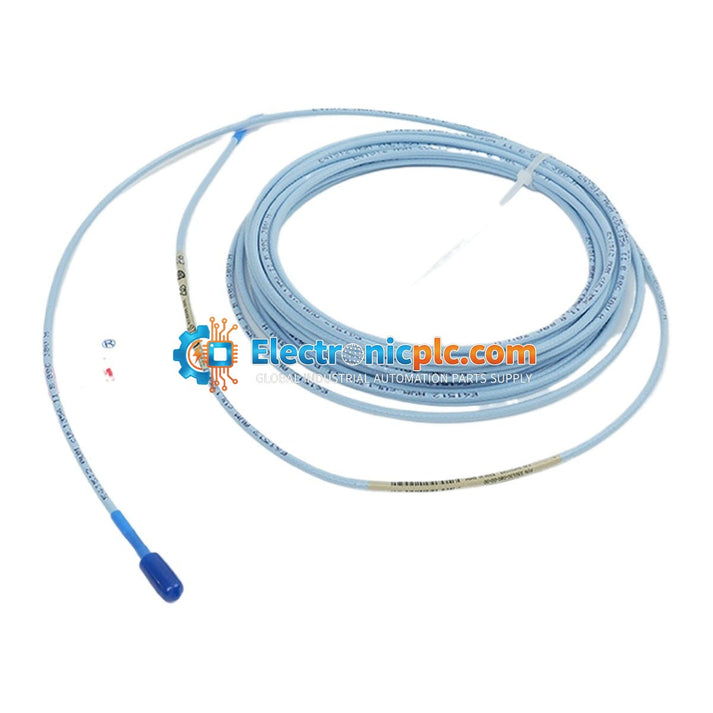

The Bently Nevada 330130-080-00-00 is a 3300 XL standard extension cable designed for use with 3300 XL 8mm proximity transducer systems. This 8.0-meter (26.2-foot) cable serves as a critical link between the proximity probe and the Proximitor sensor, facilitating the transmission of signals used to monitor static and dynamic vibration and position on rotating machinery. The 3300 XL system is engineered for high reliability in demanding industrial environments, providing accurate measurements for fluid-film bearing machines, speed sensing, and Keyphasor reference applications.

Features

• 8.0 meters (26.2 feet) total length.
• Standard cable configuration without additional armor or specialized options.
• Patented CableLoc design provides 330 N (75 lbf) pull strength for secure attachment.
• Complete interchangeability with other 3300 XL system components, eliminating the need for bench calibration.
• Backwards compatible with legacy 3300 series transducer system components.
• Designed for extended temperature range applications.

Applications

• Oil & Gas Refineries: Monitoring compressors, pumps, and fluid-film bearings.
• Power Generation: Axial and radial vibration monitoring for turbines.
• Mining and Metal Processing: Heavy equipment monitoring including ball mills and crushers.
• Water and Wastewater: Critical pump and blower monitoring.
• General Rotating Machinery: Speed measurements and position sensing.

Technical Specifications

Installation Guidelines

• Ensure the transducer system is fully powered down before connecting or disconnecting any components.
• Route cables away from high-EMI sources and high-voltage power lines to prevent signal interference.
• Use ClickLoc connectors to join the extension cable to the probe and Proximitor sensor; tighten until the connector "clicks" into place.
• Do not use specialized tools for tightening; finger-tightening is sufficient for proper connection.
• Ensure proper strain relief is applied to the cable to prevent mechanical stress on the connectors.

FAQ

What is the 330130-080-00-00?

The Bently Nevada 330130-080-00-00 is an 8.0-meter 3300 XL standard extension cable used in proximity transducer systems for machinery vibration and position monitoring.

What is the function of this cable?

This extension cable connects the 3300 XL probe to the Proximitor sensor, allowing the system to measure the distance between the probe tip and a conductive surface for vibration and position analysis.

Is this cable compatible with older 3300 series components?

Yes, the 3300 XL series components are designed to be backwards compatible with earlier, non-XL 3300 series transducer systems.
