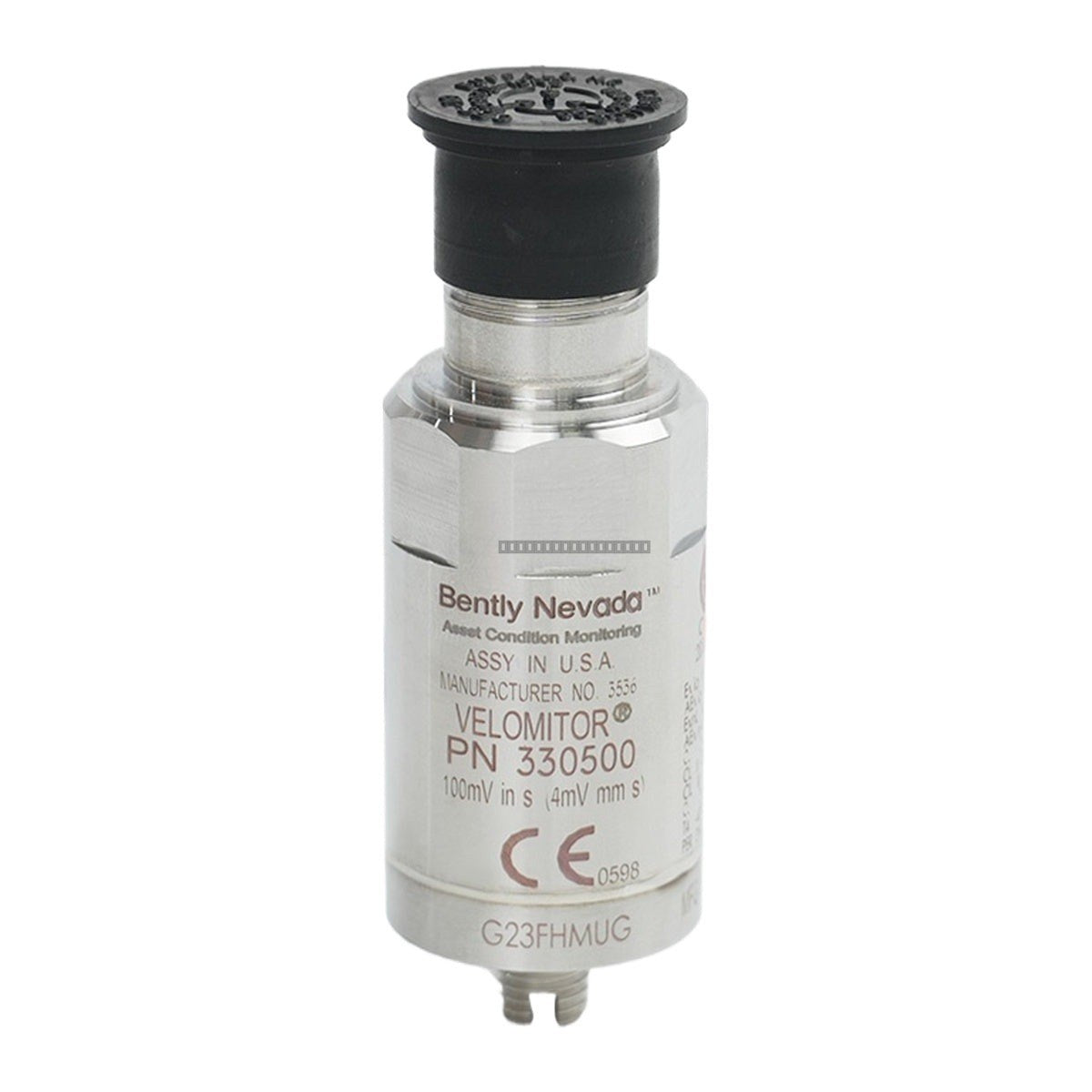

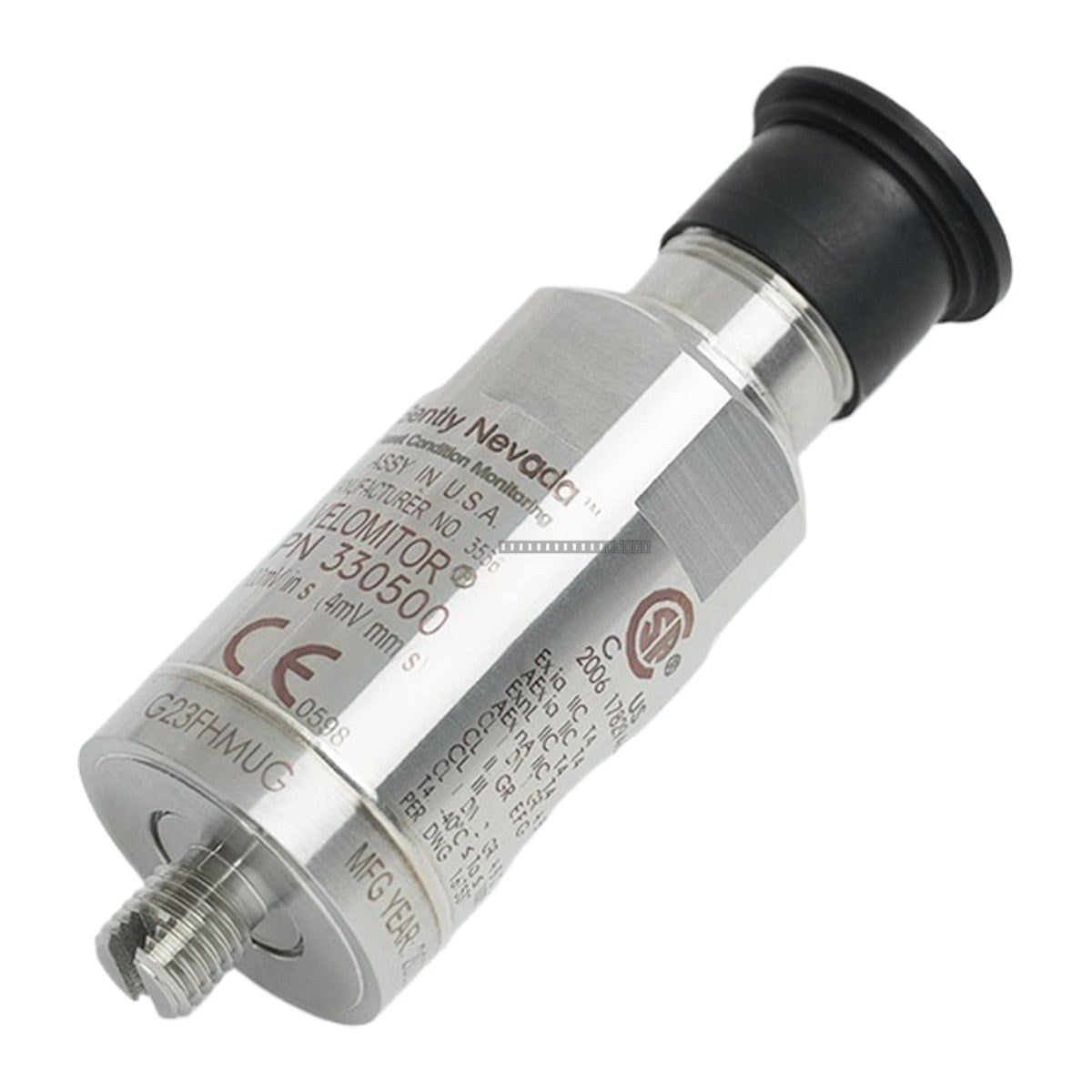

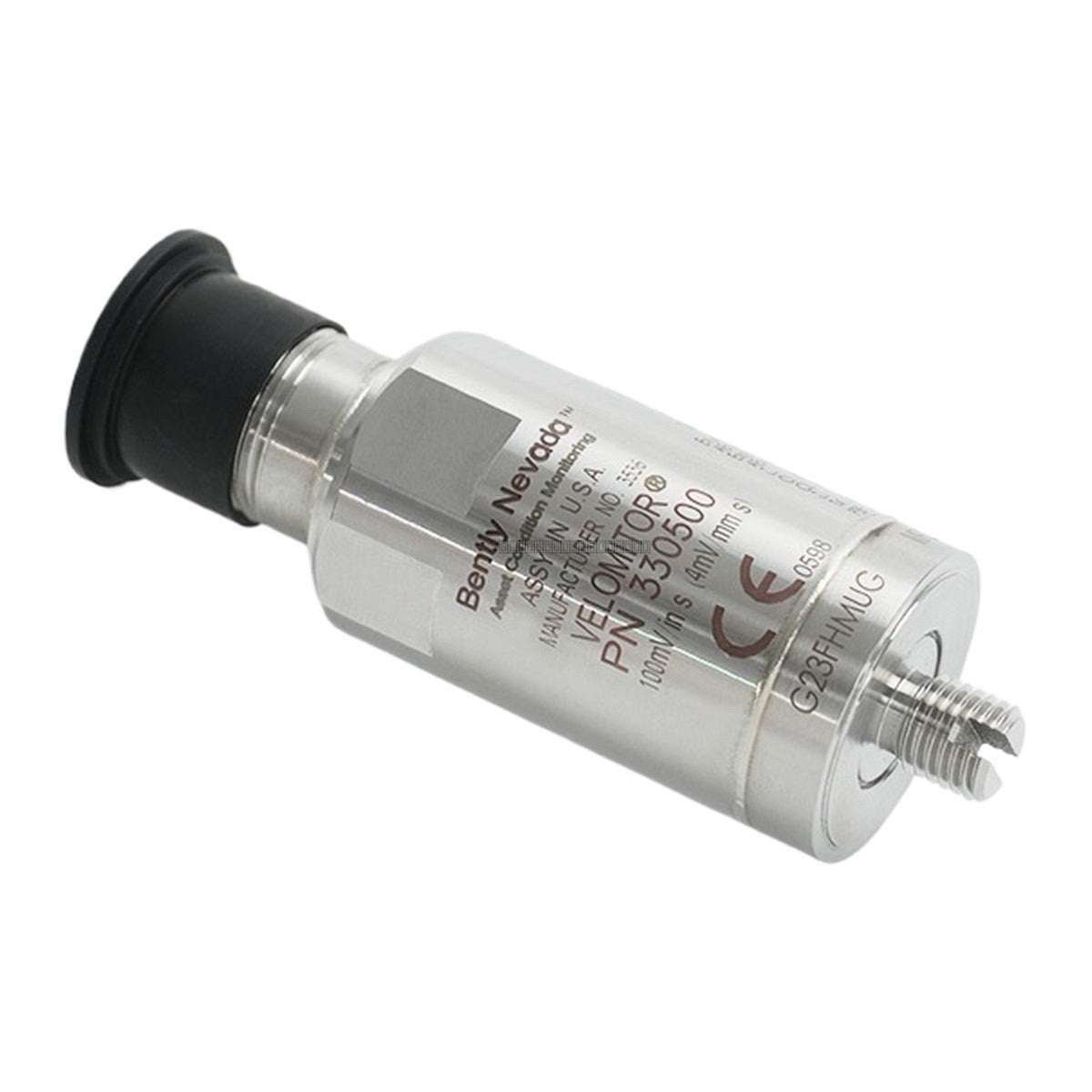

The Bently Nevada 330500-02-04 is a high-performance Velomitor Piezo-Velocity Sensor designed to measure absolute vibration on bearing housings, casings, or structural components. Unlike traditional moving-coil velocity transducers, this unit utilizes a specialized piezoelectric accelerometer design with integrated solid-state electronics, ensuring long-term reliability and immunity to mechanical wear.

Features

• Solid-state design with no moving parts for extended service life.
• Capable of mounting in any orientation (horizontal, vertical, or angled).
• Incorporates embedded electronics for direct velocity output.
• Rugged construction suitable for harsh industrial environments.
• Includes M8 x 1 mounting thread adapter.

Applications

• Machine condition monitoring for rolling-element bearing machines.
• Detection of imbalance and misalignment in rotating equipment.
• Vibration monitoring for motors, pumps, fans, and compressors.
• Critical infrastructure in oil and gas, petrochemical, and power generation sectors.

Technical Specifications

Installation Guidelines

• Surface Preparation: Ensure the mounting surface is flat, clean, and free of debris to ensure accurate vibration transmission.
• Torque Specification: Do not exceed the maximum tightening torque of 46 kg-cm (40 in-lb) during installation.
• Orientation: The sensor is omnidirectional; it may be mounted at any angle required for the application.
• Cabling: Supports cable runs up to 305 meters (1,000 feet) without significant signal degradation.
• Handling: As a precision instrument, avoid dropping or subjecting the sensor to high-impact shocks.

FAQs

What is the 330500-02-04?

The Bently Nevada 330500-02-04 is a ruggedized Velomitor Piezo-velocity Sensor designed for harsh industrial environments, featuring a 2-pin connector, M8 x 1 mounting thread, and multiple agency approvals (CSA, ATEX).

What are the mounting requirements?

The 330500-02-04 features an M8 x 1 mounting thread adapter, while the internal base is machined with 3/8-24 threads.

Can it be mounted at any angle?

Yes. Because it uses solid-state electronics and has no moving parts, it can be mounted vertically, horizontally, or at any other angle.

What is the maximum cable length?

It supports a maximum cable length of up to 305 meters (1,000 feet) without signal degradation.
