Description

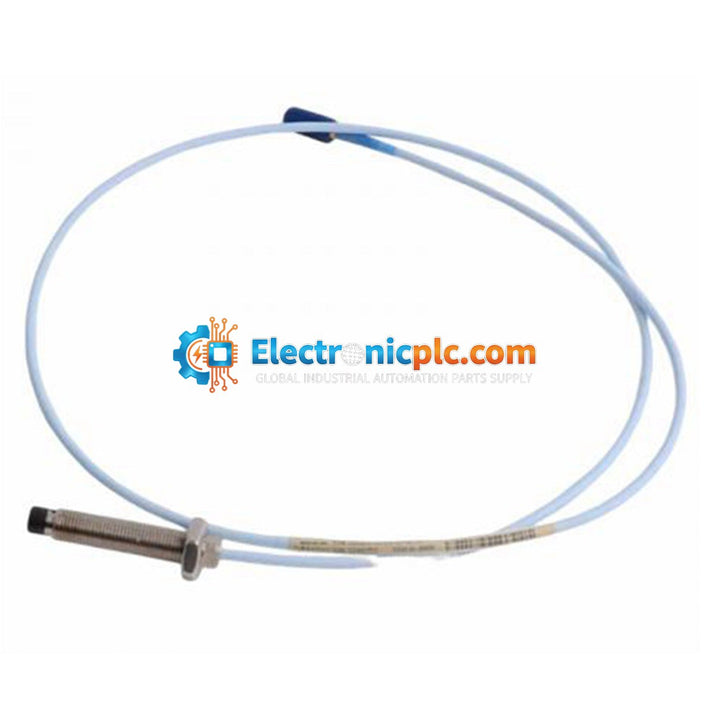

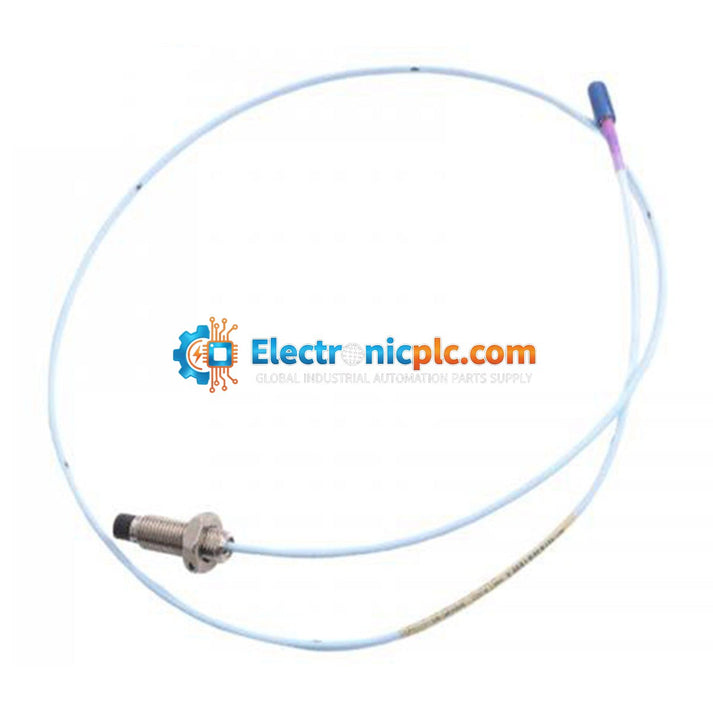

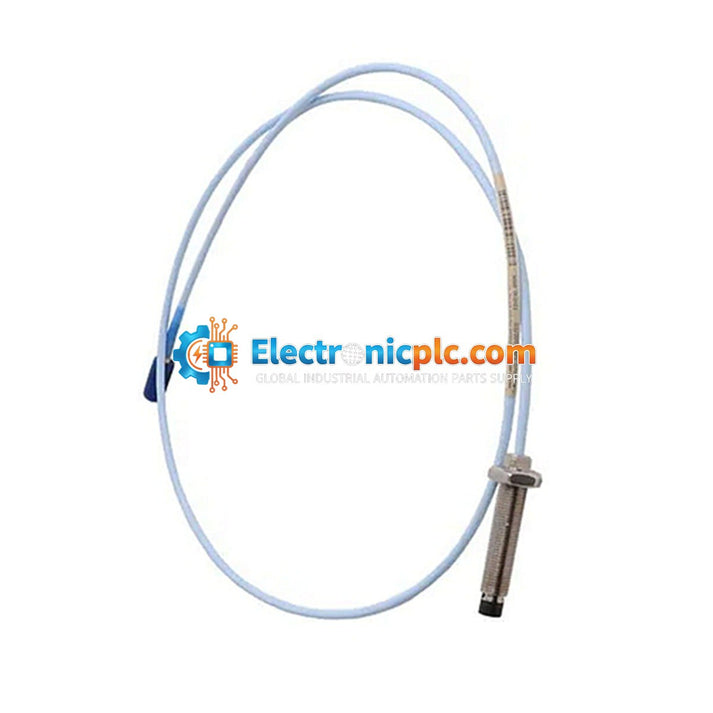

The Bently Nevada 330703-000-070-10-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. As part of the Bently Nevada 3300 XL series, this probe provides reliable non-contact measurement of shaft displacement, position, and speed. The 11 mm probe design offers an extended linear range compared to standard 8 mm probes, making it suitable for applications requiring higher measurement spans.

Features

• 11 mm probe tip diameter for extended linear range.
• M14 x 1.5 threading for secure mounting in probe housings.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal integrity.
• Standard cable configuration with a 1.0-meter length.
• Designed for seamless integration with 3300 XL Proximitor sensors.

Applications

• Turbine-generator sets.
• Centrifugal compressors and pumps.
• Industrial fans and blowers.
• Reciprocating compressors where extended range is required.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid, vibration-free housing to prevent false readings.
• Use caution when tightening the M14 x 1.5 mounting nut; do not overtighten to avoid damaging the probe threads or body.
• Maintain proper gap distance as specified by the 3300 XL system manual to ensure linear operation.
• Route coaxial cables away from high-voltage lines or high-EMI sources to minimize signal interference.
• Ensure the ClickLoc connector is fully seated and locked to maintain environmental integrity and signal continuity.
• Always power down the monitoring system before disconnecting or replacing the probe.

FAQ

What is the primary function of the 330703 probe?

This probe is a non-contact transducer used to measure the distance between the probe tip and a conductive target, typically a rotating machine shaft, to monitor vibration and axial position.

Is this probe compatible with older 3300 series systems?

The 3300 XL 11 mm probe is specifically engineered for the 3300 XL system. Compatibility with legacy 3300 systems may require specific Proximitor sensor matching; please consult your system documentation.
