Description

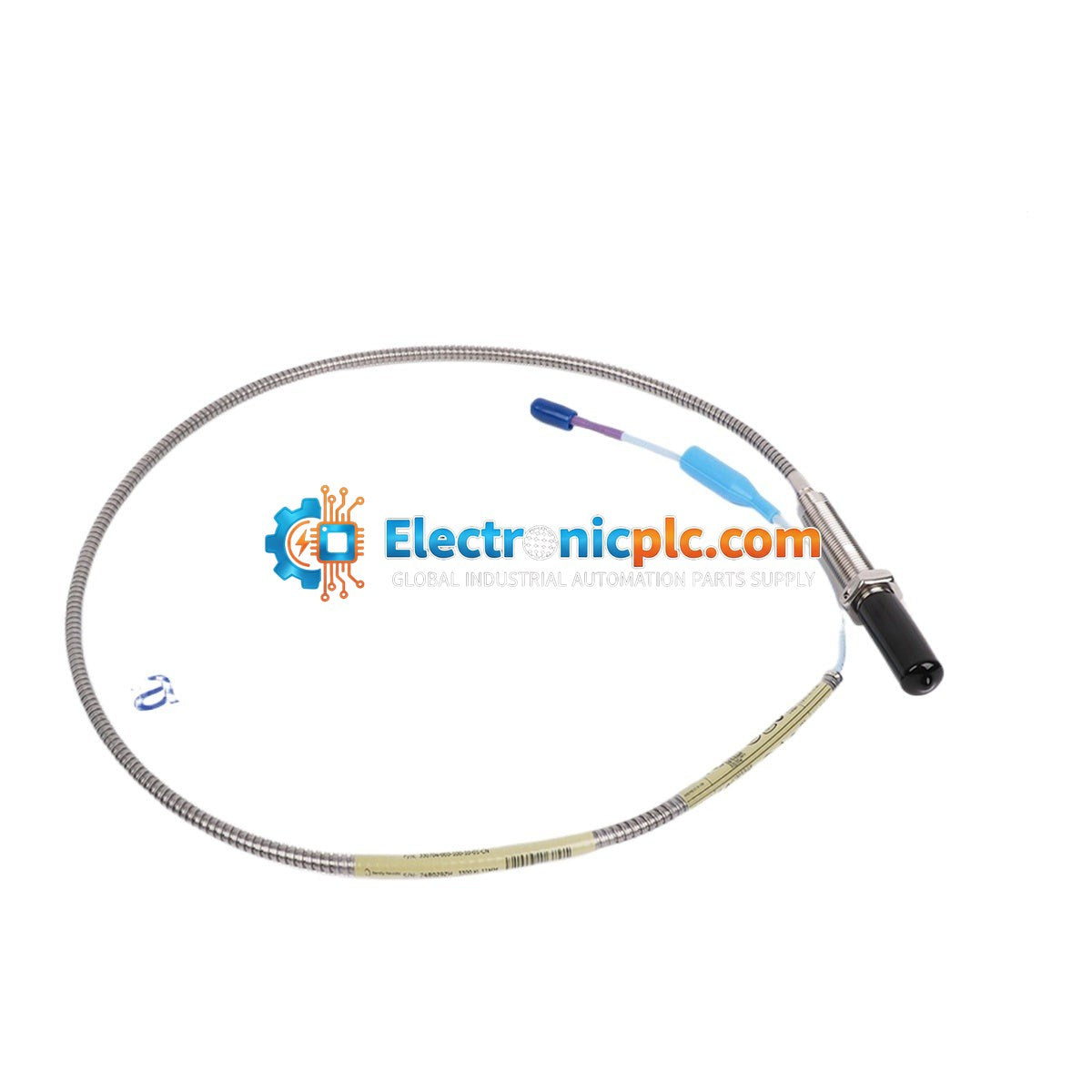

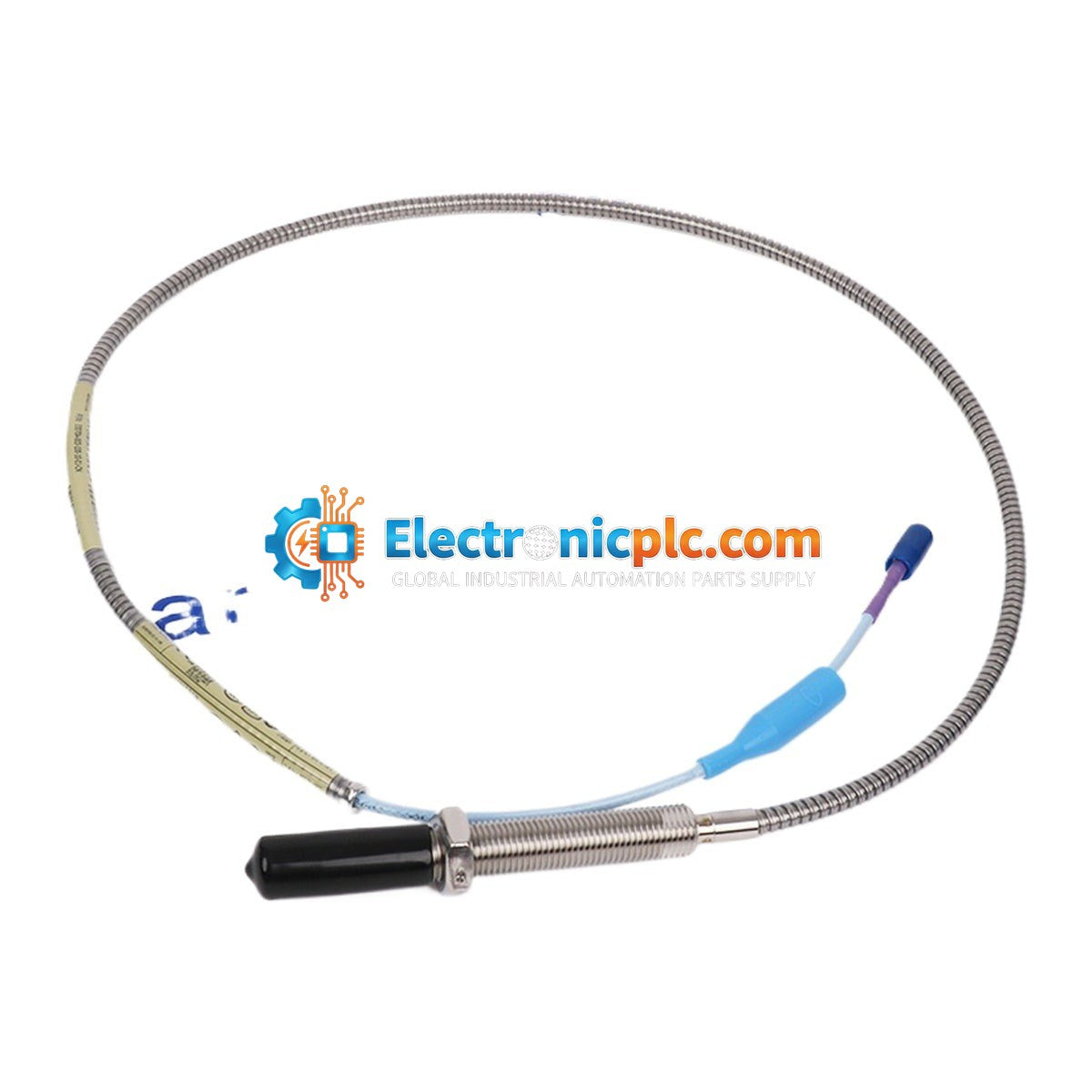

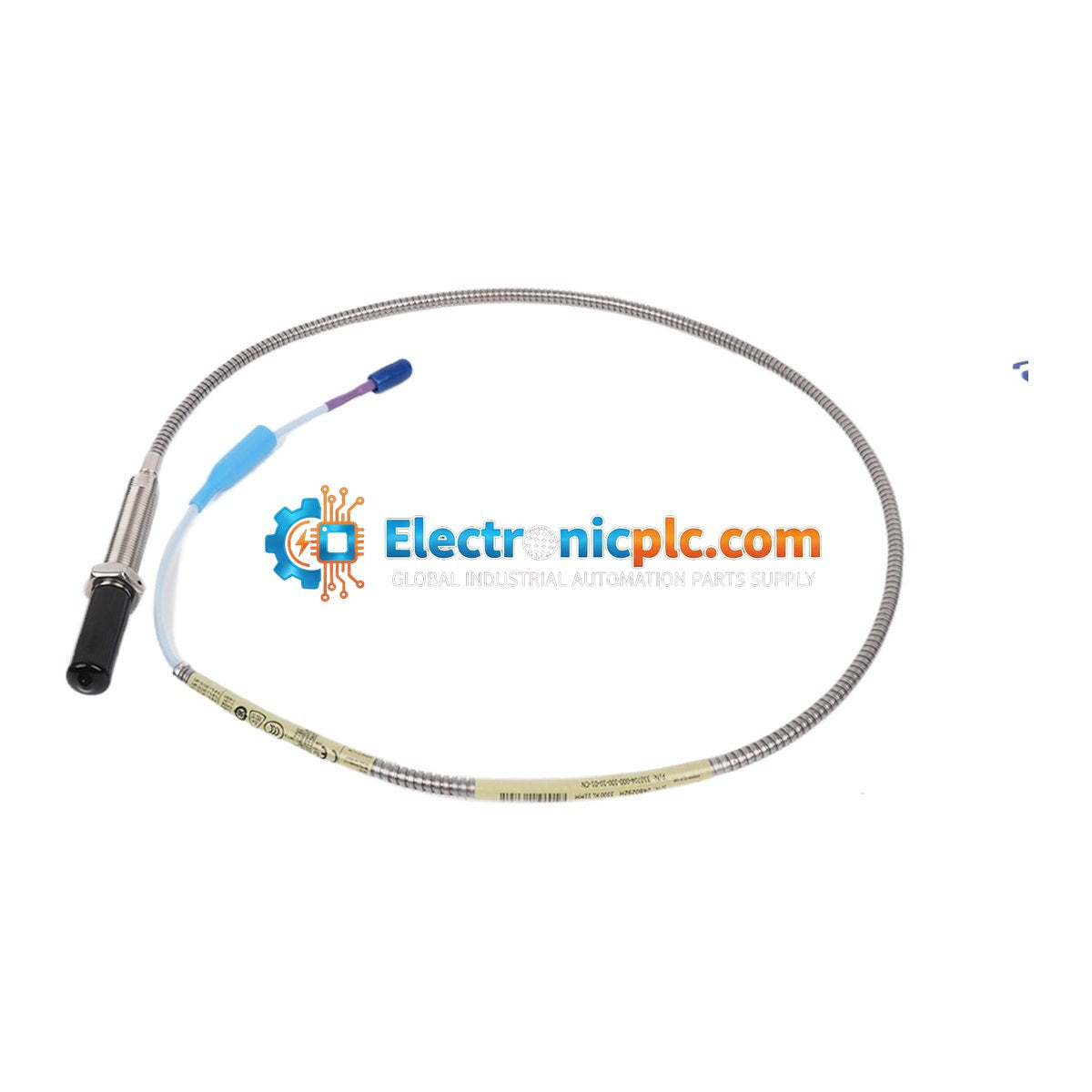

The Bently Nevada 330704-000-100-10-01-CN is a high-performance 3300 XL 11 mm proximity probe designed for non-contact vibration and position measurement in rotating machinery. This probe system is engineered to provide precise, linear output signals, making it an essential component for monitoring radial vibration, axial position, and speed in industrial turbomachinery applications.

Features

• 11 mm probe tip diameter for extended linear range compared to standard 8 mm probes.
• M14 x 1.5 thread configuration for secure mounting in machine housings.
• Integrated armored cable for enhanced mechanical protection in harsh industrial environments.
• Equipped with a miniature coaxial ClickLoc connector and connector protector to ensure signal integrity and prevent accidental disconnection.
• Standard cable design for reliable performance in typical plant temperature ranges.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance that could interfere with vibration readings.
• Use caution when tightening the M14 x 1.5 thread to avoid damaging the probe housing or internal components.
• Maintain proper air gap spacing as specified in the Bently Nevada 3300 XL system manual to ensure linear operation.
• Route coaxial cables away from high-voltage power lines or sources of significant electromagnetic interference (EMI) to prevent signal noise.
• Verify that the ClickLoc connector is fully seated and the connector protector is correctly installed to prevent moisture or debris ingress.

FAQ

What is the primary function of the 330704 proximity probe?

This probe is used to measure the distance between the probe tip and a conductive target, typically a machine shaft, to monitor vibration and displacement in rotating equipment.

Is this probe compatible with standard 3300 XL extension cables?

Yes, the 330704 is designed to operate as part of the Bently Nevada 3300 XL 11 mm Proximity Transducer System, which includes the probe, an extension cable, and a Proximitor sensor.
