Description

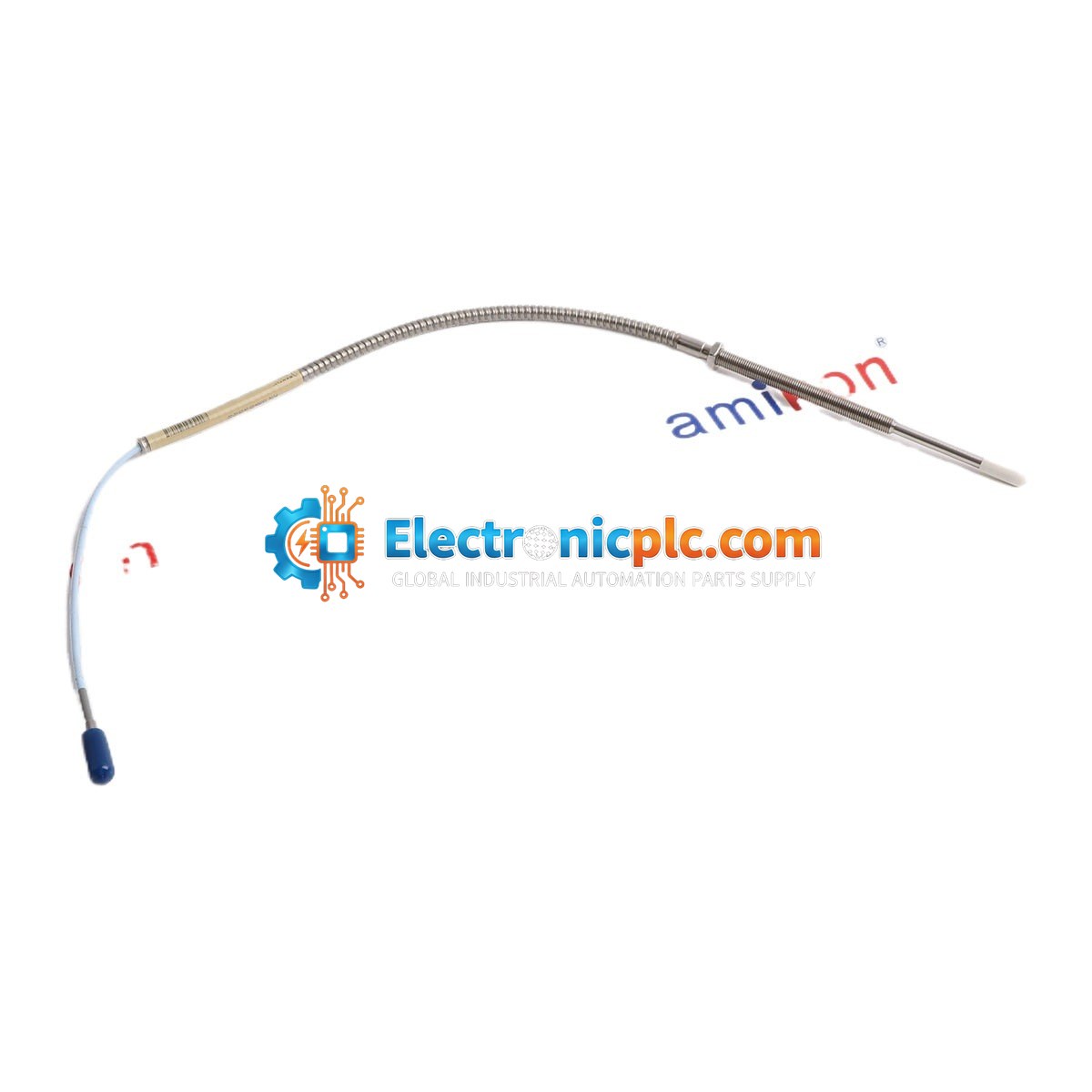

The Bently Nevada 330904-05-14-05-02-00 is a 3300 NSv (Near-field) proximity probe designed for vibration and position monitoring in industrial machinery. This probe is specifically engineered for applications where space is limited or where the target area is small, providing precise non-contact measurement of shaft displacement, position, and speed.

Features

• Designed for small-target applications and restricted mounting spaces.
• M8 x 1 thread configuration for secure installation.
• Equipped with a robust armored cable for enhanced protection in harsh industrial environments.
• Features a miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable design for compatibility with existing 3300 NSv monitoring systems.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a stable, vibration-free bracket to prevent false readings.
• Handle the probe tip with care; avoid physical impact or scratching, as this can affect the electromagnetic field and measurement accuracy.
• Route the coaxial cable away from high-voltage power lines and sources of significant electromagnetic interference (EMI).
• Ensure the ClickLoc connector is fully seated and tightened to maintain signal integrity.
• Verify that the target material is compatible with the 3300 NSv system requirements before final commissioning.

FAQ

What is the primary use of the 3300 NSv probe?

The 3300 NSv probe is specifically designed for measuring vibration and position on small-diameter shafts or in applications where standard-sized proximity probes are too large to fit the target area.

Is this probe compatible with standard Bently Nevada monitoring systems?

Yes, this probe is a component of the 3300 NSv series and is designed to interface with compatible Bently Nevada proximity transducer systems.
