Description

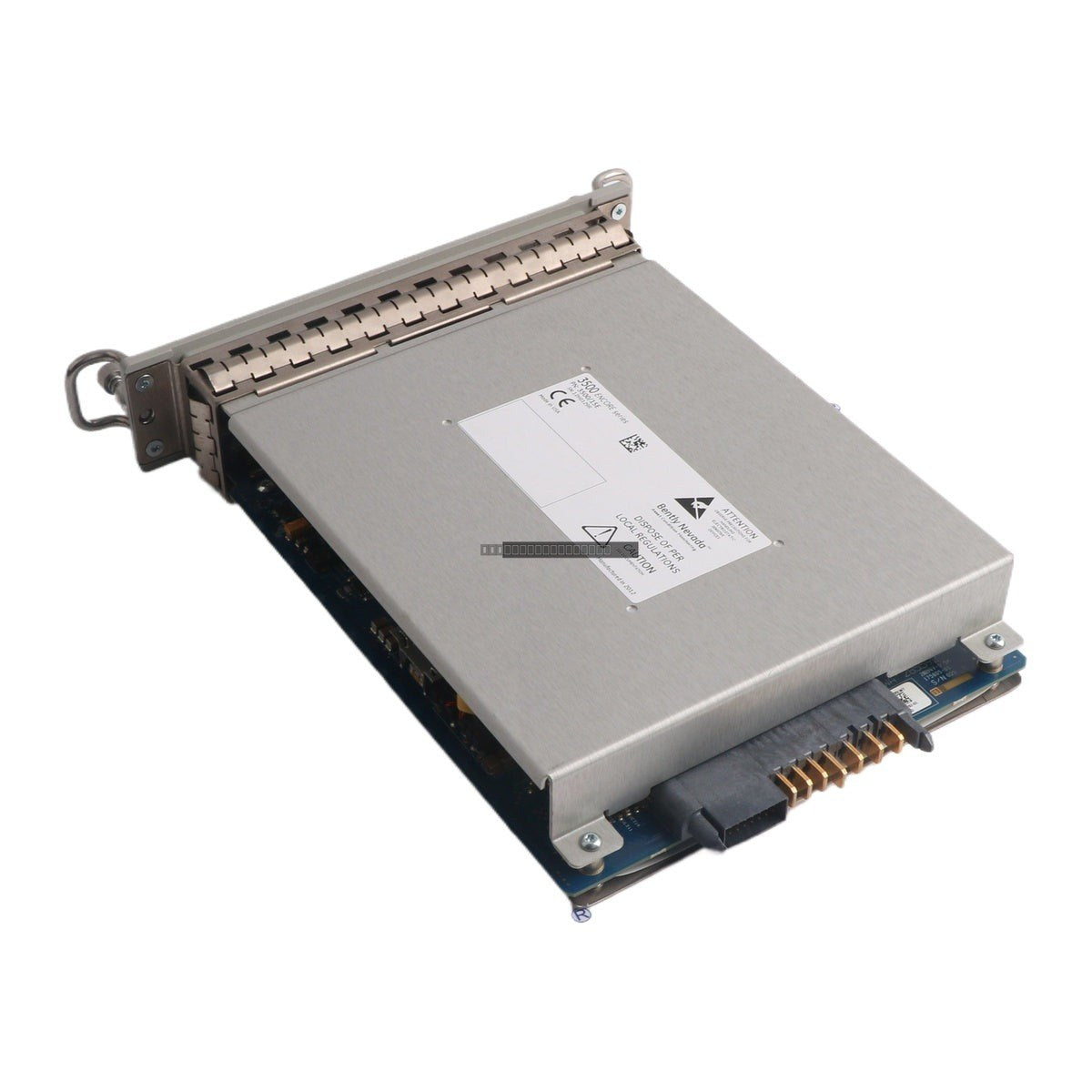

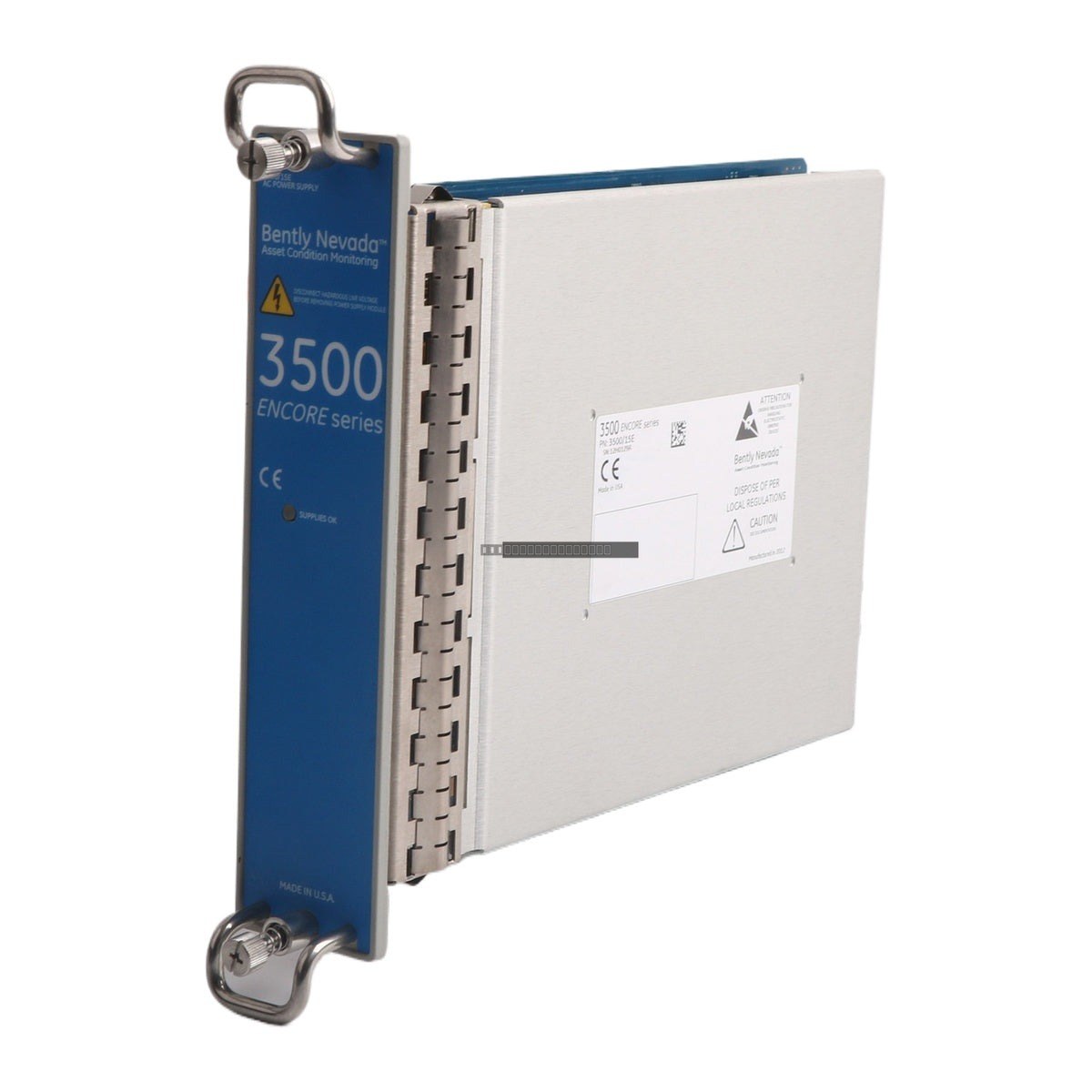

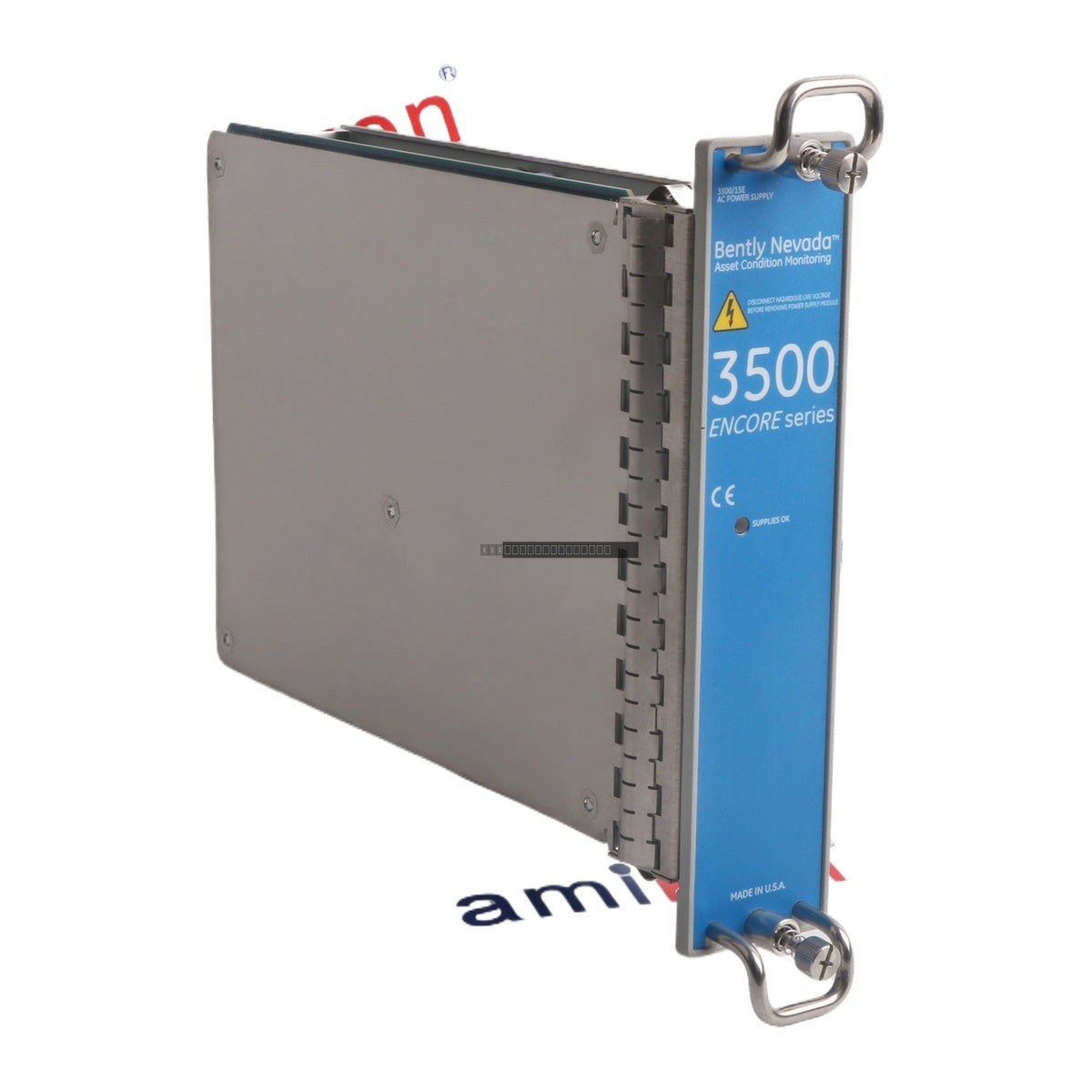

The Bently Nevada 3500/15E is a high-performance power supply module designed specifically for the 3500 Machinery Protection System. This module provides reliable power distribution to the rack, supporting the critical monitoring functions required for industrial rotating machinery. The 3500/15E configuration features universal AC input capabilities, ensuring compatibility with a wide range of global power standards in industrial environments.

Features

• Designed for integration with the Bently Nevada 3500 Series rack system.
• Supports universal AC input voltage (85 to 264 Vac rms).
• Robust design suitable for demanding industrial temperature ranges.
• High-reliability power conversion for continuous monitoring applications.
• Redundant power supply support when used in pairs within the 3500 rack.

Technical Specifications

Installation Guidelines

• Ensure the rack power is disconnected before installing or removing the 3500/15E module.
• The module should be seated firmly into the designated power supply slot of the 3500 rack chassis.
• Verify that the input voltage matches the module specifications before applying power.
• Maintain adequate airflow around the 3500 rack to ensure the module operates within its specified temperature range.
• Use proper ESD precautions when handling the module to prevent damage to internal electronic components.

FAQ

Can this module be used for redundant power configurations?
Yes, the 3500/15E is designed to support redundant power configurations when two modules are installed in the same 3500 rack.

What is the input voltage range for this specific unit?
This unit is configured for universal AC input, supporting a range of 85 to 264 Vac rms.
