Description

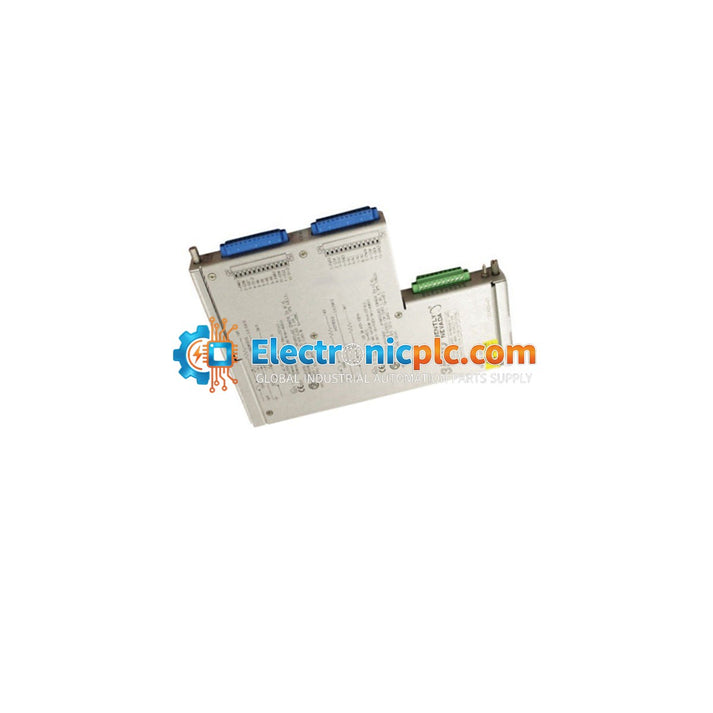

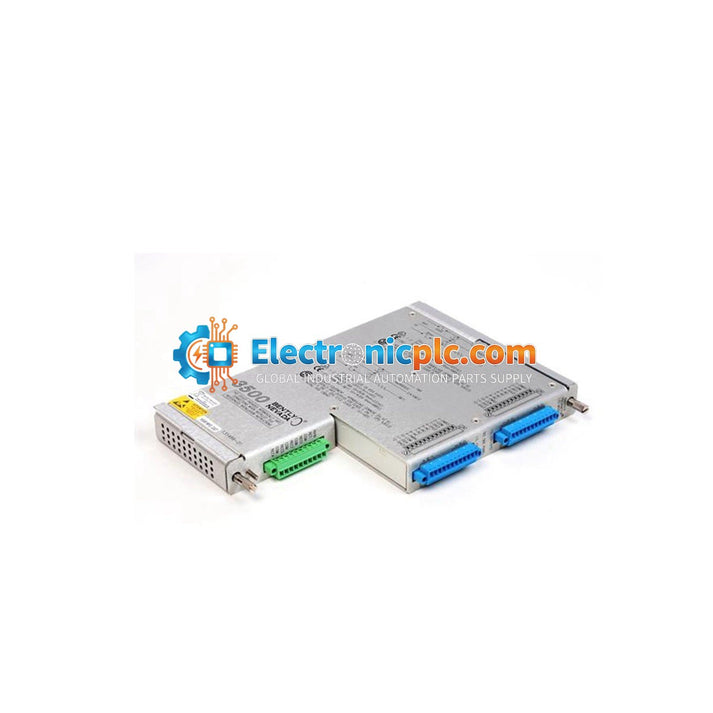

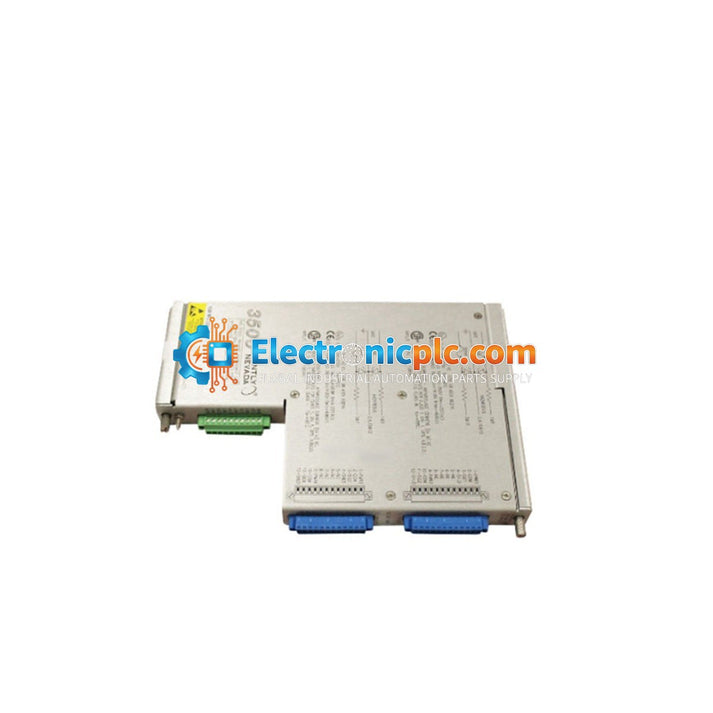

The Bently Nevada 135489-02 is an I/O module designed for the 3500 Series machinery protection system. This module features integrated internal barriers and internal terminations, providing a compact and efficient solution for signal conditioning and routing within the rack. It is specifically engineered to support four proximity or acceleration sensor inputs, ensuring reliable data acquisition for vibration monitoring applications.

Features

• Designed for integration with the Bently Nevada 3500 Series monitoring platform.
• Equipped with internal barriers for hazardous area protection.
• Includes internal terminations to reduce external wiring complexity.
• Supports 4 channels of proximity or acceleration sensor inputs.
• Robust design suitable for demanding industrial environments.

Applications

This I/O module is primarily used in critical rotating machinery protection systems, such as steam turbines, gas turbines, compressors, and pumps. It serves as the interface between field-mounted transducers and the 3500 monitoring system, facilitating precise vibration and position measurement.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• Verify that the module is properly seated in the designated rack slot and that the locking mechanism is engaged.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
• Ensure all field wiring is routed according to the site's hazardous area installation requirements, utilizing the internal barriers as specified.
• Maintain proper grounding of the 3500 rack to minimize EMI/RFI interference with sensitive sensor signals.

FAQ

Is this module compatible with all 3500 series racks?

The 135489-02 is designed for the 3500 series; however, ensure that your specific monitor module firmware and rack configuration support this I/O module version.

Does this module require external barriers?

No, this model features internal barriers, which simplifies installation by eliminating the need for separate external barrier blocks for supported sensor types.
