Description

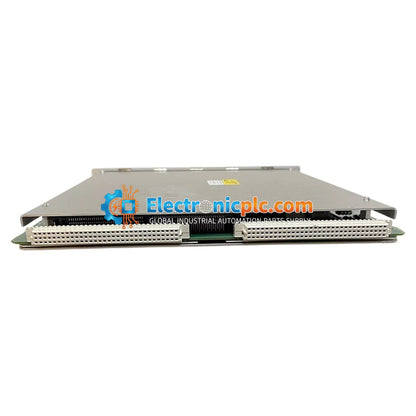

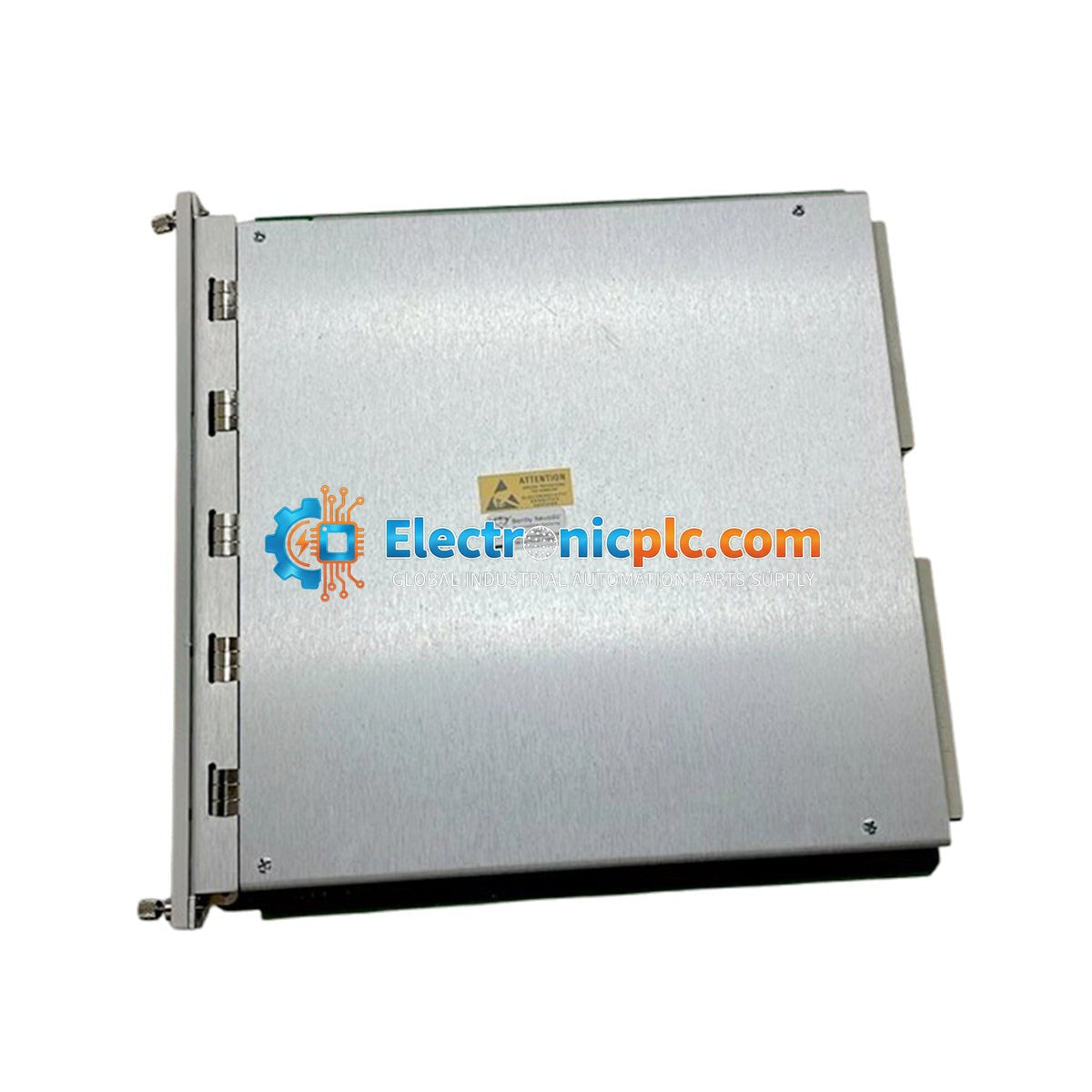

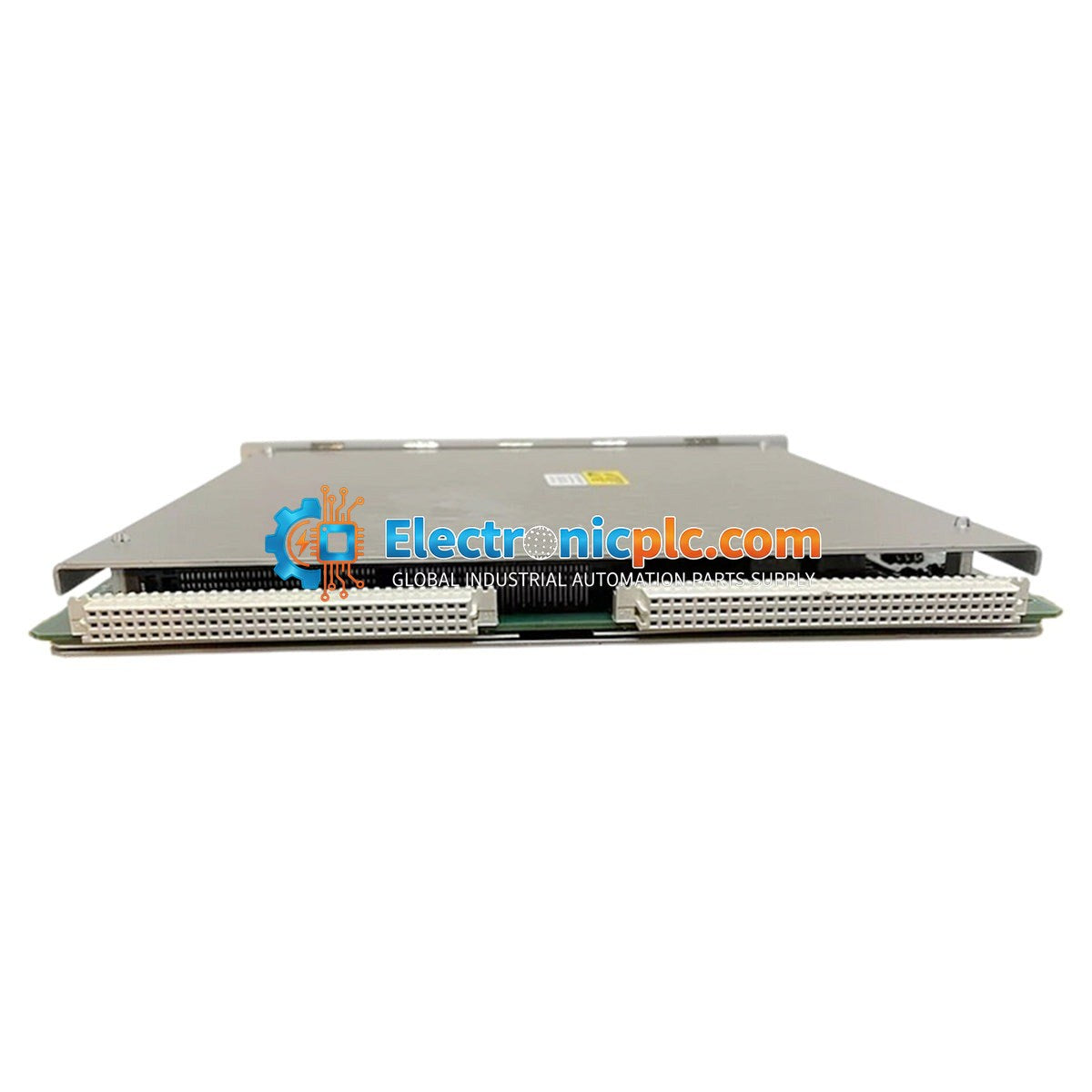

The Bently Nevada 3500/70M 136449-09 is a four-channel Reciprocating Impulse Velocity Monitor designed for critical machinery protection and diagnostics. This module is specifically engineered for reciprocating compressors to monitor impact events, rod-drop, and piston slap, providing early detection of mechanical degradation. As a core component of the Bently Nevada 3500 Series Machinery Protection System, the 136449-09 ensures reliable operation by identifying dynamic conditions that precede catastrophic failure.

Features

• Four independent monitoring channels for comprehensive multi-point coverage.
• Accepts inputs from velocity transducers and accelerometers to monitor reciprocating rod-drop and cylinder conditions.
• Configurable alarm and danger setpoints for automated machinery protection.
• Seamless integration with the 3500 rack system and System Processor for advanced diagnostics and data logging.
• Designed for high-reliability performance in demanding industrial environments.

Applications

This module is widely utilized in petrochemical, refining, and power generation facilities. It is essential for monitoring reciprocating compressors, pumps, and similar machinery where detecting mechanical impact and rod-drop is critical to preventing unplanned downtime.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the module to prevent electrical damage.
• The module must be seated firmly in the designated rack slot to ensure proper connection to the backplane.
• Use shielded cables for all transducer inputs to minimize EMI interference in industrial environments.
• Verify that the module configuration matches the specific machinery requirements and transducer types installed.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 3500/70M?

The 3500/70M is designed to monitor reciprocating machinery for impact events and mechanical degradation, such as rod-drop and piston slap, to provide early warning and protection.

Is this module compatible with all 3500 racks?

Yes, the 136449-09 is designed for the standard Bently Nevada 3500 Series rack system. Ensure your rack firmware and configuration software are updated to support this module type.
