Description

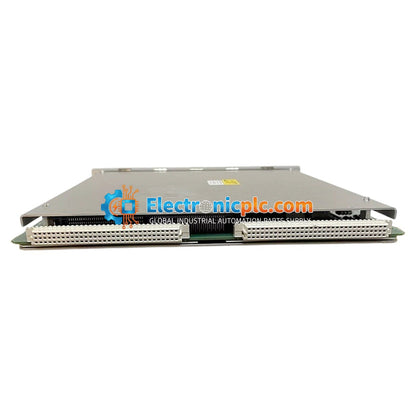

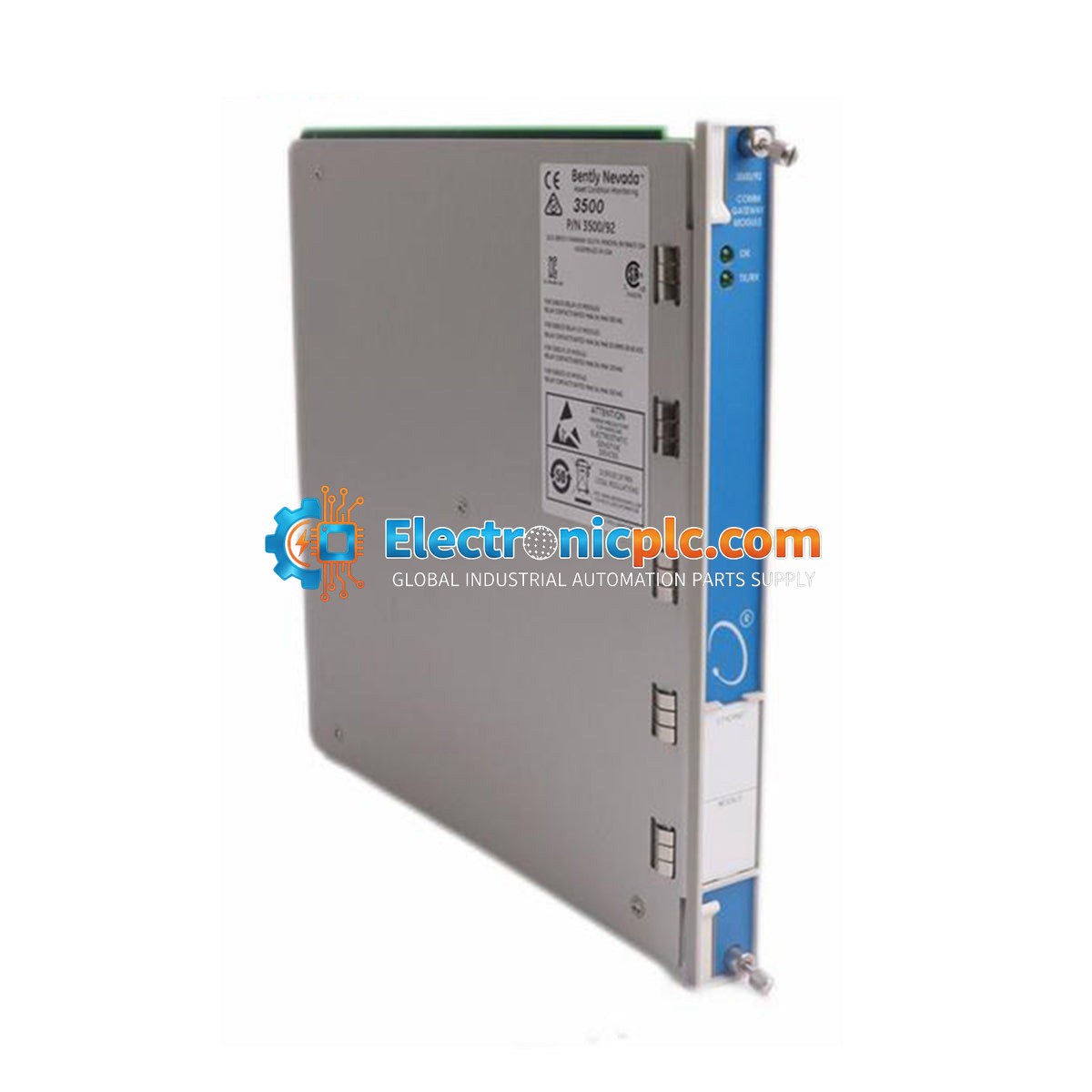

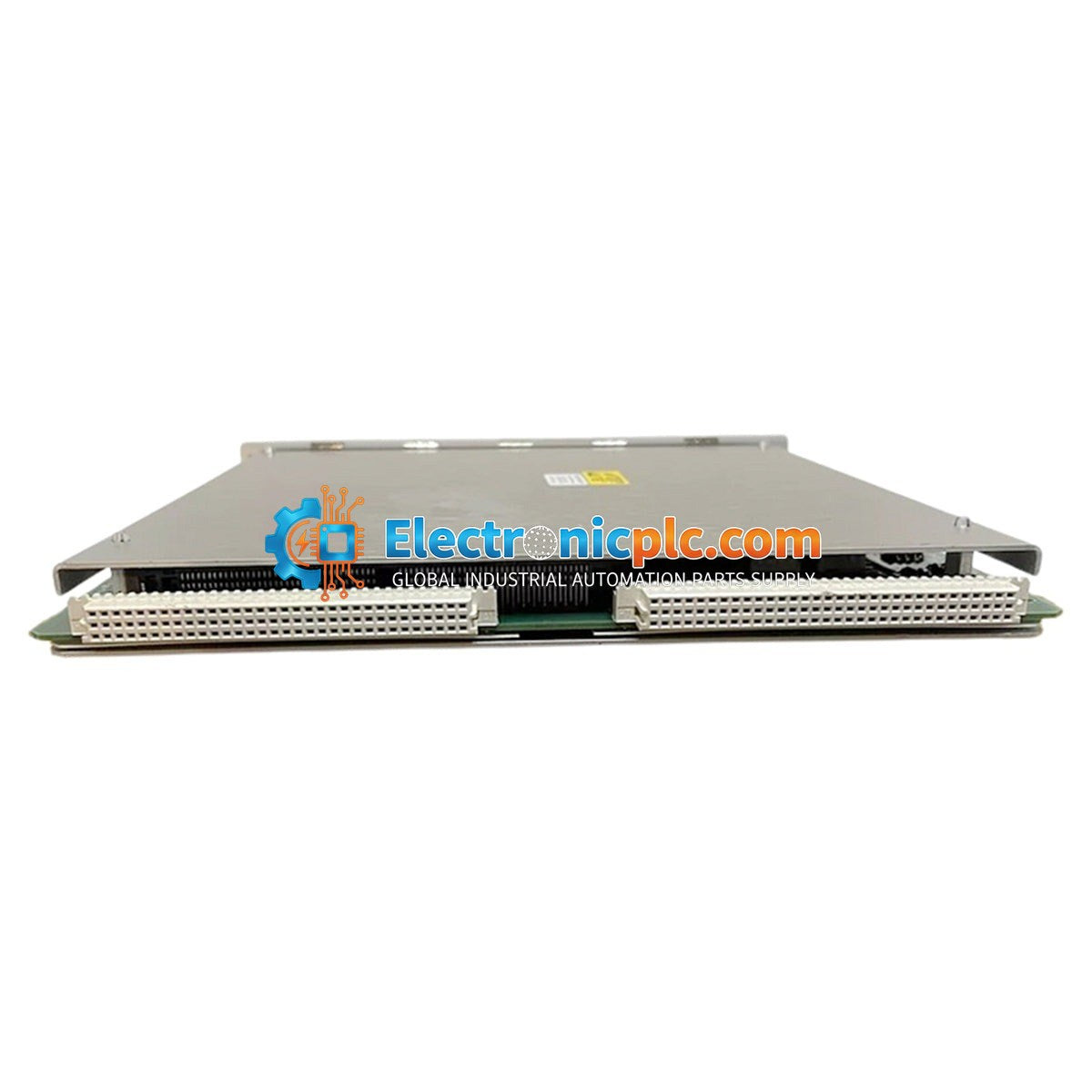

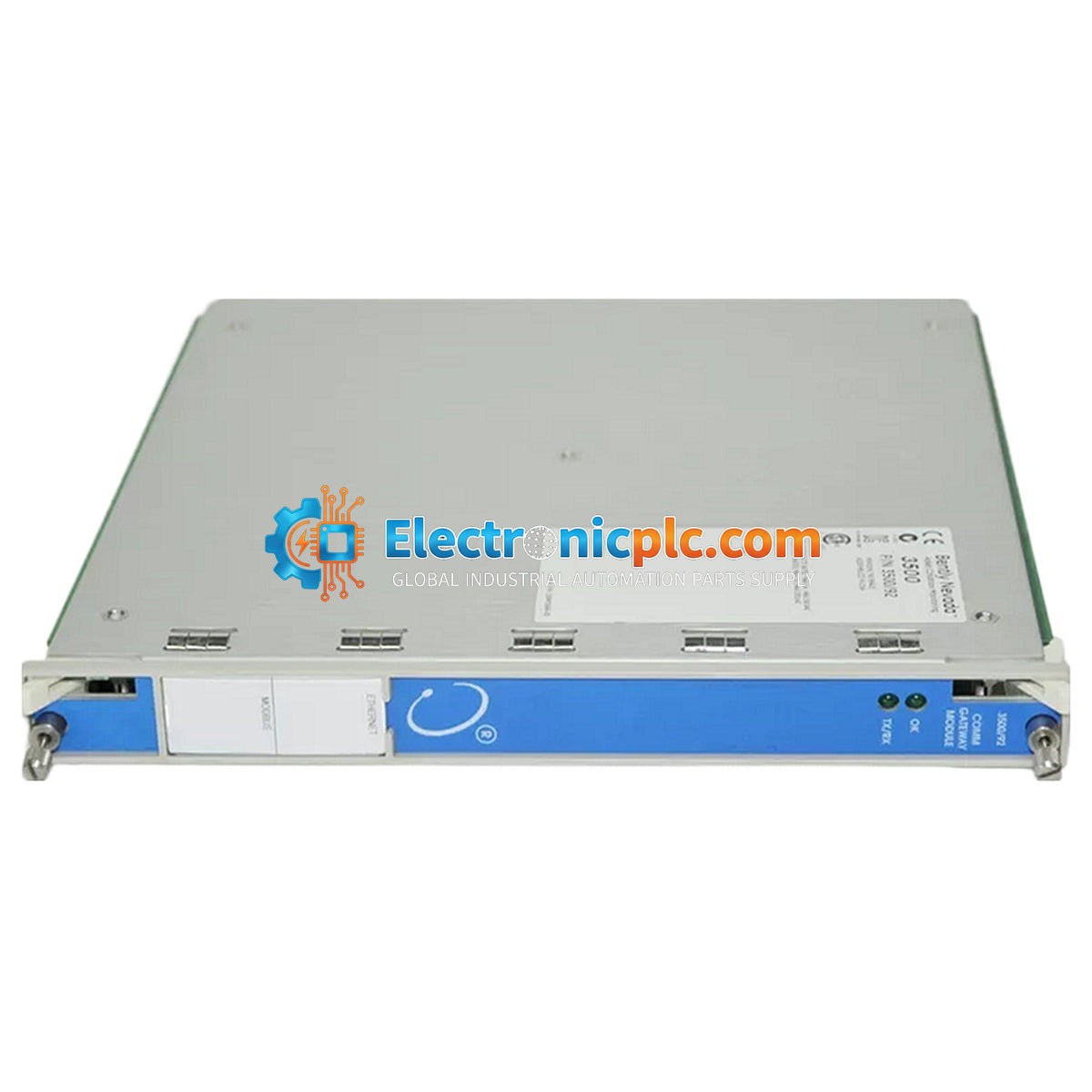

The Bently Nevada 3500/92 Communication Gateway is a critical interface module designed for the 3500 Machinery Protection System. It acts as a bridge between the 3500 rack and external communication networks, allowing for the seamless integration of machinery protection and condition monitoring data into plant-wide control systems, such as DCS, PLC, or SCADA platforms. By utilizing the 3500/92, operators can access real-time rack data, including alarm statuses, process variables, and diagnostic information, over industry-standard protocols.

Features

• Provides a high-speed communication link between the 3500 rack and external host systems.
• Supports standard communication protocols for integration with third-party automation hardware.
• Features dedicated LED indicators for system health (OK LED) and data traffic (TX/RX LED).
• Designed for rack-mount installation within the standard 3500 series chassis.
• Low power consumption, typically 5.0 Watts when paired with compatible I/O modules.

Applications

This module is widely utilized in industrial environments where centralized monitoring of rotating machinery is required. Typical applications include integration with Distributed Control Systems (DCS) for power generation, oil and gas processing, petrochemical plants, and large-scale manufacturing facilities where Bently Nevada 3500 systems are deployed for vibration and process protection.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the communication module to prevent electrical damage.
• The module must be installed in the designated slot within the 3500 rack to ensure proper backplane communication.
• Use appropriate ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
• Ensure all external communication cabling is routed away from high-voltage lines or high-EMI sources to maintain signal integrity.
• Verify that the I/O module is correctly seated and that all terminal connections are secure before applying power.

FAQ

What is the primary function of the 3500/92?

The 3500/92 serves as a communication gateway, enabling the 3500 Machinery Protection System to transmit data to external host systems like PLCs or DCS via supported communication protocols.

How do I verify the module is communicating correctly?

The module features TX/RX LEDs on the front panel. A flashing TX/RX LED indicates that the module is actively communicating with other modules in the rack and the external host. The OK LED indicates the module is powered and operating within normal parameters.
