Description

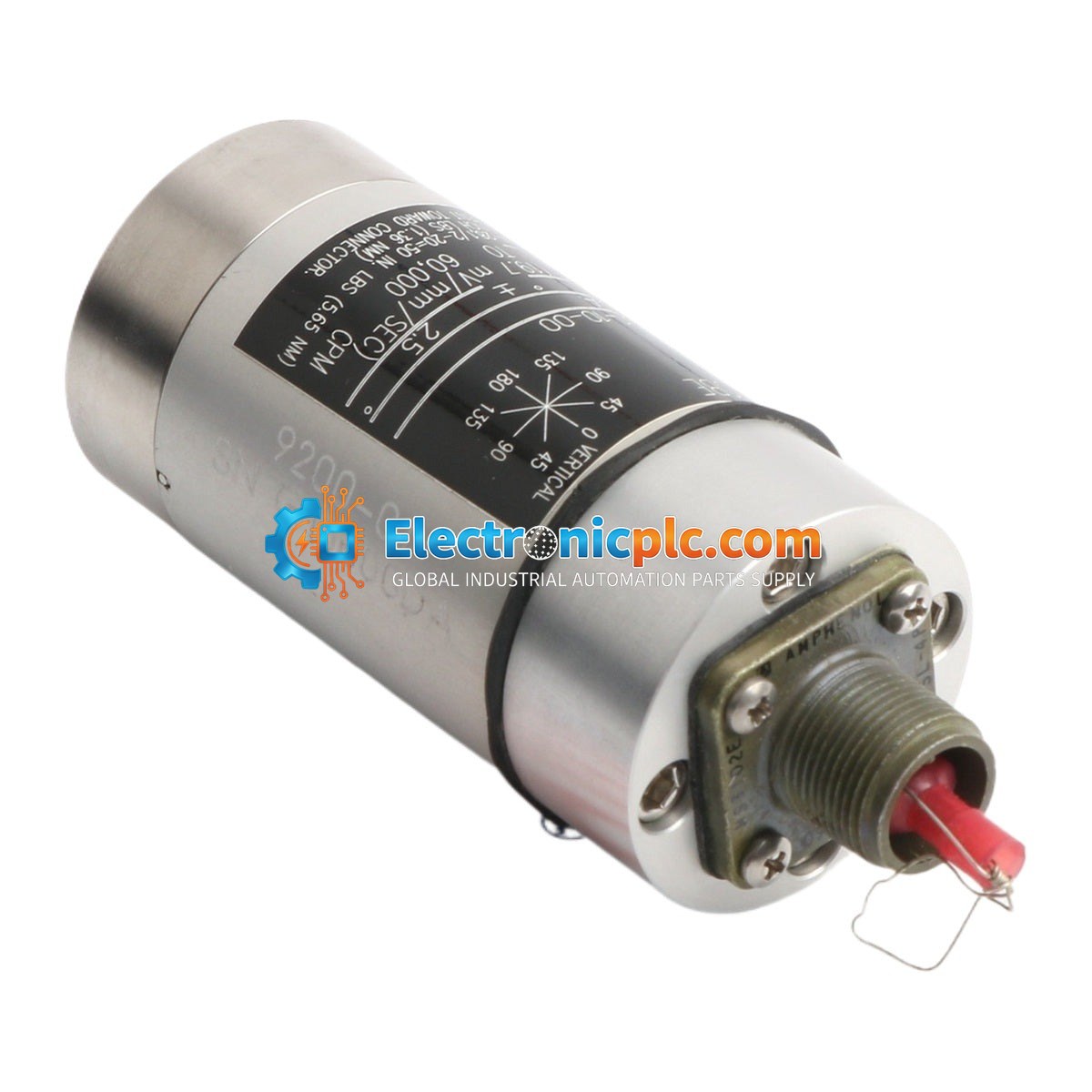

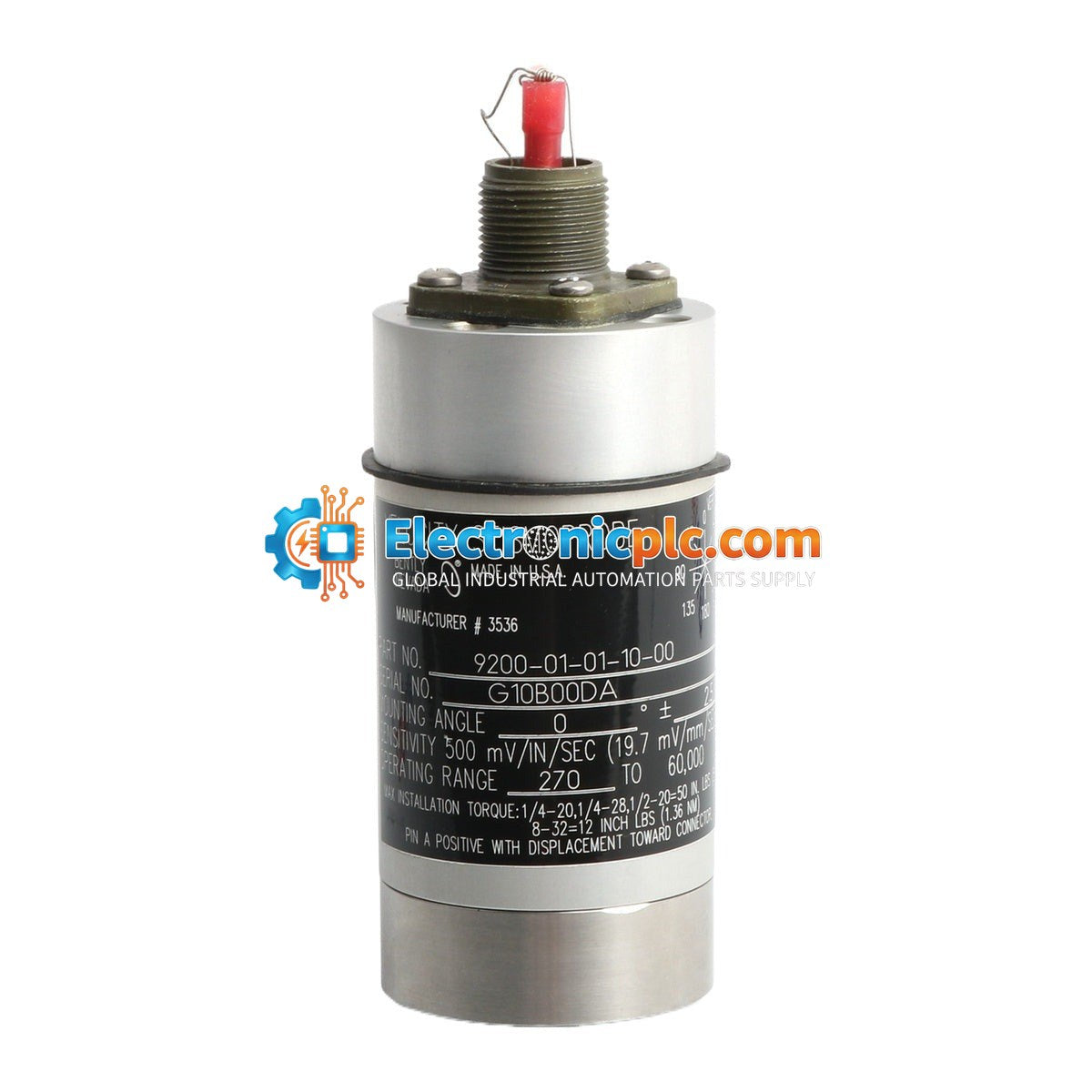

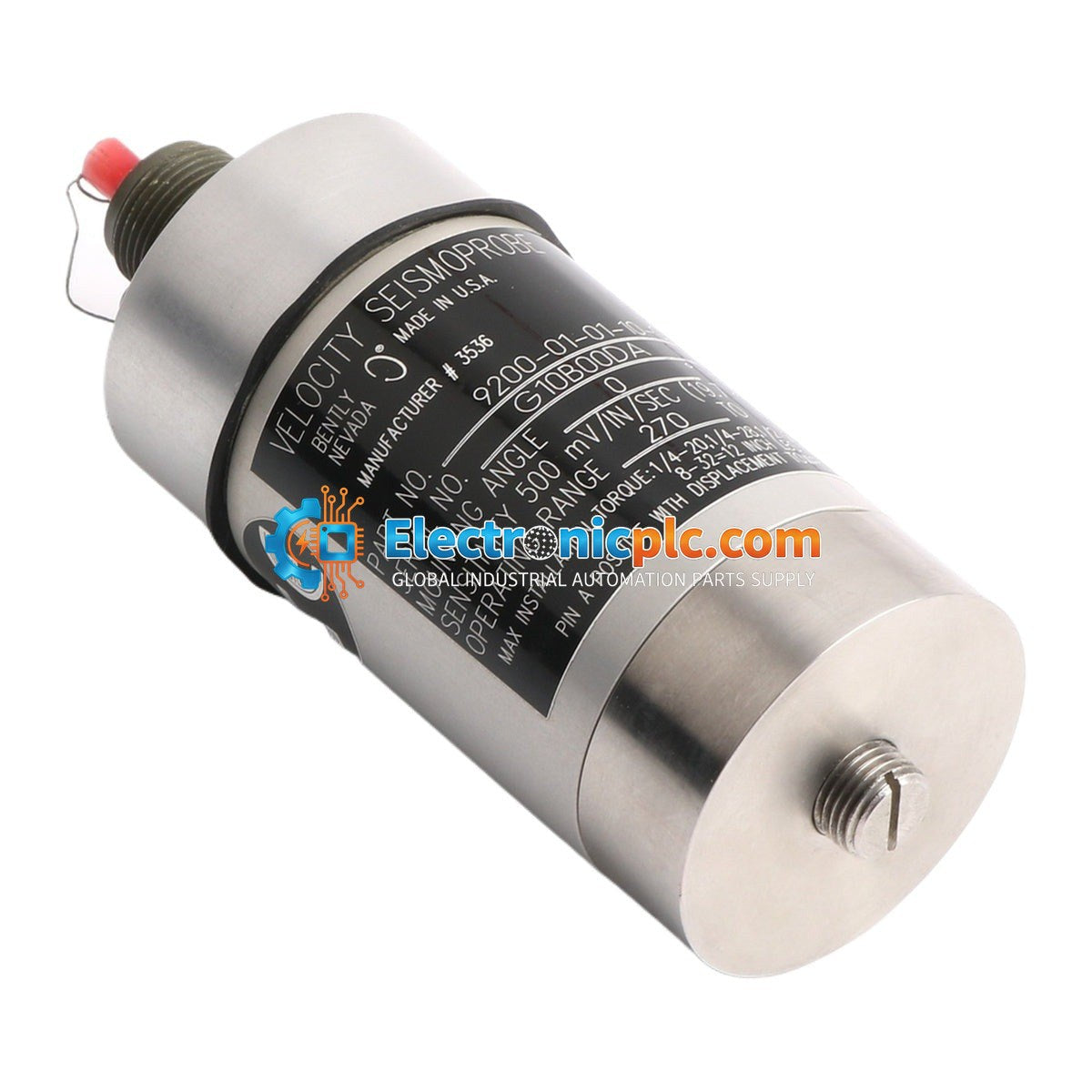

The Bently Nevada 9200-01-01-10-00 is a Seismoprobe velocity transducer designed for monitoring casing vibration in industrial rotating machinery. This sensor provides a voltage output proportional to the velocity of the vibration, making it an essential component for predictive maintenance and machinery protection systems. It is engineered to provide reliable performance in demanding industrial environments.

Features

• Robust design for continuous monitoring of casing vibration.
• Velocity output proportional to vibration intensity.
• Top-mount configuration for versatile installation.
• M10 x 1 stud mounting interface for secure mechanical connection.
• Standard dynamic operating range suitable for general-purpose machinery monitoring.

Technical Specifications

Installation Guidelines

• Ensure the mounting surface is clean, flat, and free of debris to ensure accurate vibration transmission.
• Use the M10 x 1 stud for secure fastening to the machine casing; ensure proper torque is applied to prevent loosening due to vibration.
• Transducers should be installed in a location that represents the true vibration characteristics of the bearing housing or casing.
• Handle with care to avoid damage to the internal coil assembly; avoid dropping or subjecting the sensor to high-impact shocks.
• Ensure that cabling is properly routed and secured to prevent strain on the transducer connection point.
• Verify that the monitoring system input impedance matches the requirements for the 10 kOhm load specification to ensure accurate signal scaling.

FAQ

What is the primary function of the 9200-01-01-10-00?

This unit is a seismic velocity transducer used to measure the vibration of machine casings, helping to detect issues such as imbalance, misalignment, or bearing wear in rotating equipment.

Does this model include a cable?

No, the -01 configuration denotes a top-mount sensor without an integral cable. A separate cable assembly is required for connection to the monitoring system.

What is the mounting thread size?

This specific model is equipped with an M10 x 1 mounting stud.
