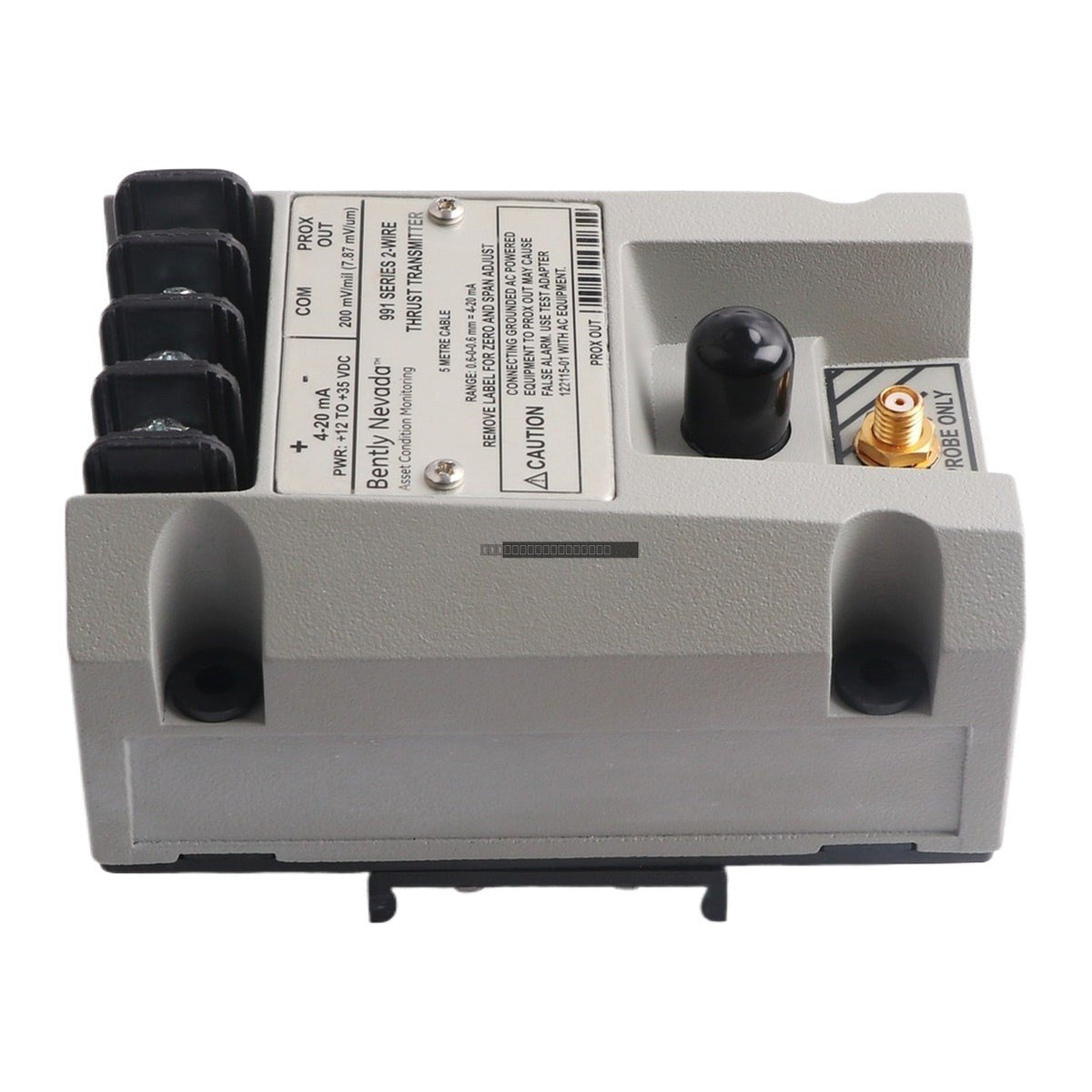

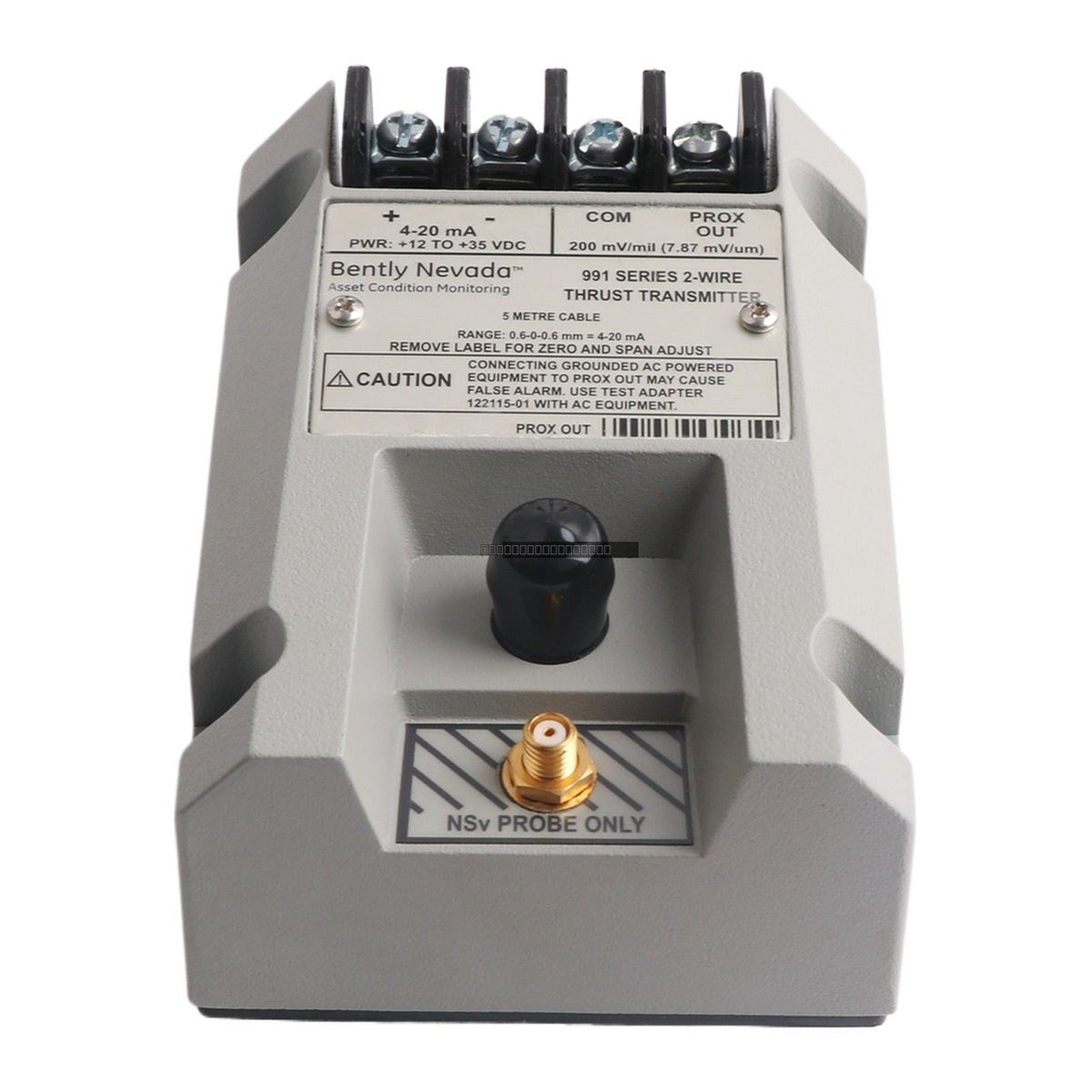

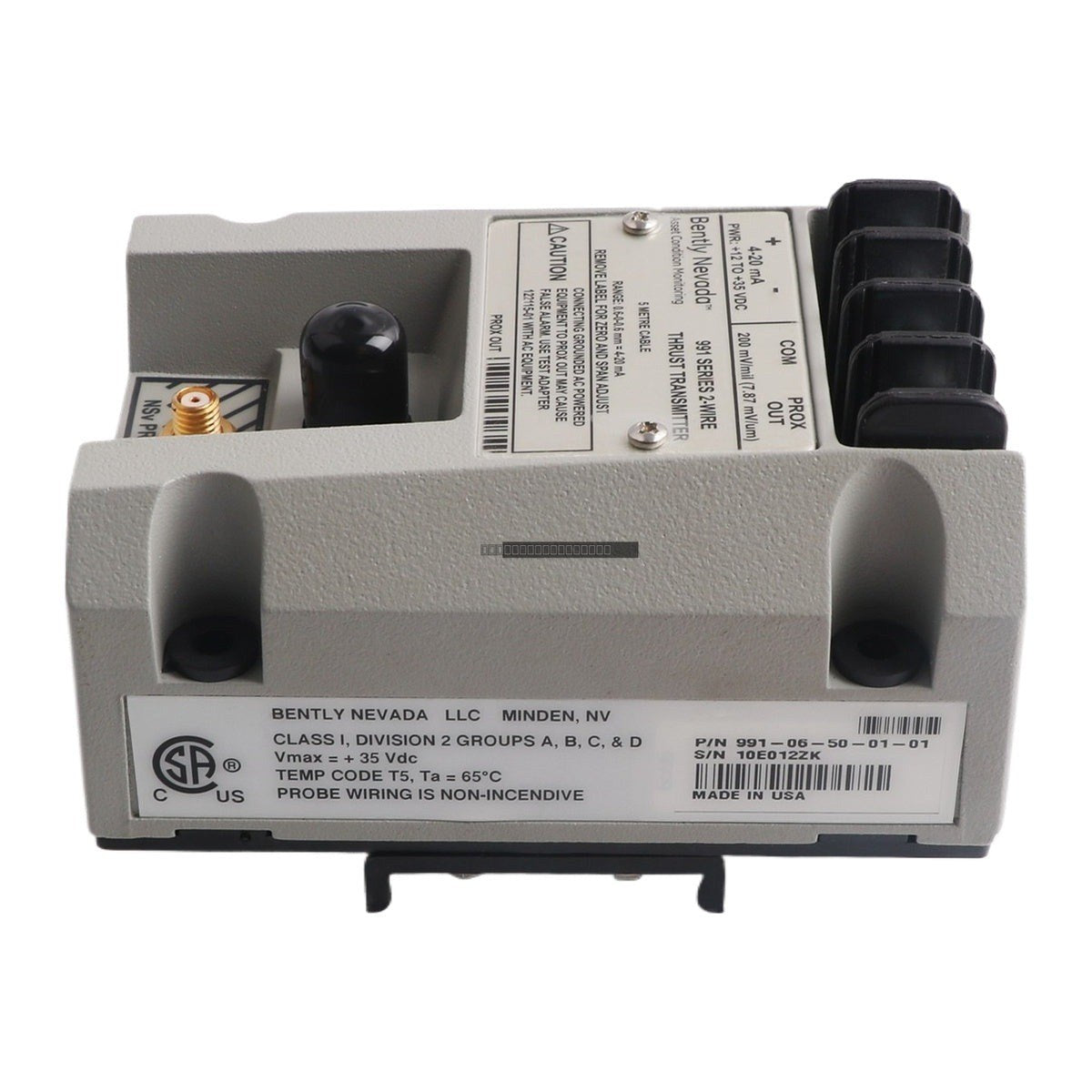

The Bently Nevada 991-06-50-01-01 is a specialized thrust transmitter designed for continuous monitoring of axial position in rotating machinery. This unit provides a reliable 4-20 mA output proportional to the measured thrust displacement, facilitating seamless integration into existing plant control and monitoring systems.

Features

• Integrated transmitter design for simplified installation and reduced wiring complexity.
• Configured for a 5.0-meter (16.4-foot) cable length.
• Includes 35 mm DIN rail mounting clips for standard industrial cabinet installation.
• CSA Division 2 hazardous area certification.
• Robust loop-powered operation requiring 12 to 35 Vdc input.

Technical Specifications

Installation Guidelines

• Ensure the transmitter is mounted in a location protected from excessive vibration and extreme temperatures.
• Use shielded twisted-pair cabling to minimize electromagnetic interference (EMI) on the 4-20 mA loop.
• Verify that the power supply voltage at the transmitter terminal remains within the specified 12-35 Vdc range.
• Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
• Ensure all DIN rail connections are secure and that the module is properly grounded per local electrical codes.

FAQ

What is the primary function of the 991-06-50-01-01?

This module acts as a thrust transmitter, converting axial displacement measurements into a standard 4-20 mA signal for process control or monitoring systems.

What are the power requirements for this transmitter?

The unit requires a DC power input between +12 and +35 Vdc at the transmitter terminal.

Is this unit suitable for hazardous environments?

Yes, this specific model is rated for CSA Division 2 hazardous area applications.
