Description

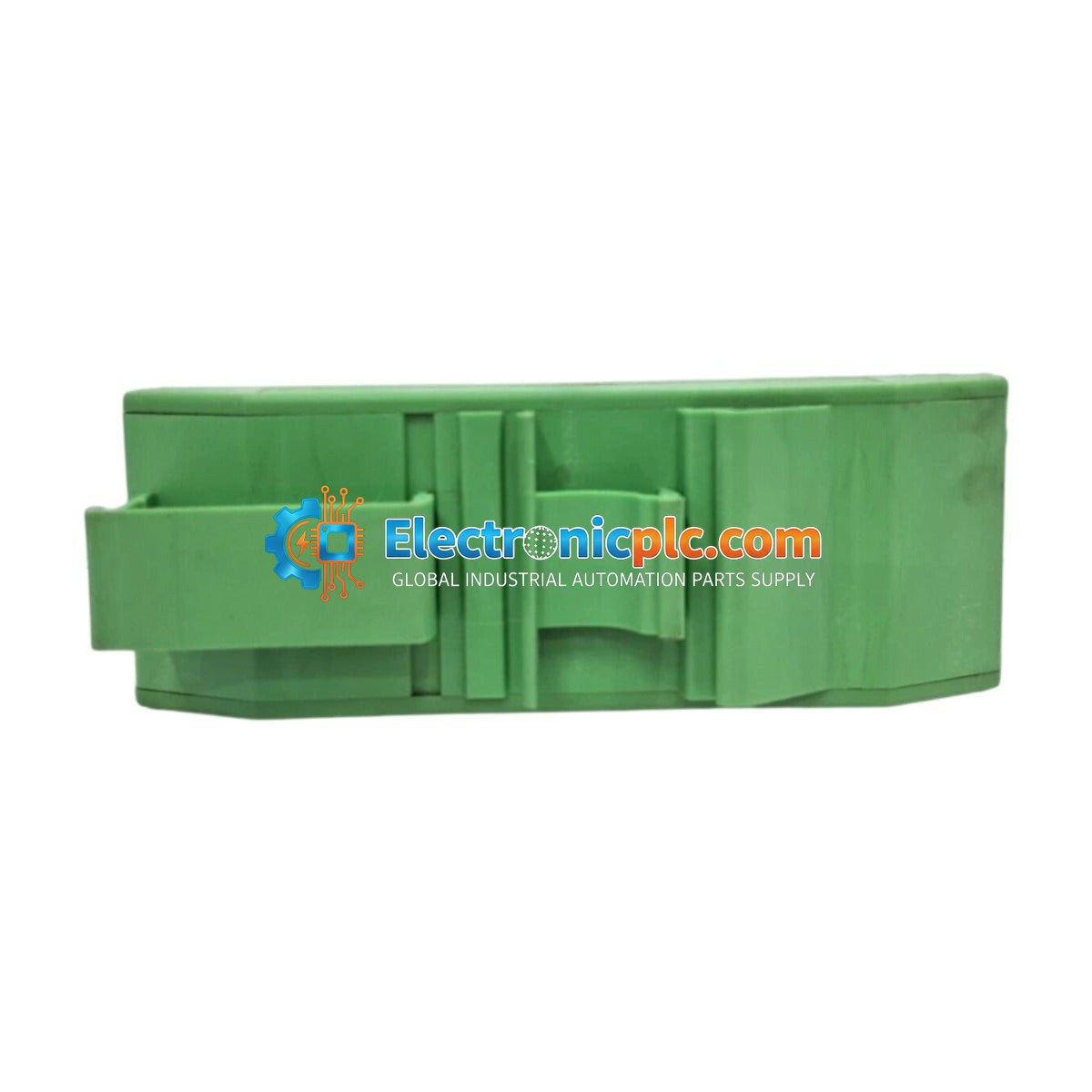

The HIMA H 7506 is a specialized bus terminal interface module engineered for secure signal distribution and connectivity within HIMA H41Q and H51Q safety-related control systems. This passive component acts as a reliable transition point between system bus cabling and field-side wiring, ensuring signal integrity in safety-critical industrial environments. By providing a structured interface for multi-channel data paths, the H 7506 simplifies system maintenance and troubleshooting in complex automation architectures.

Features

• System Compatibility: Designed specifically for use with HIMA H41Q and H51Q safety systems.
• Robust Connectivity: Features a 25-pole Min-D socket and two 6-pole terminal blocks for secure signal branching.
• Passive Architecture: Provides a transparent electrical path for bus communication without adding power load to the safety system.
• Industrial Durability: Housed in a compact, rugged enclosure designed to withstand high-vibration environments typical of refineries and power generation facilities.
• Simplified Maintenance: Facilitates rapid access to field wiring, reducing mean time to repair (MTTR) during system diagnostics.

Applications

The H 7506 is primarily utilized in safety-critical applications where reliable bus communication is required, including:

• Emergency Shutdown Systems (ESD)
• Burner Management Systems (BMS)
• Turbine Control and Protection
• Process Automation in Oil, Gas, and Chemical plants

Technical Specifications

Installation Guidelines

• Mounting: The module is designed for standard DIN-rail mounting. Ensure the rail is securely grounded to the cabinet backplane.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal connections.
• Wiring: Ensure all field wiring is properly labeled and secured to the 6-pole terminal blocks. Verify that the 25-pole Min-D connection is fully seated and locked to prevent intermittent signal loss.
• Environment: While the module is rugged, avoid installation in areas with extreme moisture or corrosive atmospheres unless housed in an appropriately rated NEMA/IP enclosure.
• Maintenance: Always verify system power-down status before disconnecting or reconnecting the bus interface to avoid potential signal noise or system faults.

FAQ

Is the H 7506 an active or passive module?

The H 7506 is a passive interface module. It does not require an external power supply and does not actively process or amplify signals; it serves strictly as a physical connection and distribution point for the system bus.

Can the H 7506 be used in non-HIMA systems?

This module is specifically designed for the HIMA H41Q and H51Q safety system architecture. Its pinout and connector configuration are optimized for these specific platforms and are not intended for general-purpose PLC or third-party I/O applications.
