Description

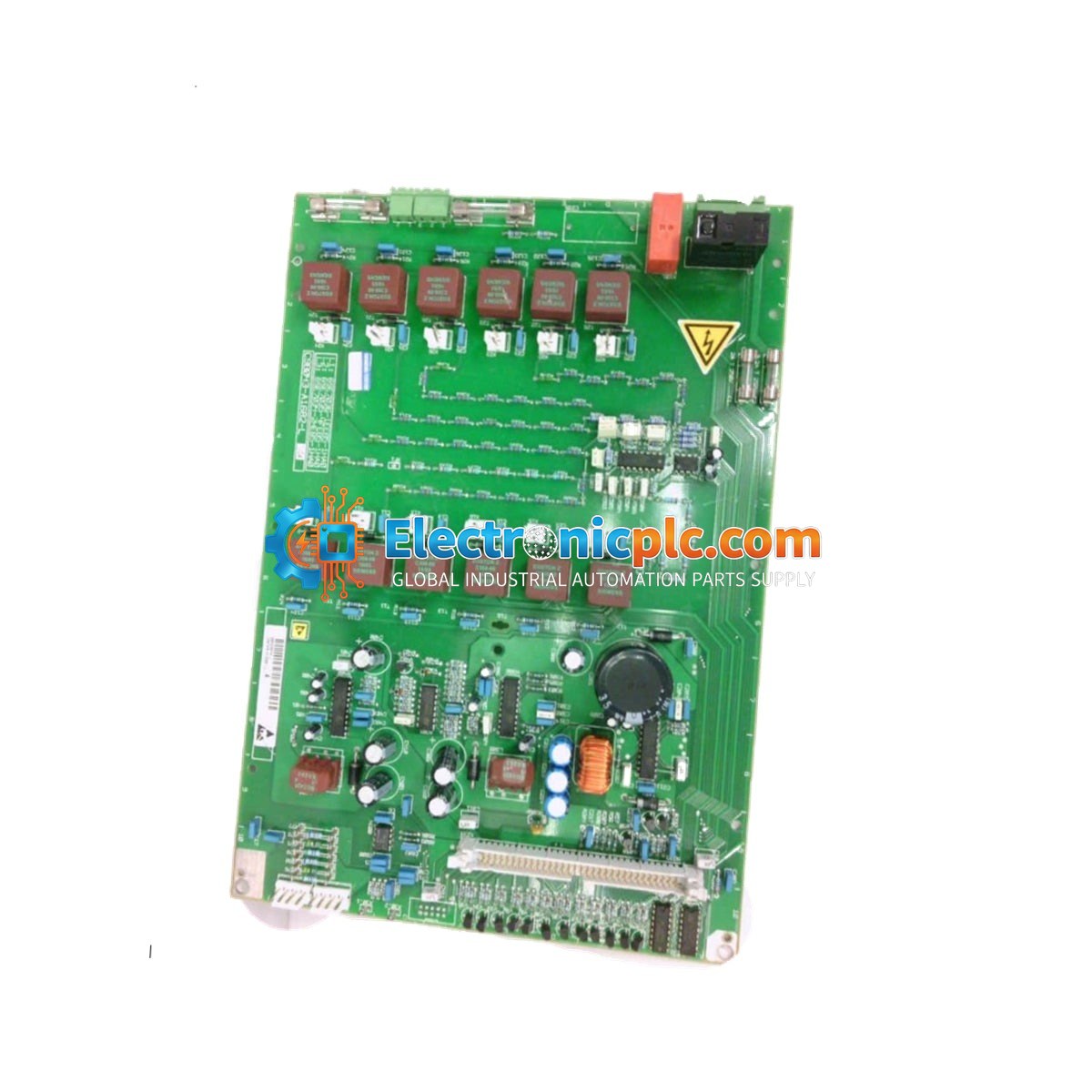

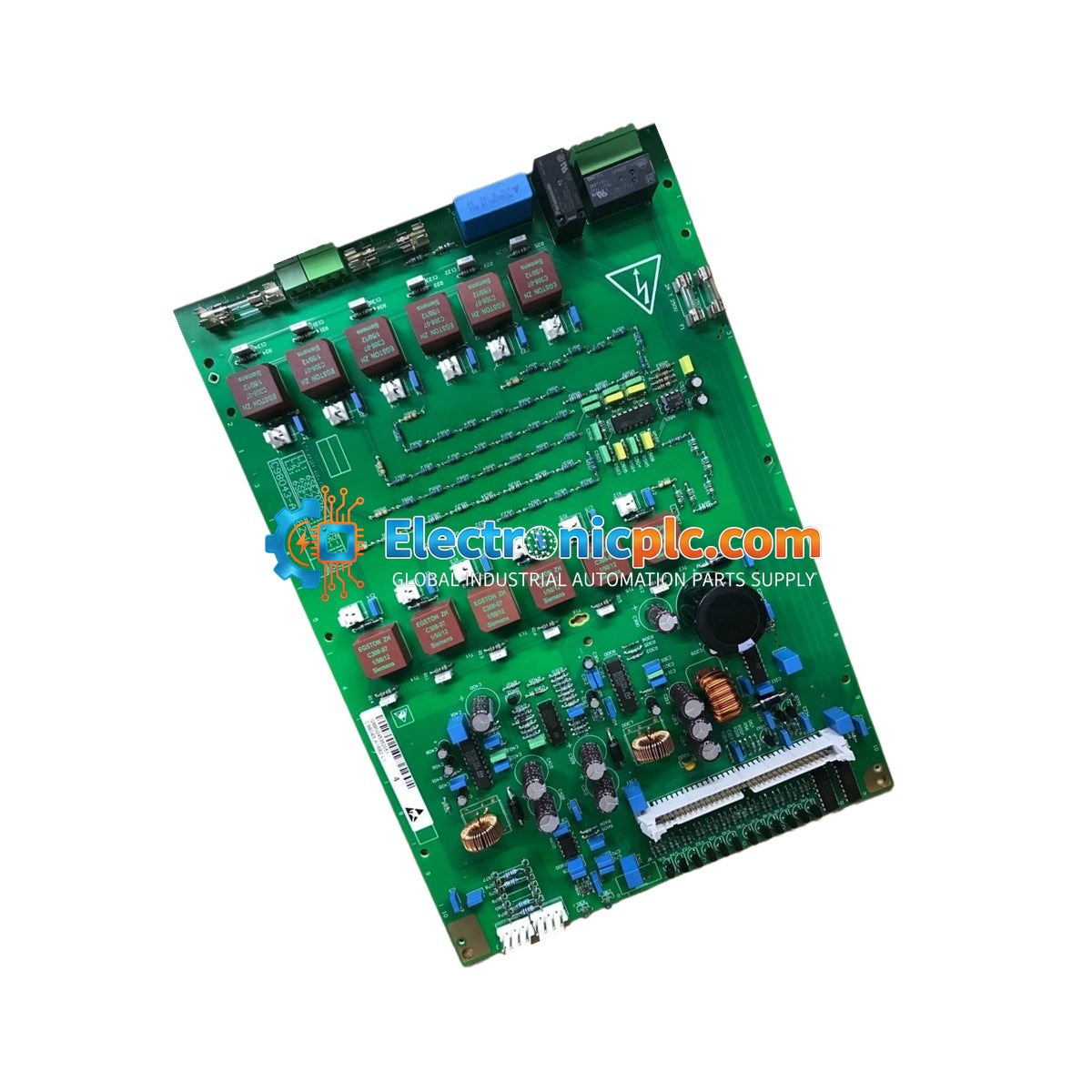

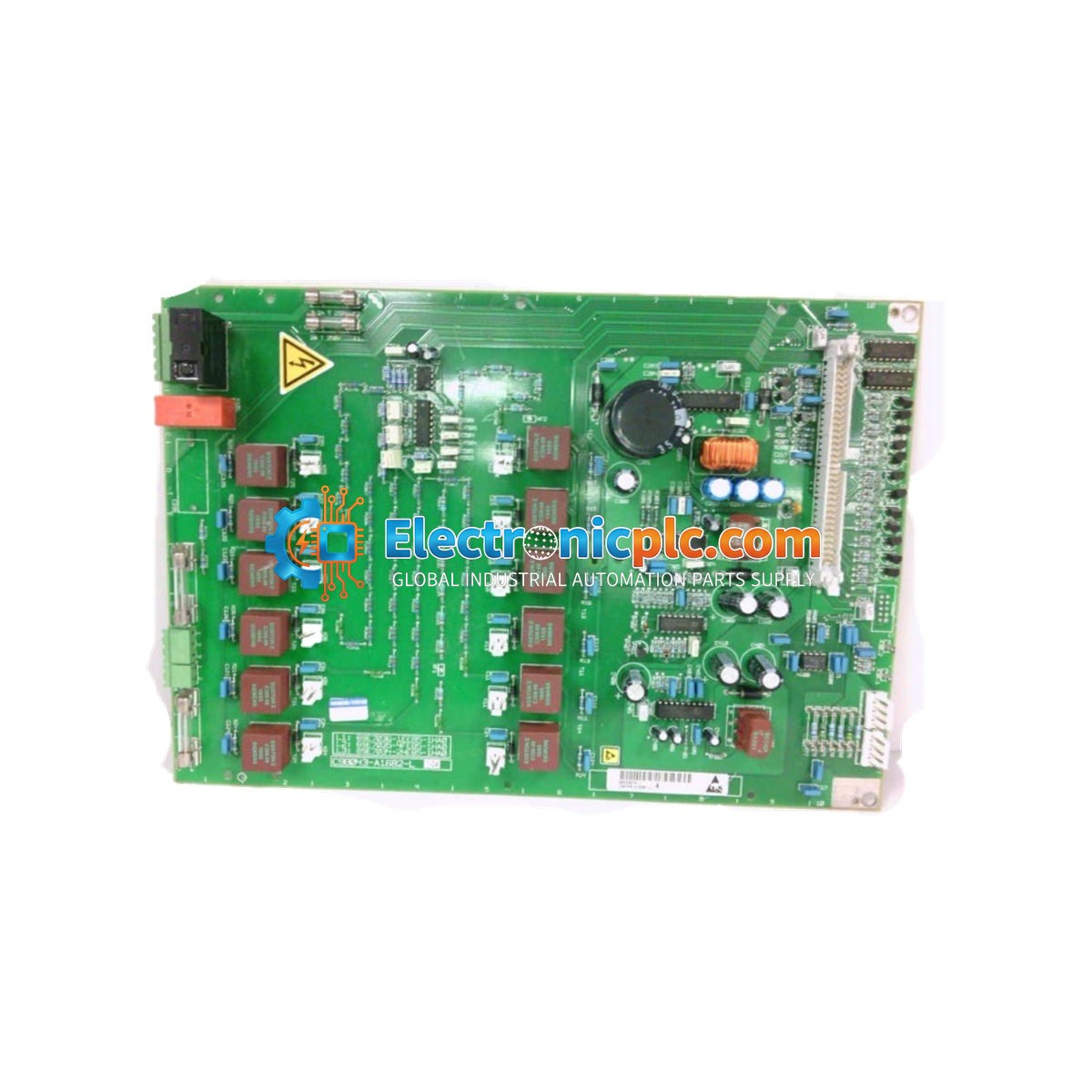

The Siemens C98043-A1682-L1 is a specialized control circuit board designed for use within the SIMODRIVE DC converter systems. This module, often associated with the 6SE7036-1EE85-1HA0 spare part reference, serves as a critical component for managing control logic and signal processing in industrial motor drive applications. It ensures precise regulation and reliable operation of DC drive equipment in demanding manufacturing environments.

Features

• Engineered for SIMODRIVE DC converter control architectures.
• Provides stable control signal processing for motor drive regulation.
• Integrated galvanic isolation to protect sensitive control circuitry from electrical noise and surges.
• Compact PCB design optimized for integration into standard drive control racks.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always handle the circuit board using proper electrostatic discharge (ESD) protection, including grounded wrist straps, to prevent damage to sensitive electronic components.
• Power Status: Ensure all power to the drive system is disconnected and verified as de-energized before attempting to install or remove the board.
• Seating: Ensure the board is fully and firmly seated in its designated slot within the converter housing to maintain reliable electrical contact.
• Environment: Maintain the operating environment within the specified 0 to 60 degC range and ensure adequate ventilation to prevent thermal degradation.
• Wiring: Route control signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and ensure signal integrity.

FAQ

What is the primary function of the C98043-A1682-L1 board?

This board acts as a control module for Siemens SIMODRIVE DC converters, responsible for managing the control logic necessary for the operation and regulation of DC motor drives.

Is this board compatible with the 6SE7036-1EE85-1HA0 unit?

Yes, the C98043-A1682-L1 is identified as a component or spare part associated with the 6SE7036-1EE85-1HA0 converter assembly. Please verify your specific drive configuration before installation.

What are the power requirements for this module?

The module operates on a 24 V DC power supply with a current consumption ranging between 100 mA and 200 mA.
