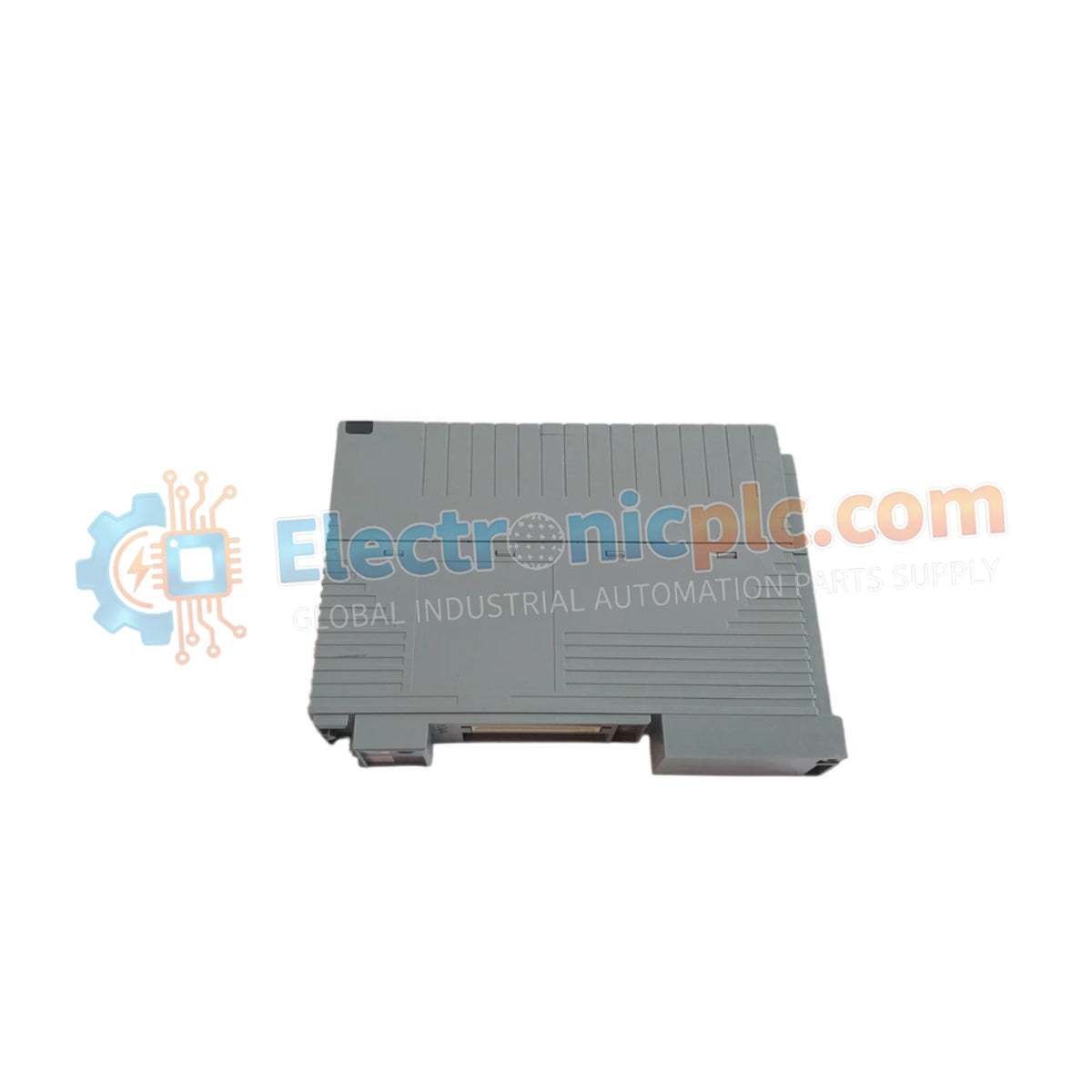

The YOKOGAWA CP471-50, also cataloged as the CP471-50 Processor Module, operates as a dedicated hardware component for high-speed logic execution and communication automation within CENTUM VP distributed control system platforms.

Hardware Specifications

Process Control Connectivity

The CP471-50 is designed to facilitate high-bandwidth data processing and multi-protocol communication. It integrates natively with Ethernet, RS-232, RS-485, and Modbus interfaces to ensure comprehensive connectivity with distributed field instrumentation and supervisory networks. To maintain signal integrity in harsh environments, the module supports channel-to-channel isolation, effectively mitigating electromagnetic interference and ground-level potential differences. This ensures stable 4-20 mA HART loop protocol transmission and high-speed data synchronization required for complex regulatory control loops in industrial DCS architectures.

Frequently Asked Questions

Q: Is this module rated for deployment in hazardous industrial areas?

A: The CP471-50 features an IP65 protection rating, signifying high resistance to dust and moisture ingress. However, always verify that the specific cabinet installation meets local hazardous location certification requirements.

Q: How is memory management handled during firmware updates?

A: The module utilizes dedicated flash storage for firmware integrity. Updates should be executed through the system engineering station during a scheduled maintenance window to ensure the control process remains in a safe state during the transition.

Field Installation Guidelines

• Verify that the rack environment is clean and that the backplane slots are free from debris before attempting installation.
• Ensure proper alignment with the mounting rails to prevent damage to the high-density backplane interface connectors.
• Secure the module with the front-panel captive screws to establish a robust electrical ground path to the cabinet chassis.
• Route signal cables away from high-voltage AC lines to prevent induced noise on the Ethernet or serial communication channels.
• Confirm that the cooling airflow around the module is unobstructed to allow the heat sink to dissipate thermal energy within the -20 deg C to +60 deg C operating envelope.
