The 1769-OB32T is a high-density 32-point 24V DC sourcing output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It enables control of a large number of field devices...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

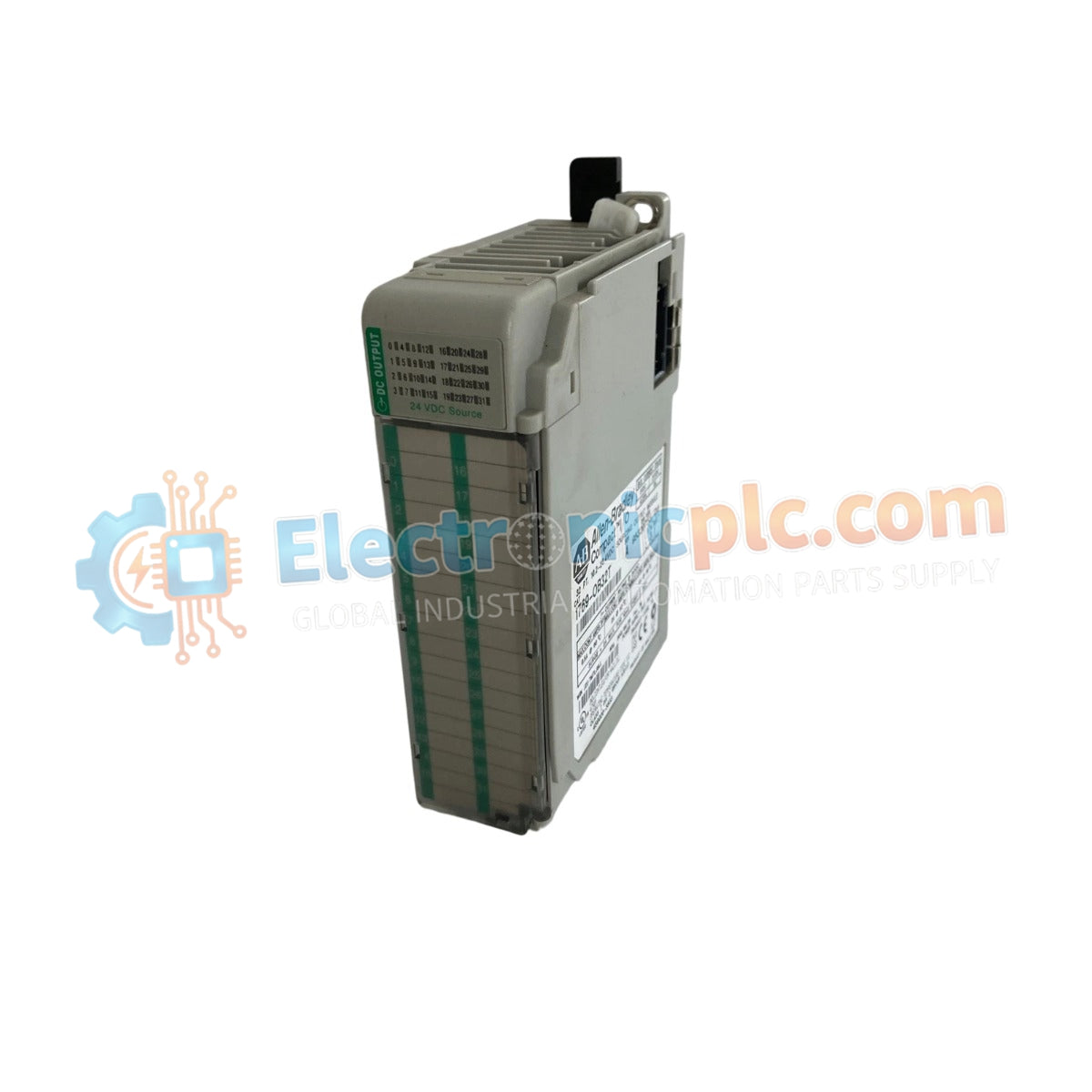

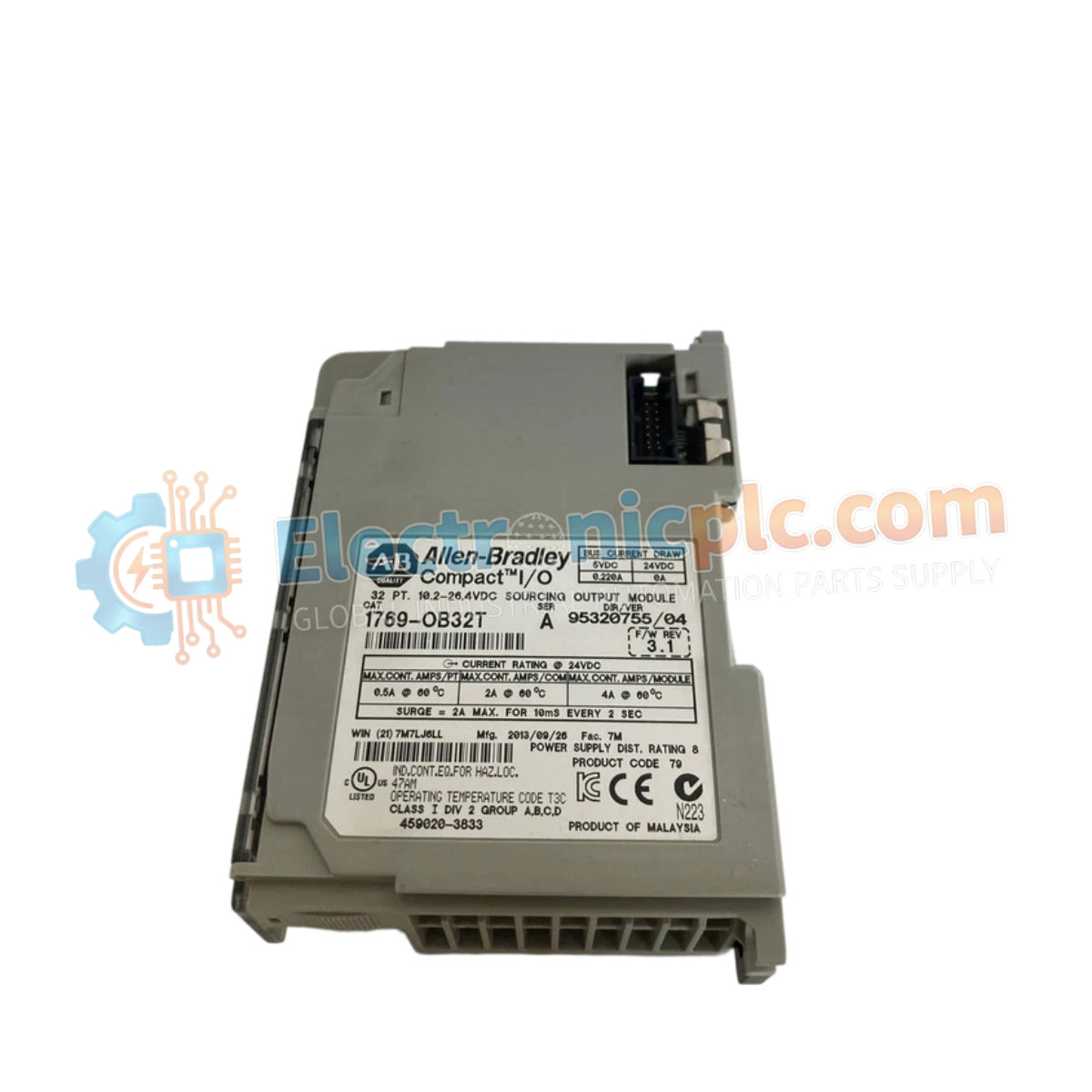

The 1769-OB32T is a high-density 32-point 24V DC sourcing output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It enables control of a large number of field devices from a single I/O slot, making it ideal for space-constrained control cabinets. We supply this module as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1769-OB32T |
| Outputs | 32 Sourcing Outputs (2 × 16 groups) |
| Voltage Range | 10.2–26.4V DC |
| Backplane Current | 220 mA @ 5.1V DC |
| Output Current | 0.5 A per point / 8.0 A total module |
| Group Rating | 4.0 A per group |
| Voltage Drop | Max 0.3V @ 0.5 A |
| Weight | 0.23 kg |
Provides 32 outputs in a single module, significantly reducing rack space requirements.
Minimal voltage drop improves efficiency and reduces heat generation.
Transistor-based switching ensures long life and high-speed operation.
It is a sourcing module providing +24V DC to field devices.
0.5 A per channel, 8.0 A total per module.
Typically a high-density connector with pre-wired interface cables.
Yes. We supply 100% Brand New and genuine Allen-Bradley modules in factory-sealed packaging.
