The 1769-OB8 is an 8-point 24V DC digital output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides solid-state sourcing outputs for controlling field devices such as...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

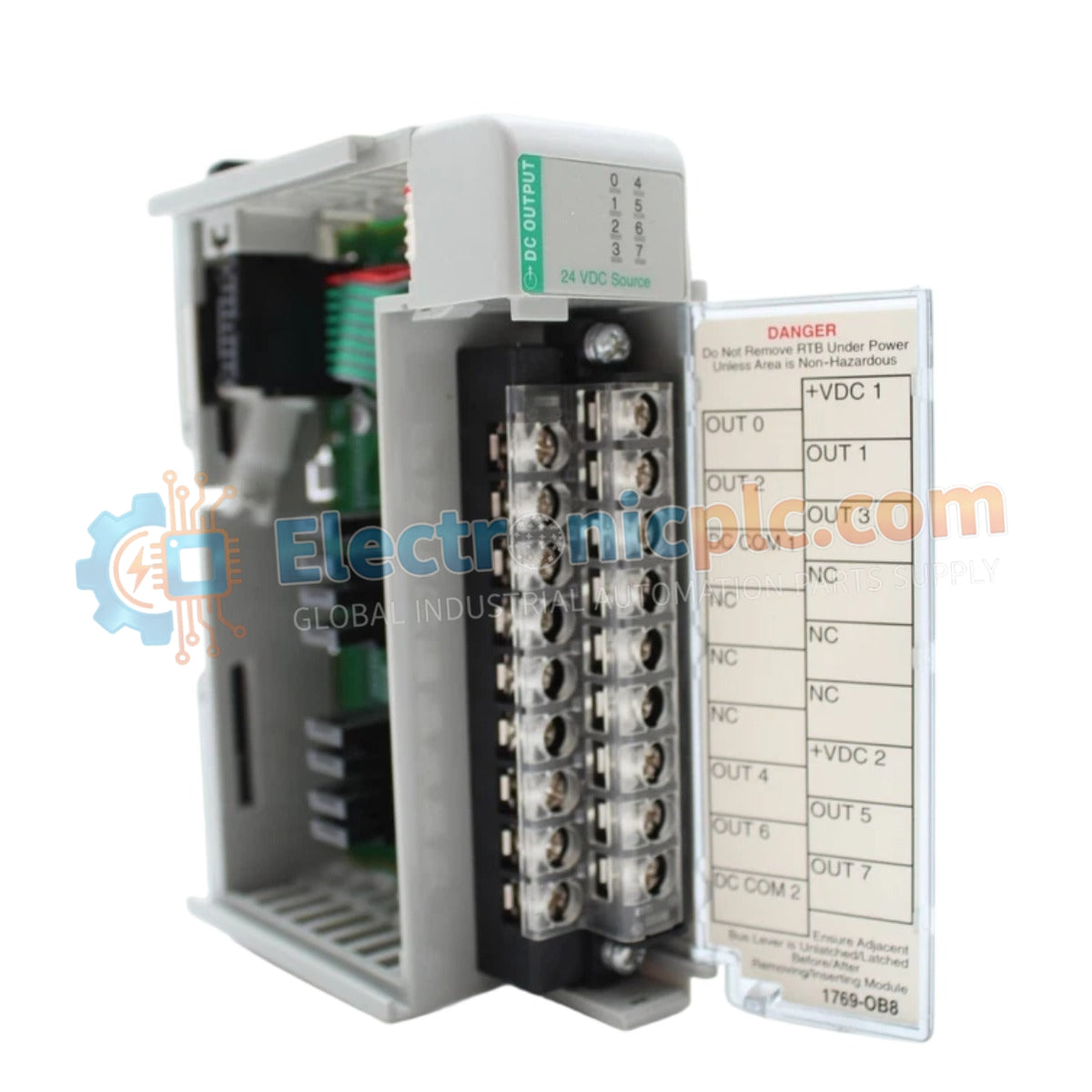

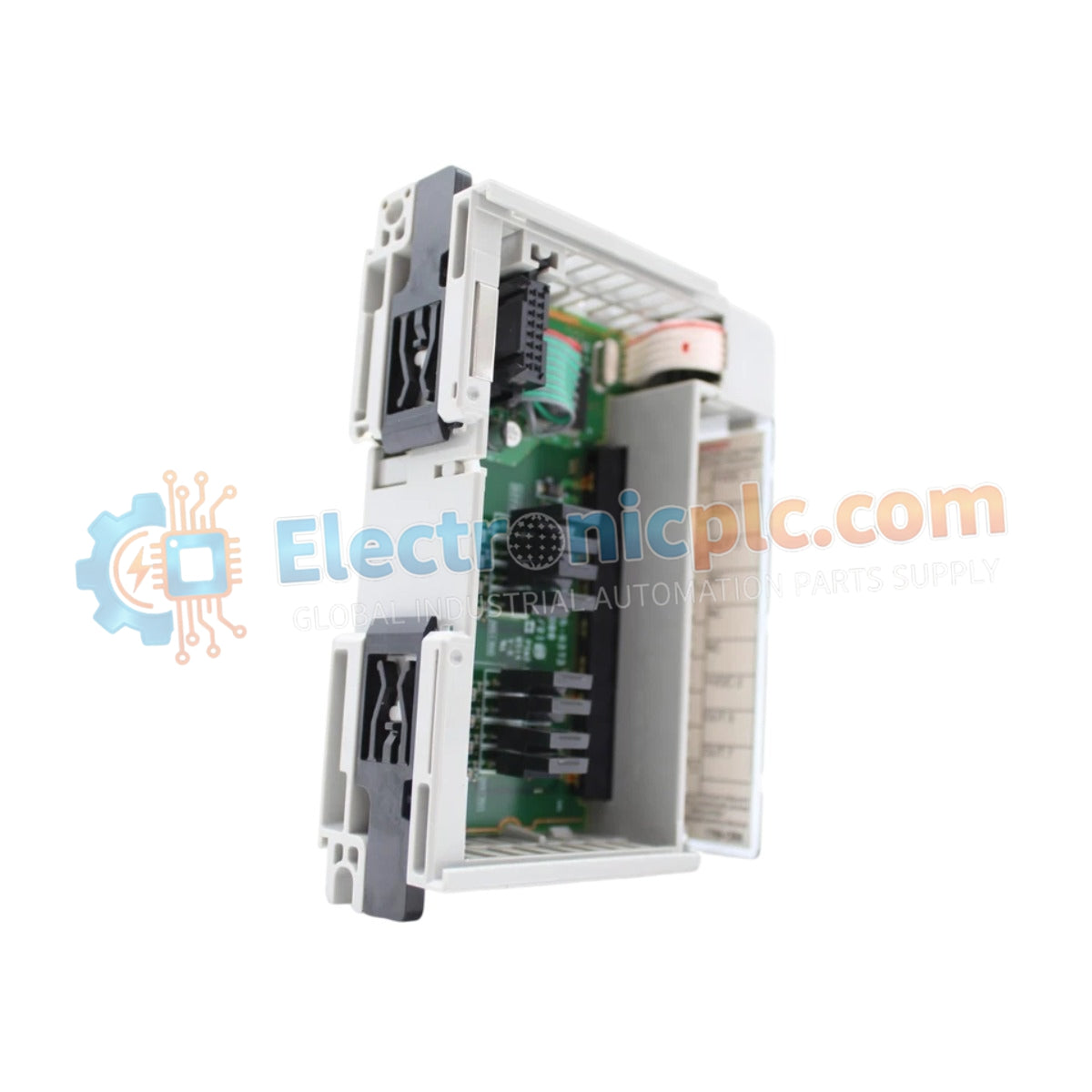

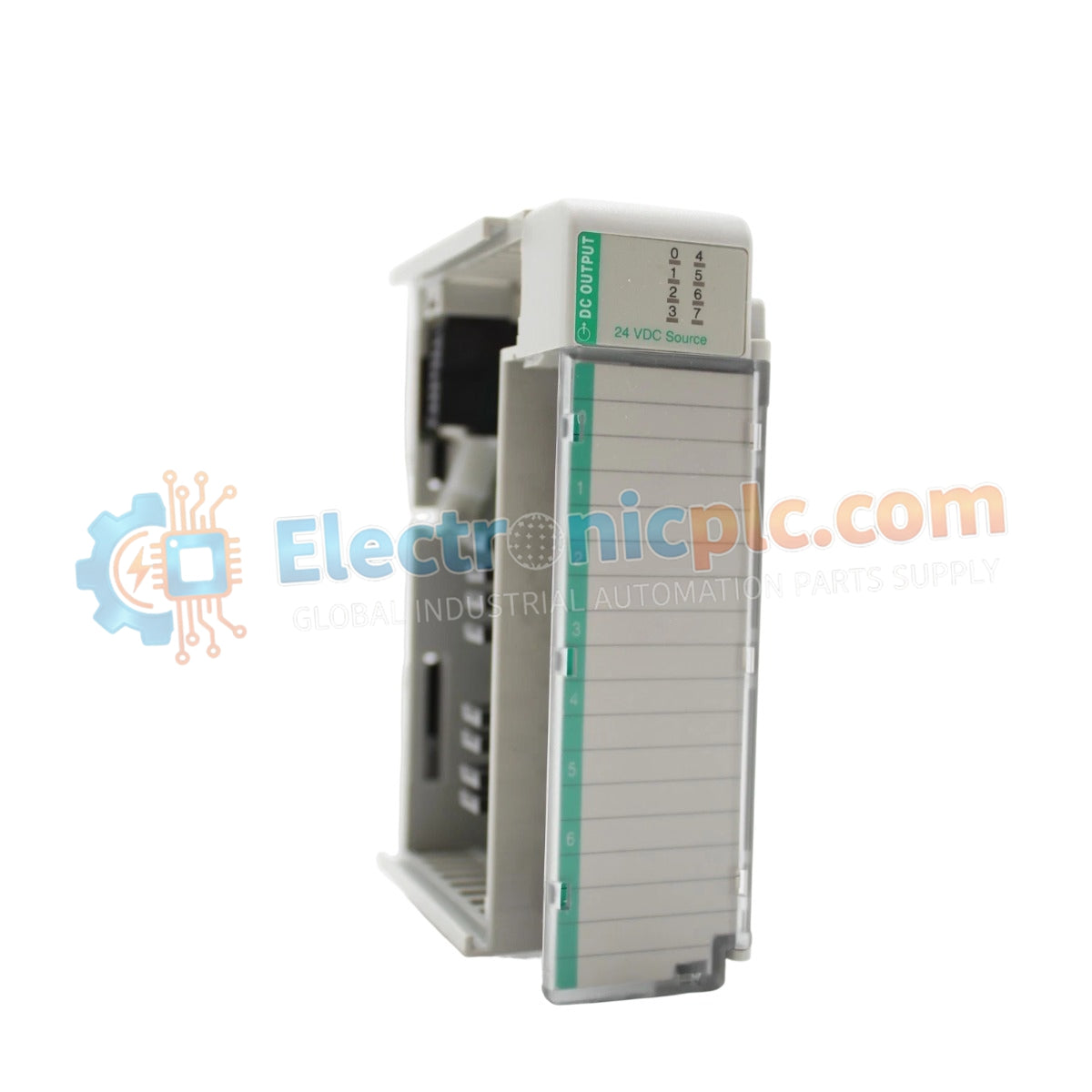

The 1769-OB8 is an 8-point 24V DC digital output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides solid-state sourcing outputs for controlling field devices such as solenoids, relays, and indicator lamps. We supply this module as 100% Brand New and original in factory packaging.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1769-OB8 |
| Outputs | 8 Sourcing Outputs |
| Voltage Range | 20.4–26.4V DC |
| Output Current | 1.0 A per point / 8.0 A per module |
| Surge Current | 2.0 A for 10 ms |
| Voltage Drop | Max 1.0V @ 1.0 A |
| Leakage Current | Max 1.0 mA |
| Backplane Current | 145 mA @ 5.1V DC |
| Weight | 0.26 kg |
Supports up to 1.0 A per channel, suitable for many industrial loads without relays.
Transistor switching eliminates mechanical wear and improves lifespan.
Electronic short-circuit protection helps safeguard the module from wiring faults.
It supplies +24V DC to the load, requiring a proper return path (0V).
No. It is strictly designed for 24V DC applications.
Yes. A 24V DC supply is required to power field outputs.
Yes. We provide 100% Brand New and genuine Allen-Bradley modules in original packaging.
