The Bachmann 00014647-00 (DIO280) is a high-density digital I/O module for the Bachmann M1 automation system. It combines 16 digital inputs and 16 digital outputs in a compact...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

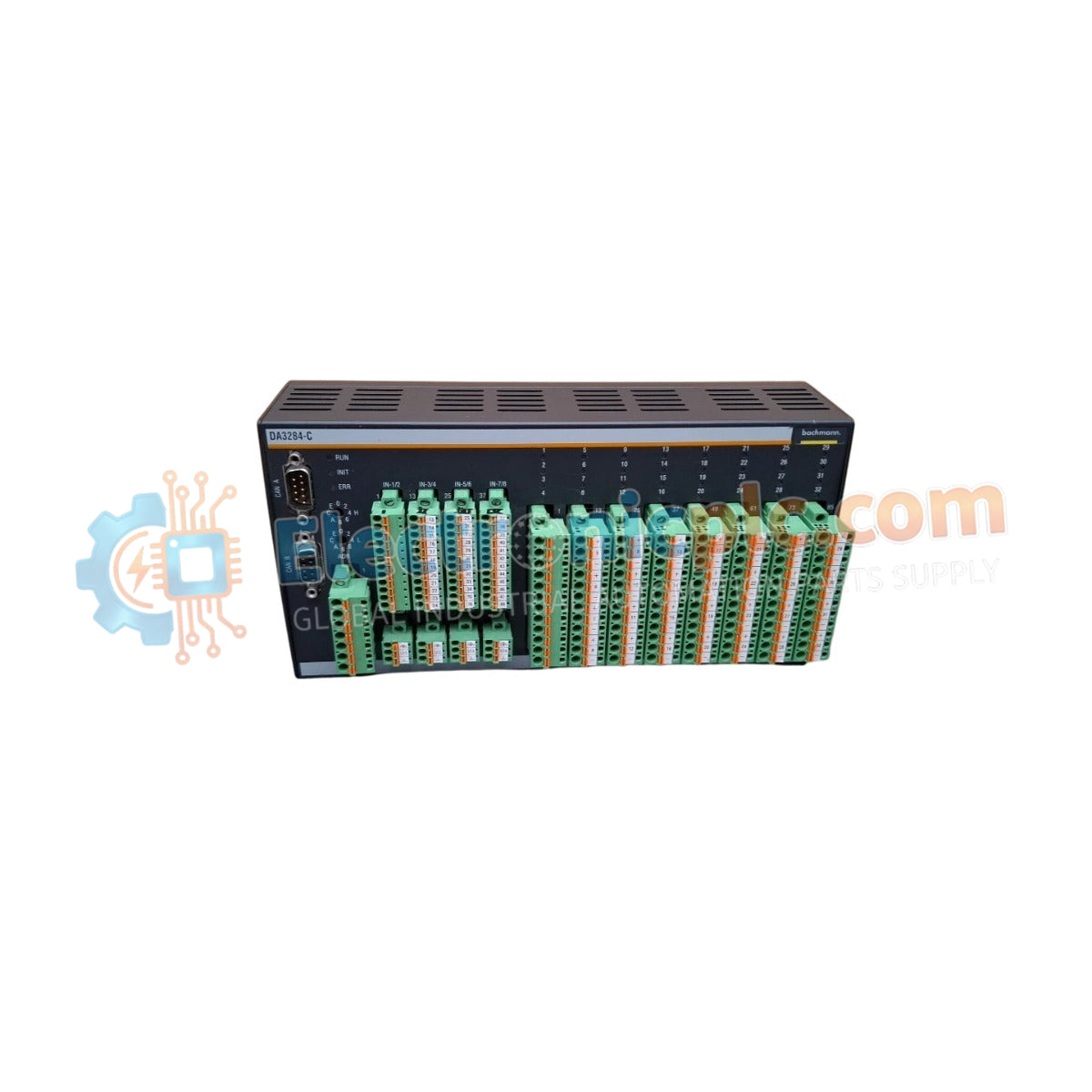

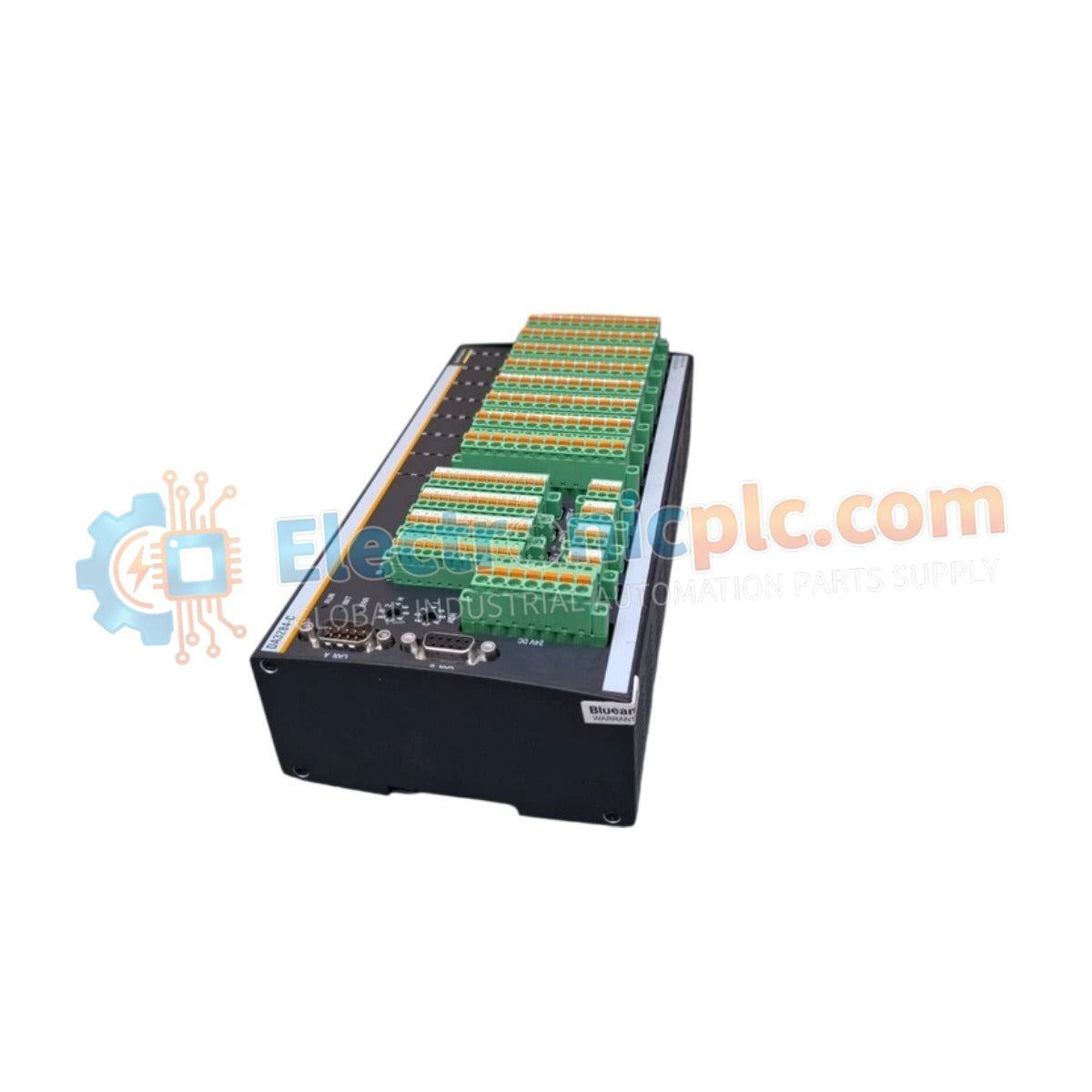

The Bachmann 00014647-00 (DIO280) is a high-density digital I/O module for the Bachmann M1 automation system. It combines 16 digital inputs and 16 digital outputs in a compact design, providing efficient control for switches, sensors, solenoids, and other field devices.
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | Bachmann |
| Part Number | 00014647-00 |
| Model Name | DIO280 |
| Digital Inputs | 16 Channels, 24VDC |
| Digital Outputs | 16 Channels, 24VDC, 0.5A per channel |
| Status Indicators | 32 Green LEDs + 1 Red Status LED |
| Isolation | 500V RMS |
| System Bus | M1 Backplane Connector |
| Dimensions | 2.3 cm × 11.9 cm × 10.3 cm |
| Weight | 0.22 kg |
Compact 32-point I/O design
Built-in short-circuit protection
Configurable input filtering
Real-time LED diagnostics
Low power consumption and heat generation
Can the outputs drive motors directly?
No. External relays or contactors are recommended for high-current loads.
What type of inputs are supported?
The module supports standard 24VDC sourcing inputs.
Does the module include diagnostic indicators?
Yes. Each channel has an individual LED status indicator.
Is this product 100% Brand New?
Yes. The Bachmann 00014647-00 DIO280 is supplied in 100% Brand New condition with a 2-year warranty.
