Description

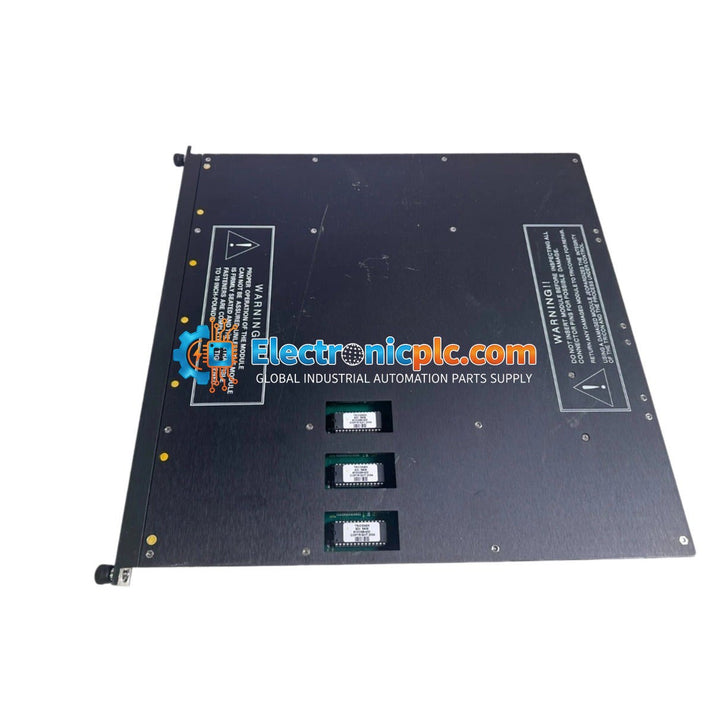

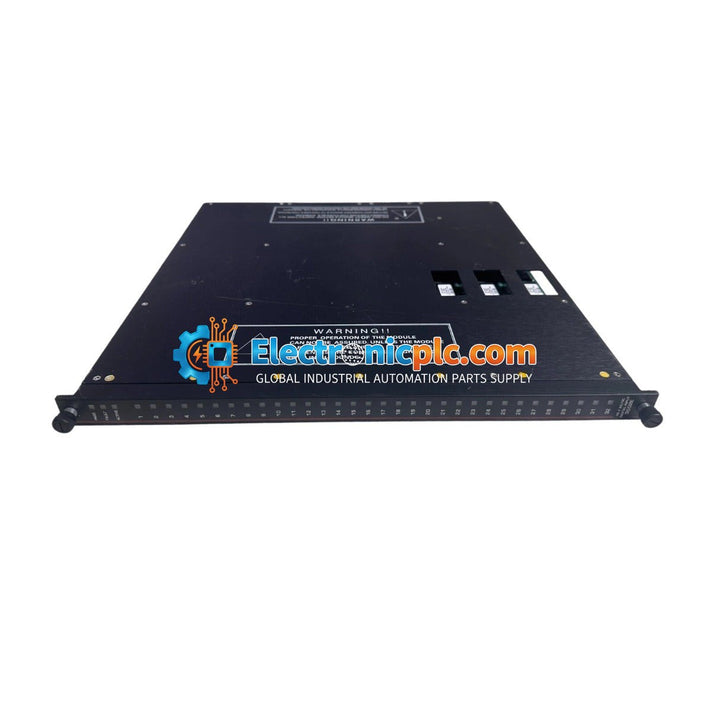

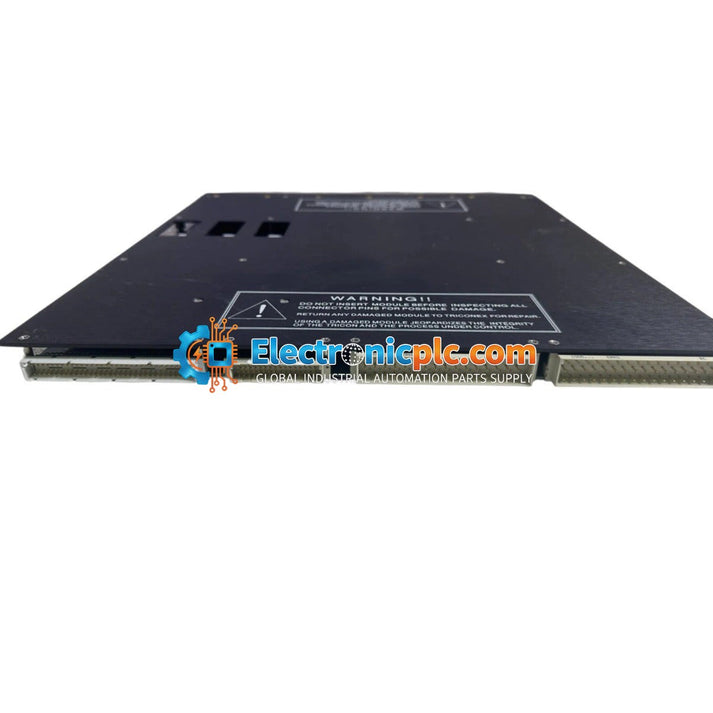

The Triconex 3502E is a high-density Digital Input Module designed for the Triple Modular Redundant (TMR) safety platform. This module is engineered to interface 32 critical field-side discrete devices—such as emergency stop buttons, limit switches, and pressure contacts—directly to the safety controller. It is widely deployed in mission-critical industrial environments including oil refineries, chemical processing plants, and offshore drilling operations, where it ensures high availability and fault tolerance.

Features

• 32-channel high-density digital input capacity.
• Designed for 48 VDC nominal input voltage applications.
• Triple Modular Redundant (TMR) architecture for superior safety and reliability.
• Optical isolation to protect the backplane from electrical transients and ground loops.
• Continuous self-diagnostics for open circuit and field wiring fault detection.
• Supports high-integrity signal processing with per-channel state validation.

Applications

The 3502E module is essential for safety-instrumented systems (SIS) requiring high-reliability discrete input monitoring. Typical applications include emergency shutdown systems (ESD), fire and gas detection, and critical process monitoring where false trips must be minimized to prevent unscheduled downtime.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down before inserting or removing the module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Verify that field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
• Ensure the module is fully seated in the chassis slot and that the locking mechanism is engaged for secure operation.
• Check that the field-side voltage matches the 36-60 VDC operating range before applying power to the input loops.

FAQ

What is the primary function of the 3502E module?

The 3502E is a 32-channel digital input module designed to monitor discrete field devices within a Triconex TMR safety system, providing high-integrity signal acquisition for safety-critical applications.

Does this module support hot-swapping?

Triconex modules are generally designed for high-availability systems; however, always consult your specific system documentation and safety procedures regarding online replacement of modules in an active TMR environment.

What voltage range does the 3502E support?

The module is rated for a nominal 48 VDC input, with an operational range of 36-60 VDC.
