The Bachmann DIO264-C is a CAN-based remote digital I/O module for the M1 automation system. It expands control systems by providing 12 digital inputs and 12 digital outputs,...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

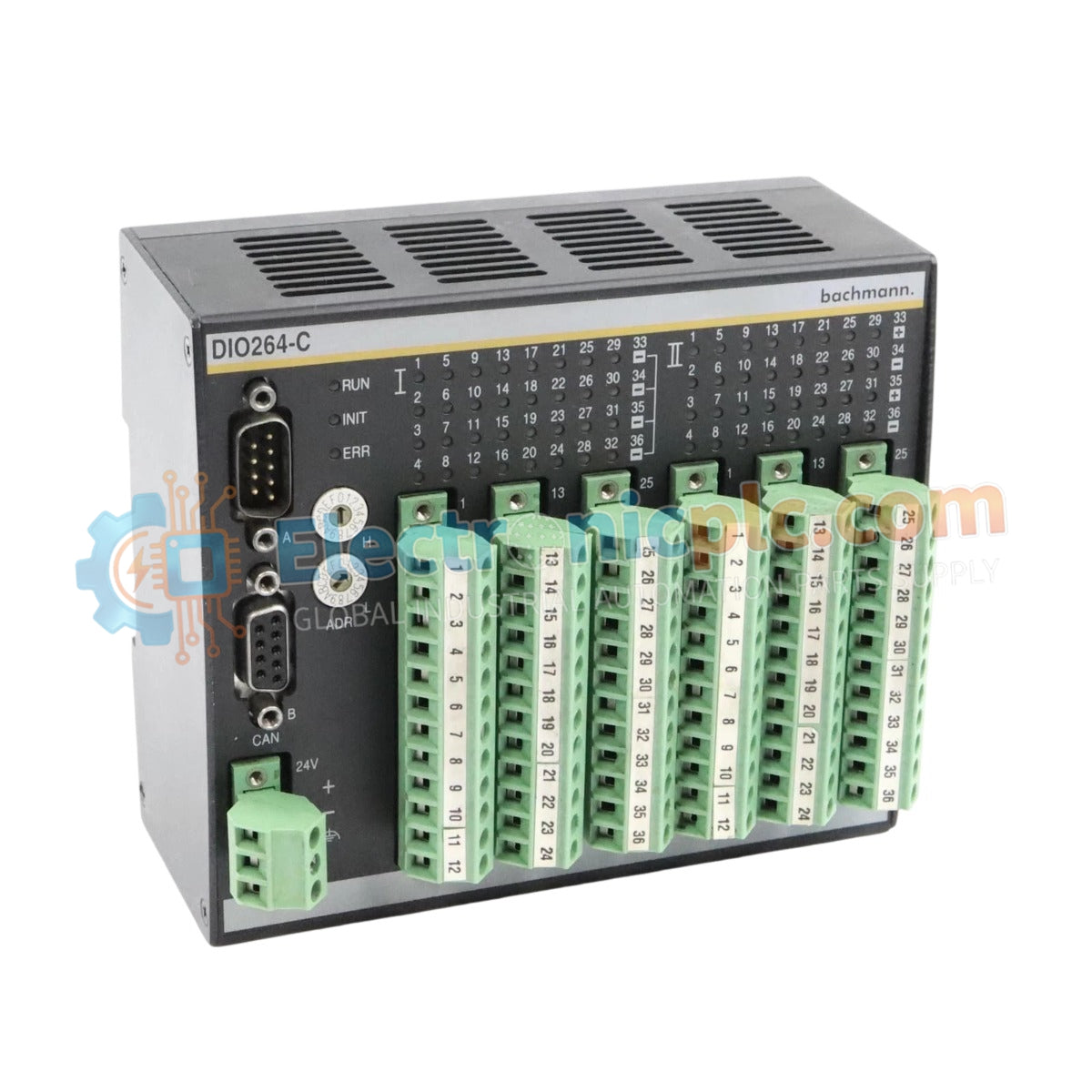

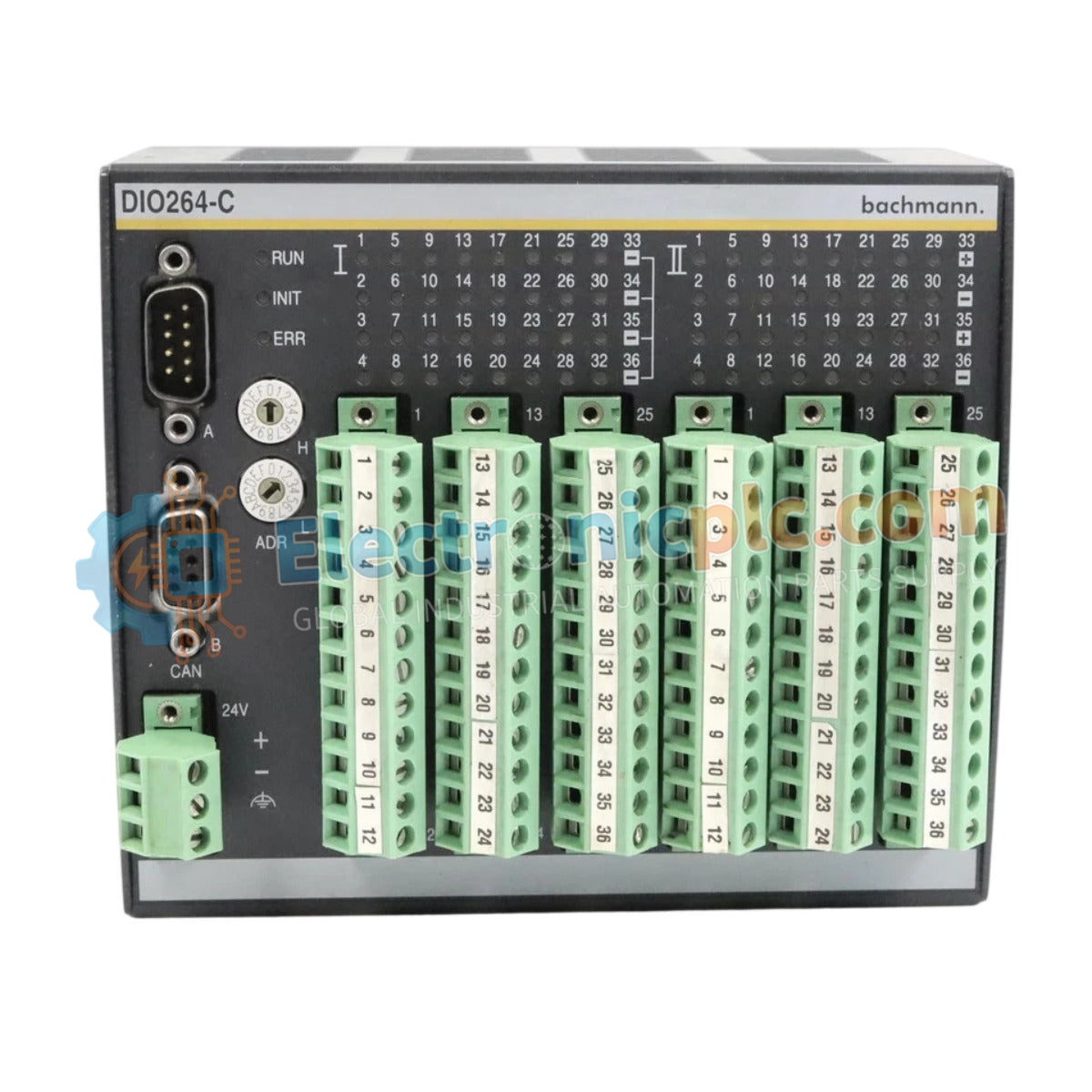

The Bachmann DIO264-C is a CAN-based remote digital I/O module for the M1 automation system. It expands control systems by providing 12 digital inputs and 12 digital outputs, enabling efficient distributed I/O for remote or modular installations in industries such as wind power, marine, and machinery automation.
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | Bachmann |
| Part Number | DIO264-C |
| Communication Interface | CAN (ISO 11898) |
| Digital Inputs | 12 Channels, 24VDC |
| Digital Outputs | 12 Channels, 24VDC, 0.5A per channel |
| Baud Rate | Up to 1 Mbit/s (configurable) |
| Status Indicators | 24 Green LEDs + 1 Red Status LED |
| Isolation | 500V RMS (CAN to I/O/System) |
| Weight | 0.24 kg |
Reduces wiring complexity with CAN-based distributed I/O
Supports CANopen protocol for flexible integration
Fast and reliable real-time data transmission
Built-in diagnostics for each I/O channel
Compact and rugged design for remote environments
How is the CAN address configured?
It can be set via SolutionCenter software or hardware switches depending on the version.
Can it work without a master controller?
No. It requires a CAN master such as a Bachmann M1 CPU.
What cable is required for CAN communication?
A shielded twisted-pair CAN cable with proper 120-ohm termination is required.
Is this product 100% Brand New?
Yes. The Bachmann DIO264-C is supplied in 100% Brand New condition with a 2-year warranty.
