Description

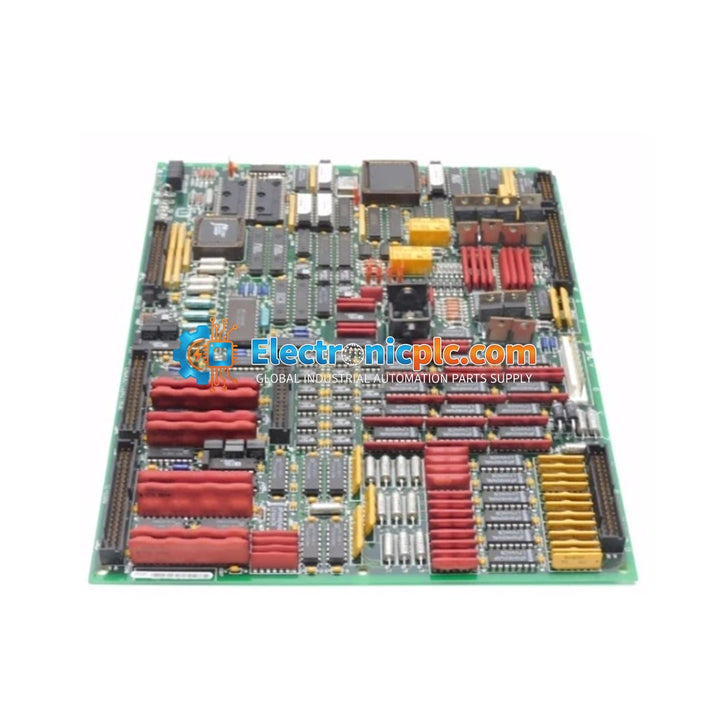

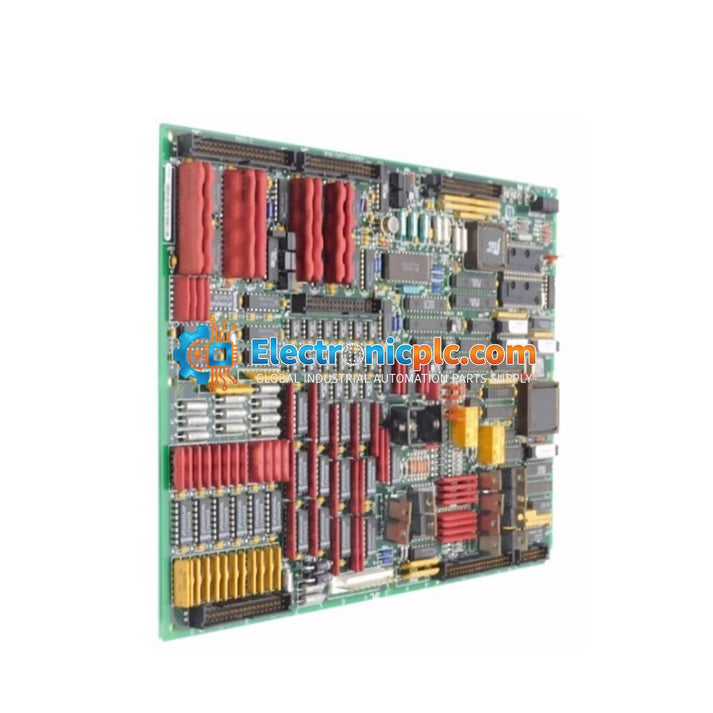

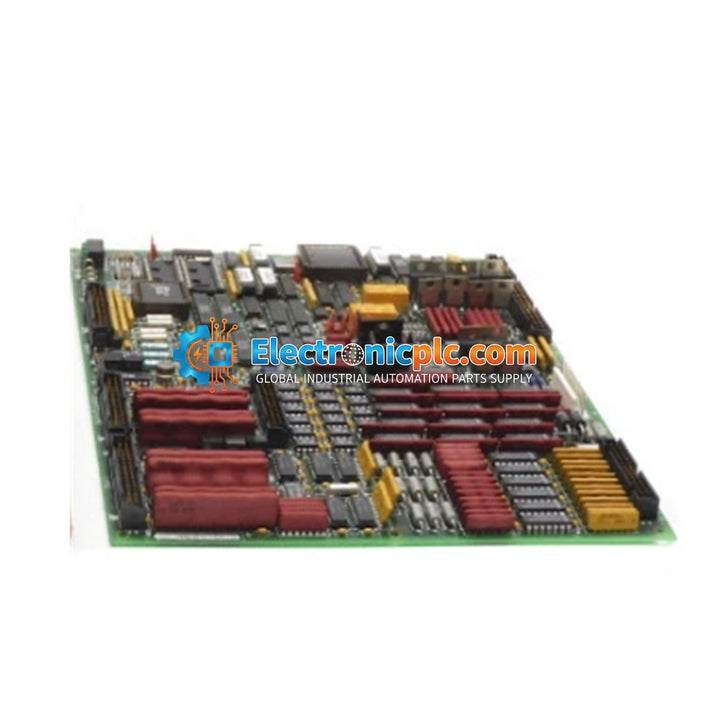

The General Electric DS200TCQAG1BGE is an RST Analog Termination Board designed for use within the Mark series turbine control systems. This I/O board serves as a critical interface for analog signal processing, facilitating the connection between field instrumentation and the control system architecture. It is engineered to handle multi-input and multi-output analog signals, ensuring reliable data acquisition and control signal distribution in demanding turbine management environments.

Features

• Designed for Mark series turbine control applications.
• Supports multi-channel analog input and output signal processing.
• Integrated on-board memory (RAM) for local data handling and configuration support.
• Robust termination interface for field wiring, minimizing signal noise and connection impedance.
• Specifically engineered for high-reliability industrial control environments.

Applications

This termination board is primarily utilized in power generation and industrial turbine control systems. It is essential for monitoring and regulating analog parameters such as pressure, temperature, flow, and valve positioning within the Mark series control architecture.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the board to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive on-board components.
• Verify that all field wiring is securely terminated to the board connectors to ensure signal integrity.
• Ensure the board is correctly seated in the designated rack slot and that all locking mechanisms are engaged.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain analog signal accuracy.

FAQ

What system is the DS200TCQAG1BGE compatible with?

This board is designed for use with General Electric Mark series turbine control systems.

What is the primary function of this board?

The DS200TCQAG1BGE acts as an RST Analog Termination Board, providing the necessary interface for analog I/O signals between field devices and the turbine control system.

Does this board require special handling?

Yes, as an electronic circuit board, it should be handled with standard ESD protection measures to avoid damaging the internal components.
