Description

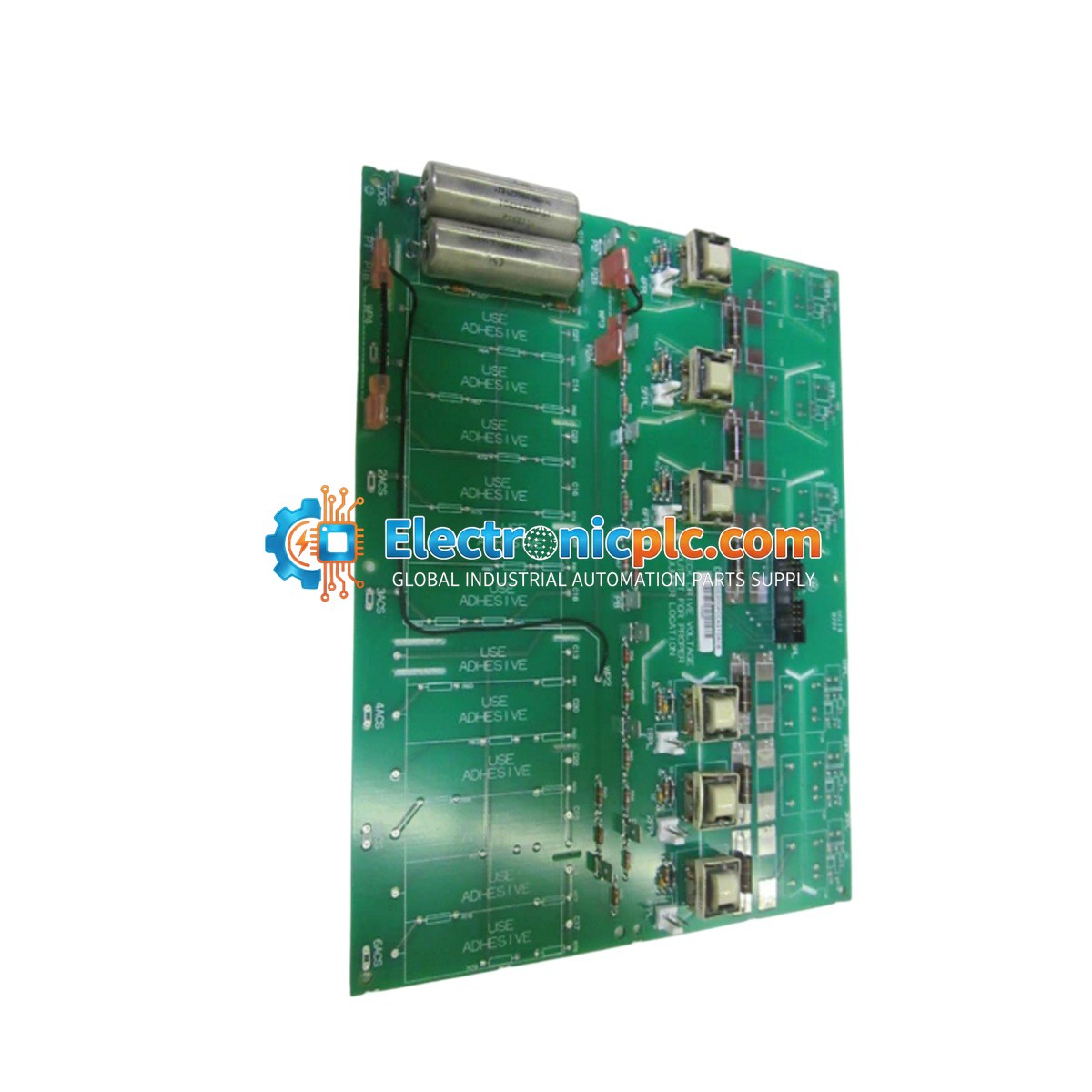

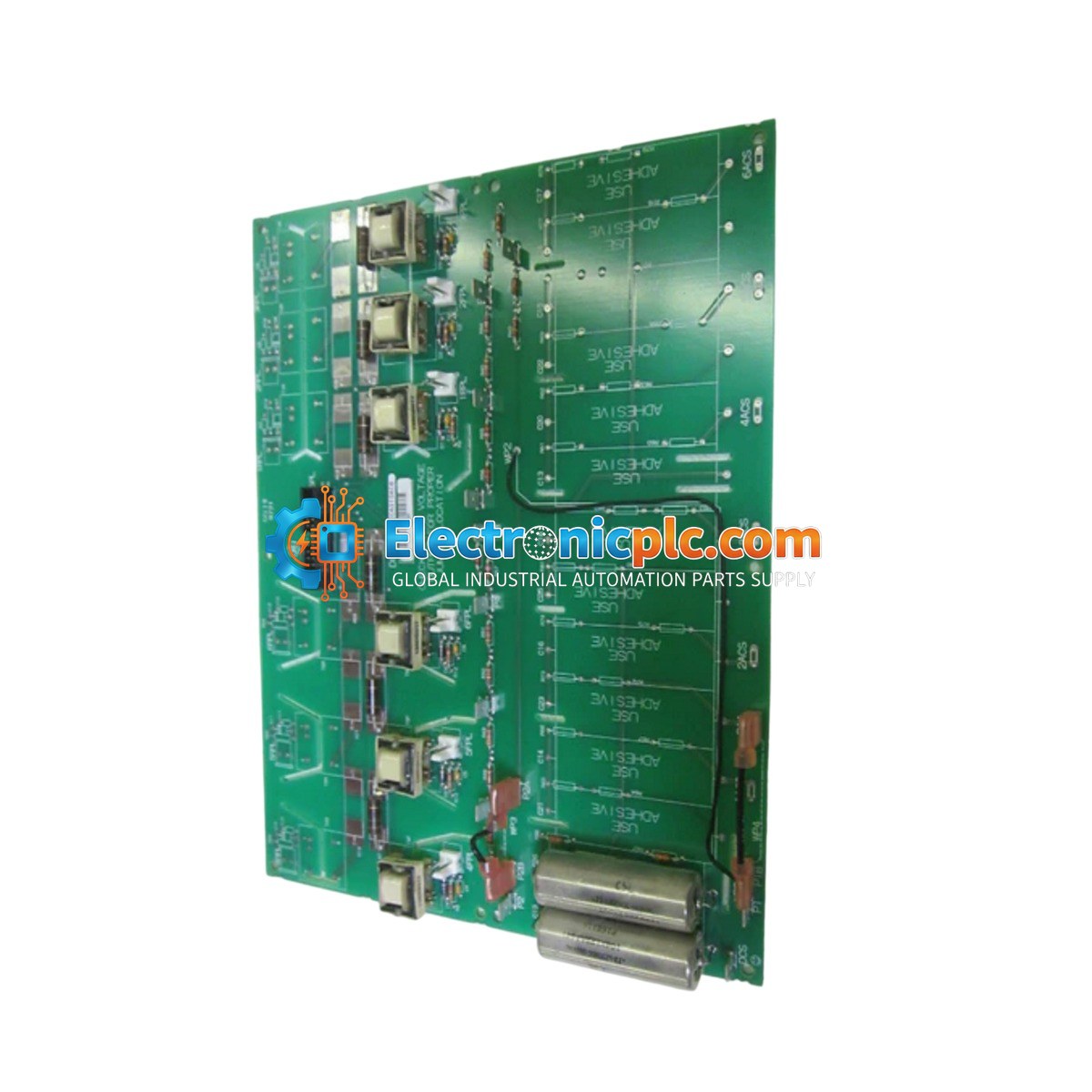

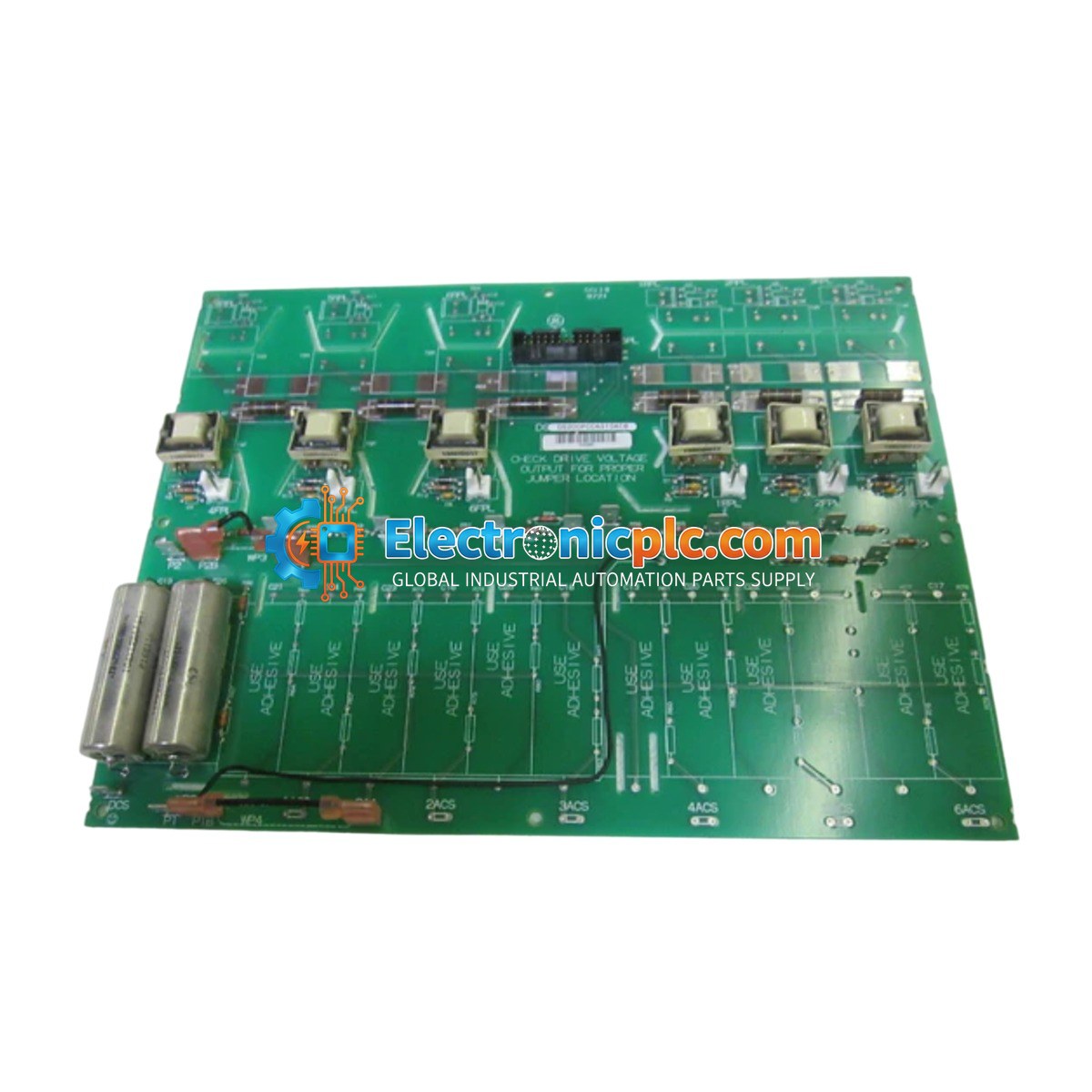

The DS200PCCAG10ACB is a Power Connect Card (PCCA) designed for the General Electric Mark V Speedtronic turbine control system. This board serves as a critical interface component within the control architecture, facilitating power distribution and signal management for drive assemblies in steam, gas, and wind turbine applications. It is engineered to maintain legacy system integrity, ensuring reliable operation in power generation and heavy industrial environments.

Features

• Designed specifically for the GE Mark V Speedtronic control platform.
• Facilitates essential power distribution and signal interfacing for turbine control racks.
• Features standard PCB coating for environmental protection.
• Hardware revision G10ACB, incorporating specific engineering updates (Rev A, Rev C, Artwork B).
• Supports complex I/O requirements inherent to Speedtronic architecture.

Technical Specifications

Installation Guidelines

• Ensure all power to the Mark V control rack is disconnected before inserting or removing the board.
• Handle the PCB by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the rack slot is free of debris and that the board is correctly aligned with the backplane connectors before seating.
• Ensure the board is fully seated and secured using the provided mounting hardware to prevent vibration-induced disconnects.
• Maintain proper ventilation within the control cabinet to ensure operating temperatures remain within the 0 to 60 deg C range.

FAQ

What does the G10ACB suffix indicate?

The G10 grouping identifies the functional variant of the PCCA board, while the ACB suffix denotes the revision history: 'A' for Revision 1, 'C' for Revision 2, and 'B' for the Artwork revision.

Is this board compatible with all Mark V systems?

This board is designed for specific Mark V Speedtronic configurations. Please verify your system's hardware requirements and the GEI-100161 manual to ensure compatibility with your specific turbine control setup.
